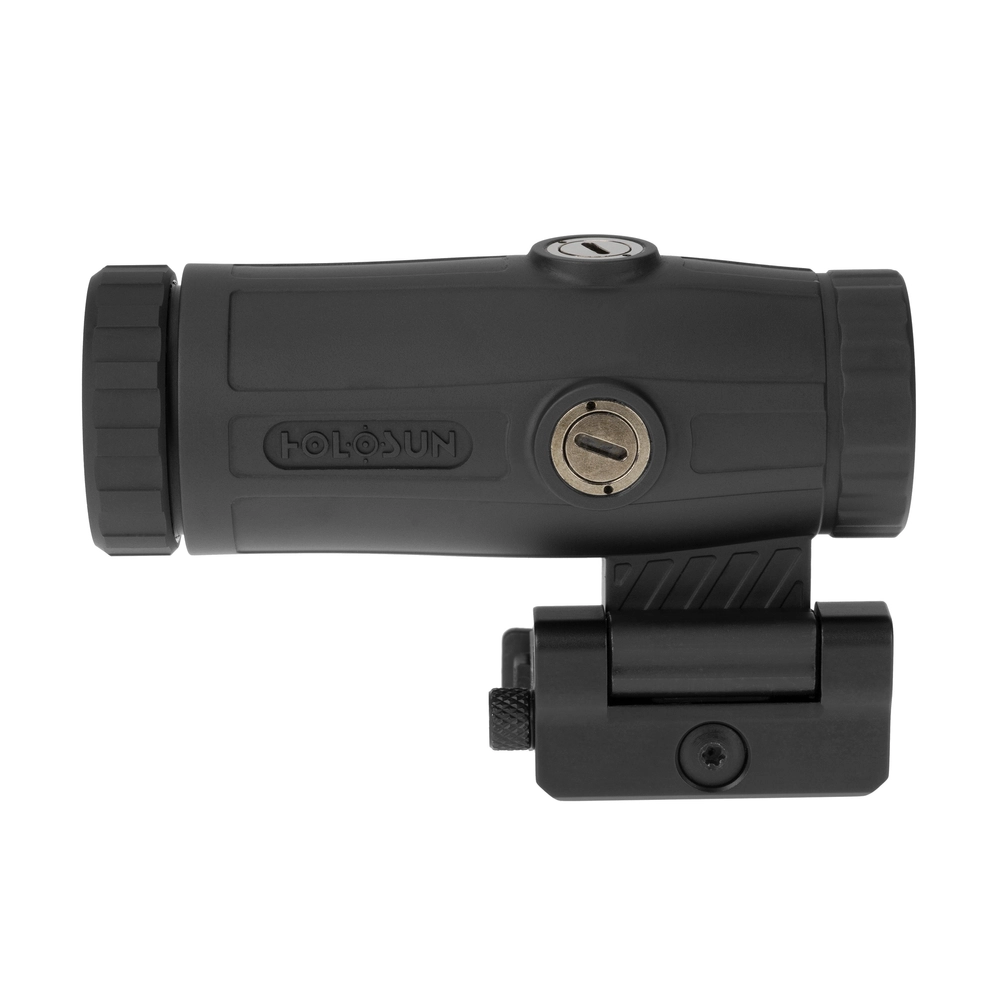

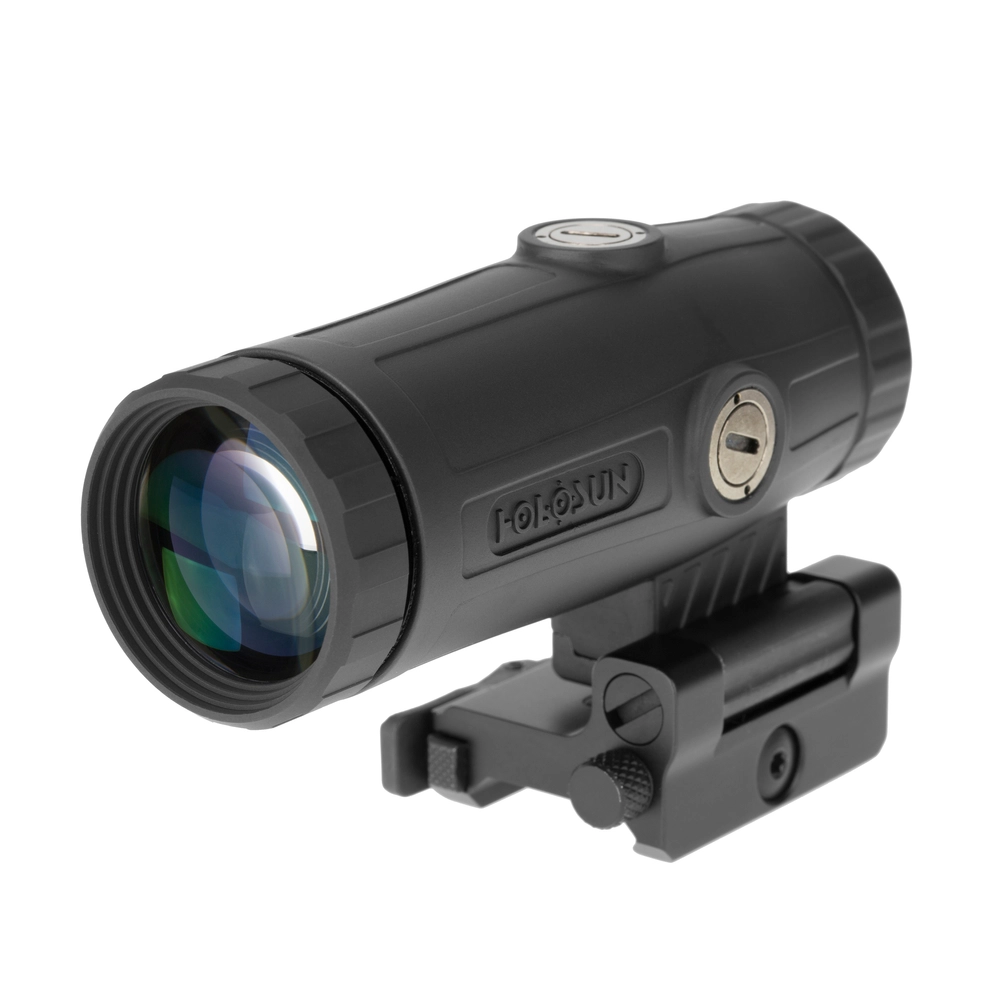

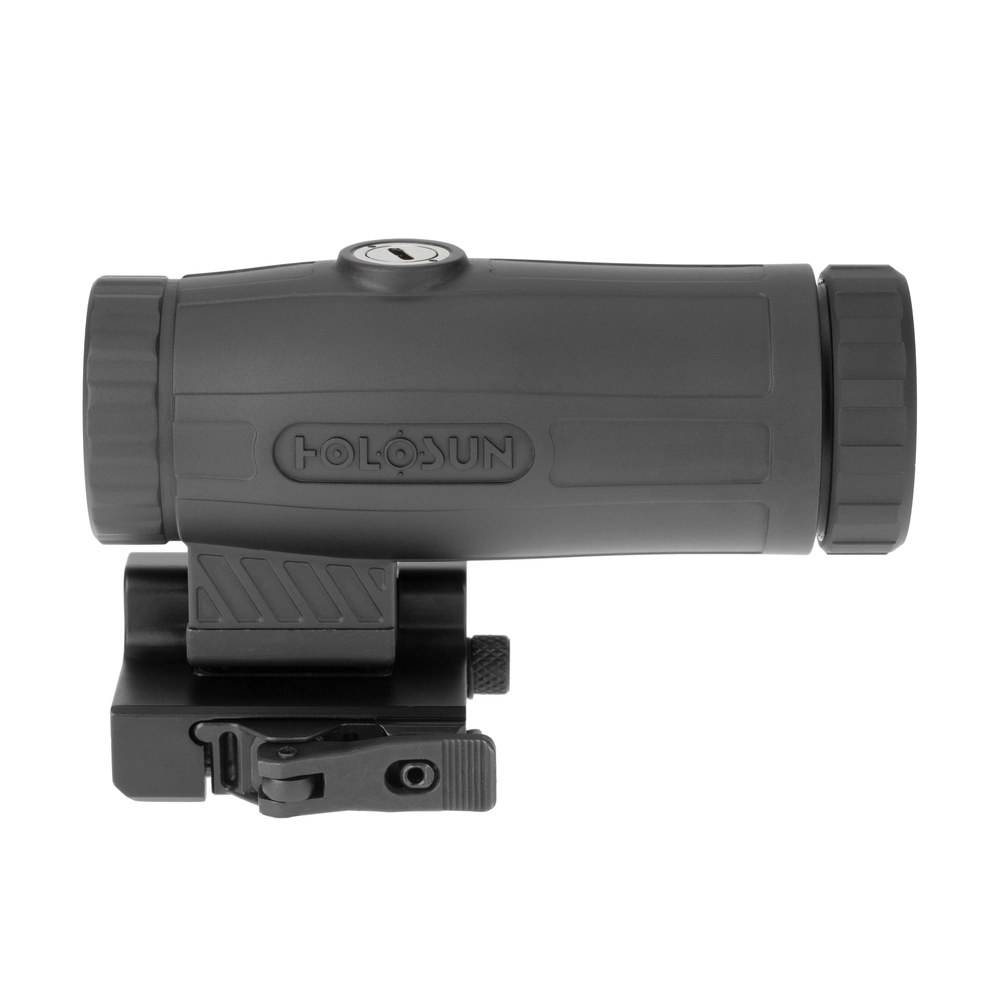

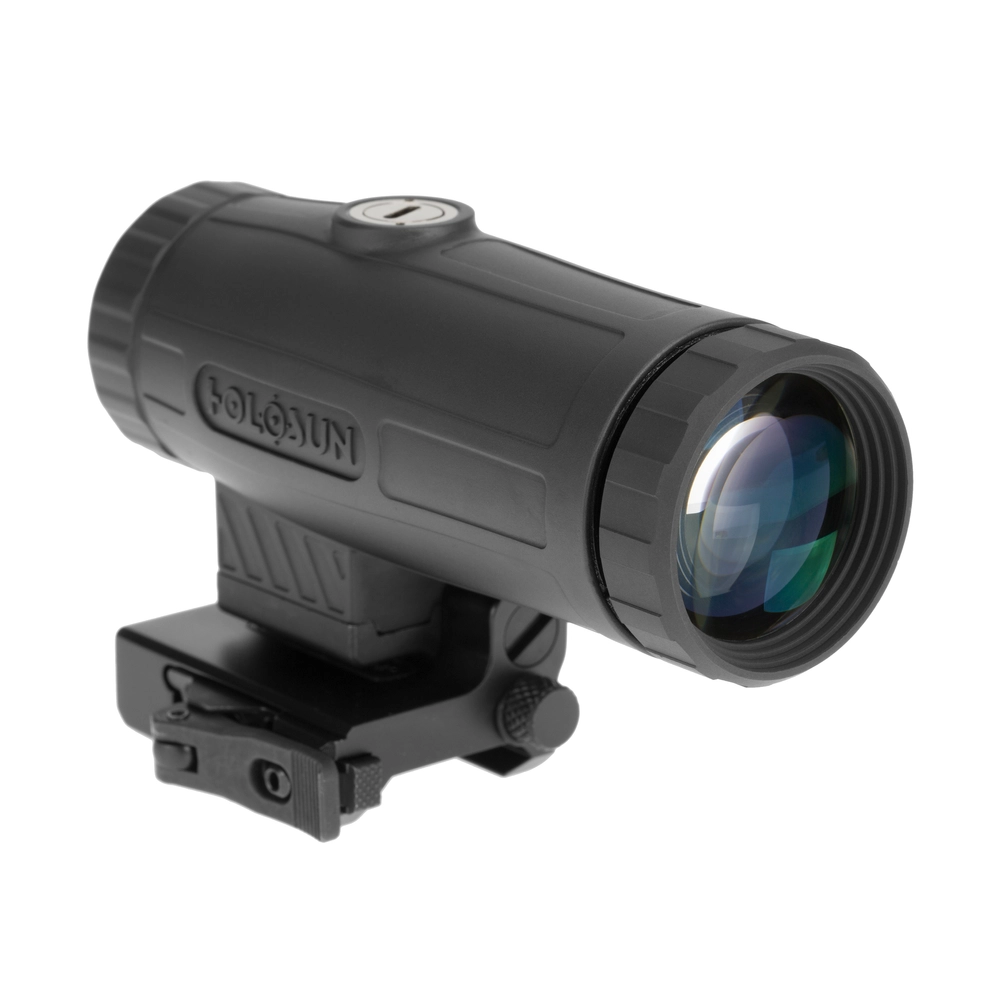

HM3X
$235.28
The HM3X is a rugged 3X magnifier designed to extend the capability of red dot optics on rifles and carbines, improving target identification and precision at distance.
Its durable aluminum housing, flip-to-side QD mount, and adjustable co-witness height provide fast transitions and reliable integration with modern red dot setups.
→ 3X Optical Magnification
Enhances target identification and engagement at extended distances.
→ Flip-to-Side QD Mount
Ambidextrous quick-detach mount enables rapid transitions between magnified and 1x views.
→ Absolute & Lower 1/3 Compatibility
Included spacer supports common red dot mounting heights.
→ Wide Field of View
7° field of view with 2.75 inch eye relief for a clear, comfortable sight picture.
→ Diopter Adjustment
±3D adjustment allows users to fine-tune focus for their vision.
→ Precision Alignment Adjustment
Windage and elevation adjustments ensure perfect alignment with your primary optic.
→ Sealed Aluminum Housing
Durable MAO-finished aluminum construction with IP67 water resistance and nitrogen-purged internals.
Features
- 3X Precision Magnification
Provides fixed 3x magnification to enhance target identification and engagement capability at extended distances. - Flip-to-Side Quick Detach Mount
Ambidextrous flip-to-side mount allows instant transition between magnified and unmagnified views for dynamic shooting situations. - Absolute & Lower 1/3 Height Compatibility
Included spacer allows seamless alignment with both absolute and lower 1/3 co-witness red dot optics. - Generous Eye Relief
70mm (2.75 inch) eye relief provides a comfortable shooting position and full field of view behind the magnifier. - Wide Field of View
7 degree field of view delivers excellent situational awareness and fast target acquisition when magnified. - Adjustable Diopter System
±3 diopter adjustment allows users to fine tune focus for clear sight picture based on individual eyesight. - Precision Alignment Adjustments
Integrated windage and elevation adjustments ensure proper alignment with your primary red dot optic. - Durable Aluminum Housing
Rugged aluminum construction with MAO surface finish provides excellent durability and corrosion resistance. - Nitrogen Purged Optics
Internal nitrogen purging prevents fogging and maintains optical clarity in harsh weather conditions. - IP67 Waterproof Protection
Sealed construction protects the magnifier from water, dust, and environmental exposure for reliable field performance.
FUNCTIONS
Flip To Side Mount
Yes
Compatible with Absolute & Lower 1/3 Height Optics
Yes
Shake Awake Technology
N/A
QD Mount & Spacer Included
Yes
OPTICAL DATA
Magnification
3x
Exit Pupil
7.6mm
Eye Relief
70mm
Field of View
7°
Diopter
±3D
Transmittance
.75
T• Lens Material: Optical Glass
ELECTRONIC DATA
Battery
N/A
Battery Life (Setting 6)
N/A
Brightness Setting
N/A
Removable Battery
N/A
Battery Location
N/A
MECHANICAL DATA
Housing Material
Durable Aluminum
Surface Finish
MAO
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX67
Vibration
1000G
PHYSICAL DATA
Window Size (in)
N/A
Dimension (in) Body
4" x 1.7" x 2.5"
Body (oz) Weight
9.8 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HM3X
Lower 1/3 Spacer
Lens Cloth
Multi-Tool
Manual
Warranty Card
