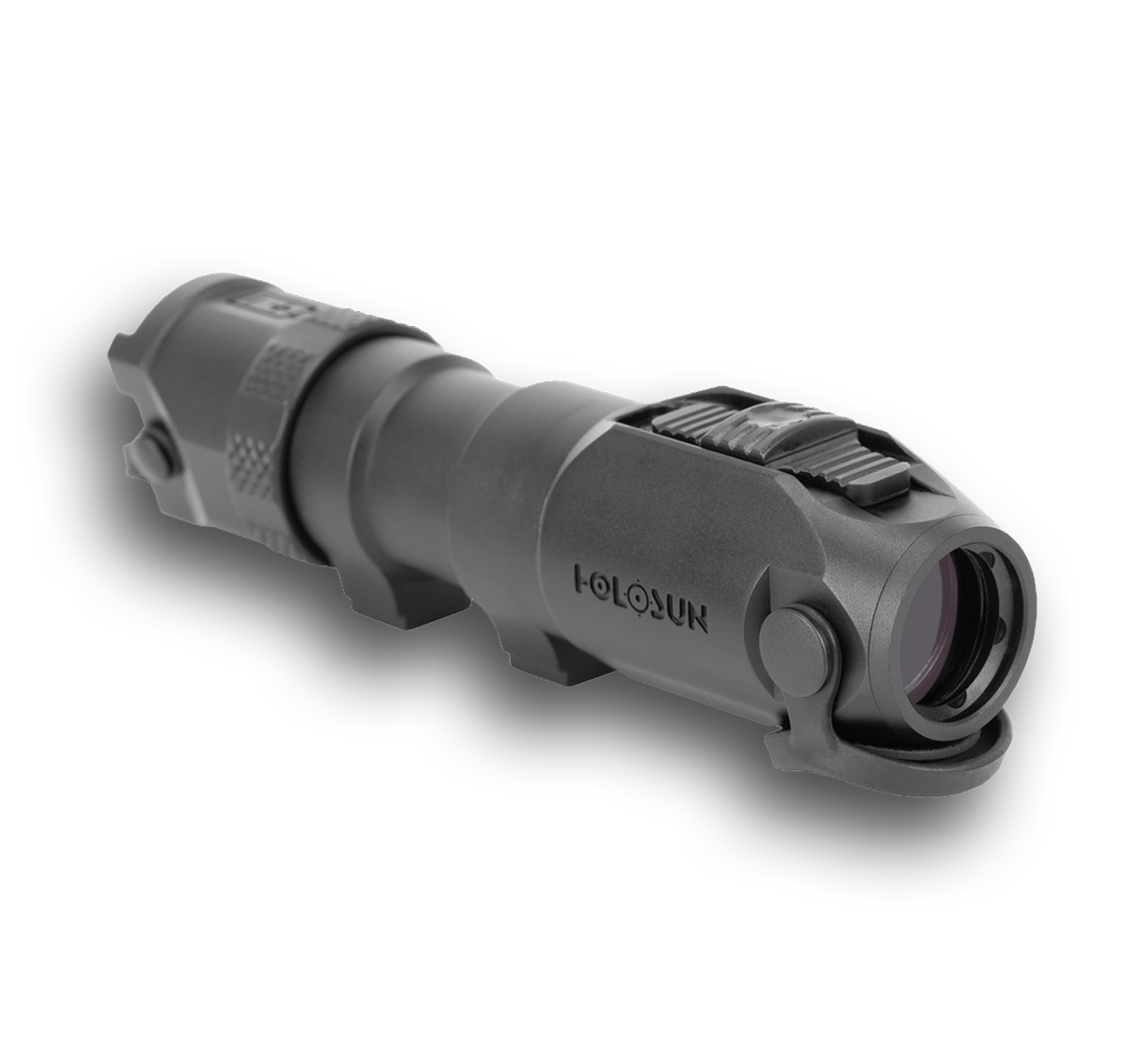

IRIS-ARC
$588.22
NEW FOR 2026 - Coming Q2

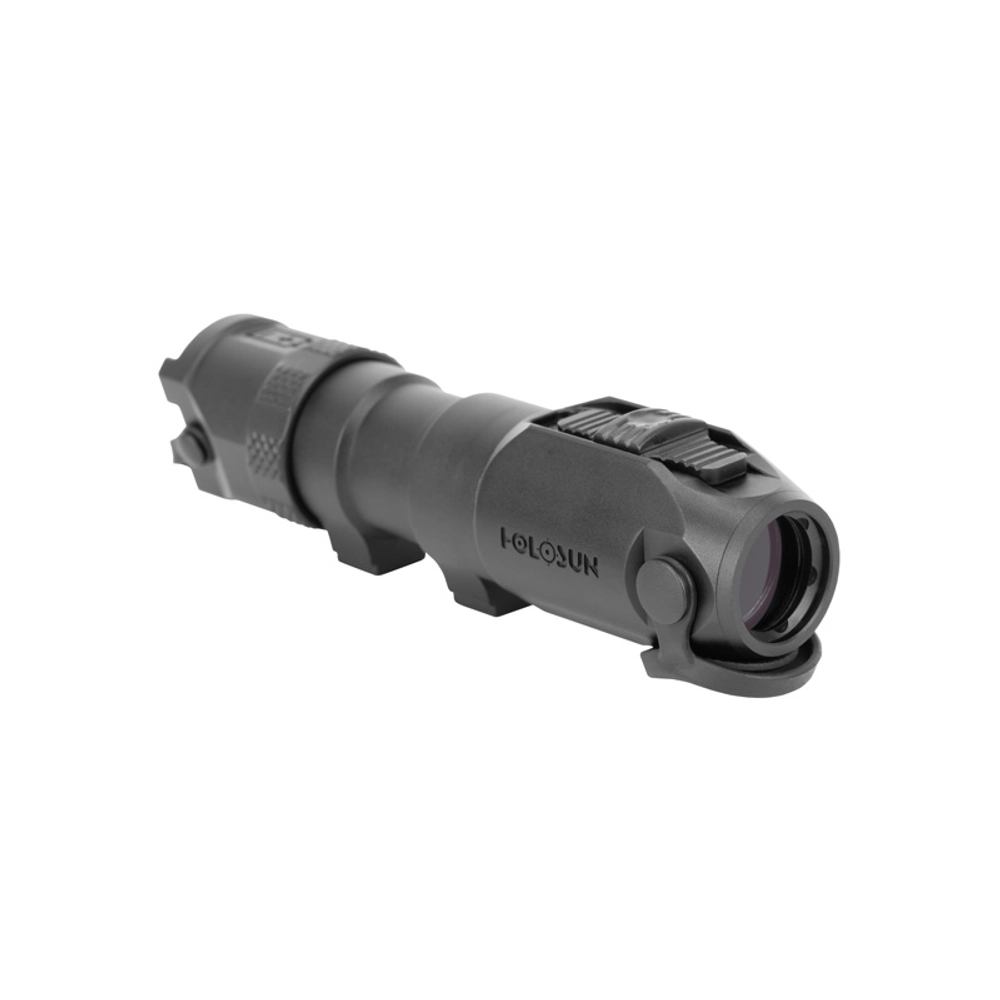

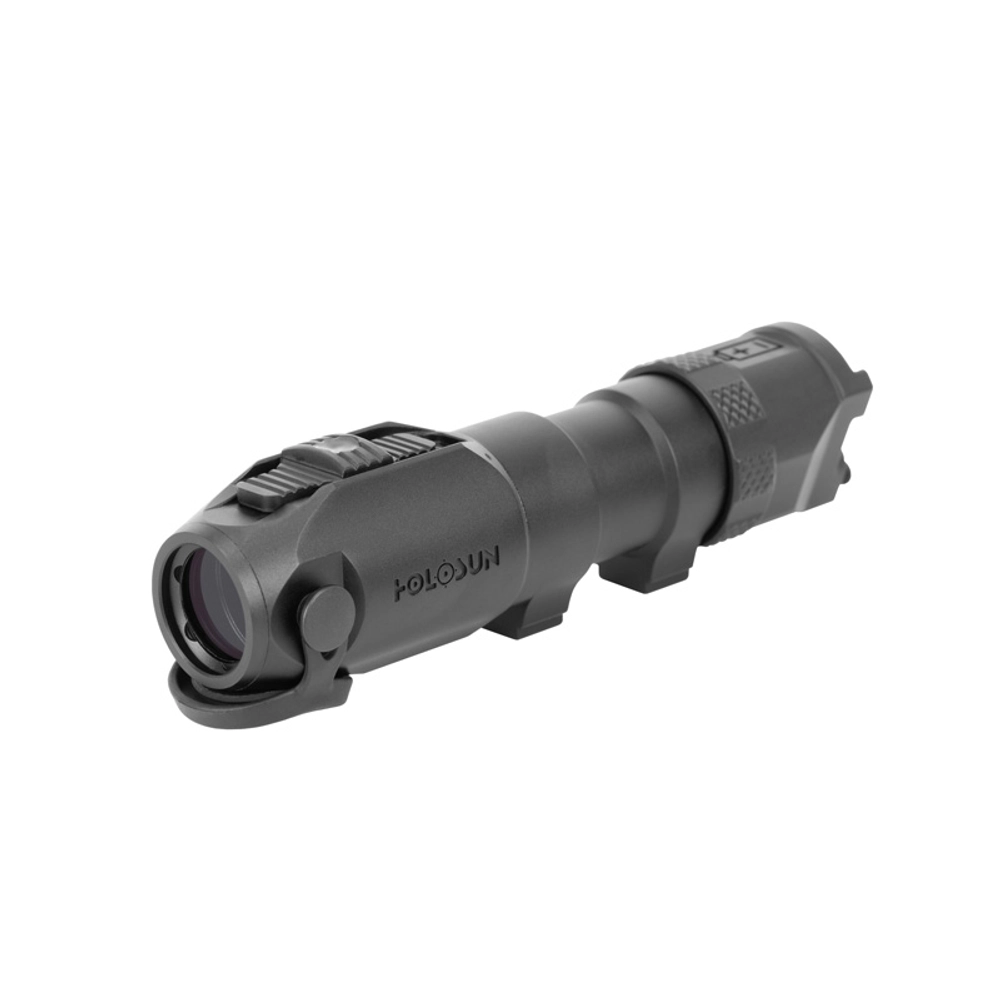

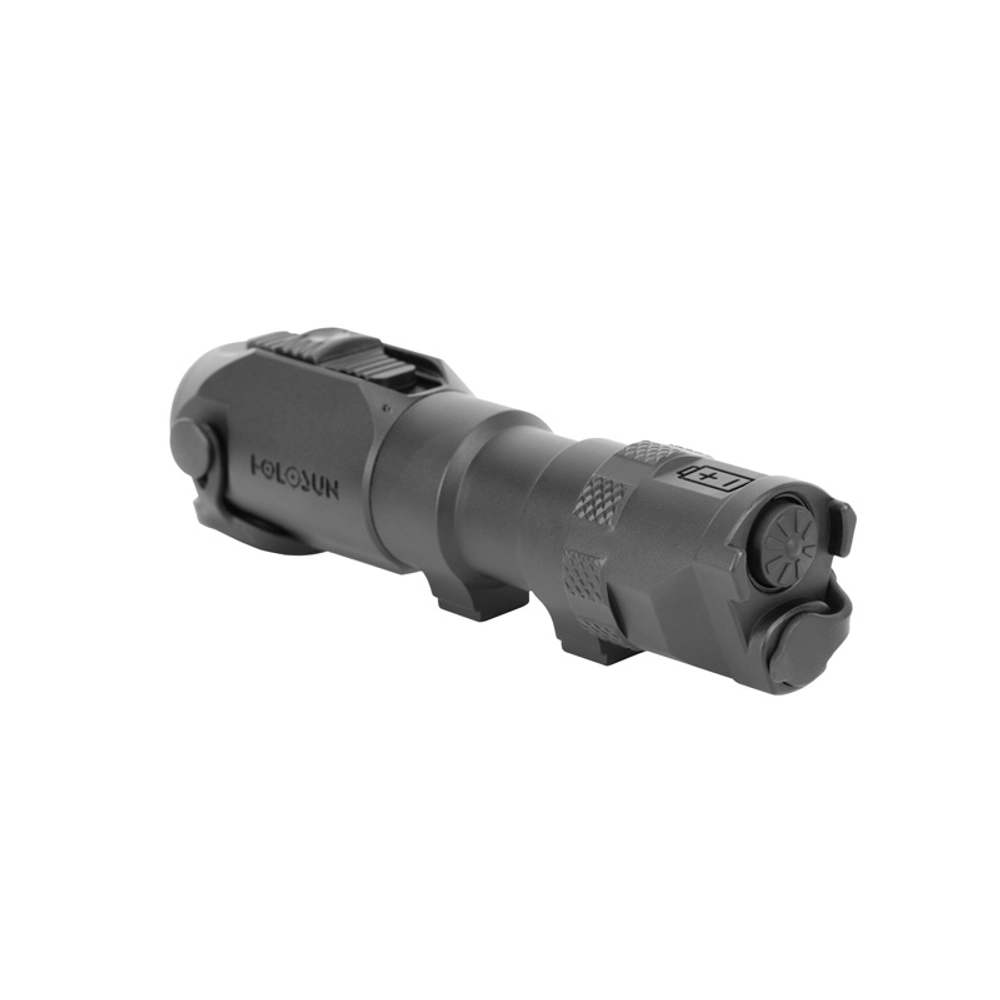

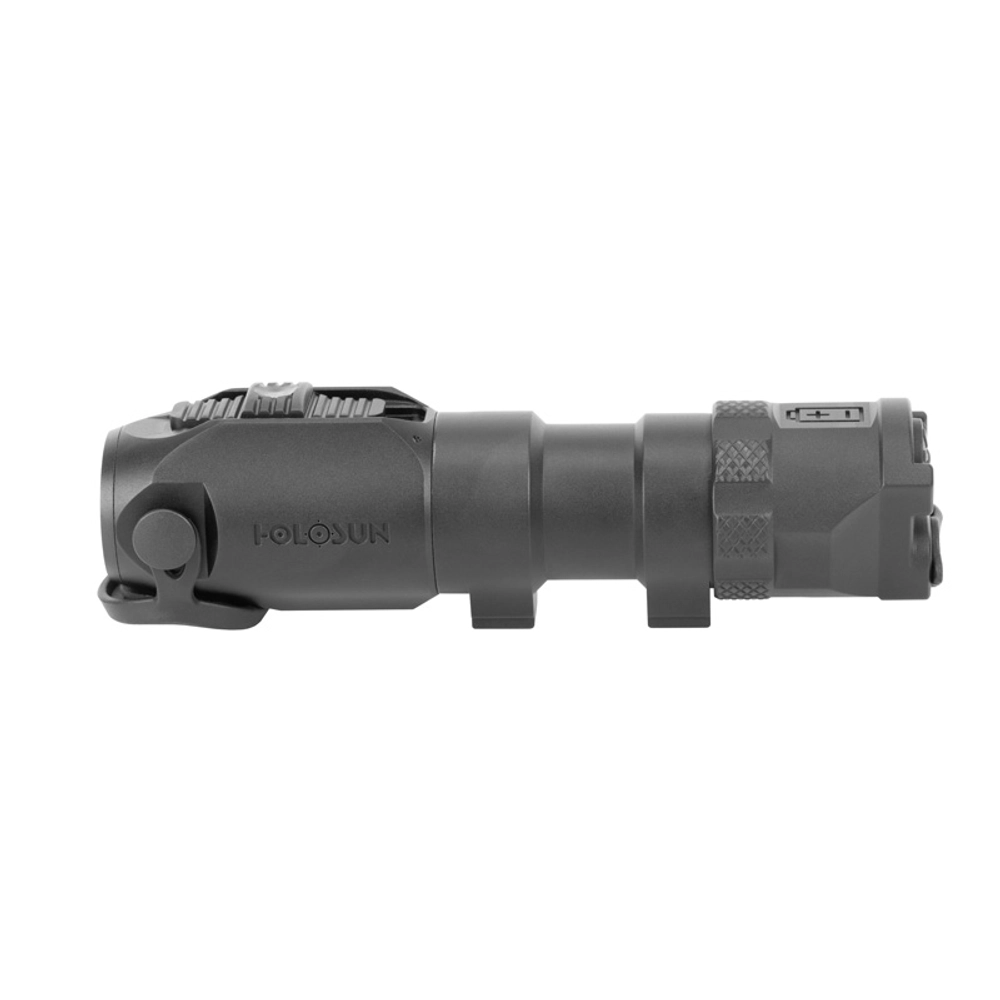

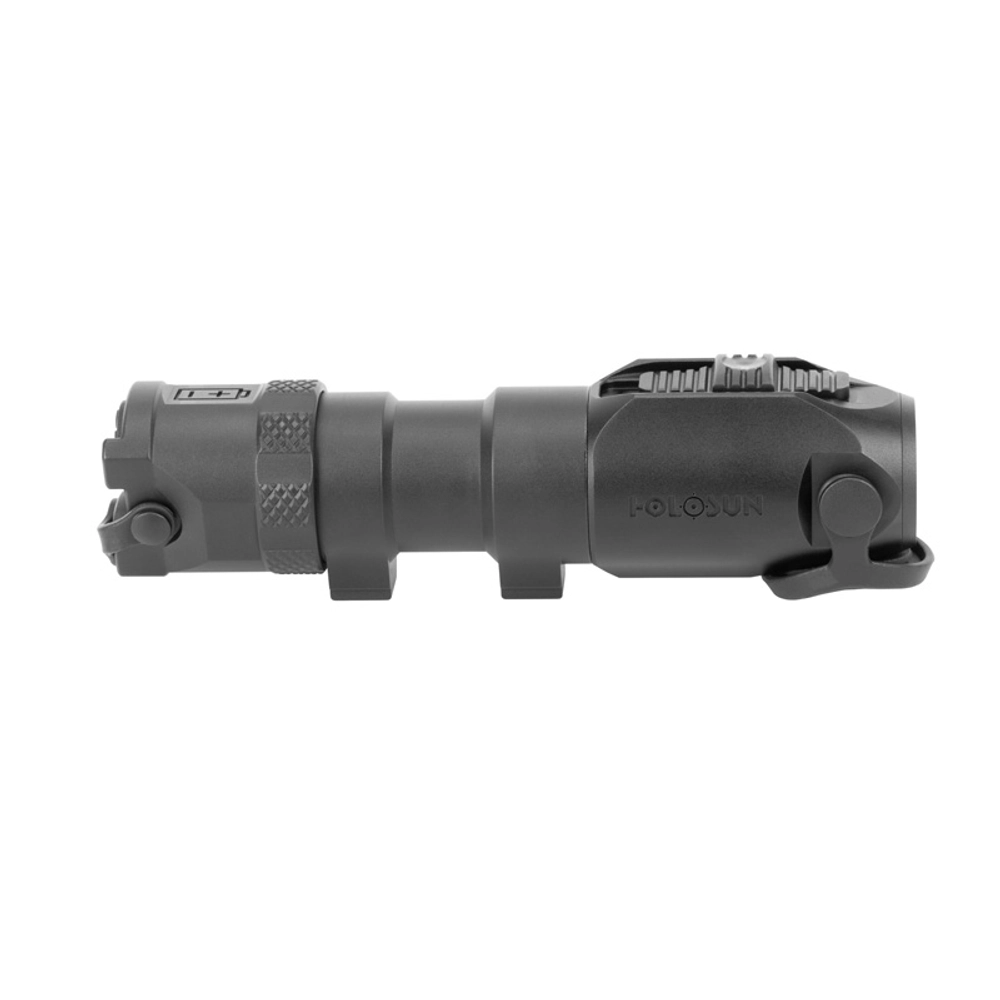

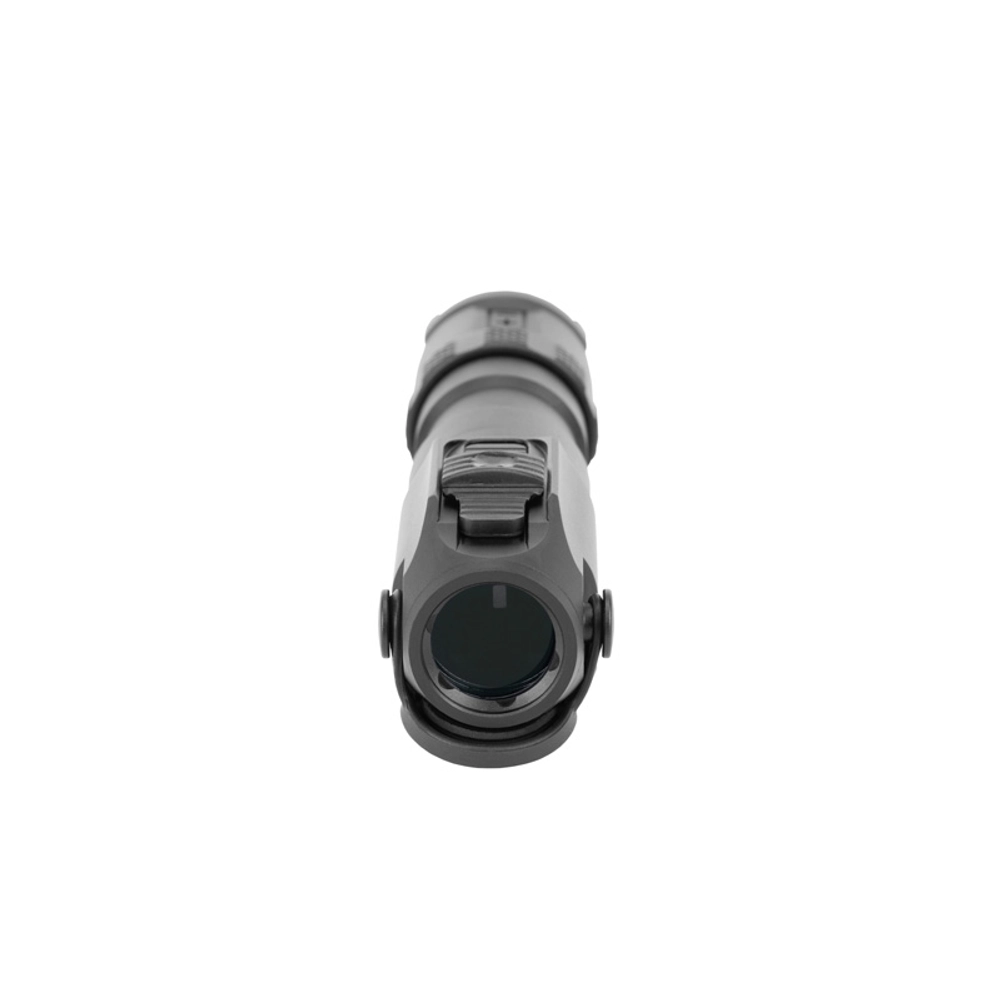

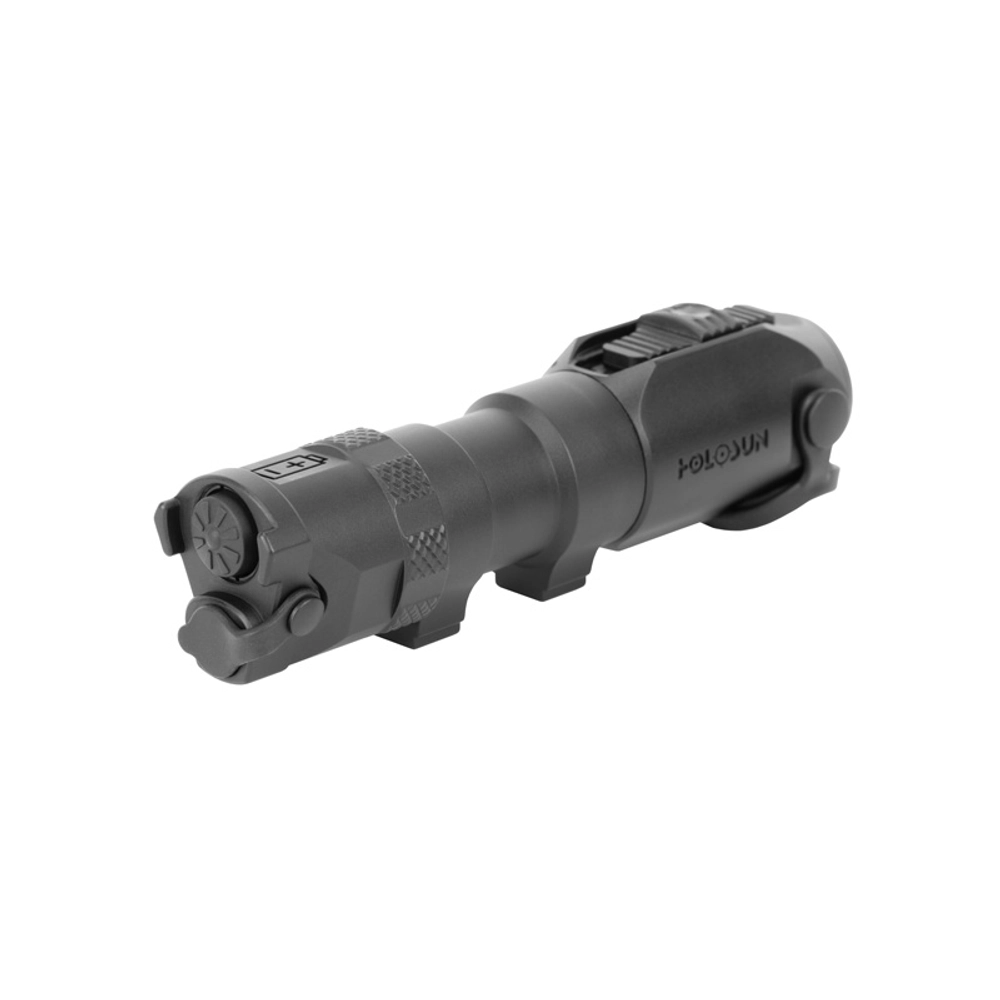

The IRIS-ARC is a compact infrared illuminator built to provide adjustable IR lighting for night-vision use across a wide range of distances.
Its VCSEL emitter, sliding spot-to-flood adjustment, and durable 7075-T6 aluminum housing deliver clean illumination and dependable performance in a compact, mission-ready package.
→ High-Output IR VCSEL
Produces smooth, consistent infrared illumination optimized for night-vision devices.
→ Adjustable Beam Control
Top-mounted slider shifts beam angle from a tight 3° spot to a wide 40° flood.
→ 20–260 mW Output Range
Flexible illumination for both close-range navigation and extended-range visibility.
→ Dual Activation Methods

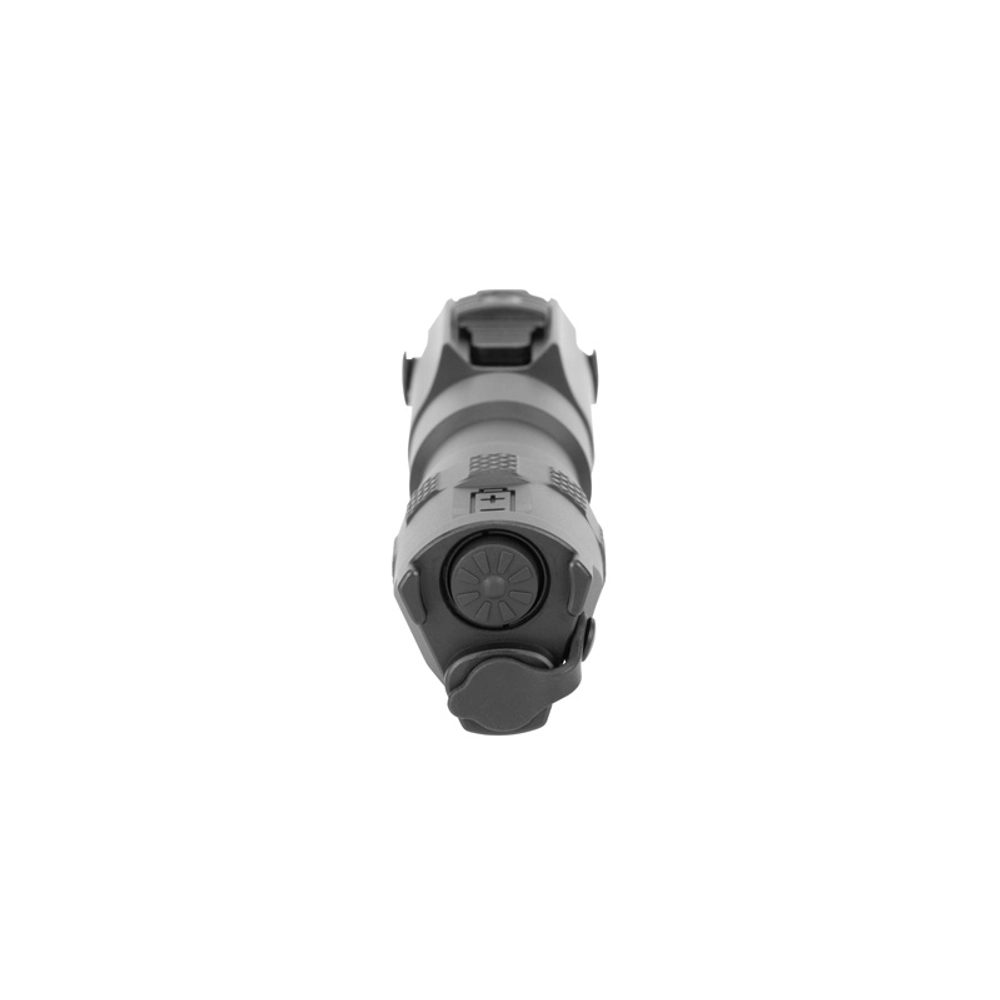

Rear push-button control and Crane-plug pressure pad for flexible operation.
→ Scout-Pattern Mount Interface
Compatible with a wide range of aftermarket weapon-light mounting solutions.
→ IPX8 Waterproof Rating
Sealed housing protects against water and harsh environmental conditions.
→ CR123A Powered
Reliable single-battery power source for compact weapon setups.
Features
- High-Output IR VCSEL Illuminator
Infrared VCSEL emitter produces clean, consistent IR illumination optimized for use with modern night vision devices. - Adjustable Beam Control
Top-mounted slider transitions the beam from a tight 3° spot to a wide 40° flood for adaptable illumination. - Variable Output Power
Adjustable IR output from 20 mW to 260 mW allows effective illumination from close range to extended distances. - Aspherical Lens Optical System
Precision lens group maintains beam clarity and smooth transitions between spot and flood settings. - Dual Activation Controls
Rear push-button and included Crane-plug pressure pad provide flexible activation options. - Scout Pattern Mount Interface
Standard Scout-style mounting compatibility allows use with a wide range of aftermarket weapon light mounts. - CR123A Power Source
Single CR123A battery powers the illuminator for dependable field use. - 7075-T6 Aluminum Housing
Hard anodized aluminum construction delivers durability for demanding rifle setups. - Compact Weapon-Mounted Design
Slim 4.53 inch body integrates easily with modern rail systems without adding unnecessary bulk. - IPX8 Waterproof Construction
Fully sealed housing protects internal electronics from water and harsh environmental conditions.
FUNCTIONS
IR Illuminator
Yes
OPTICAL DATA
IR Laser Wavelength
800-880nm
IR VCSEL Illuminator Wavelength
820-880nm
IR VCSEL Illuminator
>260mW
ELECTRONIC DATA
Battery
1x CR123A
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Anodized
Housing Color
Black
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~51°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Dimensions
4.53" × 1.14" × 1.3"
Weight
4.1 oz
Fitment
Direct Mount
Picatinny
M-Lok
In The Box
IRIS-ARC
Crane Plug Pressure Pad
Lens Cloth
Multi-Tool
Manual
Warranty Card
