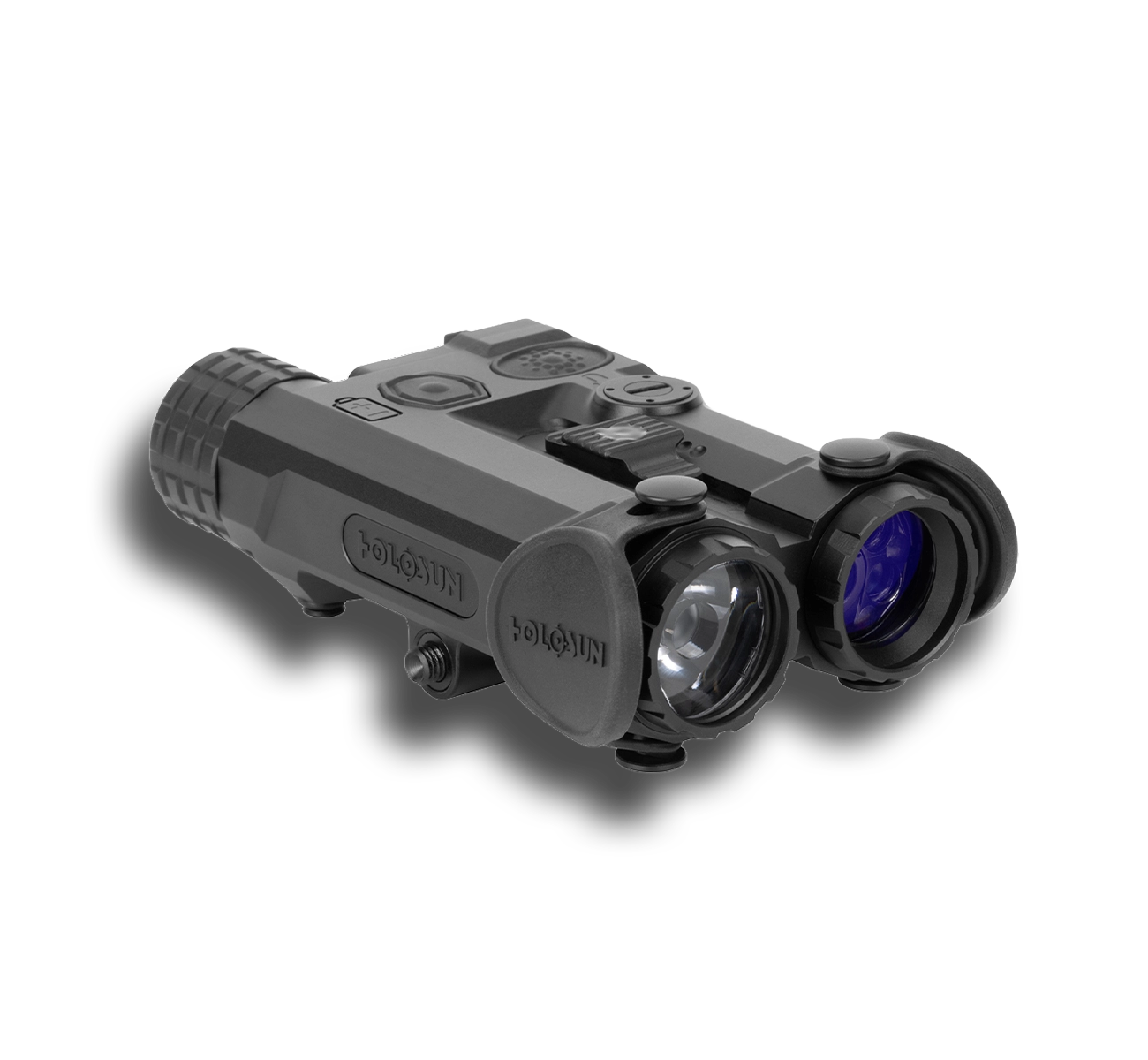

IRIS-GR4
$1176.46

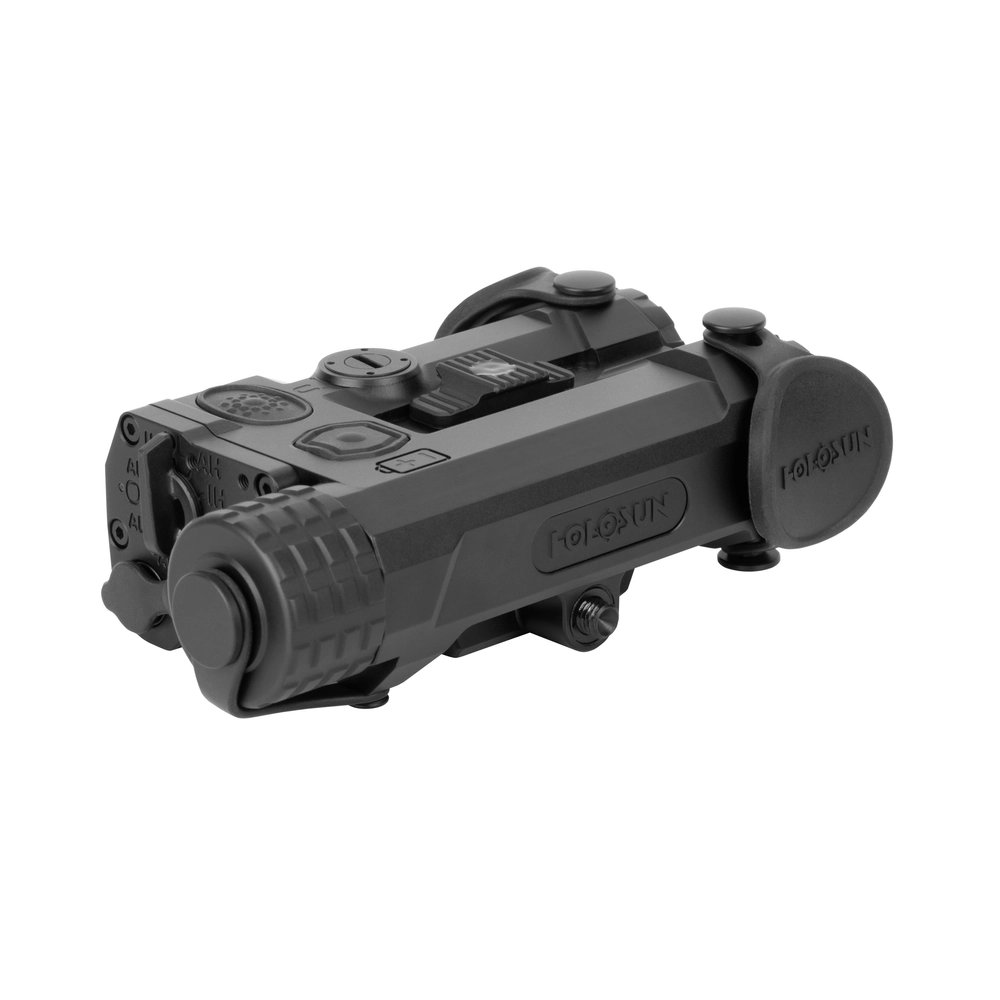

The IRIS-GR4 is a compact quad-function aiming and illumination system designed to deliver maximum capability in a streamlined rifle-mounted platform.
Its 7075-T6 aluminum housing integrates a green laser, IR laser, VCSEL IR illuminator, and white light for adaptable performance across both daylight and night-vision applications.
→ Quad-Function Output
Integrates a visible green laser, IR aiming laser, VCSEL IR illuminator, and high-output white light in one compact system.
→ Visible Green Laser
520nm Class 3R laser (<5mW) provides a crisp aiming point for fast daylight zeroing.
→ IR Aiming Laser
Infrared aiming laser enables precise targeting when used with night-vision devices.
→ VCSEL IR Illuminator
60mW IR illuminator with adjustable beam provides adaptable illumination from flood to focused spot.
→ High-Output White Light
1,000 lumen / 25,000 candela white light delivers powerful illumination for low-light engagements.
→ Top-Mounted Beam Adjustment
Glove-friendly slider allows quick tuning of the IR beam pattern.
→ Remote Activation Included
Three-button Crane-plug pressure pad enables flexible remote control with VIS override.
Reticle Options
Features
- Quad-Function Laser and Illumination System
Integrated green aiming laser, IR aiming laser, IR VCSEL illuminator, and high-output white light provide maximum versatility across day and night environments. - High Visibility Green Laser
520nm Class 3R green laser provides a crisp and highly visible aiming point for daylight use and simplified zeroing. - Infrared Aiming Laser
800–880nm Class 1 IR laser delivers precise aiming capability when operating with night vision devices. - High Output IR VCSEL Illuminator
60mW IR VCSEL illuminator enhances target identification and environmental awareness in low-light and no-light conditions. - Adjustable IR Beam Divergence
Top-mounted slider allows rapid adjustment from wide flood to tight spot for optimal illumination at varying distances. - Integrated 1,000 Lumen White Light
High-output white light produces 1,000 lumens and 25,000 candela for powerful visible illumination when needed. - Co-Aligned Laser Zeroing System
Visible and IR lasers are co-aligned, allowing both systems to be zeroed simultaneously using the visible laser during daylight. - Advanced Control Interface
Independent fire buttons and rear power selector provide intuitive control over laser and illumination functions. - Remote Switch with VIS Override
Included three-button Crane plug pressure pad allows remote activation with dedicated visible laser override capability. - 7075-T6 Aluminum Rugged Housing
Hard anodized aluminum construction provides excellent durability while maintaining a compact, lightweight footprint. - Flexible Power Options
Compatible with the included USB-C rechargeable 18650 battery or dual CR123A batteries for adaptable field power. - IPX8 Waterproof Construction
Fully sealed housing protects internal electronics from water exposure and harsh environmental conditions.
FUNCTIONS
Green Laser Pointer
Yes
IR Laser Pointer
Yes
IR Laser Illuminator
Yes
Flashlight
Yes
IR VCSEL Illuminator
Yes
OPTICAL DATA
Green Laser Output Power
<5mW
Green Laser Class
3R
IR Pointer
<0.7mW
IR Illuminator
60mW VCSEL
IR Pointer or Illuminator Class
1
Green Laser Wavelength
520nm
IR Laser Wavelength
800-880nm
Flashlight Output Power
1000 lumens
Candela
25000 candela
ELECTRONIC DATA
Battery
1x 18650 / 2x CR123A
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Hard Anodized
Housing Color
Black
Laser Adjustment Per Click
0.5 MOA
Laser W&E Travel Range
±50 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~51°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Dimensions
4.2 × 2.3 × 1.4in
Weight
8.5oz
Fitment
Direct Mount
Picatinny
In The Box
IRIS-GR4
Triple Button Pressure Pad - Dual Lead Crane Plug
Lens Cloth
Multi-Tool
Manual
Warranty Card
