LE420-GR
$1411.75

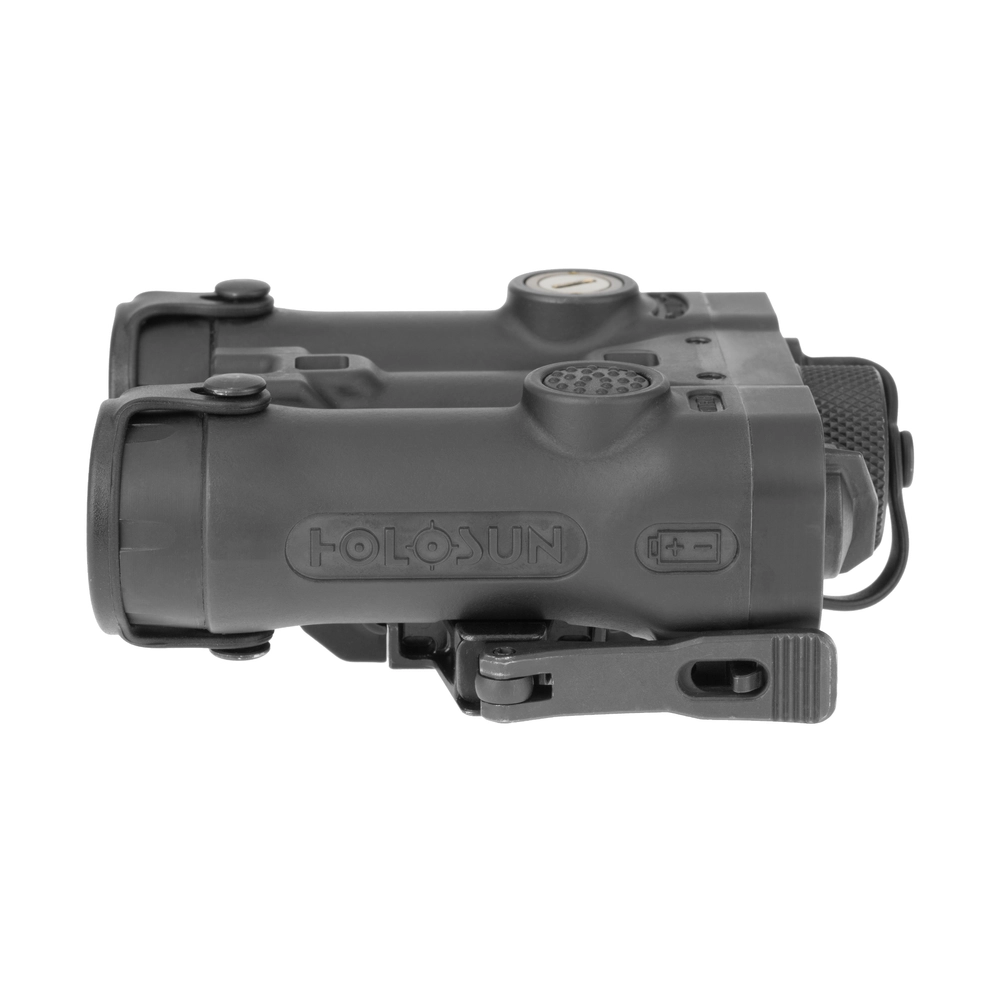

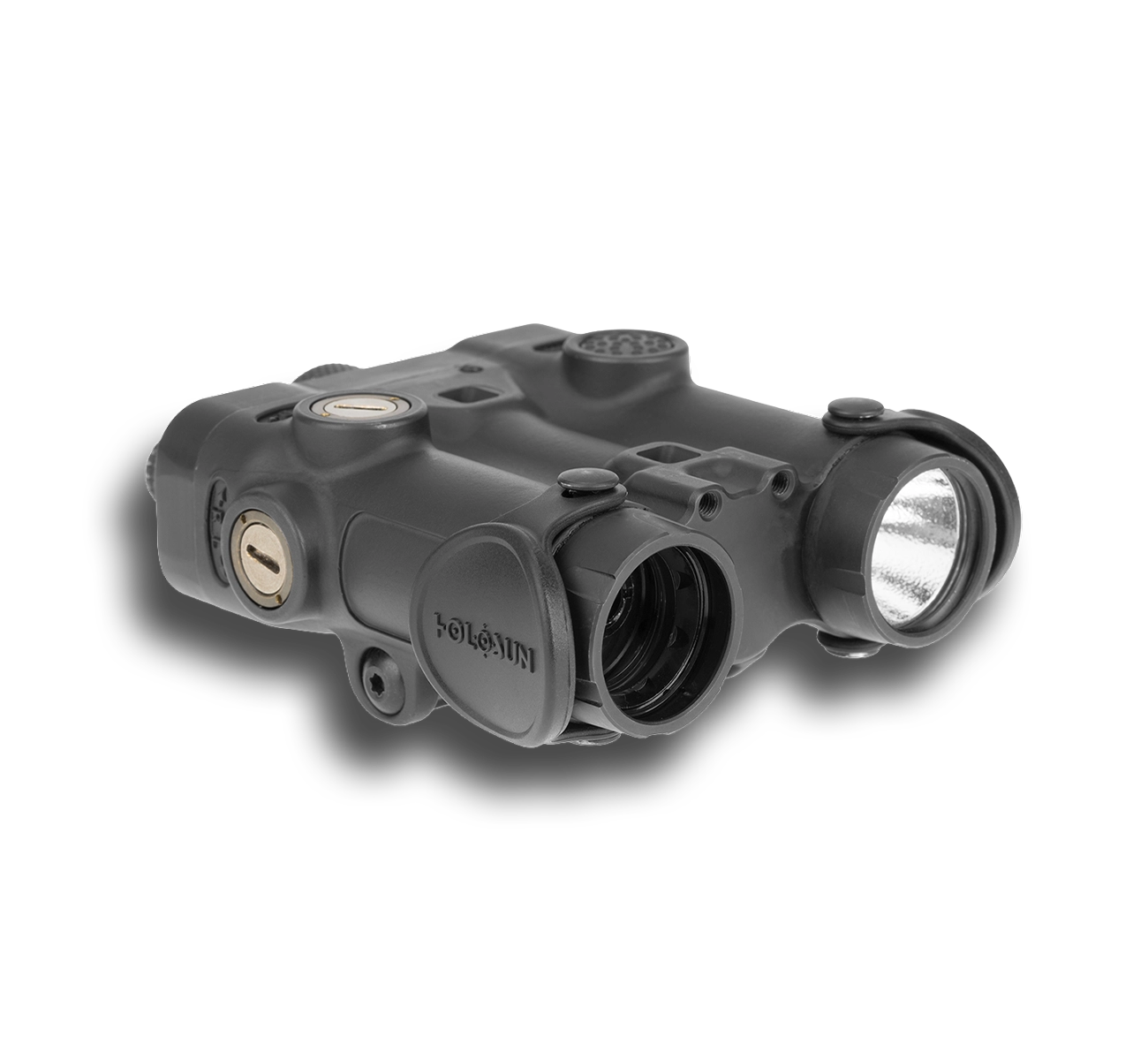

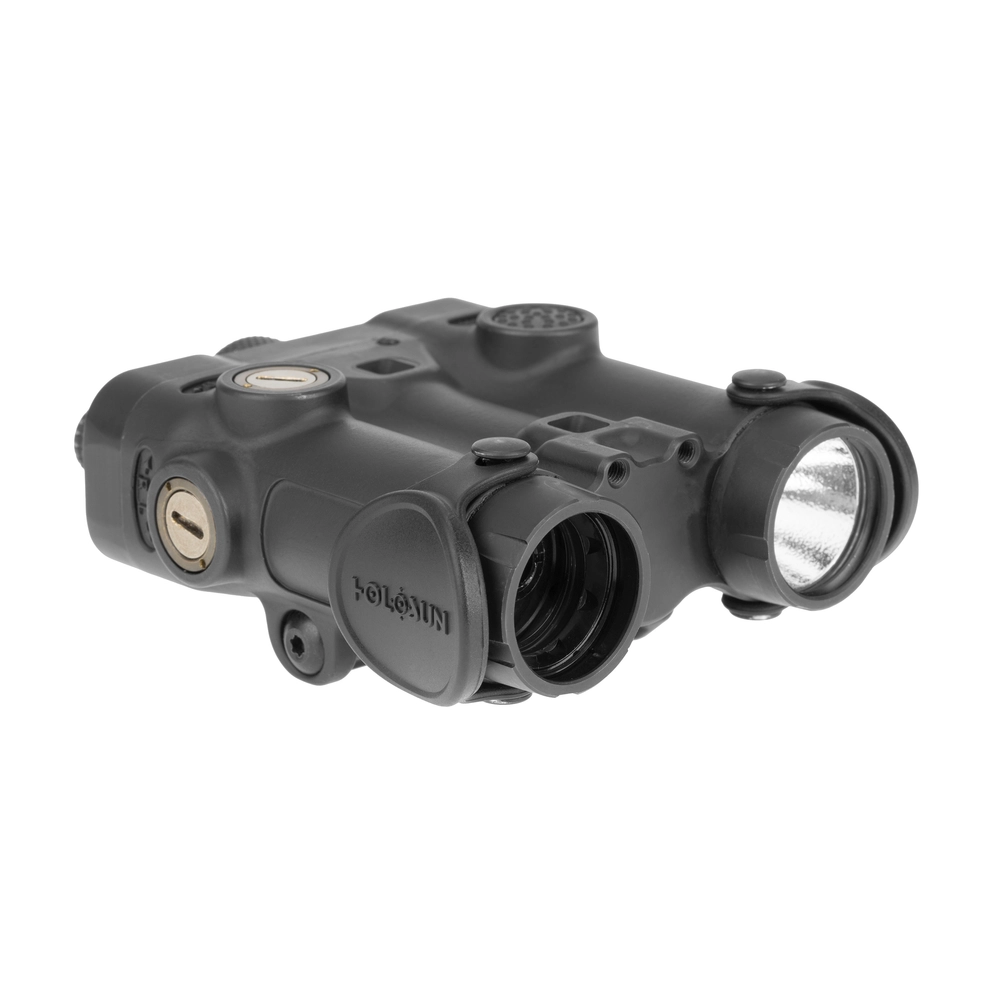

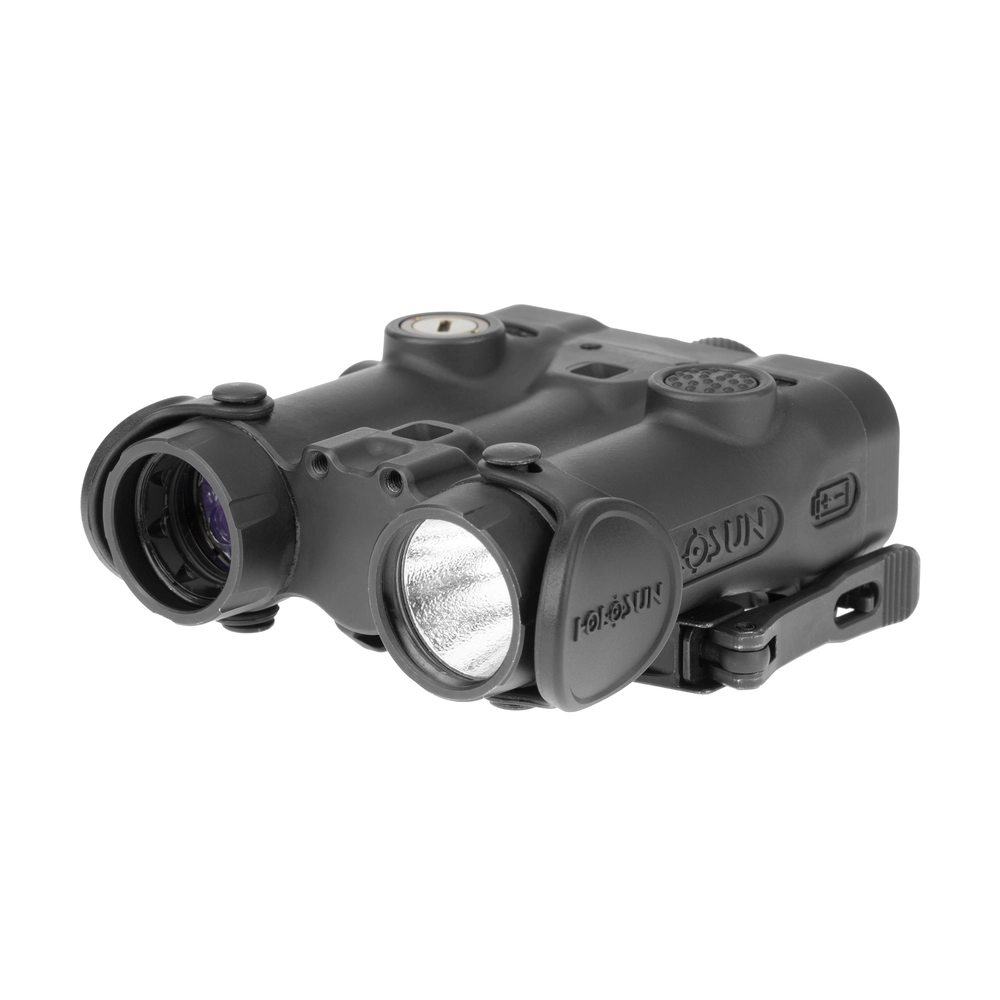

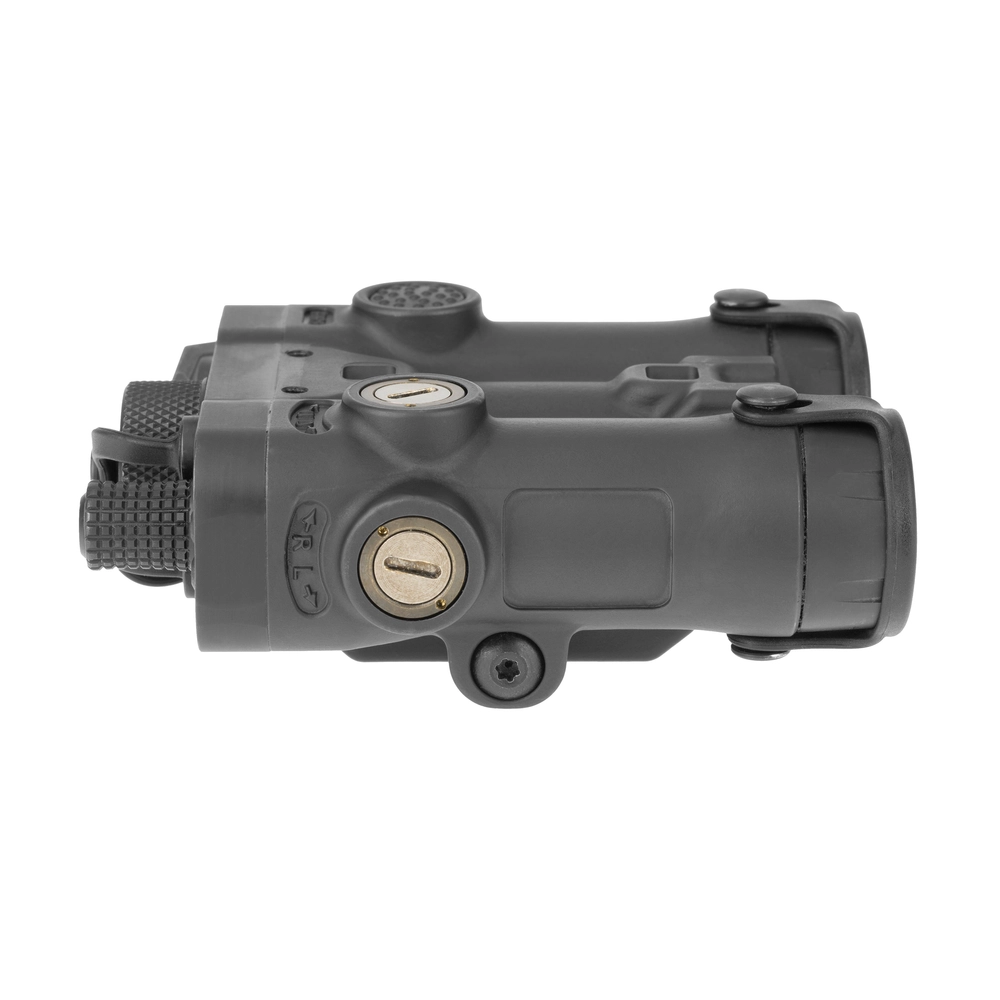

The LE420-GR is a quad-function aiming and illumination system built for rifles that require both visible and night-vision capability.
Its Grade 5 titanium housing integrates a 520nm green laser, IR aiming laser, IR illuminator, and 600-lumen white light into a compact, rugged platform for adaptable performance in day or night environments.
Feature Highlights
→ Quad-Function System
Combines a visible green laser, infrared aiming laser, IR illuminator, and white light in one integrated unit.
→ High-Visibility Green Laser
520nm Class 3R green laser (<5mW) provides a crisp aiming reference in daylight conditions.
→ Infrared Aiming Laser
830nm Class 1 IR laser (<0.7mW) designed for use with night vision devices.
→ Integrated IR Illuminator
800–880nm IR illuminator improves target visibility in low-light and no-light environments.
→ 600 Lumen White Light
Integrated white light provides reliable illumination for close- and mid-range engagement.
→ Multi-Mode Control Interface
Rear selector switch supports visible, IR, and white light operating modes.
→ Remote Activation Included
Pressure switch allows flexible mounting and remote operation.
Reticle Options
Features
- Quad-Function Targeting System
Integrates a visible green laser, IR aiming laser, IR illuminator, and white light into a single compact unit for maximum operational versatility. - High Visibility Green Laser
520nm Class 3R green laser with <5mW output provides bright daytime aiming capability and rapid target acquisition. - Infrared Aiming Laser
Class 1 IR laser (830nm, <0.7mW) enables precise aiming when used with night vision devices. - Infrared Illuminator
Integrated IR illuminator enhances target identification and environmental visibility in complete darkness when used with night vision. - 600 Lumen White Light
High output white light delivers strong illumination for close to mid-range identification and engagement. - Coaxial Laser Alignment
Visible and IR lasers are aligned to simplify zeroing and maintain consistent point of aim across both day and night modes. - Grade 5 Titanium Housing
Titanium body provides exceptional durability and corrosion resistance in harsh environments. - Multiple Activation Methods
Top mounted fire button, rear mode selector, and included remote pressure switch provide flexible control options. - Precision Adjustment System
Windage and elevation adjustments feature 0.5 MOA per click with ±50 MOA travel for accurate zeroing. - Dual CR123A Power System
Powered by two CR123A batteries for long operational runtime and reliable field performance. - Picatinny Rail Mounting
Integrated mount provides secure attachment to standard Picatinny rail platforms. - Mission Ready Durability
IPX8 waterproof rating and 1000G vibration resistance ensure dependable performance in demanding conditions.
FUNCTIONS
Green Laser Pointer
Yes
IR Laser Pointer
Yes
IR Laser Illuminator
Yes
Flashlight
Yes
IR LED Illuminator
Yes
OPTICAL DATA
Green Laser Output Power
<5
Green Laser Class
3R
IR Pointer
<0.7
IR Illuminator
<0.7mW
IR Pointer or Illuminator Class
1
Green Laser Wavelength
520nm
IR Laser Wavelength
800-880nm
Flashlight Output Power
600 lumens
Candela
-
ELECTRONIC DATA
Battery
2x CR123A
MECHANICAL DATA
Housing Material
Titanium
Surface Finish
Titanium Finish
Housing Color
Black
Laser Adjustment Per Click
0.5 MOA
Laser W&E Travel Range
±50 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-40°C~51°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Dimensions
3.66 × 3.07 × 1.46"
Weight
Fitment
Direct Mount
Picatinny
In The Box
LE420-GR
Single Button Pressure Pad - Crane Plug
Lens Cloth
Multi-Tool
Manual
Warranty Card
