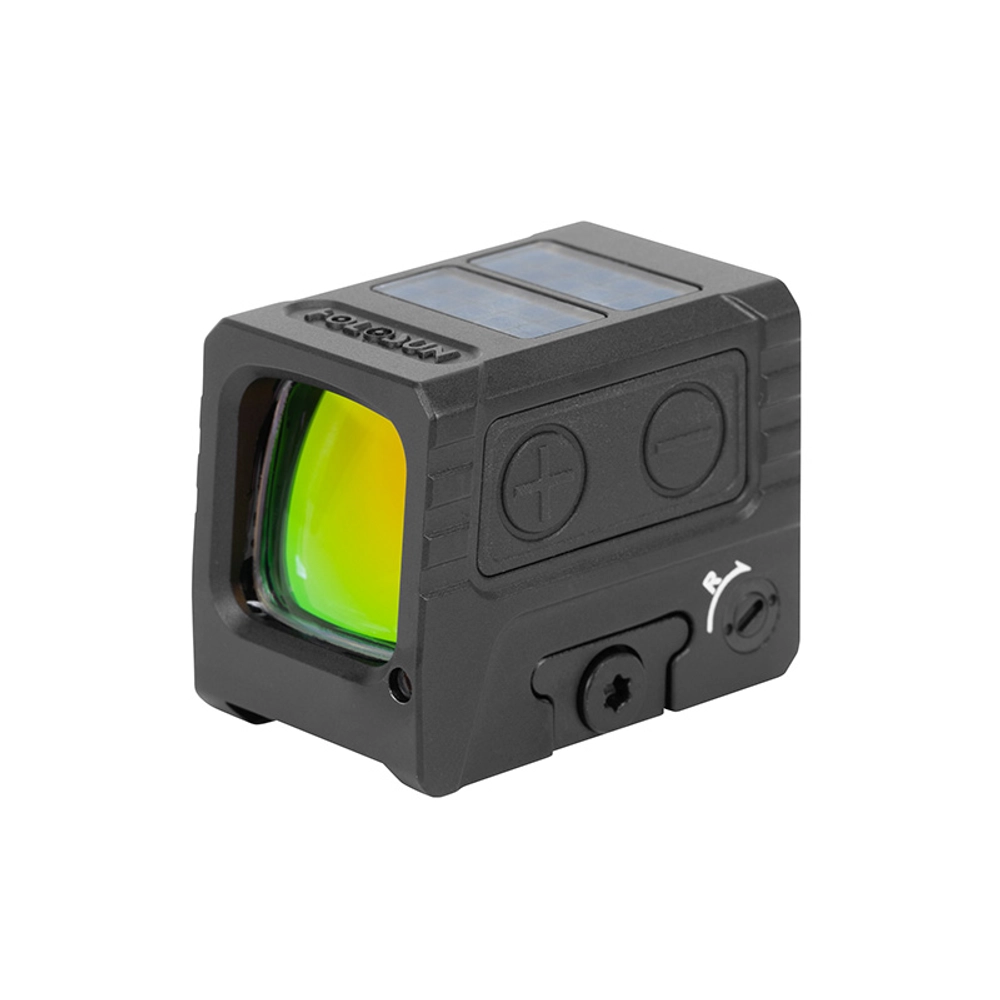

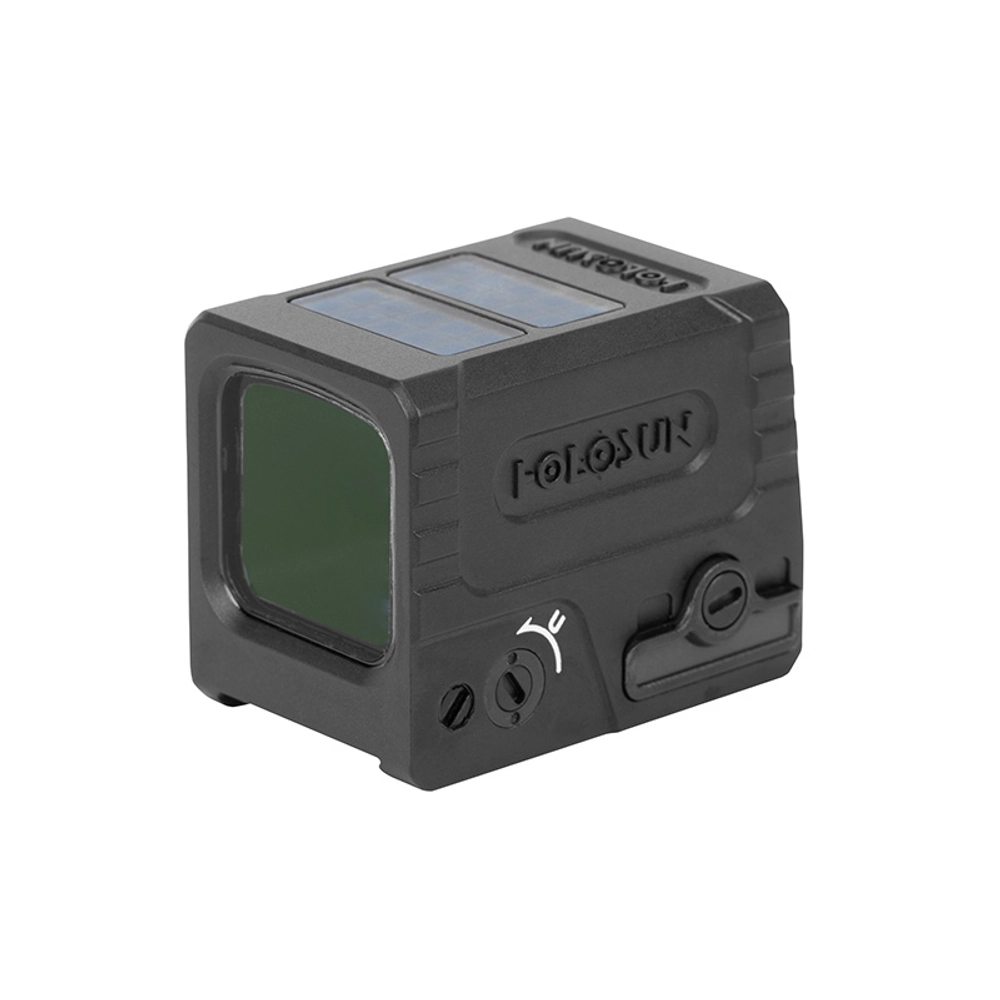

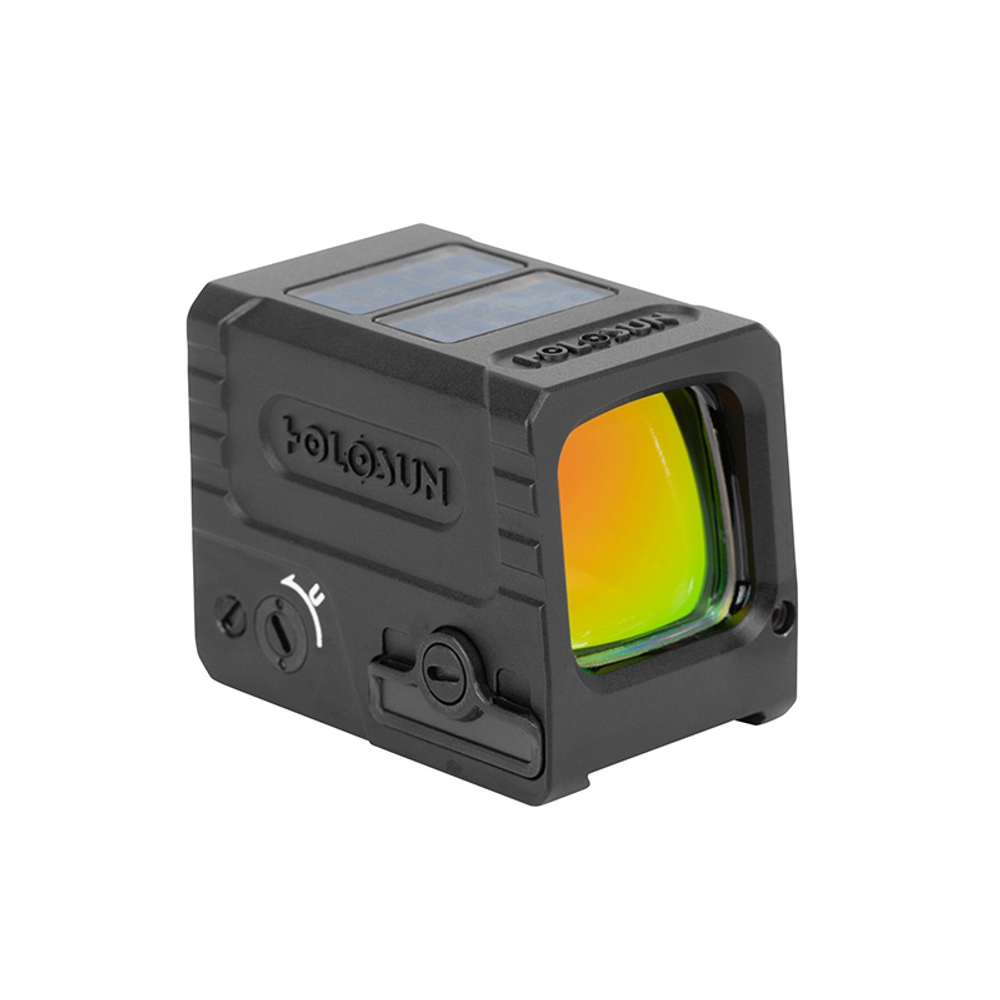

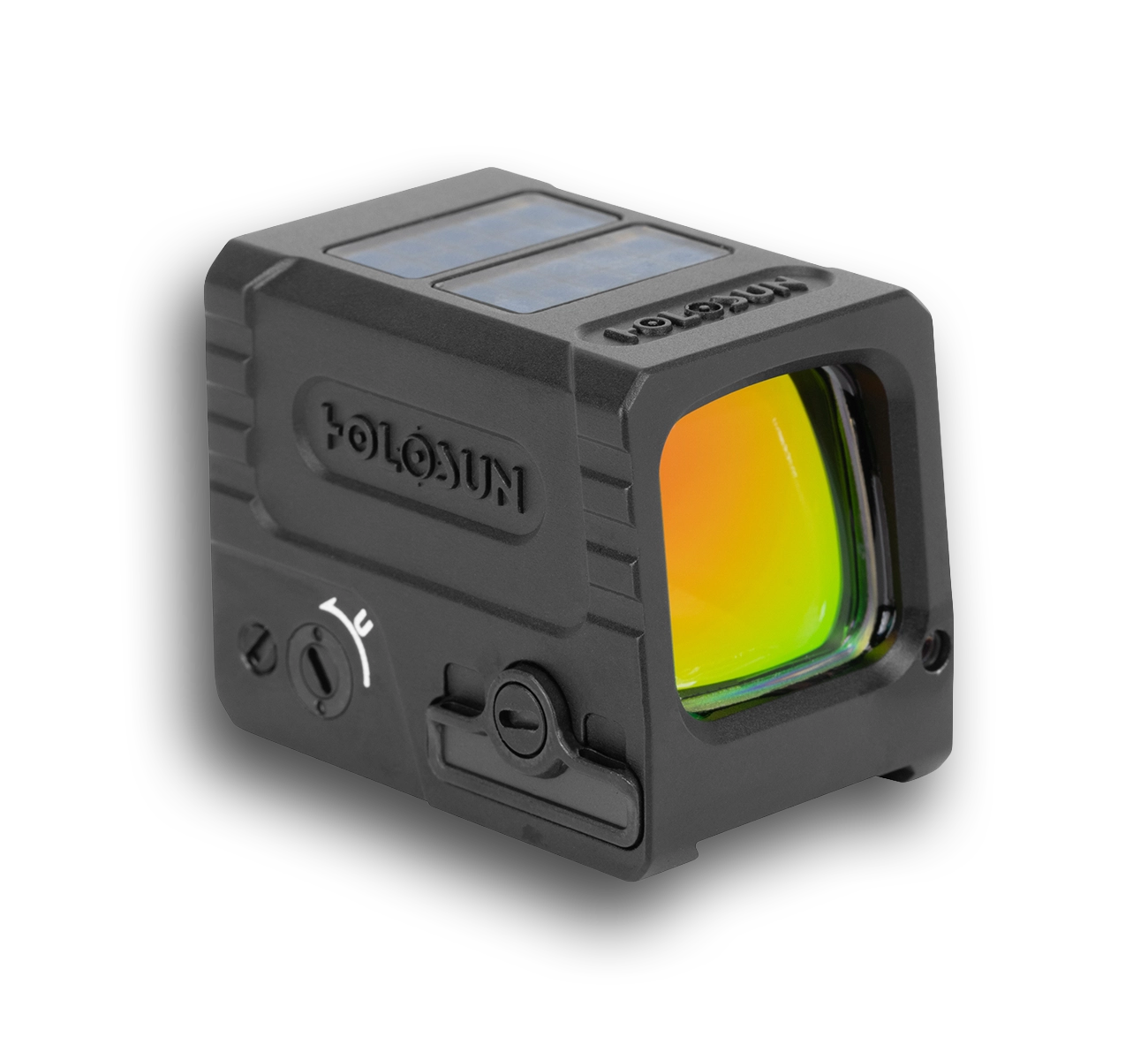

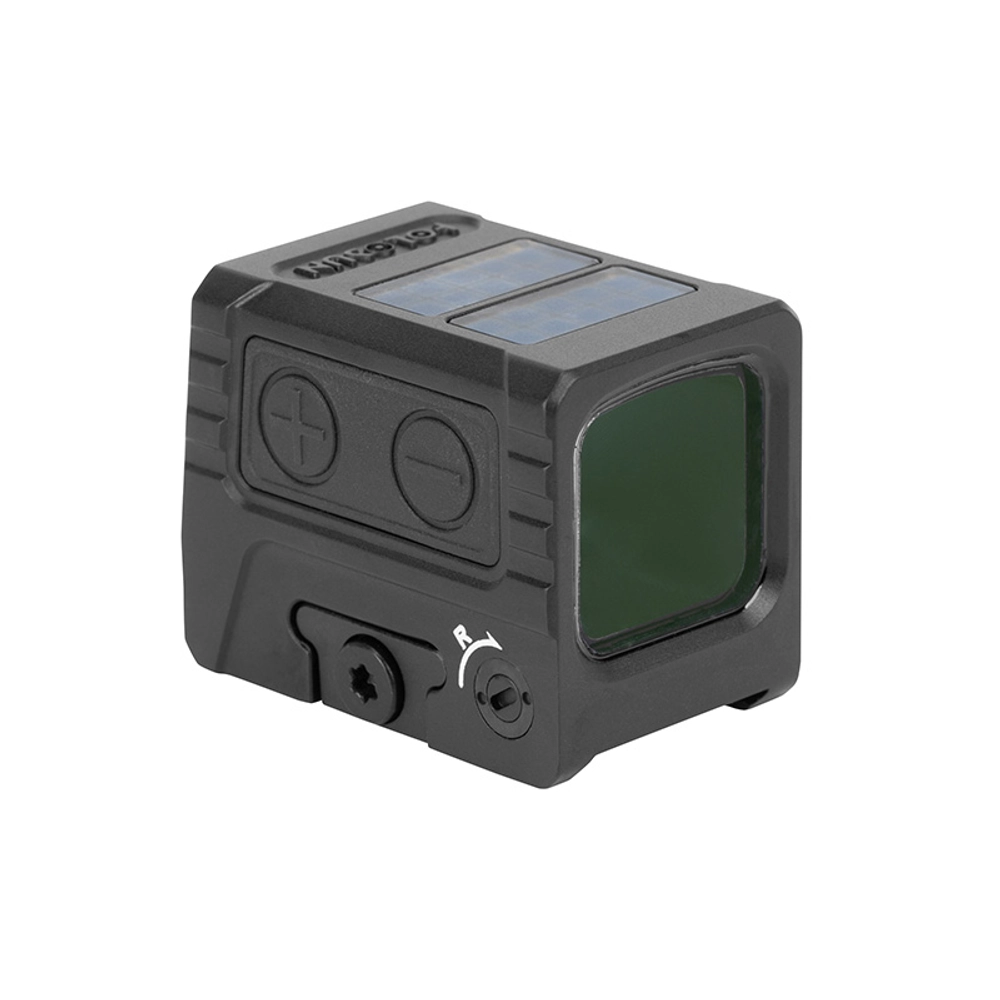

AEMS-MICRO-RD
$435.28
NEW FOR 2026 - Coming Q2
The AEMS-MICRO-RD delivers enclosed optic durability in a compact micro footprint built for modern pistols.
Featuring a crisp red Multi-Reticle System and a balanced micro window design, it provides fast dot pickup and dependable performance for carry, duty, and range use.
→ Red Multi-Reticle System
Selectable 2 MOA dot, 32 MOA circle, or circle-dot combination for precision aiming or rapid target acquisition.
→ Micro Enclosed Optic Design
Fully enclosed housing protects the emitter from dust, debris, and environmental interference.

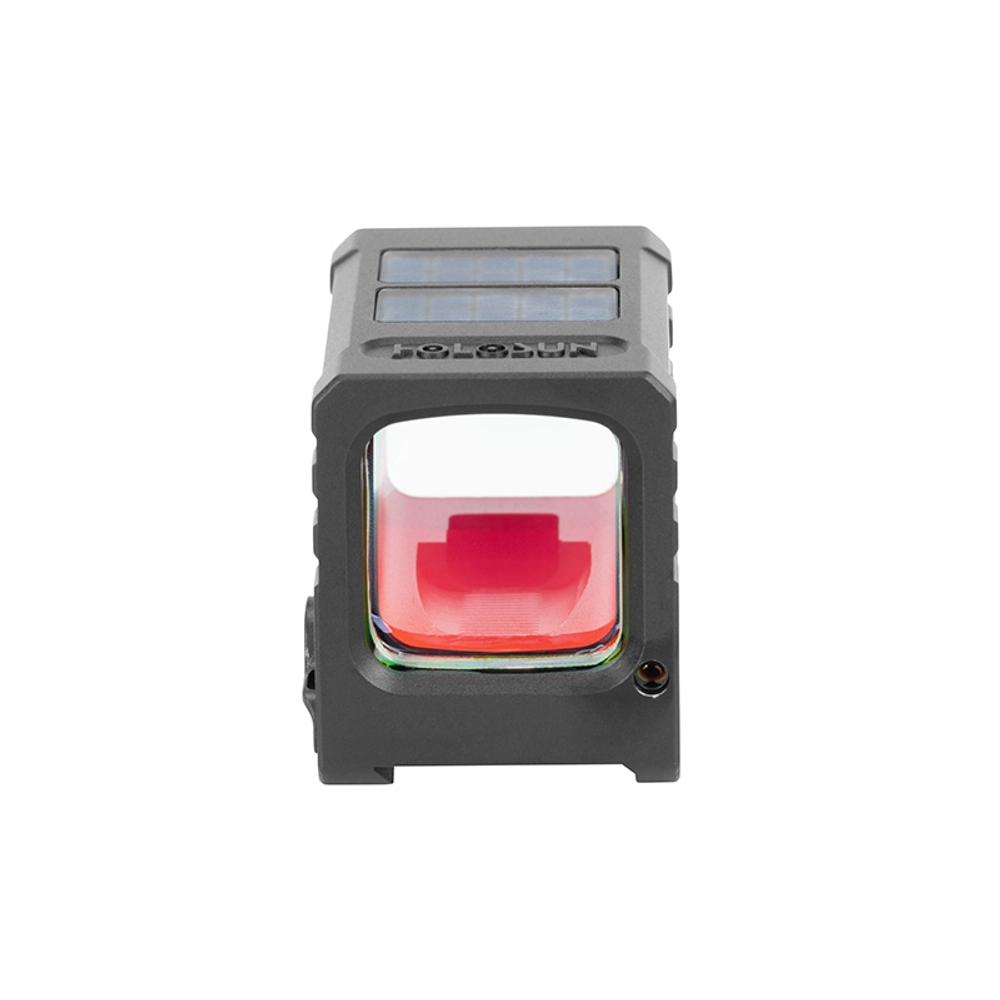

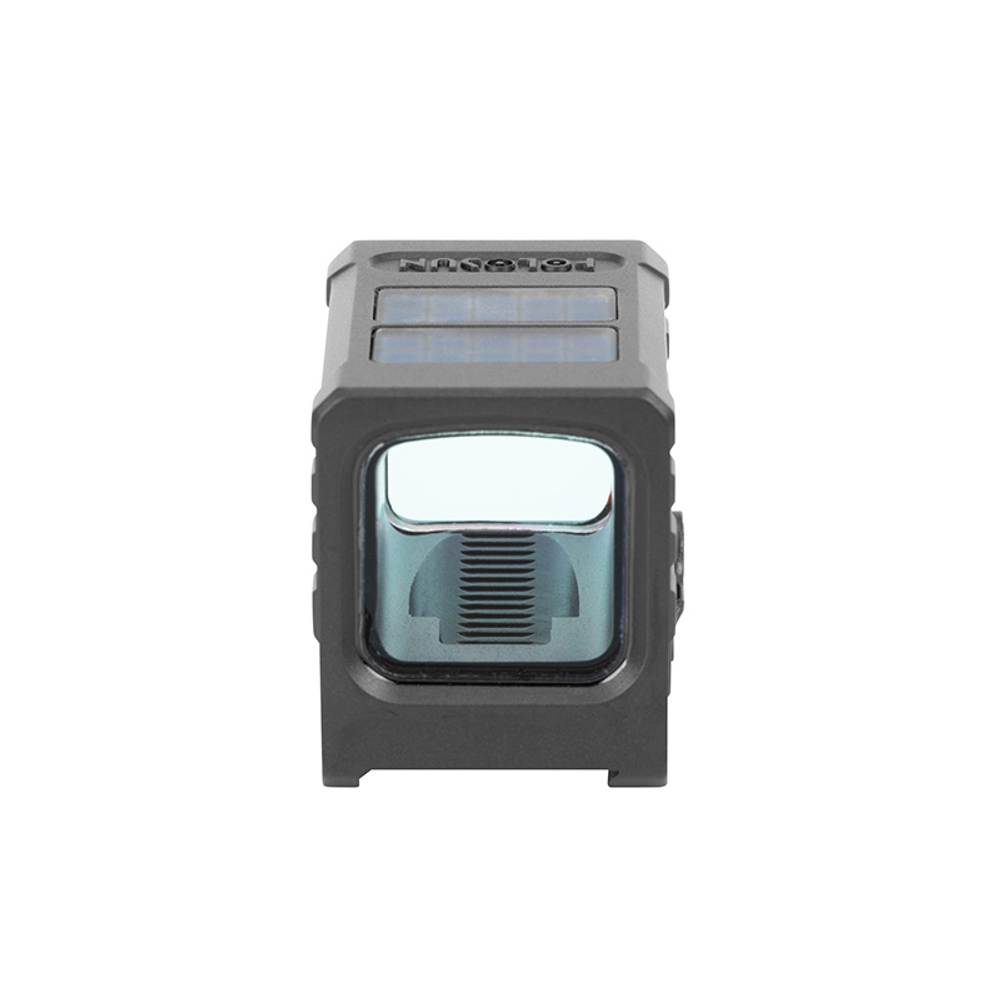

→ Optimized Micro Viewing Window
0.71 × 0.71 in window maximizes usable glass for faster dot acquisition within a compact optic footprint.
→ Adaptive Brightness with Solar Failsafe
Forward-facing light sensor automatically adjusts reticle intensity while Solar Failsafe™ technology supplements battery power.

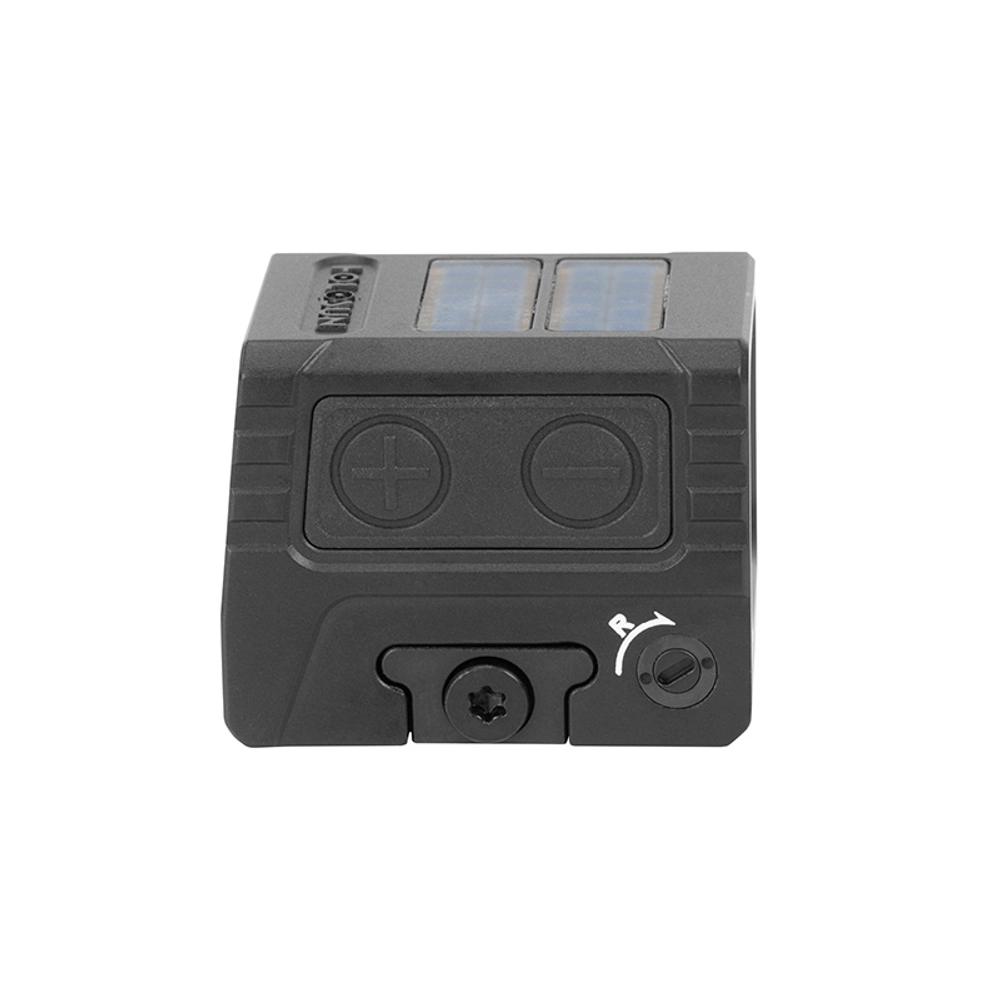

→ Shake Awake with Lockout Mode
Motion activation keeps the optic ready while Lockout Mode prevents accidental adjustments.

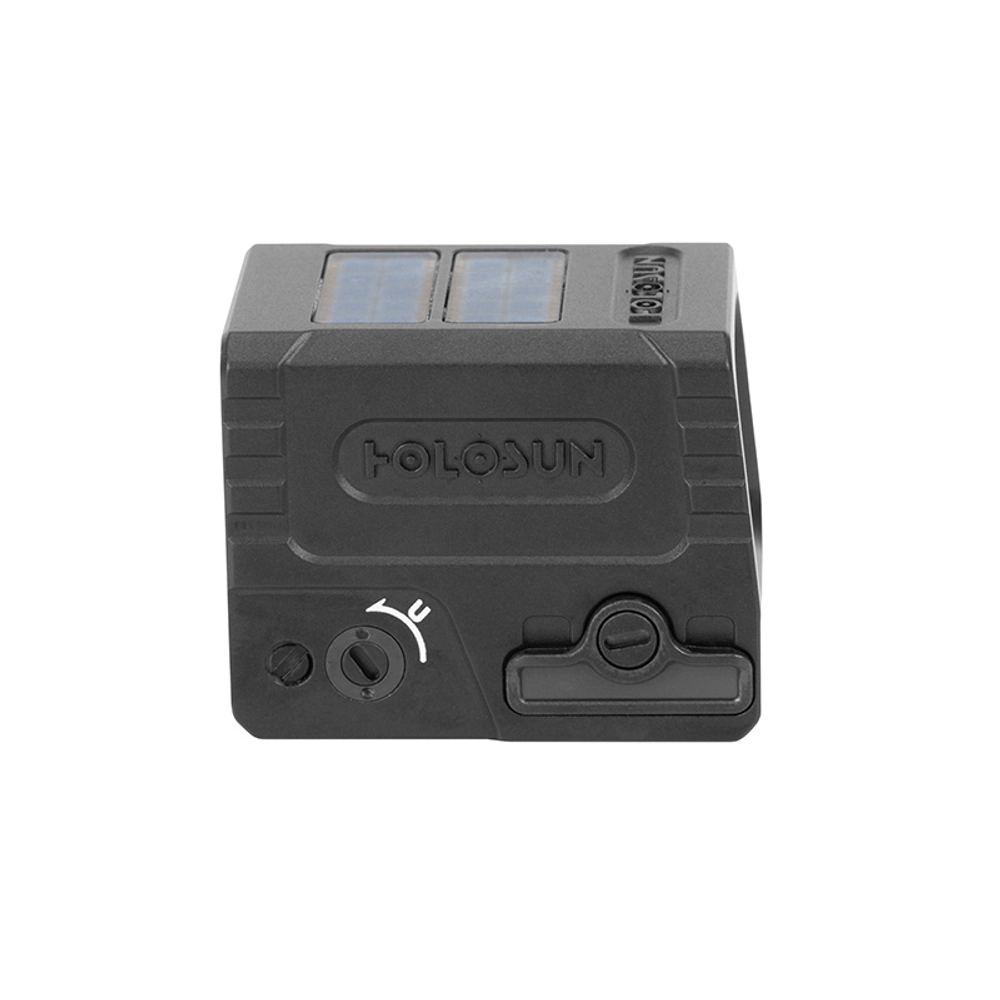

→ Side-Loading CR1620 Battery & Rugged Housing
Convenient battery replacement without removing the optic, combined with a 7075 aluminum housing, IPX8 waterproof rating, and 5000G vibration resistance for duty-ready durability.
Reticle Options
Features
- Red Multi-Reticle System
Selectable reticle options include a precise 2 MOA red dot, 32 MOA circle, or combined circle-dot for speed and precision. - High Efficiency Red LED
Crisp red emitter provides fast reticle pickup and strong visibility across varied lighting conditions. - Micro Enclosed Optic Design
Fully enclosed emitter system protects the optic from debris, moisture, and environmental exposure. - Compact Viewing Window
0.71 × 0.71 inch window provides a clear sight picture while maintaining a true micro optic footprint. - Automatic Brightness Adjustment
Forward facing light sensor automatically adjusts reticle brightness to match changing lighting conditions. - Solar Failsafe Technology
Integrated solar panel supplements battery power to maintain consistent reticle performance. - Shake Awake Technology
Motion activation powers the optic instantly while preserving battery life when idle. - Memory and Lockout Mode
Retains brightness settings and prevents accidental adjustments during use. - Extended Battery Life
CR1620 battery delivers up to 100,000 hours of runtime for dependable long term performance. - 7075 T6 Aluminum Housing
Hard anodized aluminum construction provides durability with IPX8 waterproof protection and 5000G vibration resistance.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 32 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR1620
Battery Life
100,000 Hours
Brightness Setting
8 Day & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Hard Anodized
Housing Color
Black
Adjustment Per Click
1 MOA
W&E Travel Range
±30 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
5000G
PHYSICAL DATA
Window Size
0.71" × 0.71"
Body Dimensions
1.5" × 1" × 1.2"
Body Weight
2.1 oz
Central Mount Height
0.63
Fitment
AEMS-MICRO
Comes with RMSc to AEMS-MICRO adapter plate
In The Box
AEMS-MICRO-RD
RMSc to AEMS-MICRO adapter plate
Lens Cloth
Multi-Tool
Manual
Warranty Card
