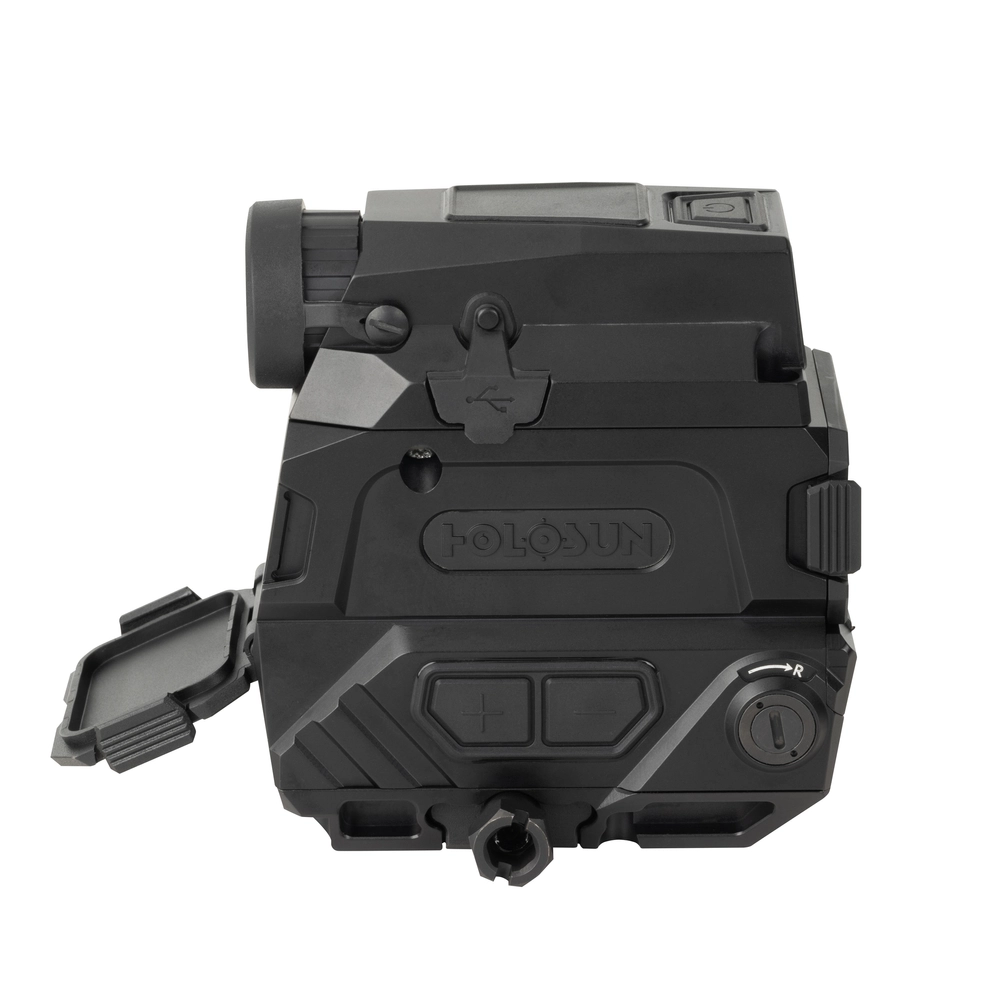

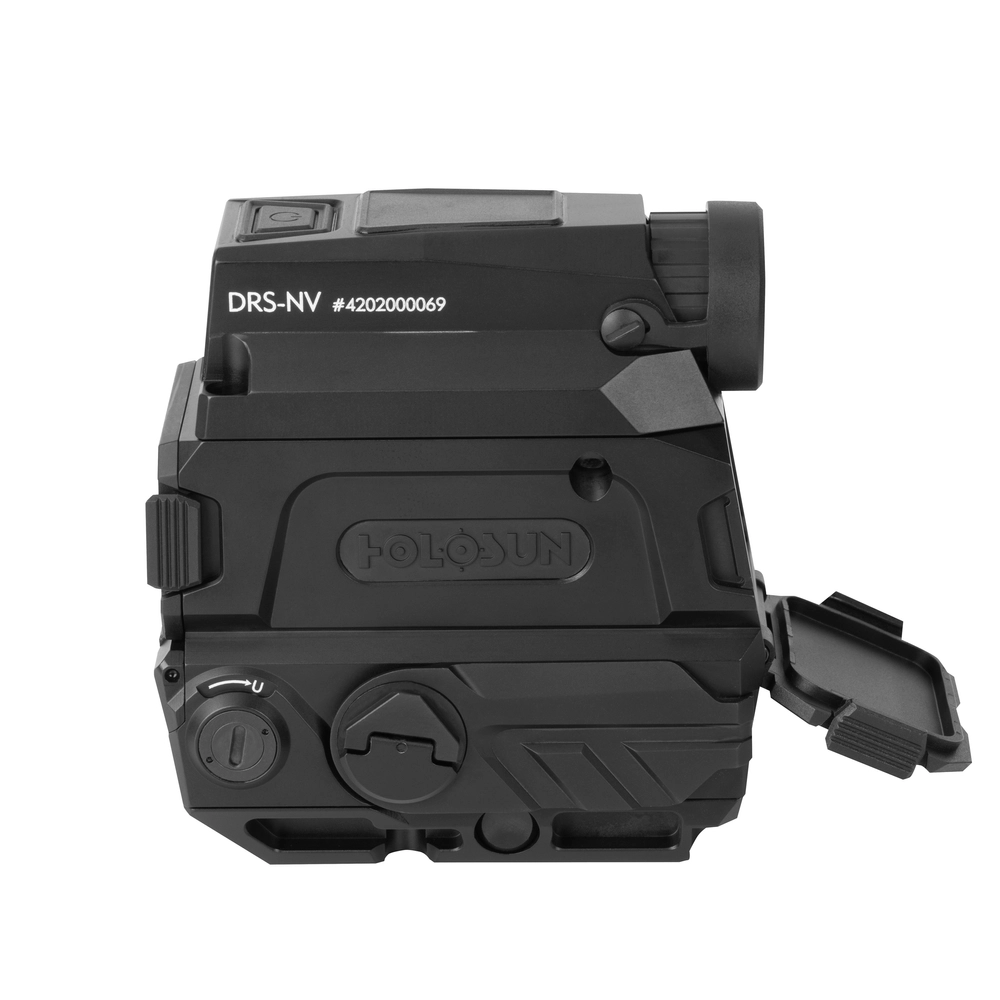

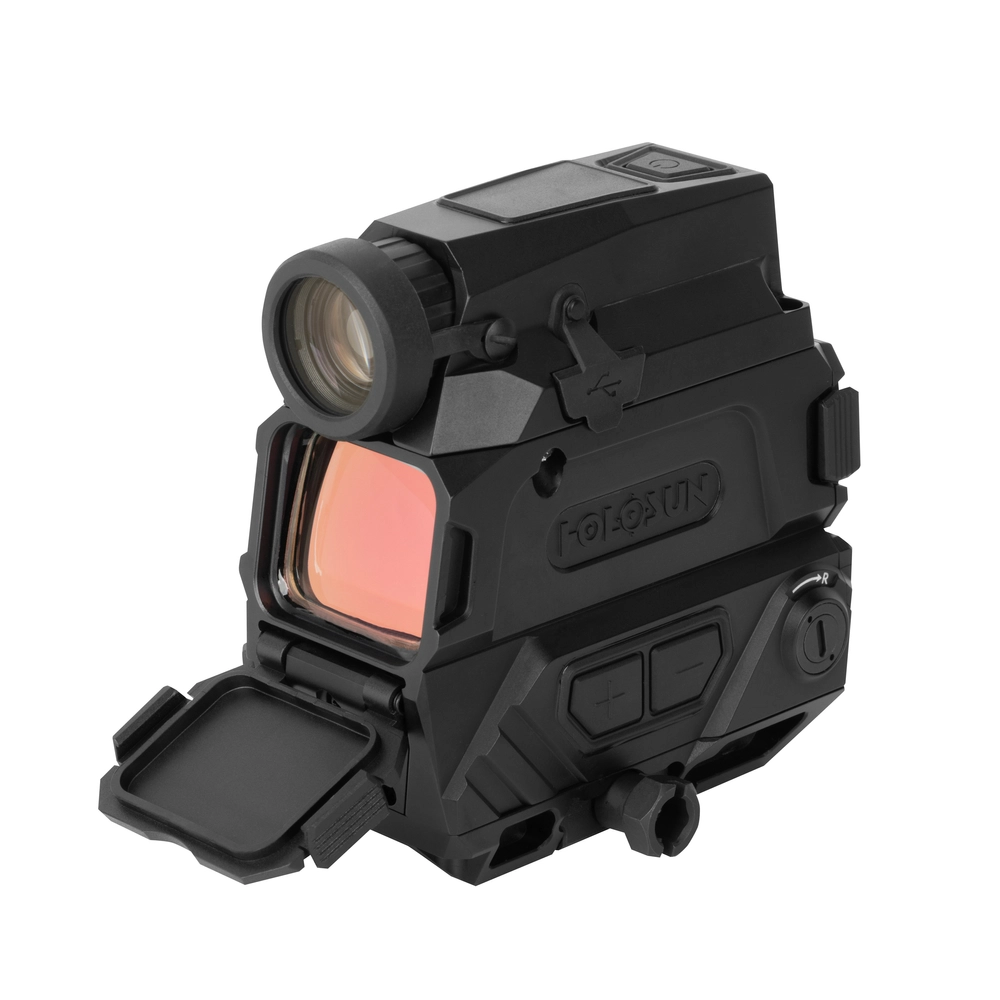

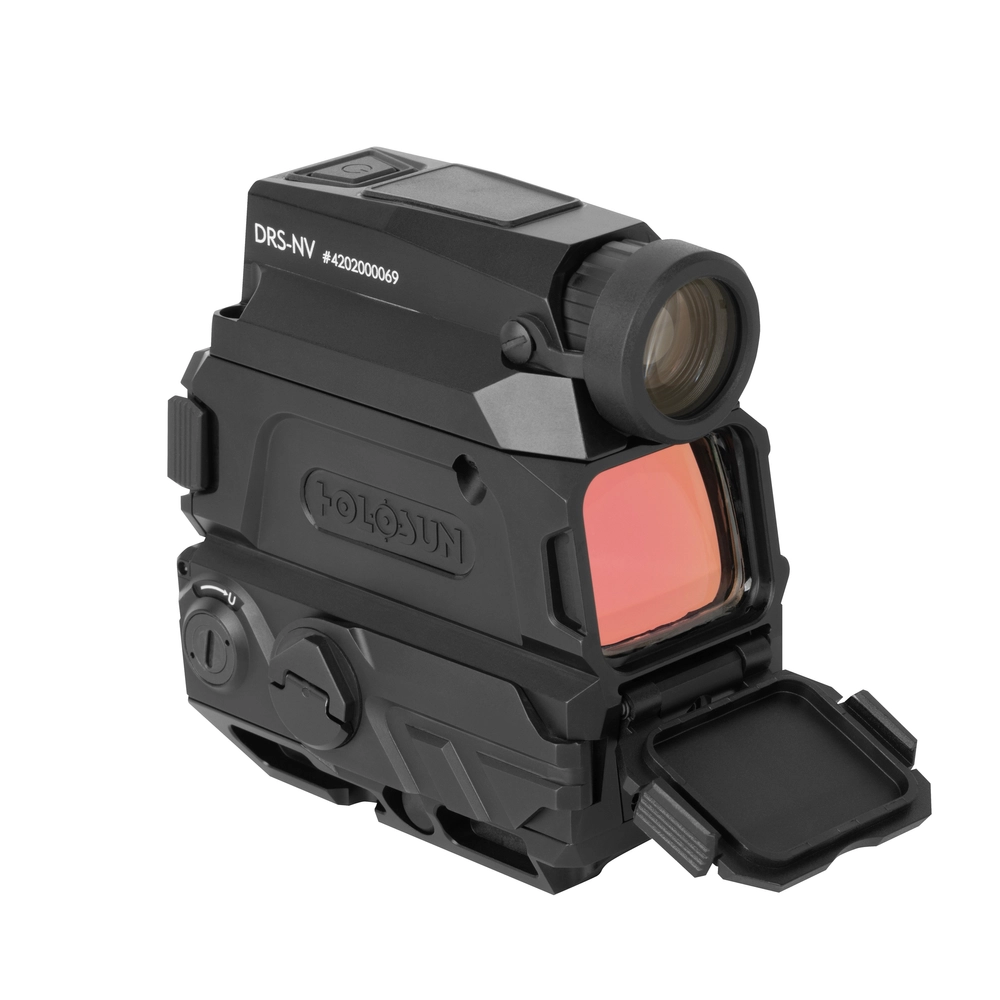

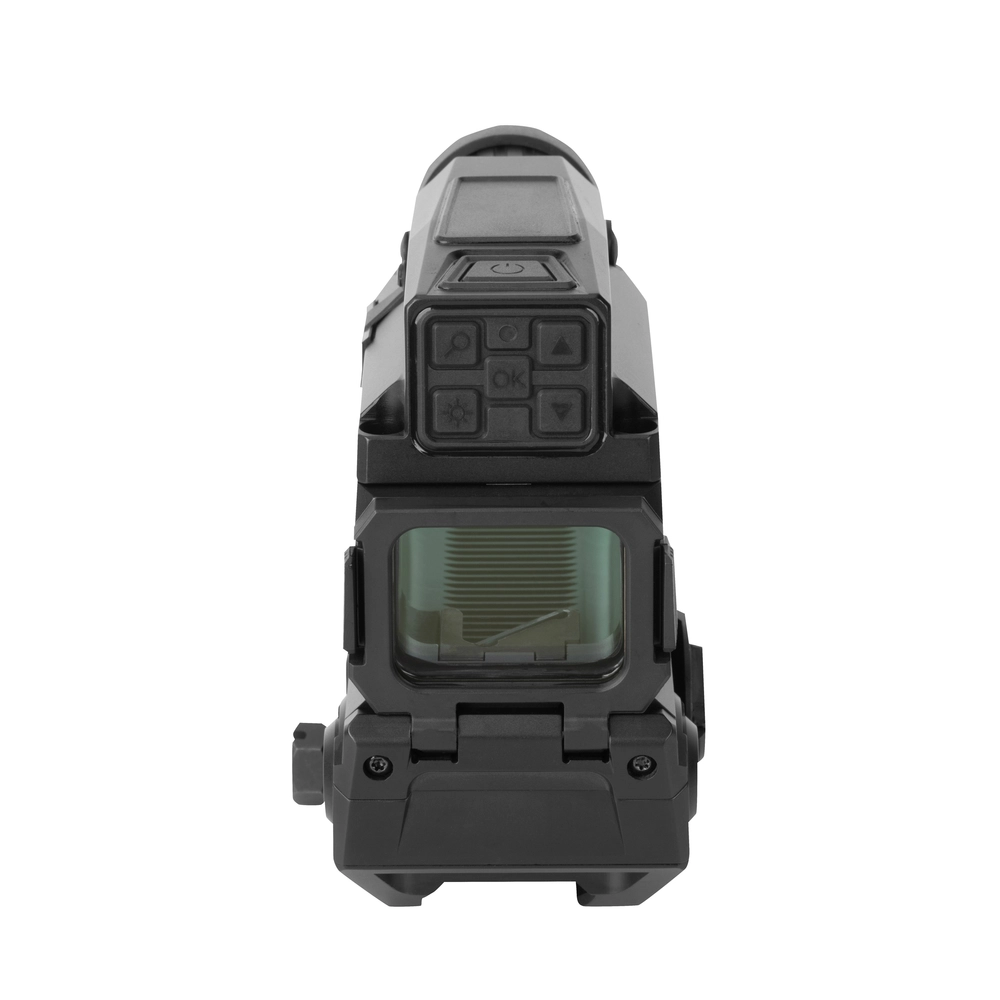

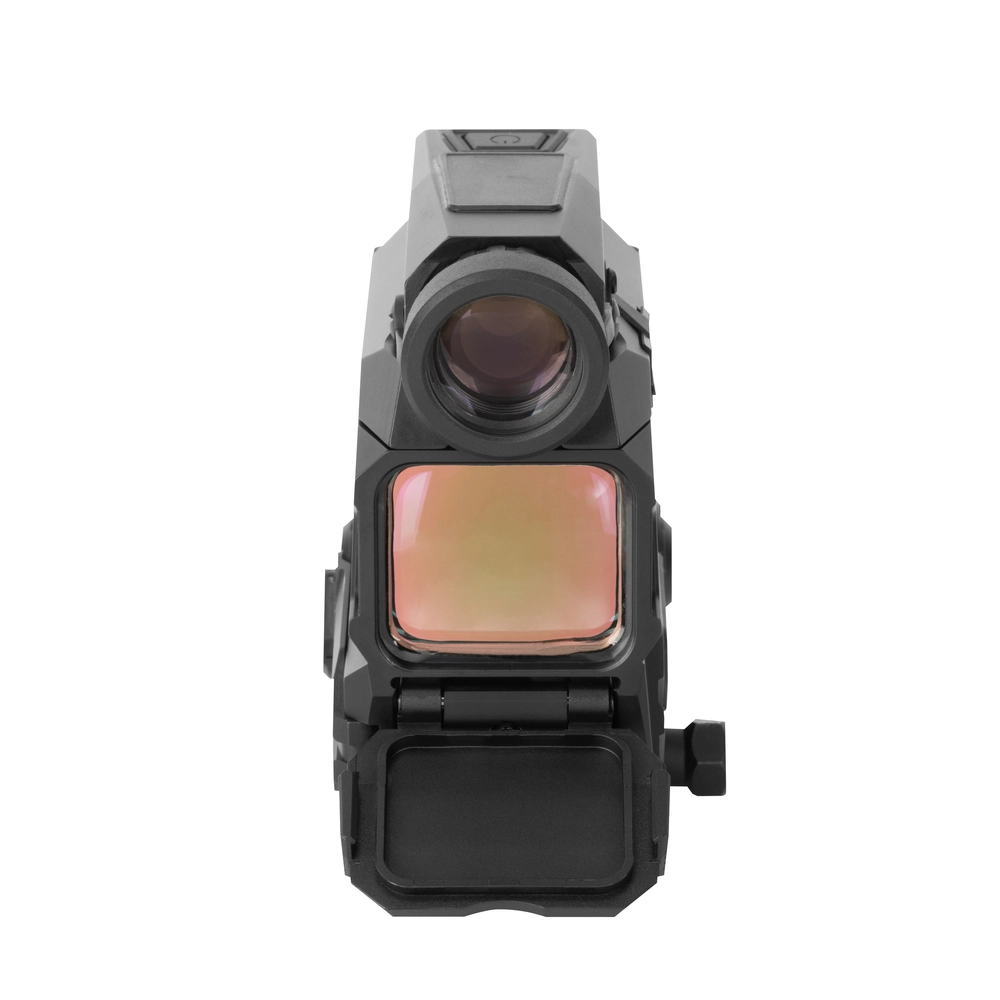

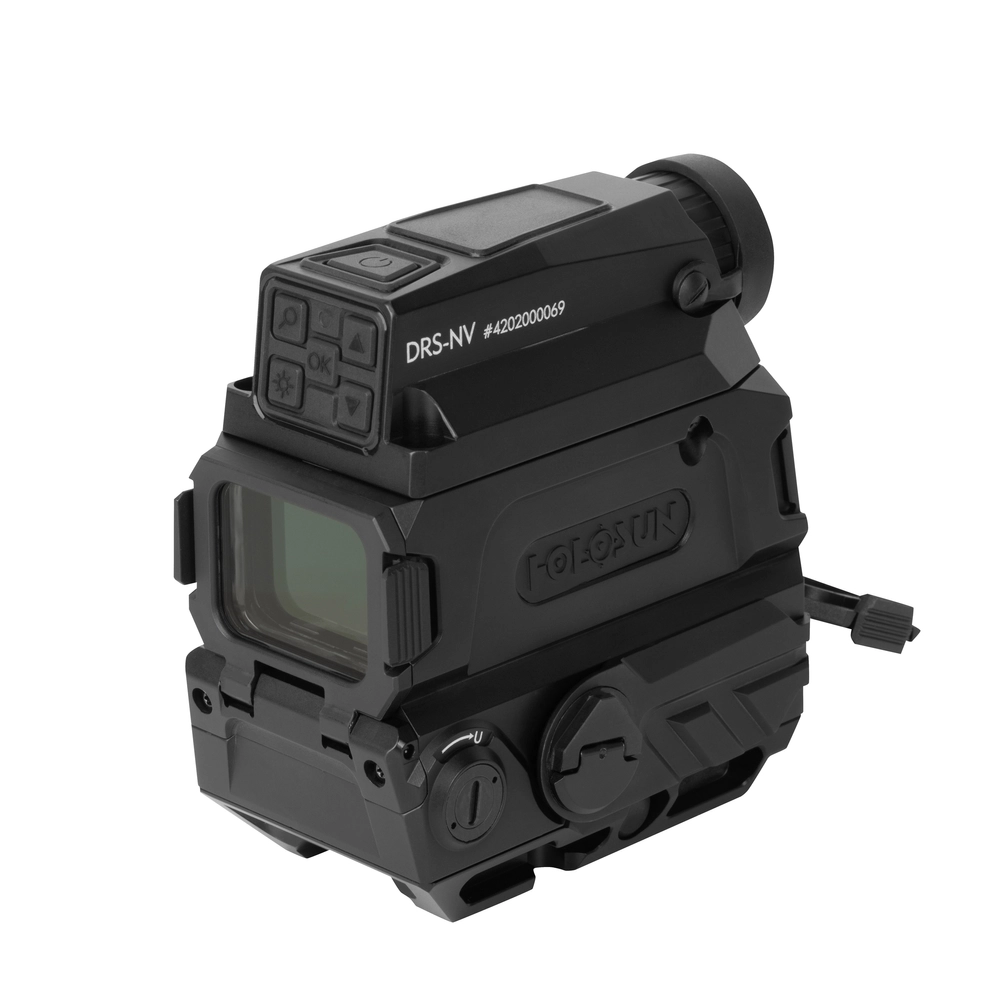

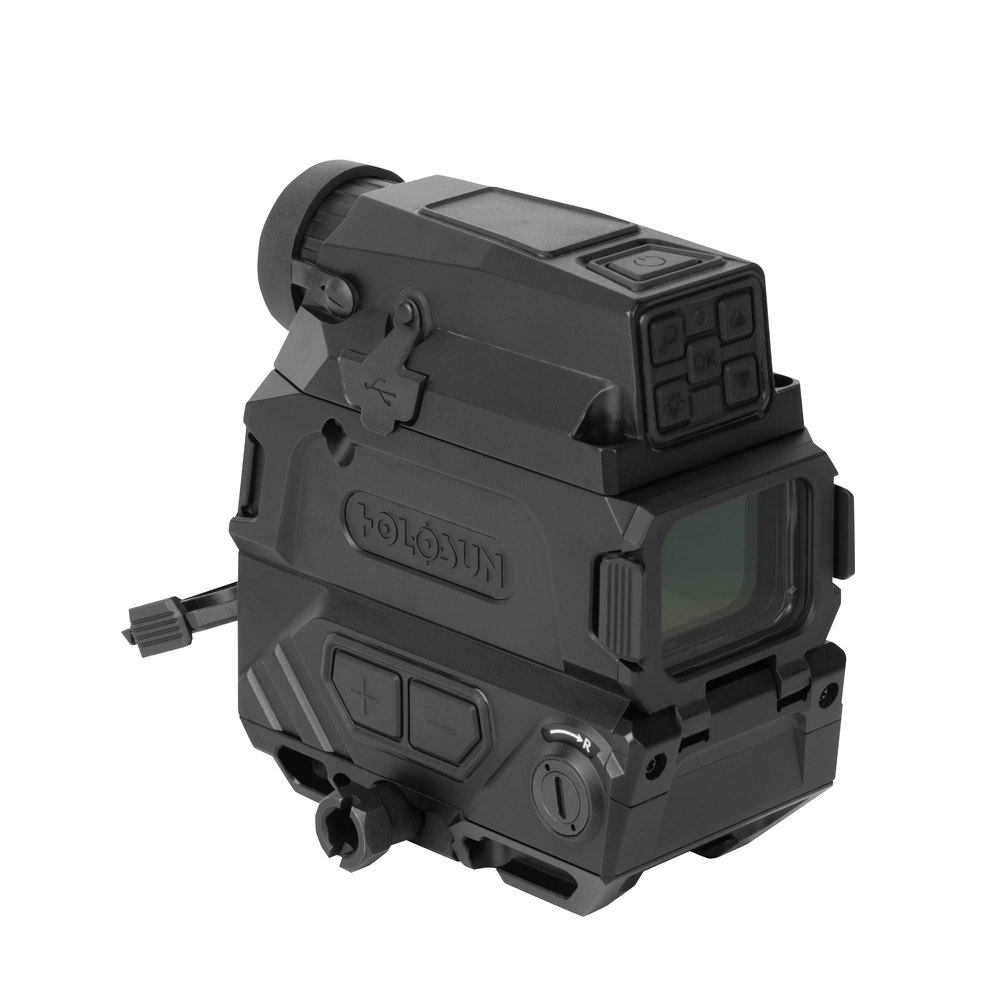

DRS-NV
$1176.46
The DRS-NV combines a high-performance LED red dot sight with integrated digital night vision to deliver a true 24-hour rifle optic.
Designed for low-light and nighttime environments, it provides real-time digital imaging while maintaining the speed and simplicity of a red dot sight.
→ Integrated Digital Night Vision
1920×1080 sensor paired with a 1024×768 OLED display delivers clear imaging in low-light environments.
→ Multi-Reticle System
Selectable 2 MOA dot and 65 MOA circle for rapid target acquisition or precise aiming.
→ Digital Zoom Capability
Selectable 1x, 2x, 4x, and 8x zoom enhances target identification at distance.
→ Photo & Video Recording
Integrated recording allows image and video capture directly from the optic.
→ Dual 18350 Battery System
Rechargeable batteries provide extended runtime with magnetic USB charging and data transfer.
→ Rugged 7075-T6 Construction
Hard-anodized aluminum housing with IP67 environmental protection and Shake Awake technology.
Reticle Options
Features
- Digital Night Vision with Red Dot Fusion
Combines a high resolution digital night vision system with a precision LED red dot for seamless performance in daylight and low light environments. - 1920×1080 Night Vision Sensor
High definition sensor delivers detailed imaging in moonlight, starlight, or with IR illumination for enhanced target identification. - 1024×768 OLED Display
Crisp OLED display provides clear real time imaging with up to 60 FPS for smooth observation and tracking. - Multi Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle dot combination allows shooters to tailor the reticle for speed or precision. - Digital Zoom Capability
Selectable 1x, 2x, 4x, and 8x digital zoom provides flexible observation and targeting across varying distances. - Photo and Video Recording
Integrated recording capability allows users to capture images and video directly from the optic with onboard storage. - Dual Rechargeable Battery System
Powered by two removable 18350 batteries delivering up to 8 hours in observation mode or 6 hours in full function mode. - Magnetic USB Charging and Data Transfer
Magnetic USB connection enables convenient charging and easy data transfer to external devices. - Shake Awake Red Dot System
Motion activated illumination powers the red dot instantly when movement is detected while the camera system uses auto off to preserve battery life. - Rugged 7075 Aluminum Housing
Precision machined 7075 T6 aluminum construction with IP67 waterproof protection and 1000G vibration resistance for demanding environments.
REFLEX SIGHT DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Selectable Reticle
Yes
Solar Power
No
Shake Awake Technology
Yes
Memory Mode
Yes
Parallax
No
Unlimited Eye Relief
Yes
Magnification
1x
Multi-Coatings
Yes
Brightness Settings
8 Daylight & 4 Night Vision
NIGHT VISION DATA
Operating Environment (Illuminance)
0.01lx
Zoom
1x, 2x, 4x, 8x
Lens Focus
25mm
Aperture
F1.2
Focus Range
5m-Infinity
Field of View
7.2°×5.3°
Spectral Range
400nm-950nm
Sensor Resolution
1920×1080
OLED Resolution
1024×768
Frame Rate
30FPS/60FPS
Video Recording Storage
Yes
Image Mode
Fusion
Battery
2x 18350
Battery Life
Observation Mode: 8 Hours
Full Function: 6 Hours
External Charging
5V/1A - Magnetic USB
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Anodized
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-20°C~50°C
Submersion
IP67
Vibration
1000G
PHYSICAL DATA
Window Size
1.25" × 0.98"
Body Dimensions
3.7" × 2.2" × 3.5"
Body Weight
18.5 oz
Central Height Mount
1.72"
Mount Weight
2.3 oz
Fitment
Direct Mount
Picatinny
In The Box
DRS-NV
2x 18350
Charging & Data Cable (USB-A to Magnetic Port)
Lens Cloth
Multi-Tool
Wrench
Manual
Warranty Card
