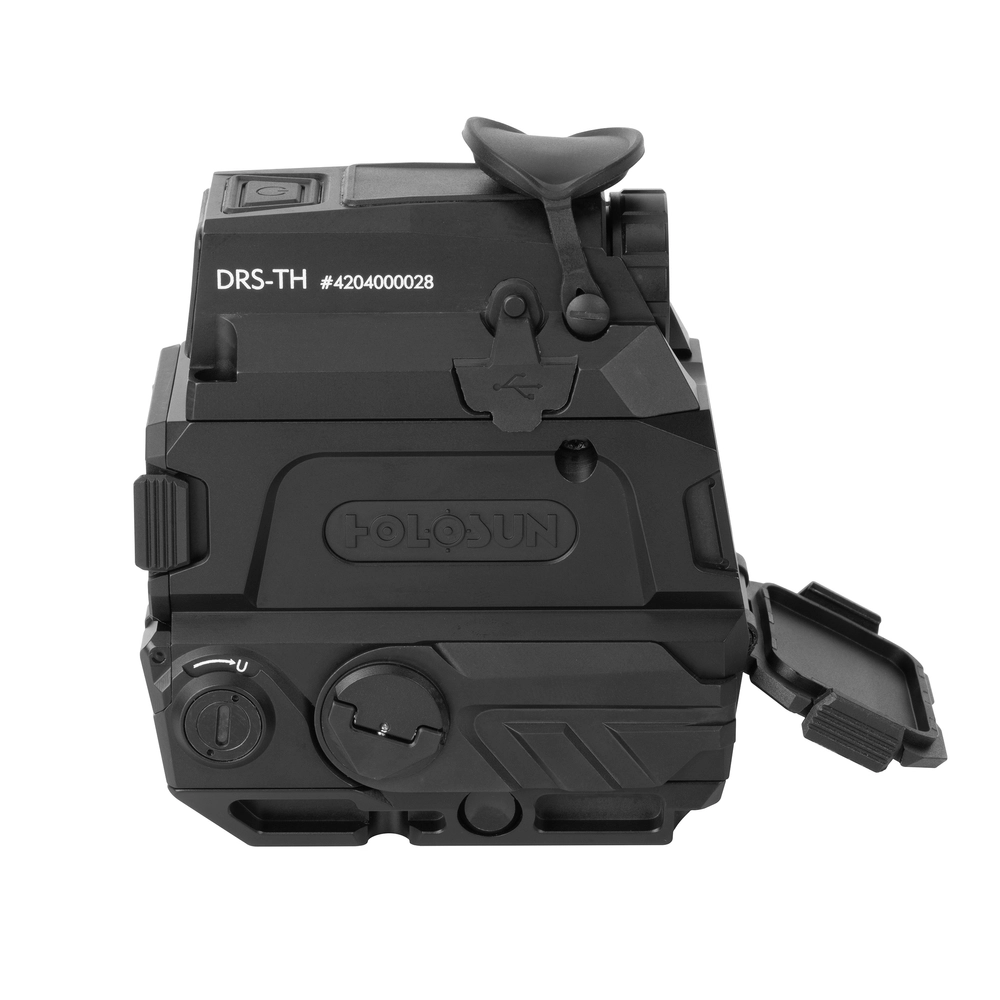

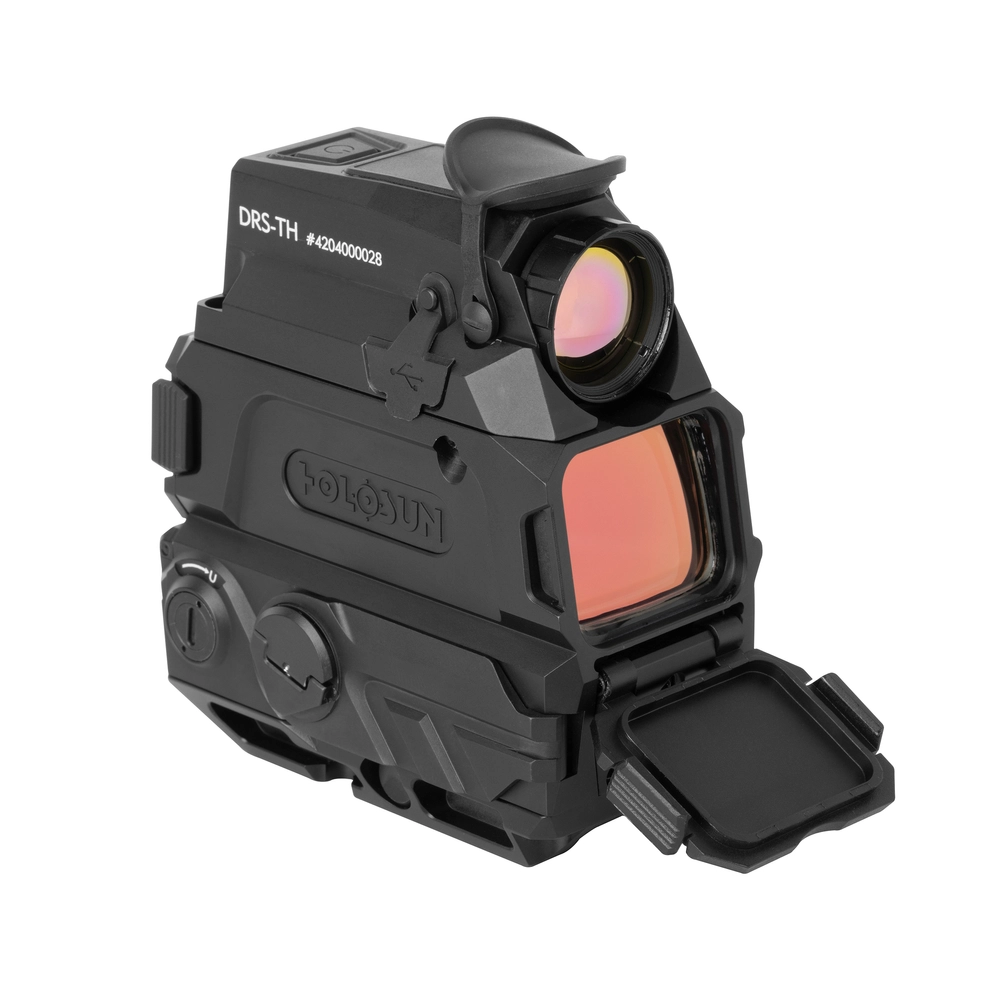

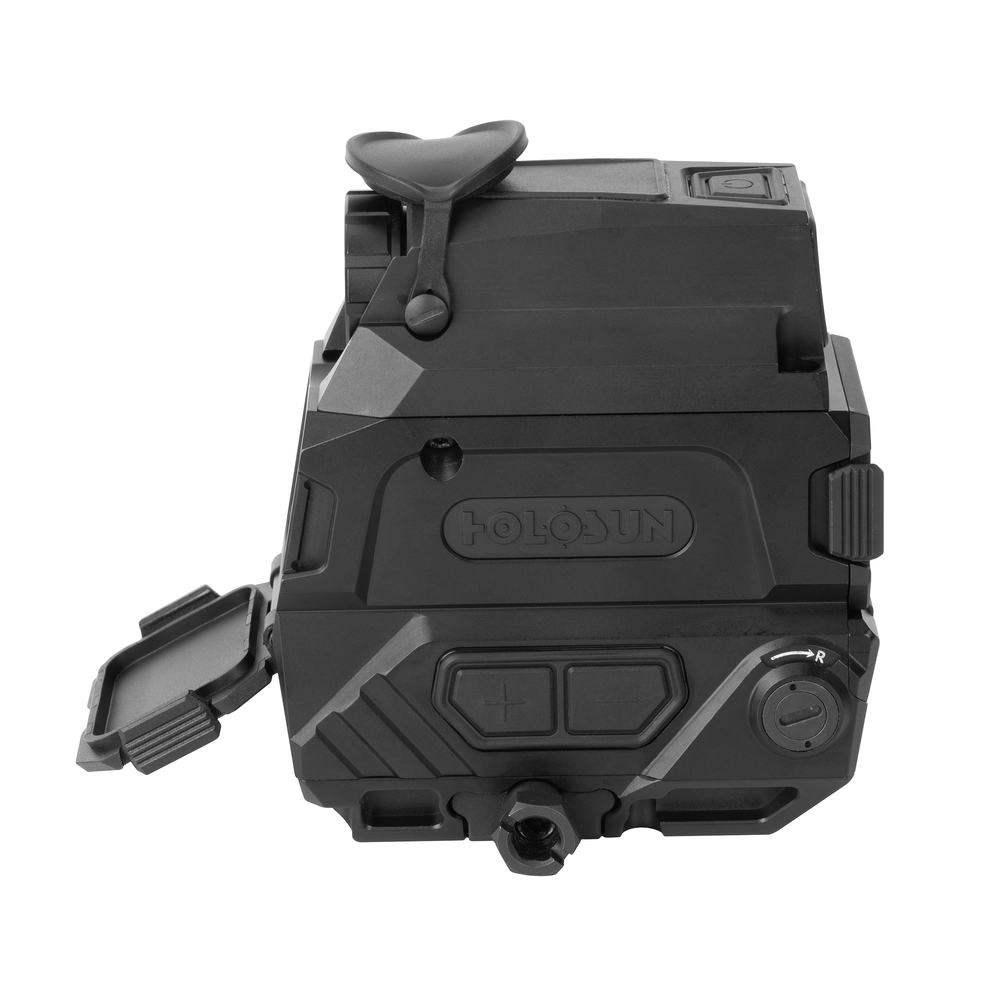

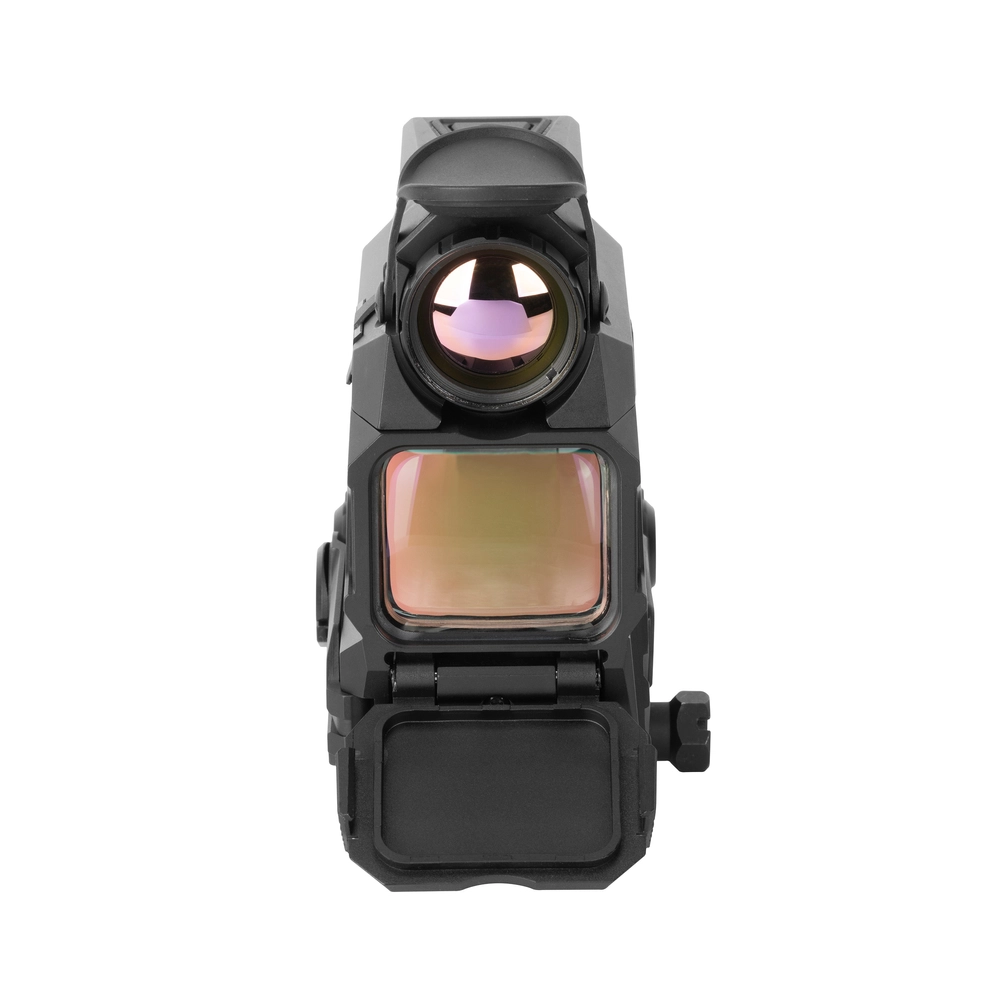

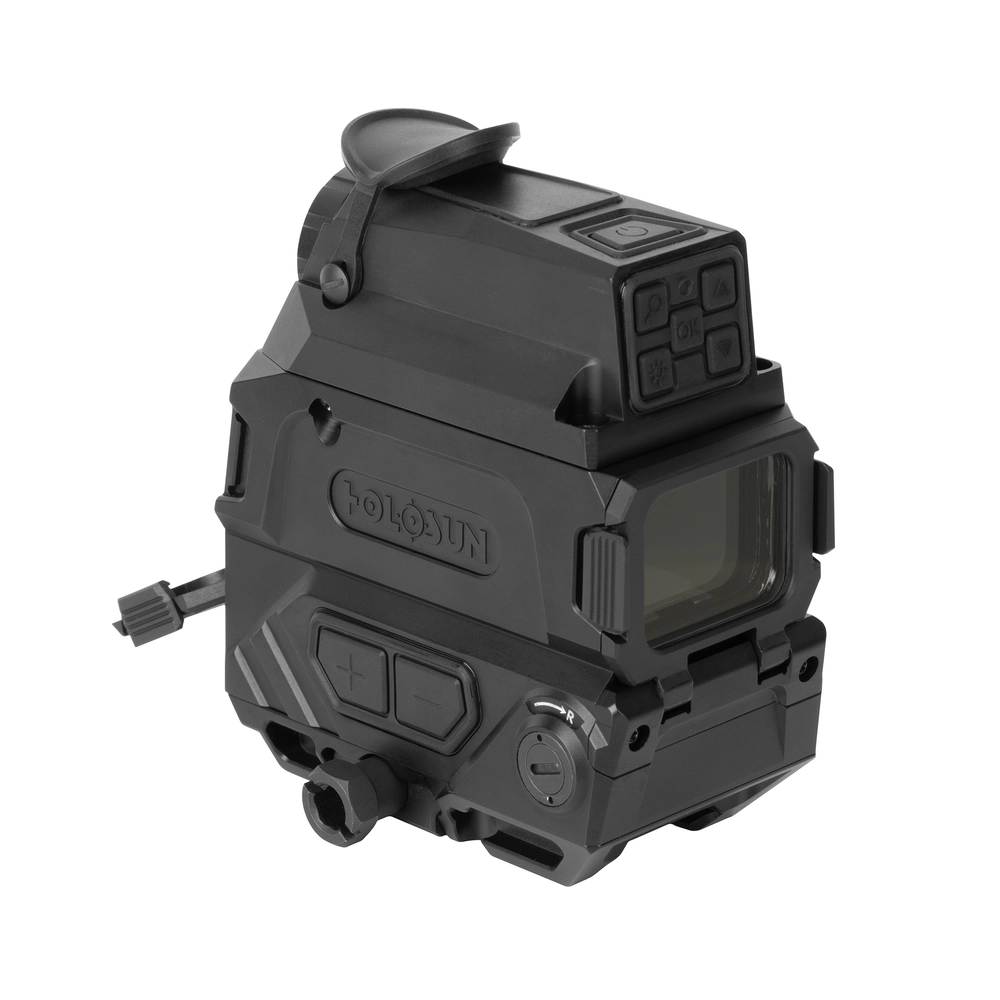

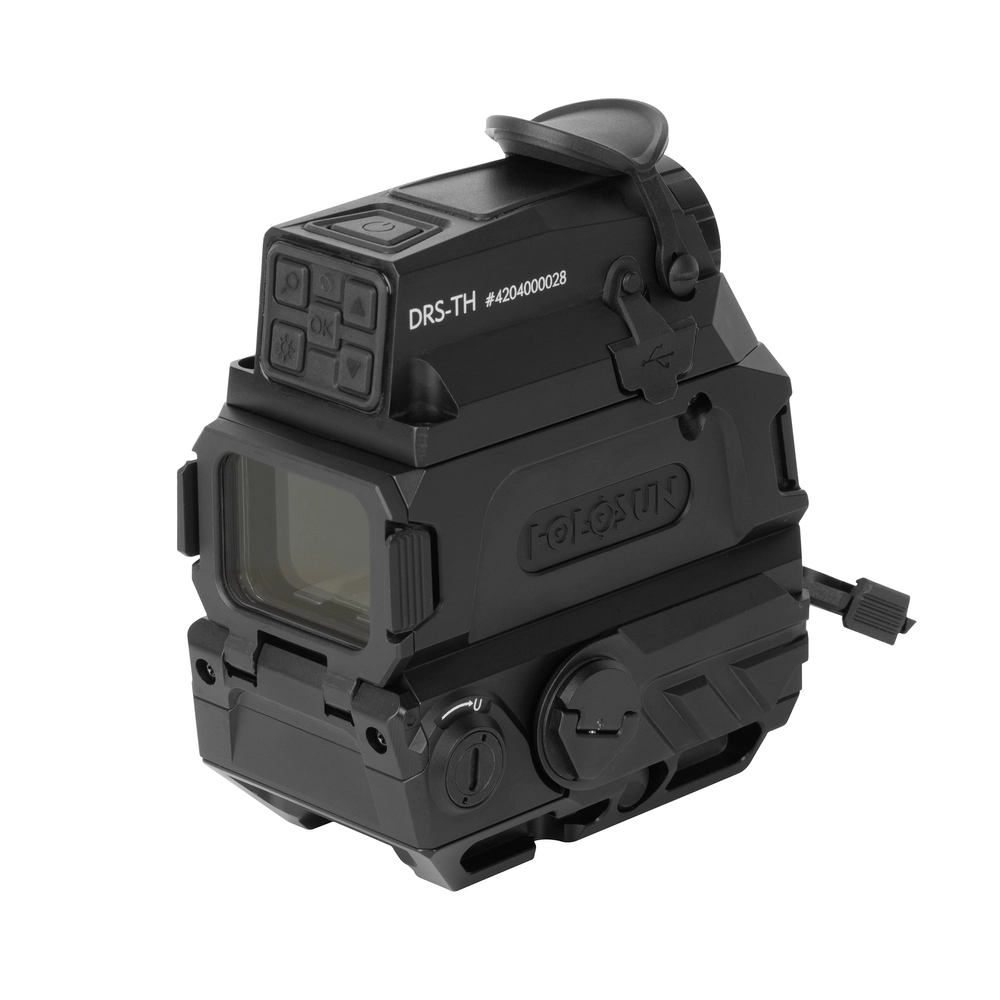

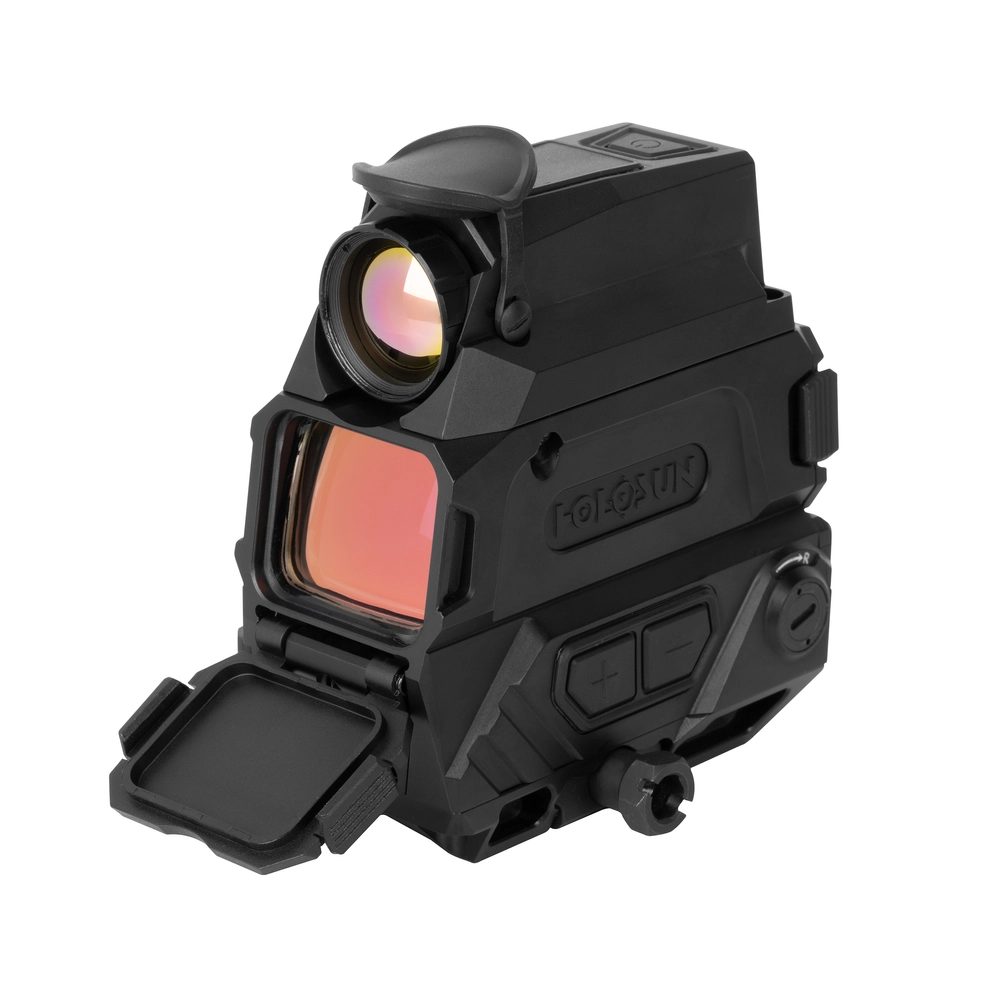

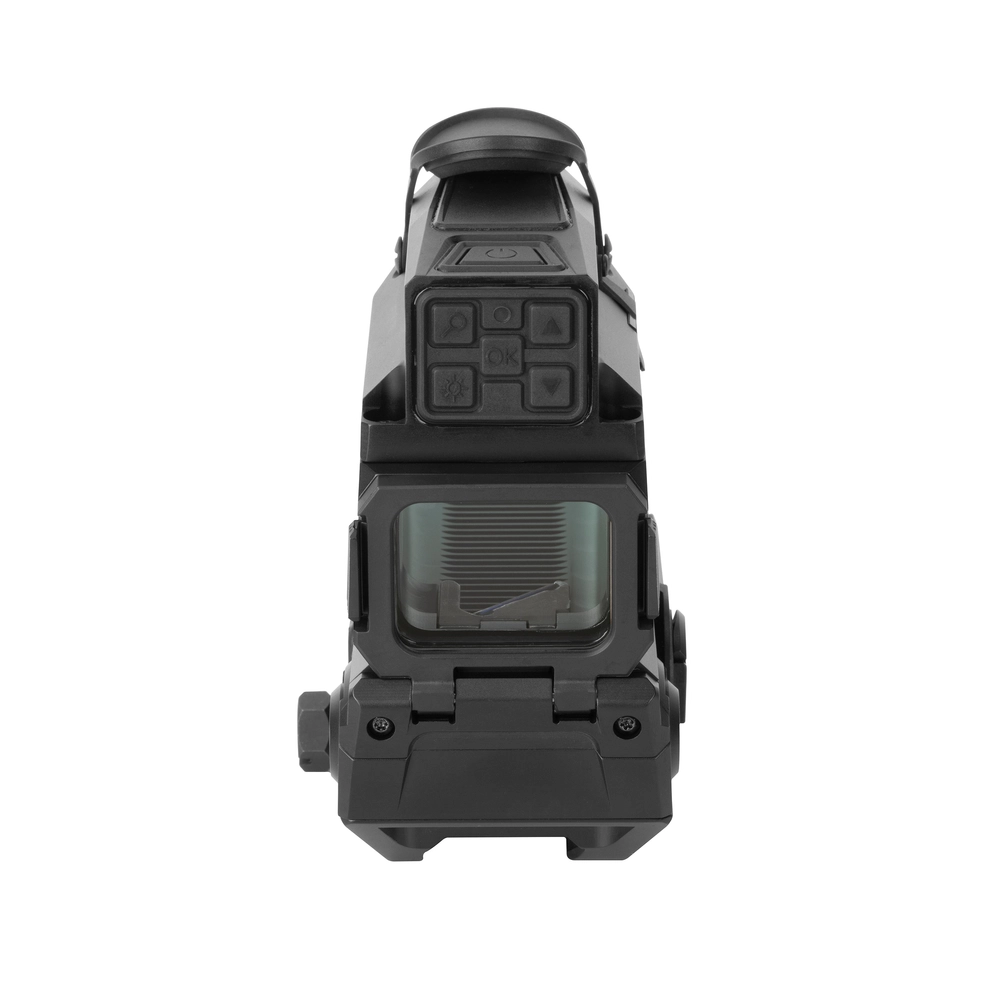

DRS-TH
$1882.34
The DRS-TH combines a high-performance LED red dot sight with integrated thermal imaging to deliver enhanced target detection in any lighting condition.
Designed for professional and field use, it overlays real-time thermal data within a familiar red dot sight picture for faster identification and engagement.
→ Thermal + Red Dot Fusion
256×192 thermal sensor overlays heat signatures directly within the optic’s viewing window.
→ Multi-Reticle System
Selectable 2 MOA dot and 65 MOA circle for rapid acquisition or precision aiming.
→ Selectable Thermal Image Modes
White Hot, Black Hot, Outline, and Highlight modes adapt to different environments and visibility conditions.
→ Digital Zoom Capability
Selectable 1x, 3x, and 5x thermal zoom improves target recognition at distance.
→ Internal Video Recording
Integrated recording allows users to capture and review footage directly from the optic.
→ Dual 18350 Battery System & Rugged Housing
Rechargeable batteries with magnetic USB charging housed in 7075-T6 aluminum with IP67 protection and Shake Awake technology.
Reticle Options
Features
- Thermal and Red Dot Fusion System
Combines a 256×192 thermal sensor with Holosun’s Multi Reticle System, allowing a thermal overlay with a precision red dot sight picture. - Multi Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle dot combination provides flexible aiming solutions for both speed and precision. - Multiple Thermal Image Modes
Selectable White Hot, Black Hot, Outline, and Highlight modes optimize target detection in varying environments and lighting conditions. - High Resolution OLED Display
1024×768 OLED display with a 50 FPS refresh rate provides smooth imaging and clear thermal visualization. - Thermal Digital Zoom
Selectable 1x, 3x, and 5x digital zoom allows improved target identification and engagement at extended distances. - Integrated Video Recording
Built in recording system allows users to capture and review critical moments directly from the optic. - Dual Rechargeable Battery System
Powered by two removable 18350 batteries delivering up to 10 hours of thermal runtime and extended red dot operation. - Magnetic USB Charging Interface
Magnetic USB connection provides convenient charging and data transfer without removing the optic. - Shake Awake Red Dot System
Motion activated illumination powers the red dot instantly when movement is detected to ensure the optic is always ready. - Rugged 7075 Aluminum Housing
Precision machined 7075 T6 aluminum construction with IP67 waterproof protection and 1000G vibration resistance for demanding environments.
Reflex Sight Data
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Selectable Reticle
Yes
Solar Power
No
Shake Awake Technology
Yes
Memory Mode
Yes
Parallax
No
Unlimited Eye Relief
Yes
Magnification
1x
Multi-Coatings
Yes
Brightness Settings
8 Daylight & 4 Night Vision
Thermal Data
MRTD
<50mK
Reticle
Cross & T Style
Zoom
1x, 3x, 5x
Lens Focus
25mm
Aperture
F1.1
Focus Range
5m-Infinity
Field of View
7.2°×5.3°
Spectral Range
8-14um
Sensor Resolution
256×192
OLED Resolution
1024×768
Frame Rate
50FPS
Video Recording Storage
Yes
Image Mode
White Hot, Highlight, Edge Detection
Battery
2x 18350
Battery Life
Observation Mode: 10 Hours
Full Function: 8 Hours
External Charging
5V/1A - Magnetic
Mechanical Data
Housing Material
7075 T6 Aluminum
Surface Finish
Anodized
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-20°C~50°C
Submersion
IP67
Vibration
1000G
Physical Data
Window Size
1.25" × 0.98"
Body Dimensions
3.7" × 2.2" × 3.5"
Body Weight
18 oz
Central Height Mount
1.72"
Mount Weight
2.3 oz
Fitment
Direct Mount
Picatinny
In The Box
DRS-TH
2x 18350
Charging & Data Cable (USB-A to Magnetic Port)
Lens Cloth
Multi-Tool
Wrench
Manual
Warranty Card
