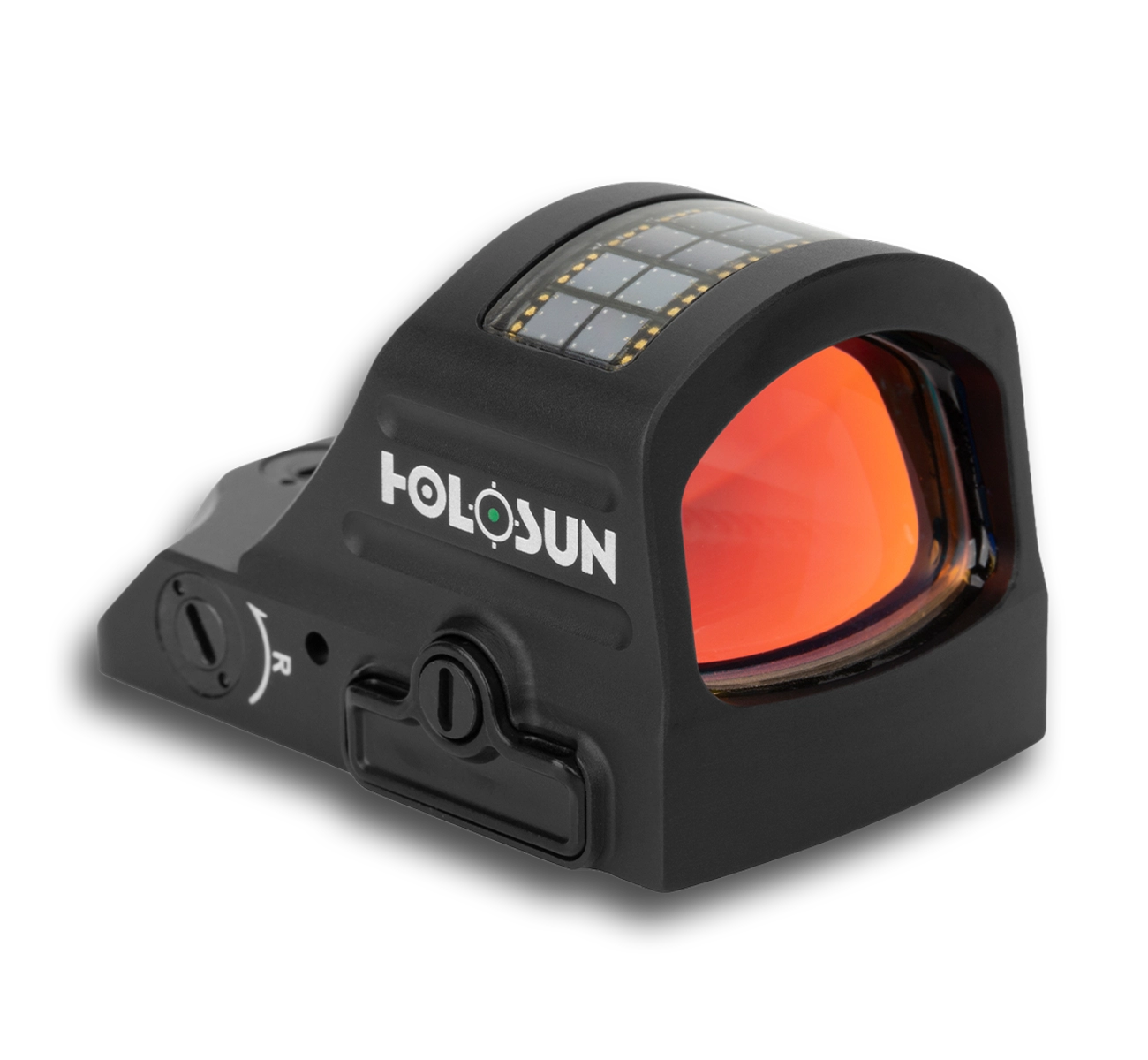

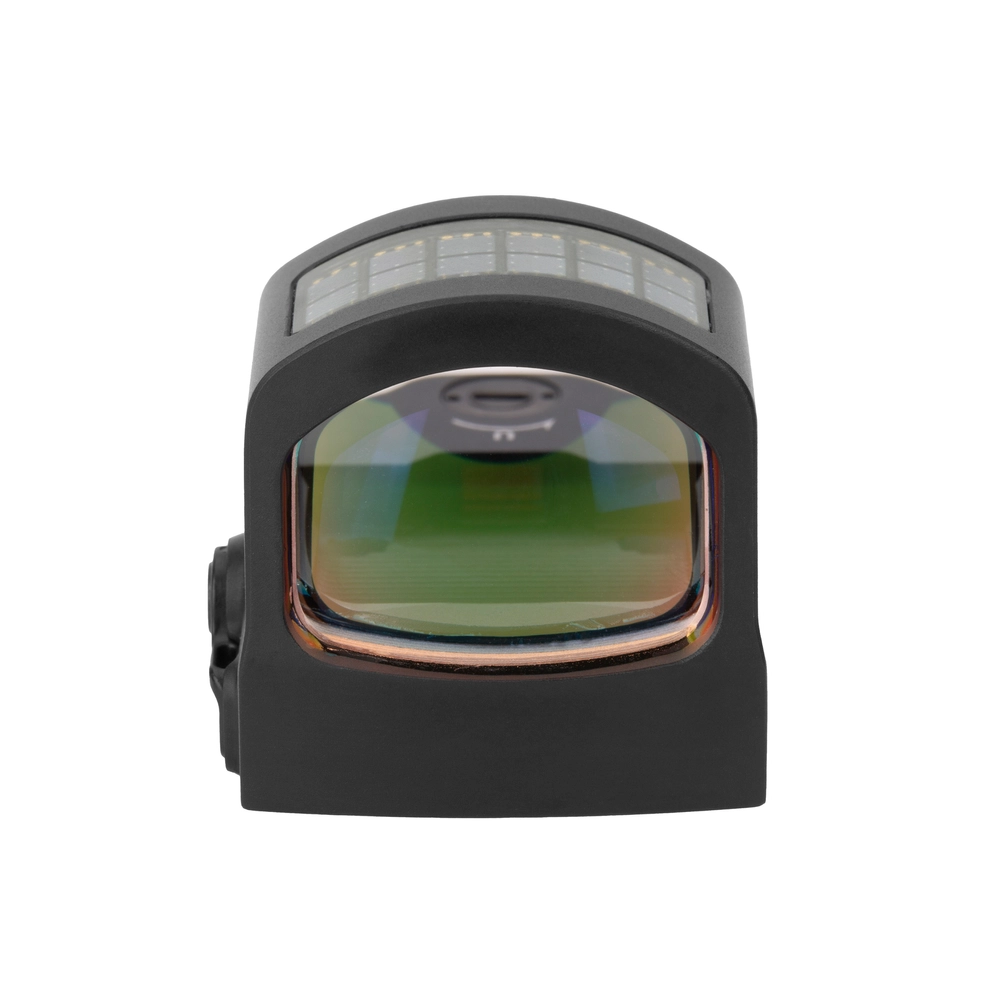

HE507C-X2-GR
Open Pistol Sight

HE507C-X2-GR

$399.99

The HE507C-GR-X2 is a premium open reflex optic for full-size and compact pistols, featuring Holosun’s green Multi-Reticle System for adaptable speed and precision.

Its durable 7075-T6 aluminum housing, Solar Failsafe, and Shake Awake deliver dependable performance with up to 50,000 hours of runtime from a convenient side-loading battery.

Multi-Reticle System (MRS)
Selectable 2 MOA dot, 32 MOA circle, or circle-dot combination for precision aiming or rapid acquisition.

Green Super LED
High-visibility green reticle designed for faster visual pickup and improved contrast in bright environments.

Solar Failsafe with Shake Awake
Solar backup and motion activation help maintain operation while conserving battery life.

Side-Loading CR1632 Battery
Battery replacement without removing the optic from the firearm.

Lockout Mode
Prevents accidental brightness or setting changes during carry or use.

7075-T6 Aluminum Housing
Hard-anodized aluminum construction with IP67 waterproofing and 5000G vibration resistance.

series

No items found.

Reticle Options

Find A DEALER
507C-X2 Series

HE507C-X2-GR

Features

  • Green Multi Reticle System
    High visibility green reticle with selectable 2 MOA dot, 32 MOA circle, or combined circle dot for both precision and rapid target acquisition.
  • Enhanced Green Super LED
    540nm green emitter delivers strong contrast in bright environments while maintaining up to 50,000 hours of battery life.
  • Solar Failsafe Technology
    Solar panel supplements battery power and allows the optic to remain operational using ambient light if the battery becomes depleted.
  • Shake Awake Technology
    Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to conserve battery life.
  • Lockout Mode
    Prevents accidental brightness or reticle adjustments by locking the control buttons once preferred settings are selected.
  • Side Loading Battery Tray
    CR1632 side mounted battery allows quick replacement without removing the optic from the slide, preserving zero.
  • Manual and Automatic Brightness Control
    Ten daylight and two night vision compatible brightness settings with automatic brightness adjustment for changing lighting conditions.
  • RMR Footprint Compatibility
    Industry standard RMR footprint enables direct mounting to a wide range of optics ready pistols and adapter plates.
  • 7075 Aluminum Housing
    Hard anodized 7075 T6 aluminum construction provides strength and durability for duty, defensive, or range use.
  • IP67 Weather Resistance
    Sealed housing protects the optic from water and debris with IP67 waterproofing and 5000G vibration resistance.

FUNCTIONS

Selectable Reticle

Yes

Solar Power

Yes

Shake Awake Technology

Yes

Auto Off

Yes

Memory

Yes

Manual Brightness

Yes

Automatic Brightness

No

Lockout Mode

Yes

OPTICAL DATA

Light Source

LED

Wavelength

540nm

Reticle

2 MOA Dot & 32 MOA Circle

Magnification

1x

Parallax

No

Unlimited Eye Relief

Yes

Multi-Coatings

Yes

ELECTRONIC DATA

Battery

CR1632

Battery Life (Setting 6)

50,000 Hours

Brightness Setting

10 Daylight & 2 NV

Removable Battery

Yes

Battery Location

Side Tray

MECHANICAL DATA

Housing Material

7075 T6 Aluminum

Surface Finish

Anodized

Housing Color

Black

Adjustment Per Click

1 MOA

W&E Travel Range

±50 MOA

Storage Temperature

-40°C~70°C

Working Temperature

-30°C~60°C

Submersion

IP67

Vibration

5000G

PHYSICAL DATA

Window Size

0.91" × 0.63"

Body Dimensions

1.78" × 1.15"  × 1.15"

Body Weight

1.5 oz

Fitment

Direct Mount

RMR Footprint

In The Box

HE507C-X2-GR


Lens Cloth


Multi-Tool


Manual


Warranty Card
