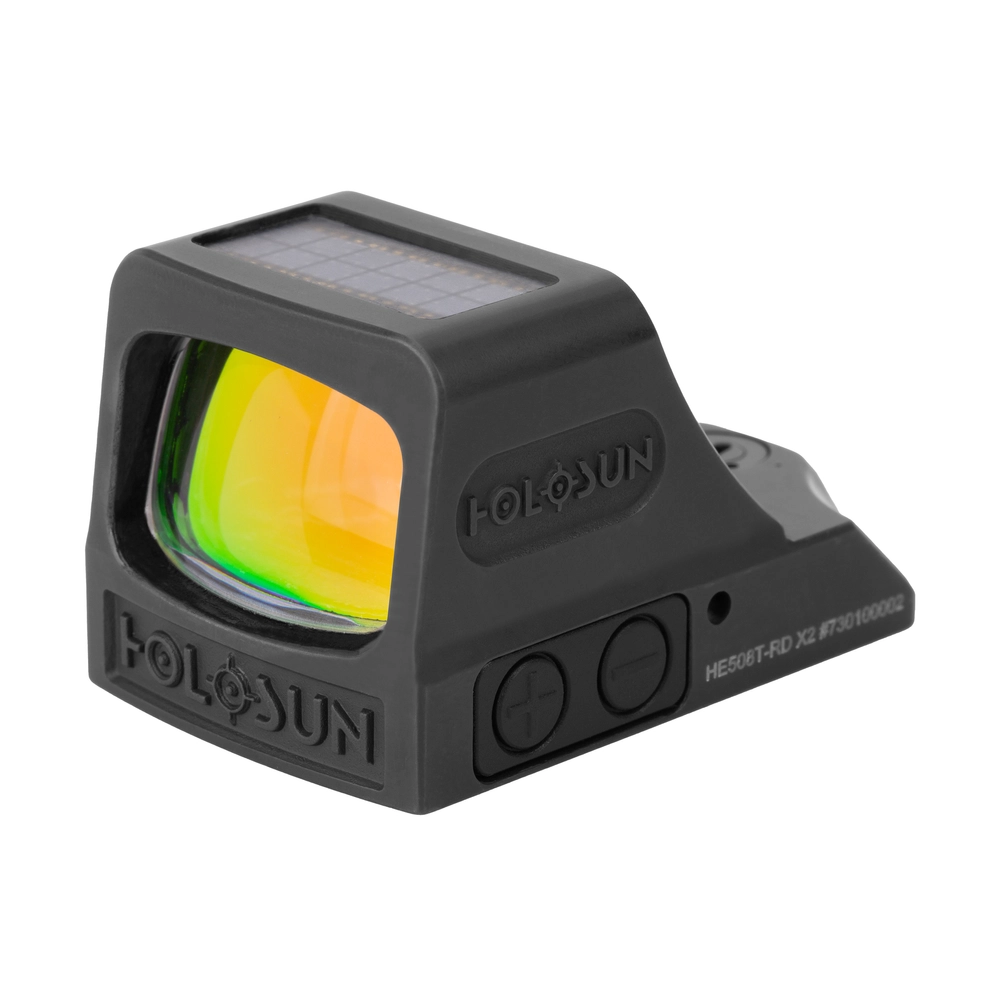

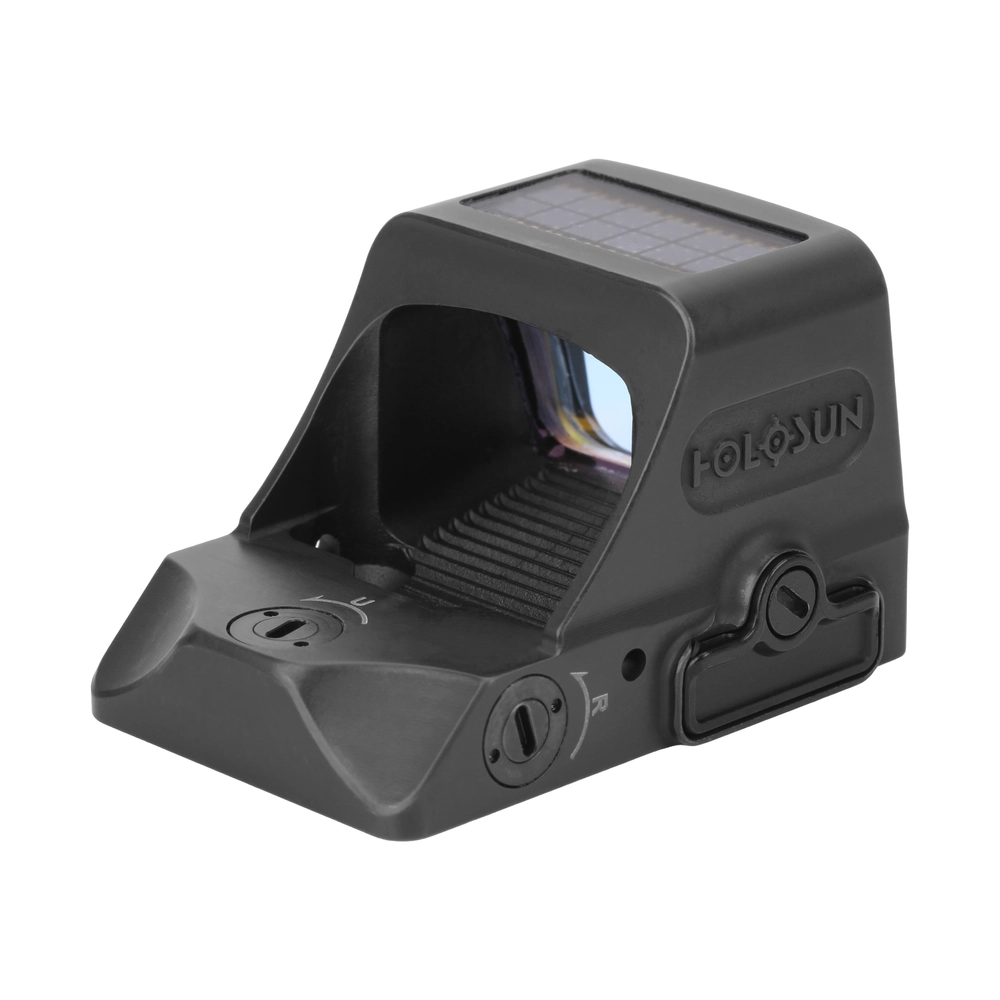

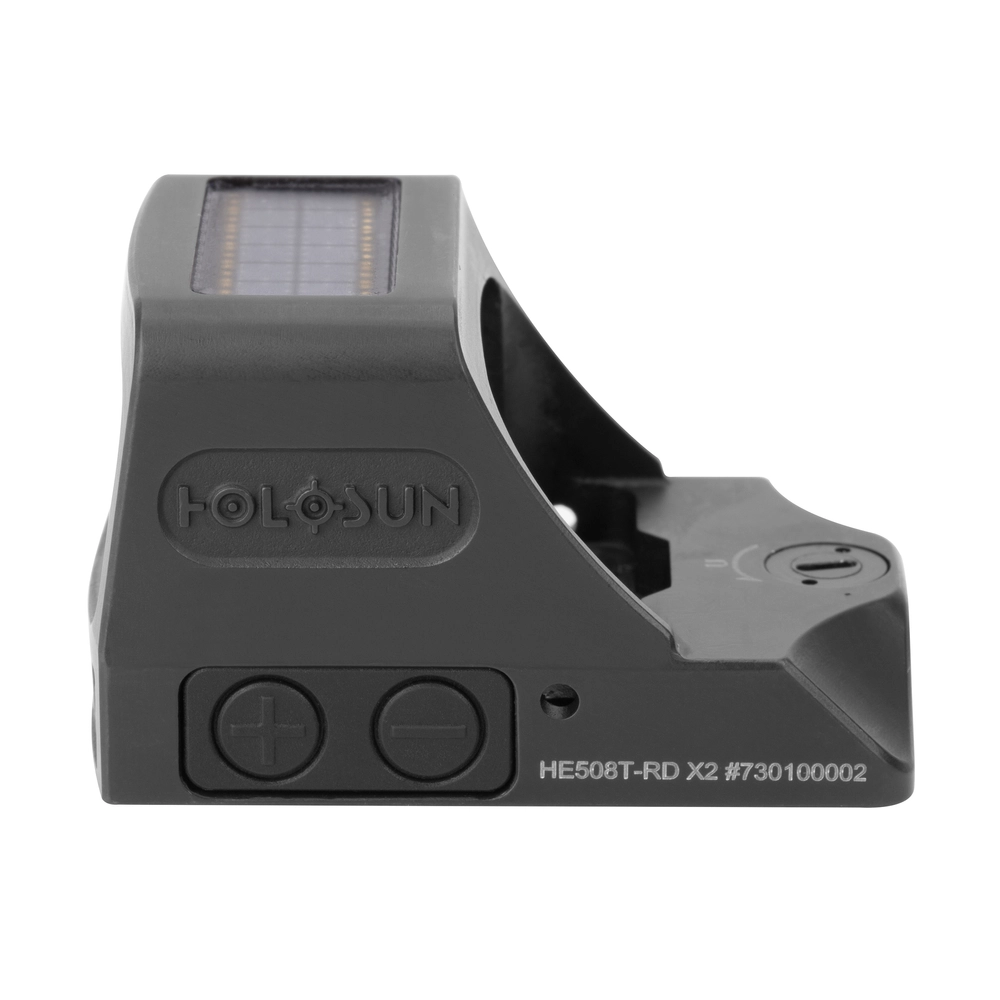

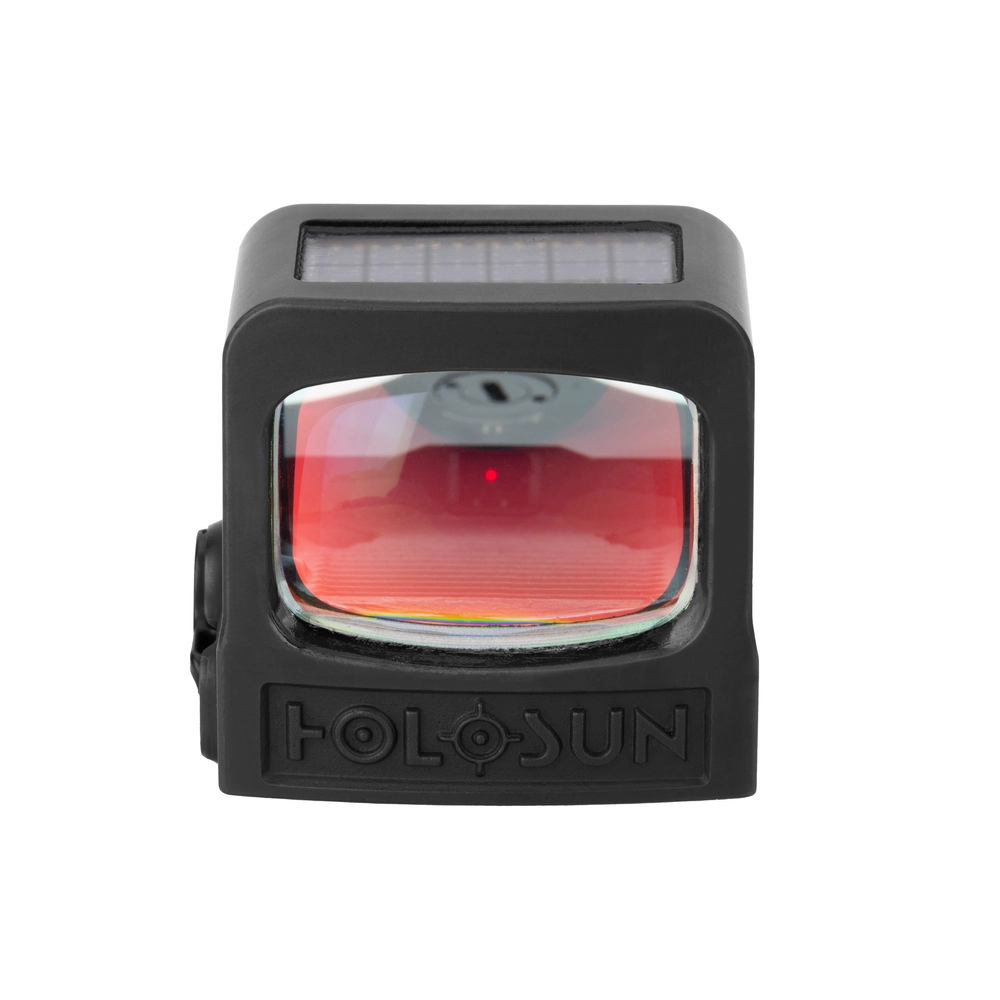

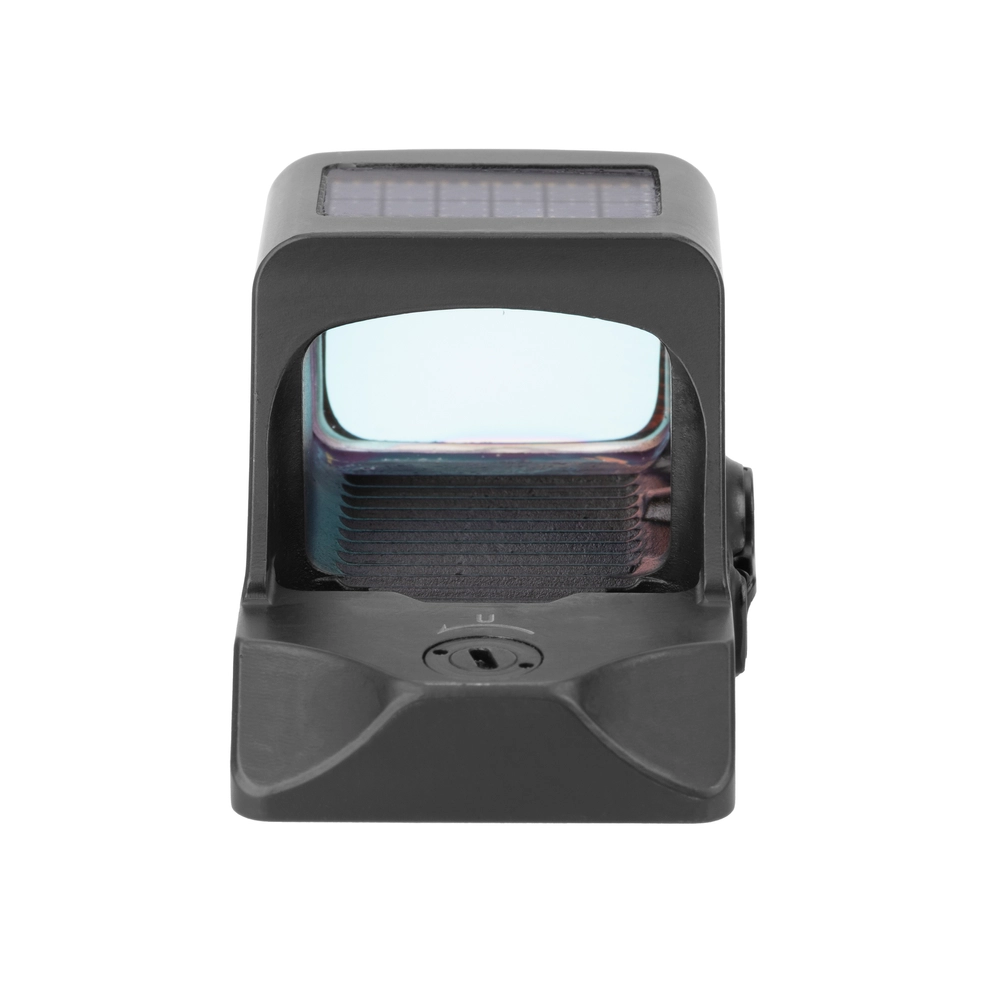

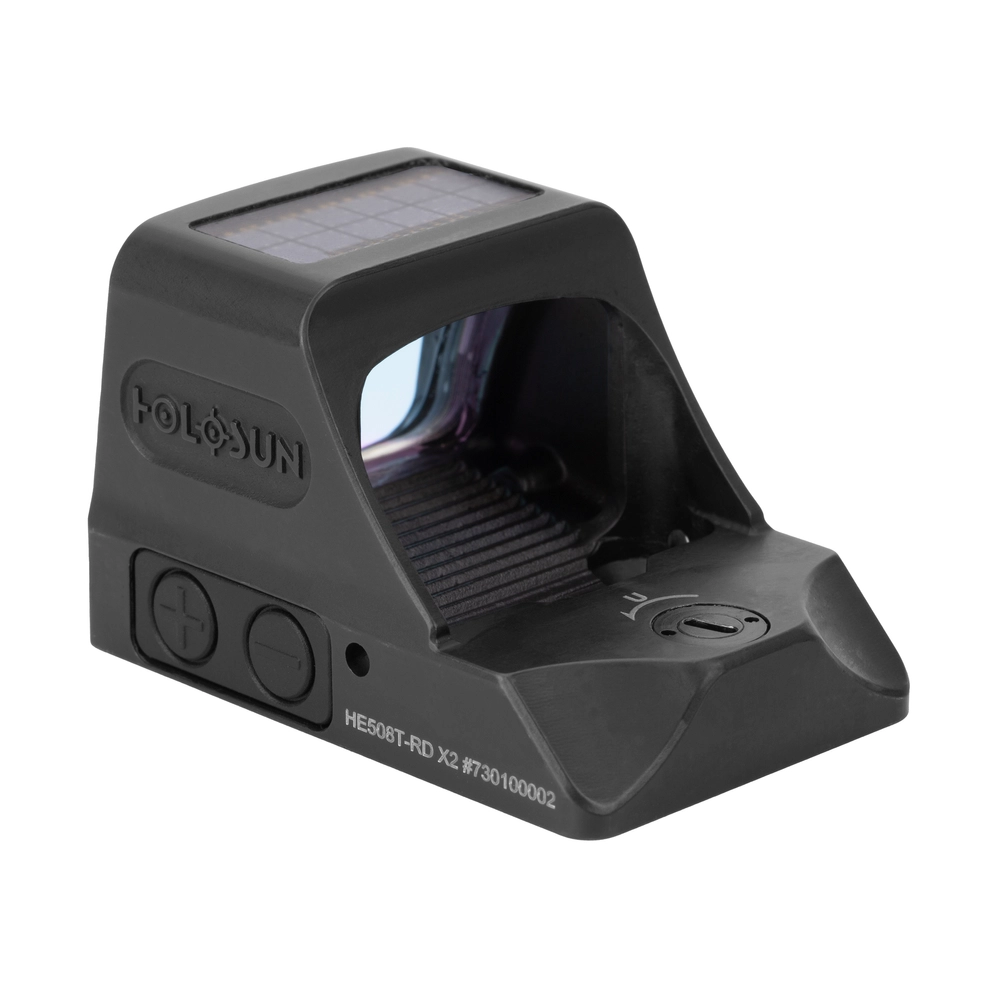

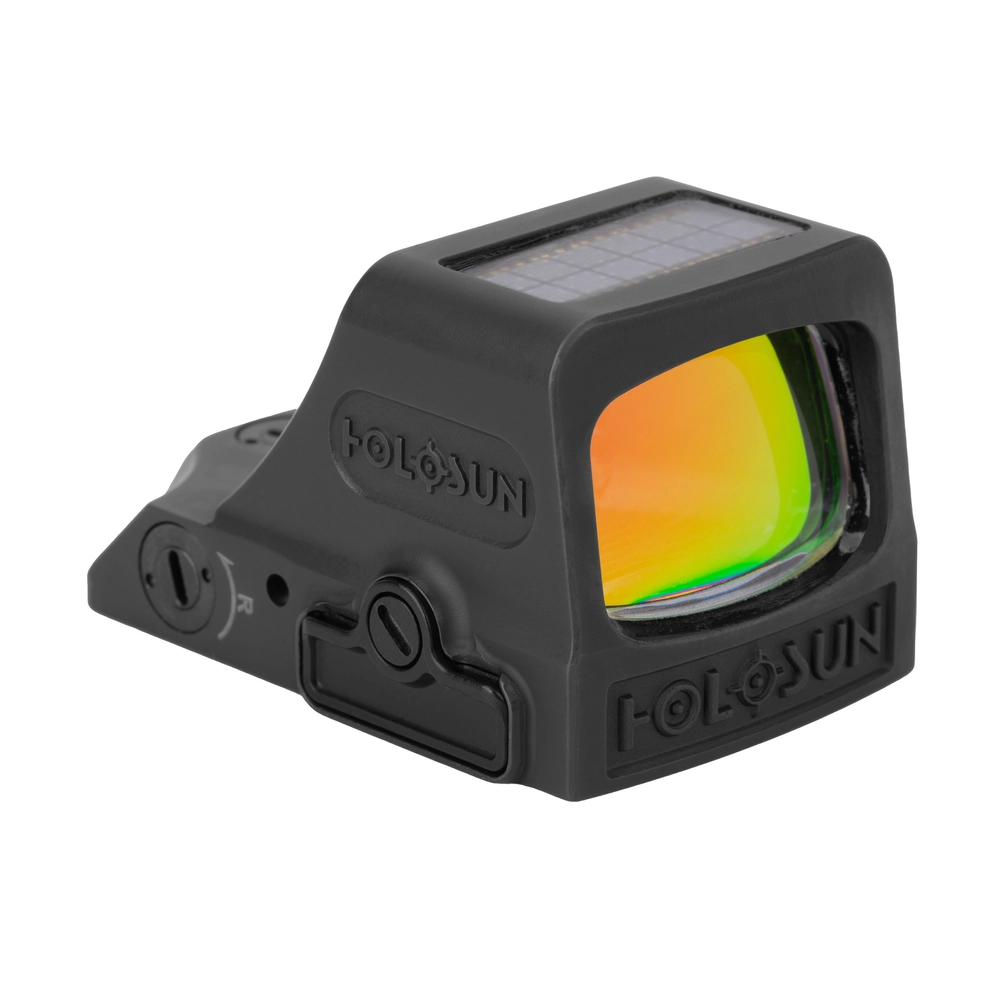

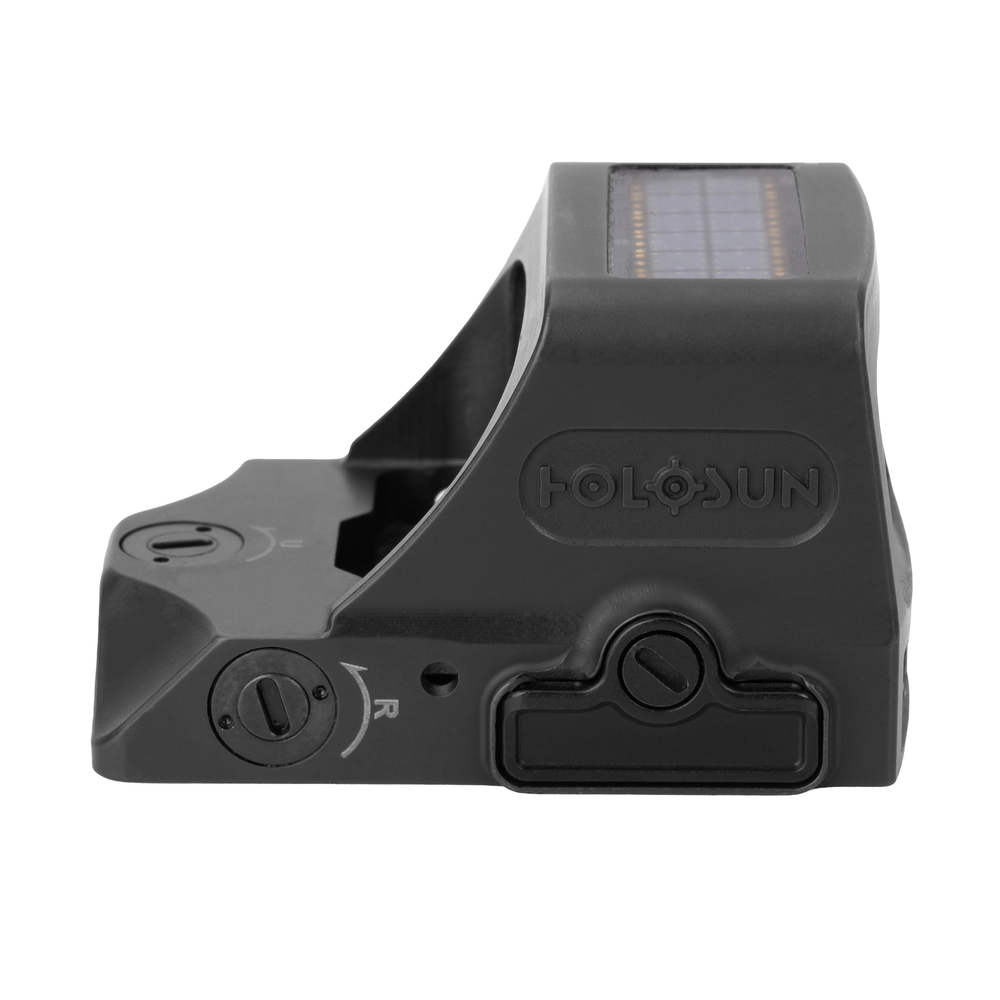

HE508T-X2-RD
$435.28
The HE508T-RD-X2 pairs a Grade 5 titanium housing with a crisp red Multi-Reticle System for exceptional durability and adaptable aiming performance.
Solar Failsafe, Shake Awake, and a side-loading battery tray keep the optic ready while maintaining simple, dependable operation for duty, carry, and hard use.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 32 MOA circle, or circle-dot combination for adaptable shooting performance.
→ Grade 5 Titanium Housing
Ultra-strong titanium construction built to withstand demanding environments and heavy use.
→ High-Performance Red Super LED
650nm red reticle delivers a crisp aiming point with up to 50,000 hours of battery life.
→ Solar Failsafe with Shake Awake
Solar backup maintains operation while motion activation powers the optic instantly.
→ Side-Loading CR1632 Battery
Battery replacement without removing the optic from the firearm.
→ Duty-Ready Durability
Built for professional use with rugged construction designed to handle harsh environments.
Reticle Options
Features
- Red Multi Reticle System
Selectable red reticle with 2 MOA dot, 32 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enhanced Red Super LED
650nm red emitter provides strong visibility and consistent brightness with up to 50,000 hours of battery life. - Grade 5 Titanium Housing
Precision machined titanium body delivers exceptional durability and strength for demanding duty or defensive applications. - Solar Failsafe Technology
Solar panel supplements battery power and keeps the optic operational using ambient light if the battery becomes depleted. - Shake Awake Technology
Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to conserve battery life. - Lockout Mode
Prevents accidental brightness or reticle adjustments by locking the control buttons once preferred settings are selected. - Side Loading Battery Tray
CR1632 side mounted battery allows quick replacement without removing the optic from the slide. - Manual and Automatic Brightness Control
Ten daylight and two night vision compatible brightness settings with automatic brightness adjustment for changing lighting conditions. - RMR Footprint Compatibility
Industry standard RMR footprint enables direct mounting to a wide range of optics ready pistols and adapter plates. - IP67 Weather Resistance
Sealed housing protects the optic from water and debris with IP67 waterproofing and 5000G vibration resistance.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 32 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR1632
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
Titanium
Surface Finish
Titanium Finish
Housing Color
Black
Adjustment Per Click
1 MOA
W&E Travel Range
±50 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size
0.63" × 0.91"
Body Dimensions
1.78" × 1.15" × 1.15"
Body Weight
2 oz
Fitment
Direct Mount
RMR Footprint
In The Box
HE508T-X2-RD
Screws Included -
2x 6-32x9.5mm
2x 6-32x7.4mm
Lens Cloth
Multi-Tool
Manual
Warranty Card
