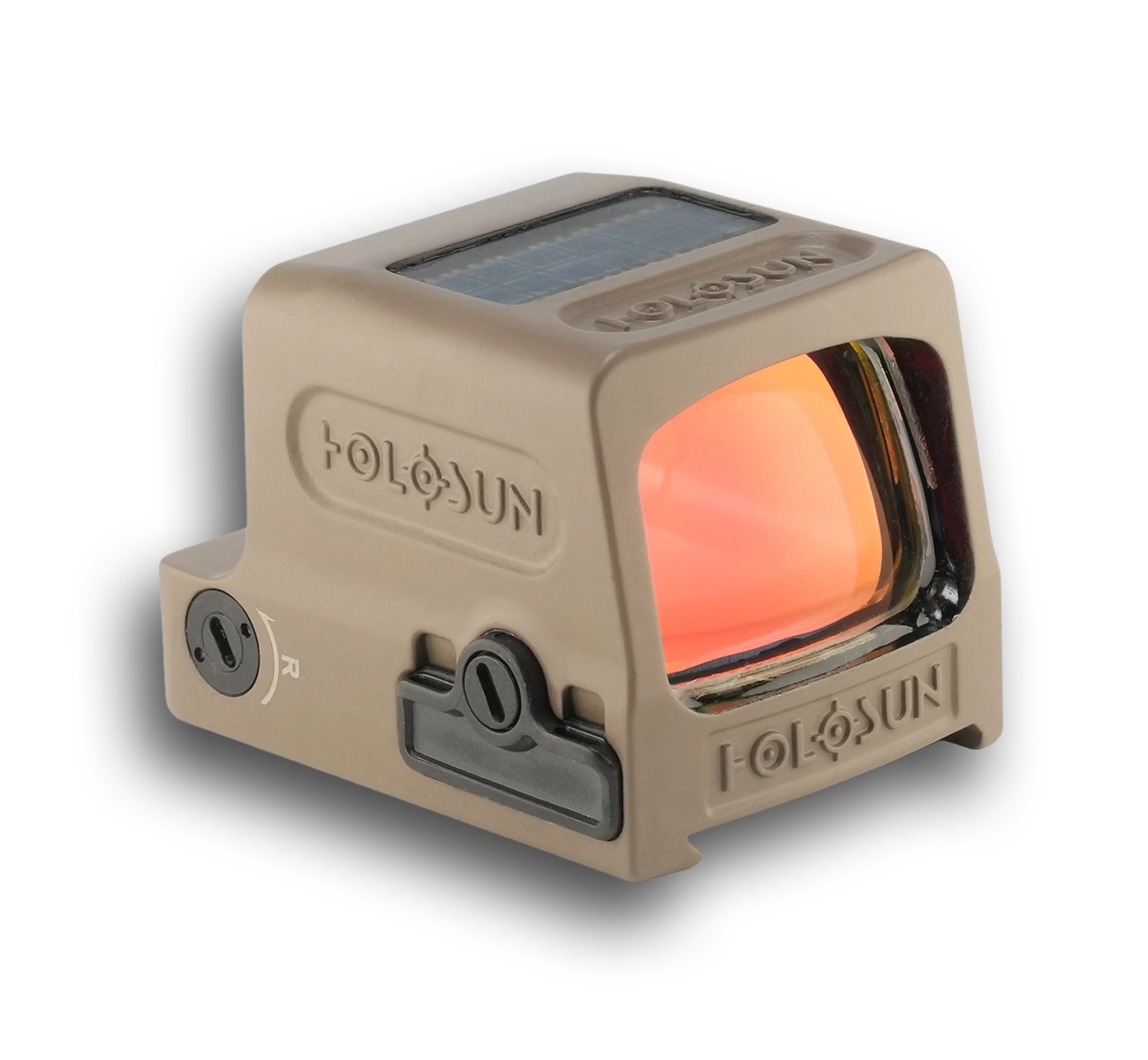

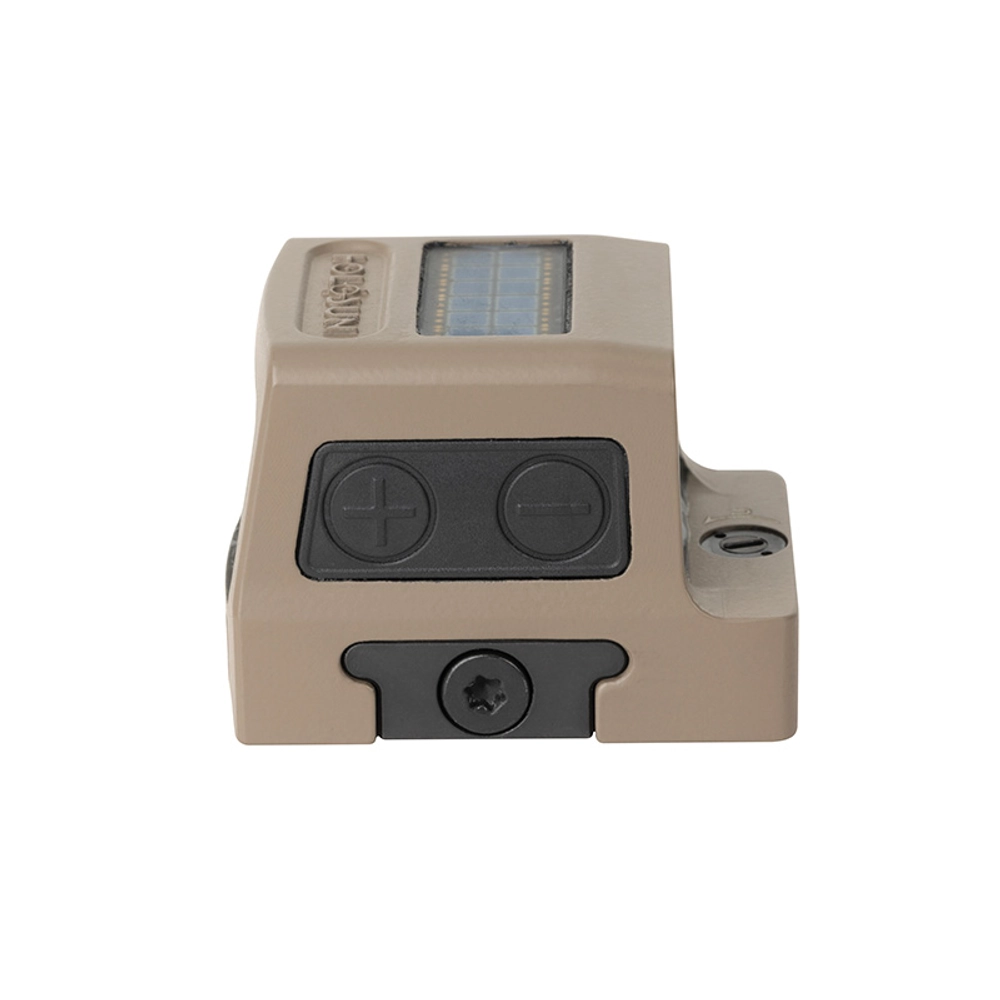

HE509T-X2-GR-FDE
$541.16
The HE509T-X2-GR-FDE pairs the proven 509T enclosed pistol optic with a high-visibility green reticle and a durable flat dark earth finish for color-matched pistol setups.
Its sealed emitter and Grade 5 titanium housing deliver exceptional durability and reliable performance in rain, dust, and demanding shooting environments.
→ Green Multi-Reticle System
High-contrast green reticle with selectable 2 MOA dot, 32 MOA circle, or circle-dot combination for speed or precision.
→ Enclosed Emitter Design
Fully sealed housing protects the emitter from water, debris, and environmental interference.
→ Grade 5 Titanium Housing with FDE Finish
Extremely strong titanium construction with durable Flat Dark Earth coating for modern pistol setups.
→ Solar Failsafe with Shake Awake
Solar backup regulates brightness while motion activation powers the optic instantly.
→ Side-Loading CR1632 Battery
Battery replacement without removing the optic from the slide.
→ Duty-Ready Environmental Protection
Built for harsh conditions with IP67 waterproofing and rugged construction.
Reticle Options
Features
- Green Multi Reticle System
High visibility green reticle with selectable 2 MOA dot, 32 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enclosed Titanium Optic Design
Fully enclosed emitter protects the optic from dust, debris, and moisture to ensure consistent performance in harsh environments. - Grade 5 Titanium Housing
Precision machined titanium body provides exceptional durability and strength while maintaining a lightweight profile. - Flat Dark Earth Finish
Durable FDE coating provides a distinctive finish that blends with modern pistol and rifle platforms while maintaining corrosion resistance. - Enhanced Green Super LED
540nm green emitter delivers strong contrast in bright environments with up to 50,000 hours of battery life. - Solar Failsafe Technology
Solar panel supplements battery power and allows the optic to remain operational using ambient light if the battery becomes depleted. - Shake Awake Technology
Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to conserve battery life. - Lockout Mode
Prevents accidental brightness or reticle adjustments by locking the control buttons once preferred settings are selected. - Side Loading Battery Tray
CR1632 side mounted battery allows quick replacement without removing the optic from the slide. - RMR to 509T Adapter Plate Included
Includes adapter plate allowing mounting on RMR footprint pistol slides for expanded compatibility. - IP67 Weather Resistance
Sealed housing protects the optic from water and debris with IP67 waterproofing and 5000G vibration resistance.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
540nm
Reticle
2 MOA Dot & 32 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR1632
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4
Side Tray
Yes
MECHANICAL DATA
Housing Material
7075 T6 Titanium
Surface Finish
Titanium Finish
Housing Color
FDE
Adjustment Per Click
1 MOA
W&E Travel Range
±30 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size (in)
0.66" x 0.9"
Dimension (in) Body
1.6" x 1.16" x 1.13"
Body (oz) Weight
1.27 oz
Fitment
Direct Mount
509T Footprint
Included Adapter Plate
RMR to 509T Adapter Plate
In The Box
HE509T-X2-GR
RMR to 509T Adapter Plate
2x 6-32x1/4"
Lens Cloth
Multi-Tool
Manual
Warranty Card
