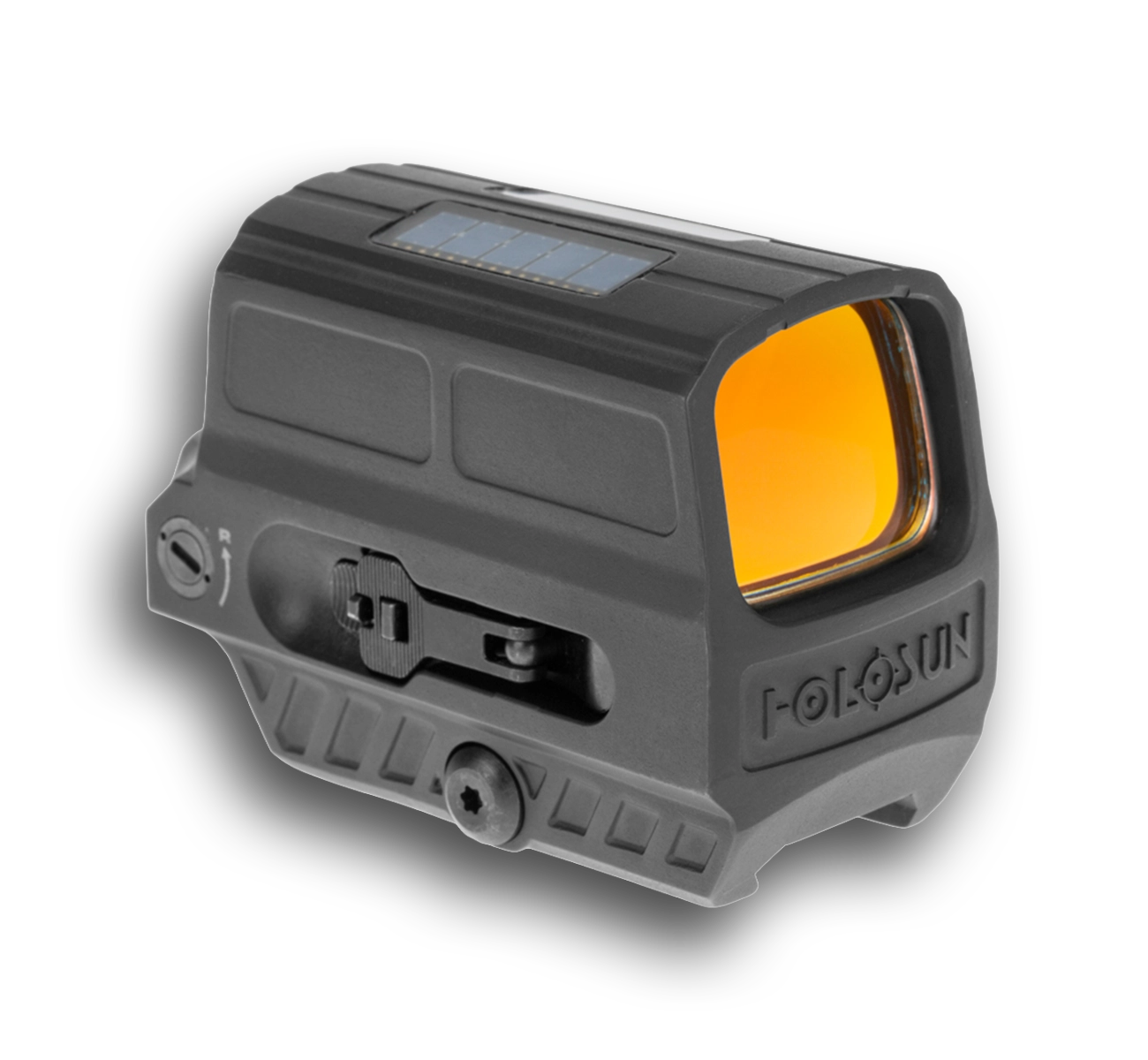

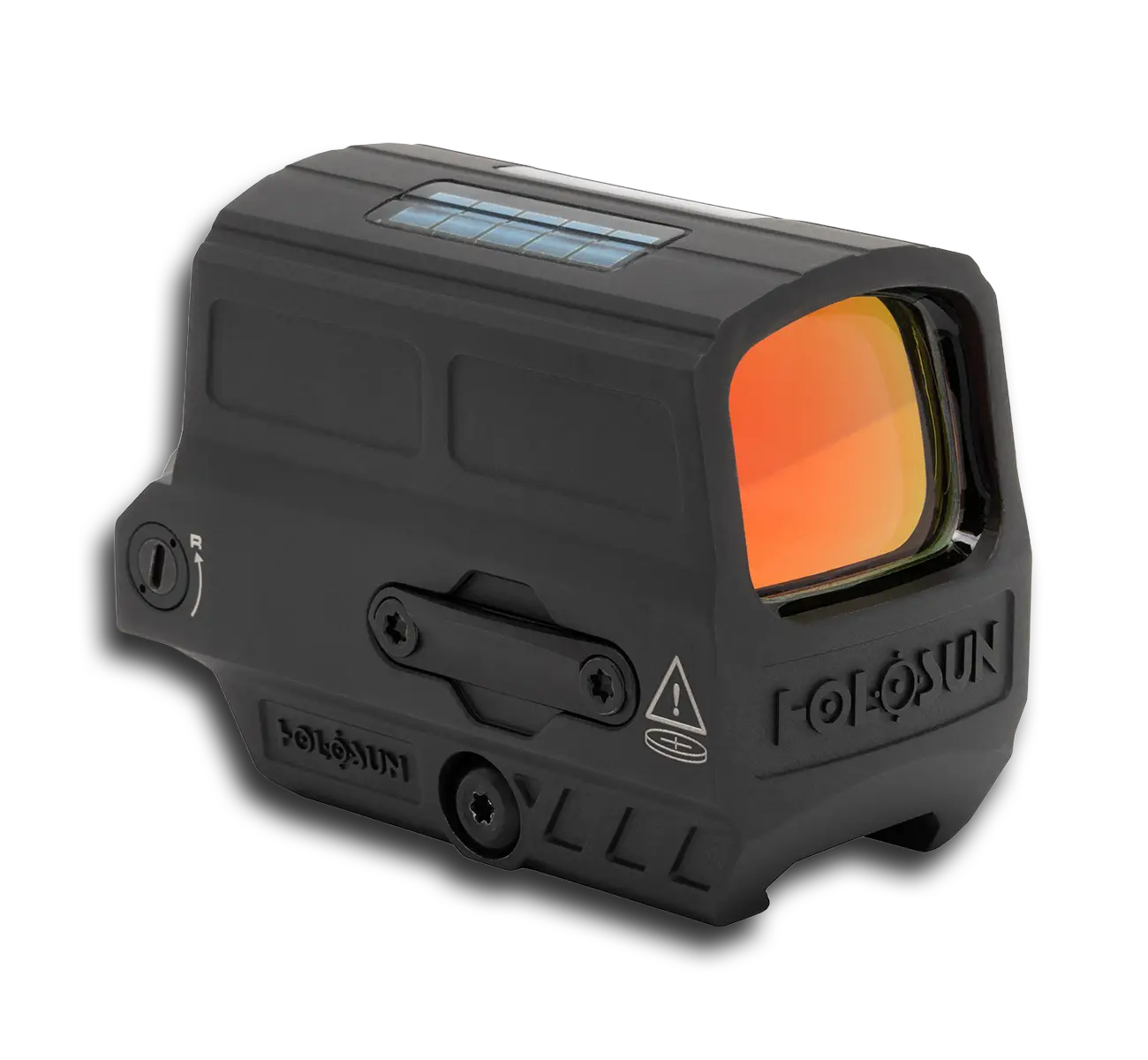

HE512T-RD
$588.22

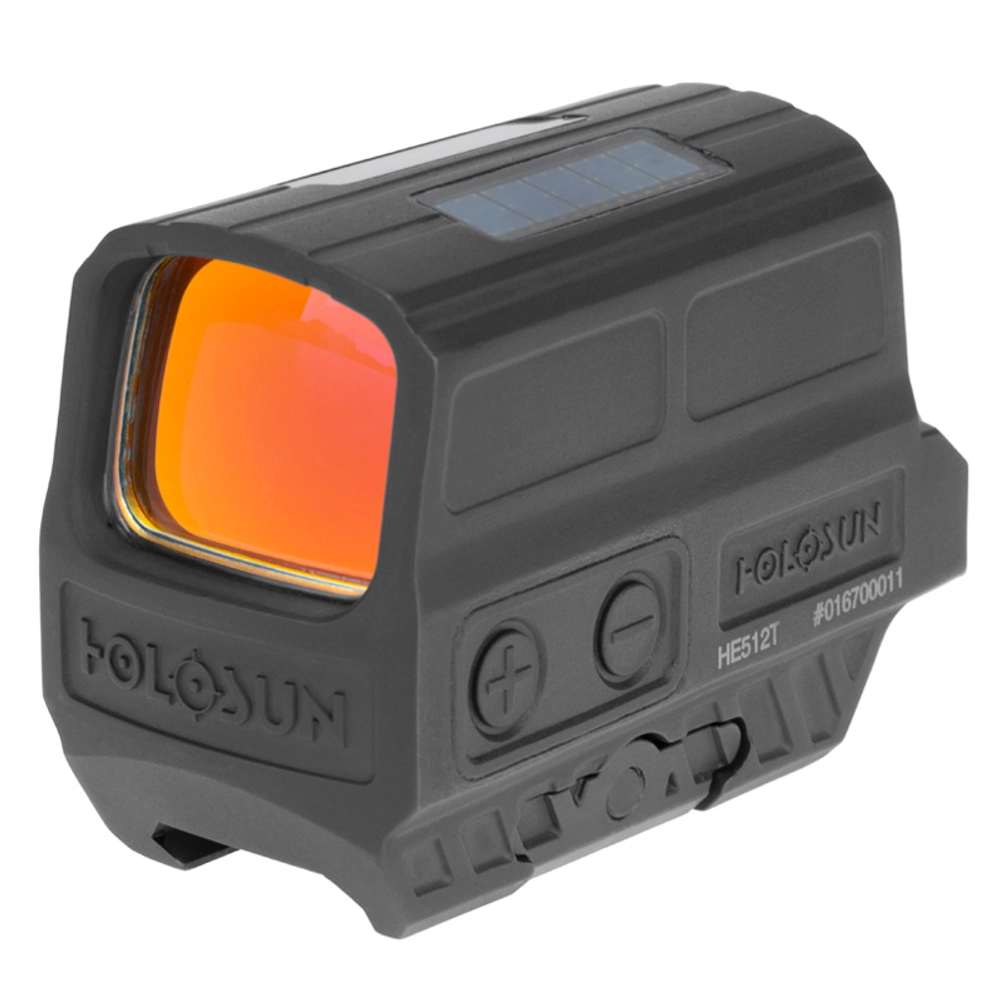

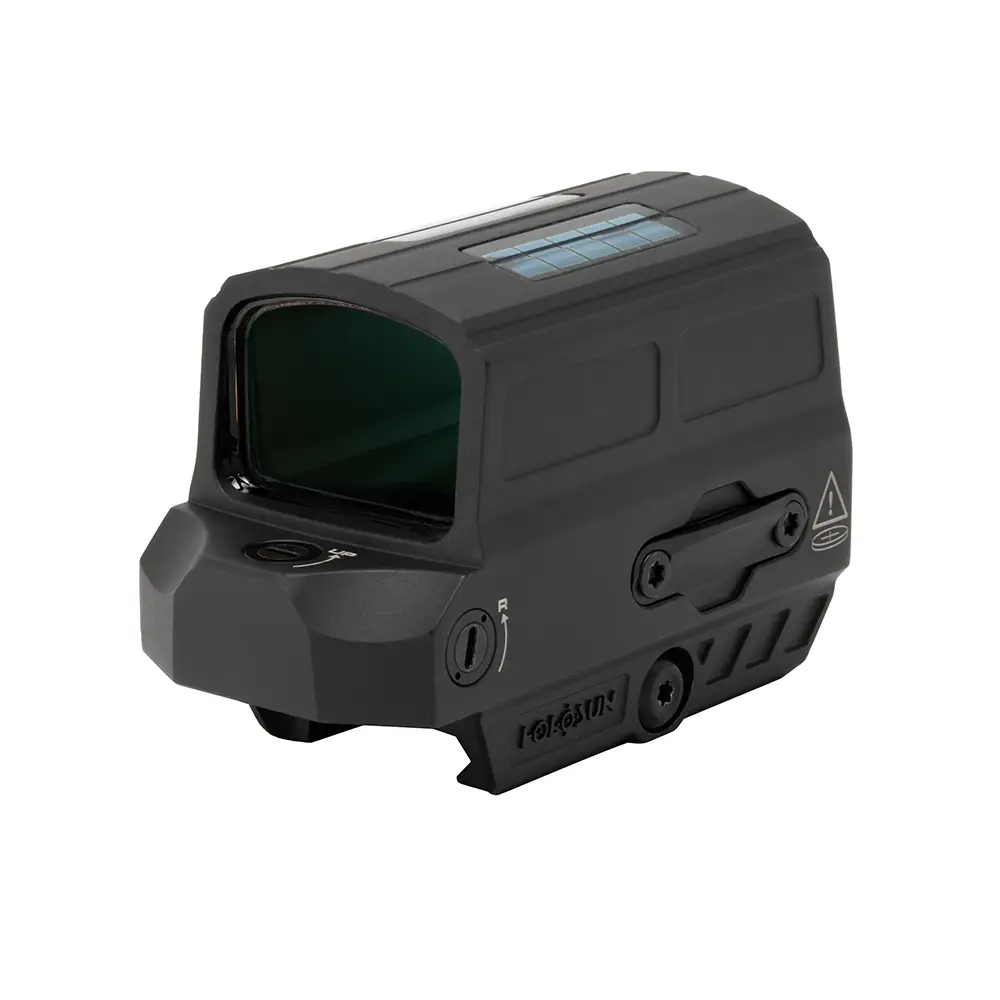

The HE512T-RD is a rugged open reflex optic built for rifles, PCCs, and shotguns where speed, durability, and reliability matter.
Its Grade 5 titanium housing and red Multi-Reticle System provide a wide sight picture and adaptable aiming, while Solar Failsafe and Shake Awake deliver efficient power management and dependable performance in demanding environments.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for adaptable rifle performance.
→ Grade 5 Titanium Housing
Lightweight titanium construction built for durability in demanding environments.
→ High-Visibility Red Super LED
650nm red reticle delivers a crisp aiming point with up to 50,000 hours of battery life.
→ Solar Failsafe with Shake Awake
Solar backup supports consistent operation while motion activation powers the optic instantly.
→ Absolute Co-Witness Mount
1.41 inch optic height aligns naturally with standard AR-pattern iron sights.
→ Rugged Weatherproof Construction
IPX8 waterproof and shock-resistant design built for hard use.
Reticle Options
Features
- Red Multi-Reticle System
Selectable red reticle with 2 MOA dot, 65 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enhanced Red Super LED
650nm red emitter delivers clear visibility across lighting conditions with up to 50,000 hours of battery life. - Grade 5 Titanium Housing
Precision machined titanium construction provides exceptional durability while maintaining a lightweight optic body. - Solar Failsafe Technology
Integrated solar panel supplements battery power and allows the optic to operate using ambient light when available. - Shake Awake Technology
Motion activated illumination powers the optic on instantly when movement is detected and powers down during inactivity to conserve battery life. - Large Enclosed Viewing Window
Generous viewing window provides a wide field of view for faster target acquisition and improved situational awareness. - Absolute Co-Witness Mount
Integrated mount positions the optic at a 1.41 inch dot height for proper alignment with standard AR style iron sights. - CR2032 Side Loading Battery Tray
Convenient battery tray allows quick battery replacement without removing the optic from the firearm. - Multi-Coated Optical System
Advanced lens coatings improve light transmission and reduce glare for a clearer sight picture. - IPX8 Waterproof Protection
Sealed titanium housing protects the optic from water intrusion and harsh environmental conditions.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
Titanium
Surface Finish
Tutanium Finish
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Window Size (in)
0.91" x 1.26"
Dimension (in) Body
3.35" x 1.63" x 1.7"
Body (oz) Weight
9.17 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HE512T-RD
Lens Cloth
Multi-Tool
Manual
Warranty Card
