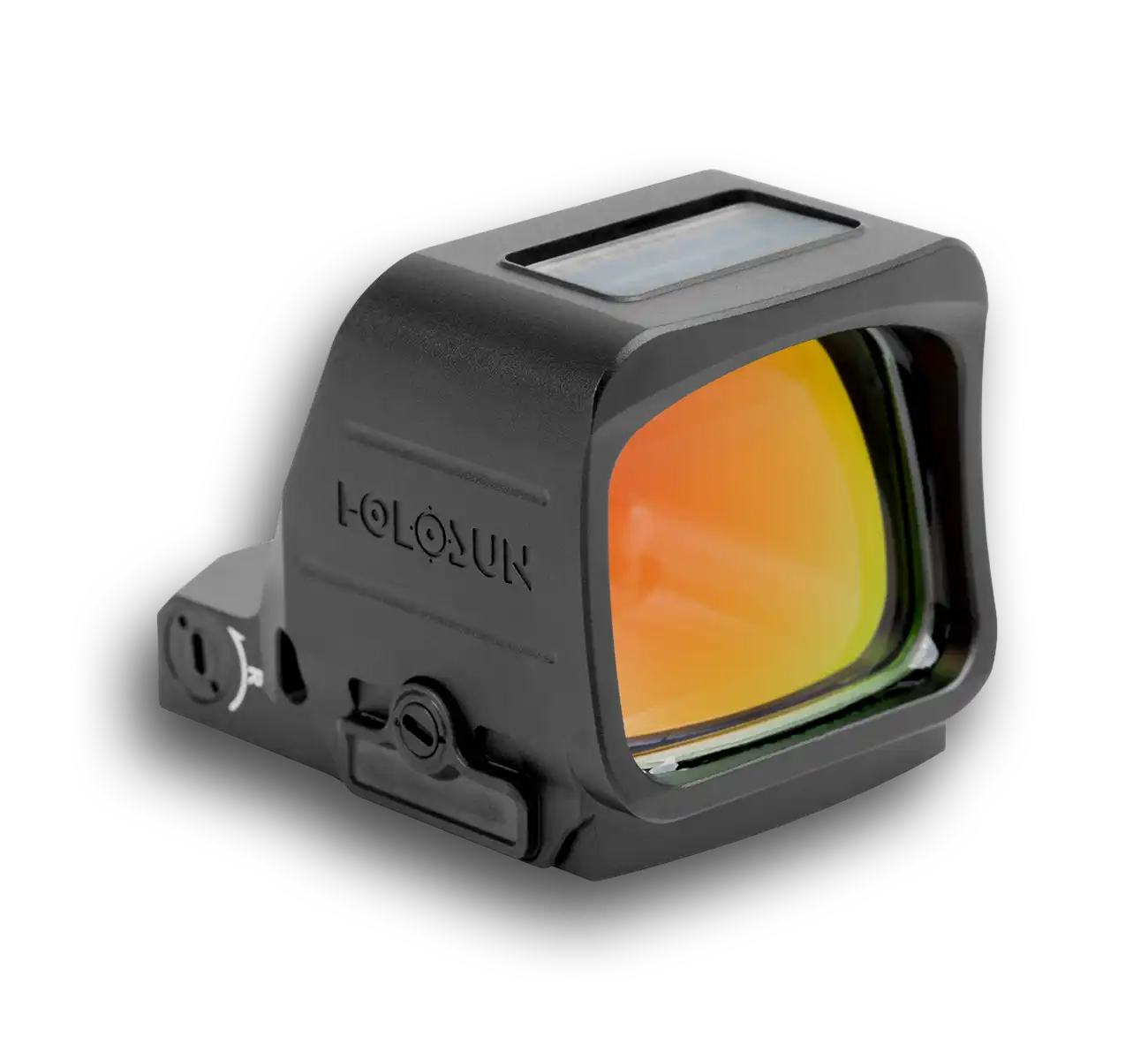

HS507-PROMAX-RD-PRS
$470.58
NEW FOR 2026 - Coming Q2

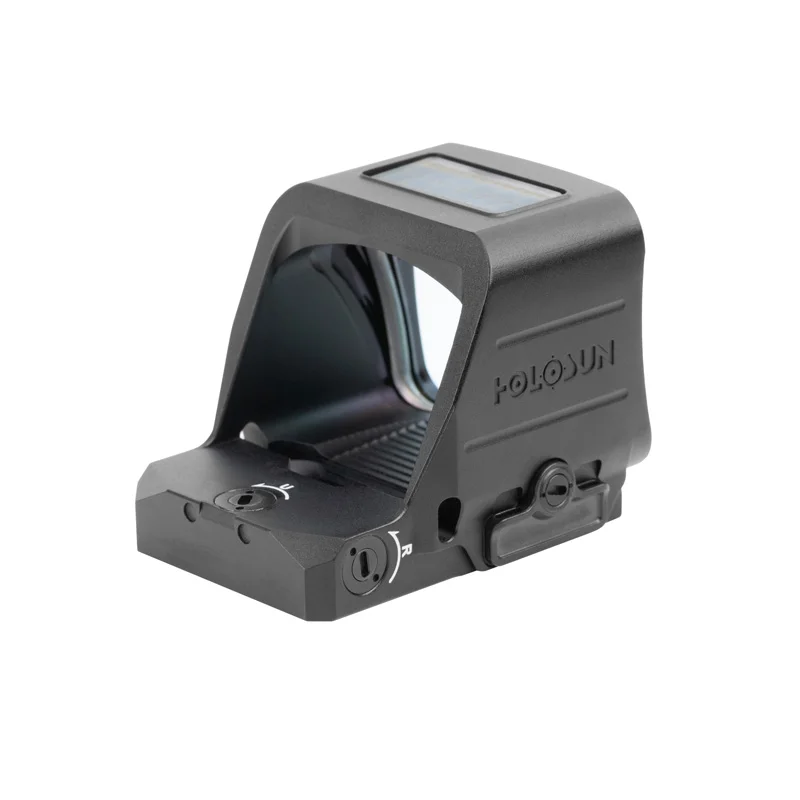

The 507-PROMAX-RD-PRS pairs an enlarged viewing window with a forward-leaning sunshade to reduce glare and maintain a sharp reticle in bright conditions.
Its Performance Reticle System, 7075-T6 aluminum housing, Solar Failsafe, Shake Awake, and side-loading CR1632 battery deliver adaptable aiming and dependable performance in demanding environments.
→ Performance Reticle System (PRS)
Selectable 2 MOA dot with 8 MOA, 20 MOA, and 32 MOA circle options for adaptable performance.

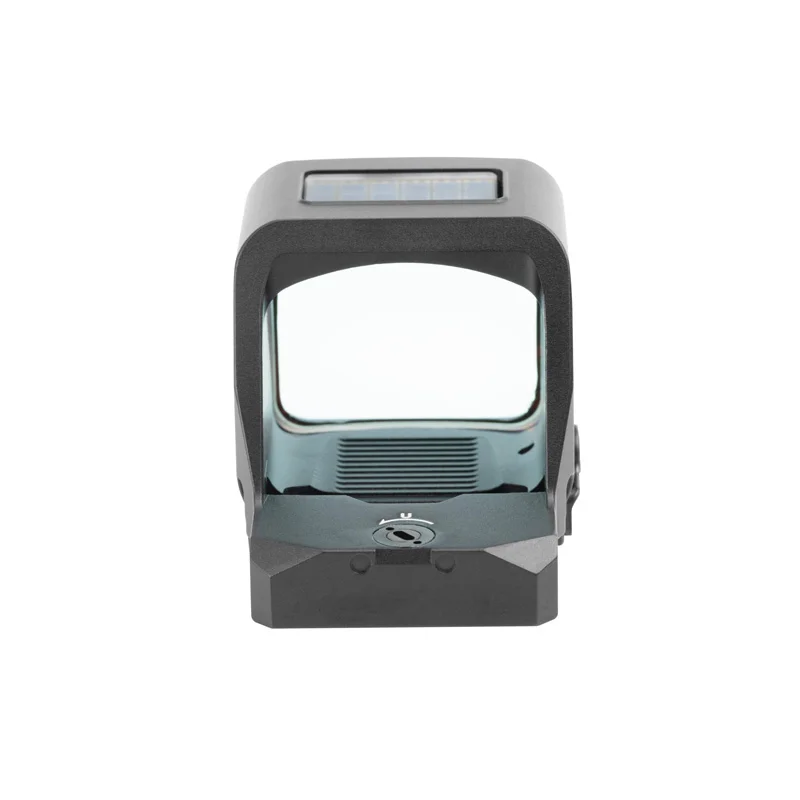

→ Enlarged Competition Window
Large viewing area supports faster target transitions and improved sight tracking.
→ Forward-Leaning Sunshade
Integrated glare reduction helps maintain reticle clarity in bright lighting.
→ Solar Failsafe Technology
Ambient light sensor automatically adjusts brightness and provides backup power.
→ Shake Awake Technology
Motion-activated system powers the optic on instantly while preserving battery life.
→ Side-Loading Battery Tray
CR1632 battery replacement without removing the optic from the firearm.
Reticle Options
Features
- Performance Reticle System
Selectable reticle system featuring a 2 MOA dot with optional 8, 20, or 32 MOA circles for speed or precision shooting. - Red Super LED Technology
650nm red emitter delivers a bright, efficient reticle with excellent clarity in varying lighting conditions. - Expanded Competition Viewing Window

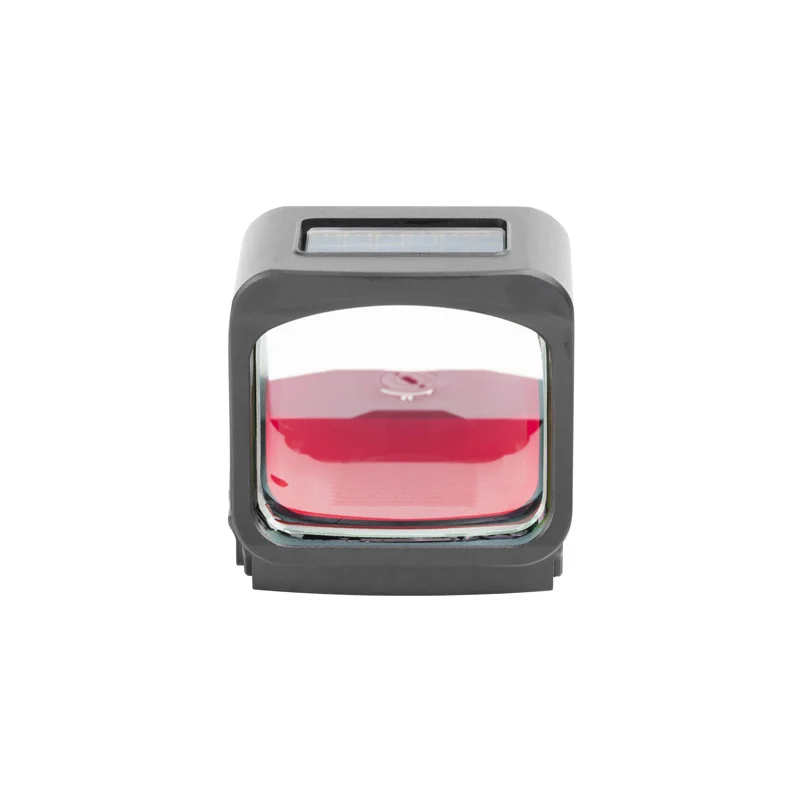

Large 1.18 × 0.98 inch window provides a wider field of view for faster transitions and improved target tracking. - Integrated Forward Sunshade
Forward leaning sunshade reduces glare and preserves reticle clarity in bright shooting environments. - Solar Failsafe System
Solar panel provides automatic brightness assistance and backup power in changing lighting conditions. - Shake Awake Technology
Motion activation instantly powers the optic on and powers down during inactivity to conserve battery life. - Manual Brightness with Lockout Mode

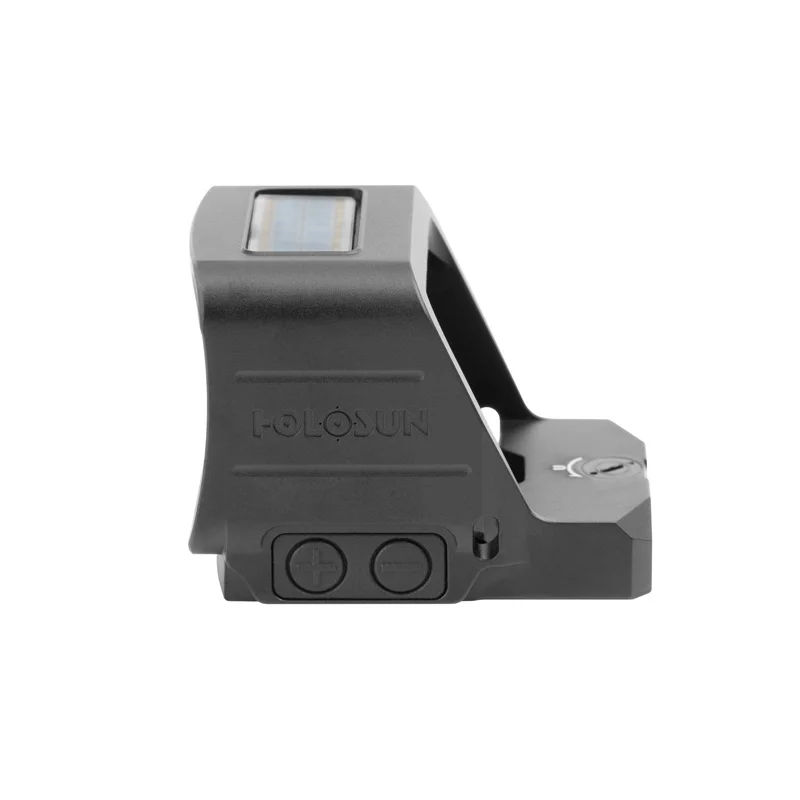

Brightness controls include memory and lockout functions to prevent accidental adjustments during competition. - Side Mounted Battery Tray

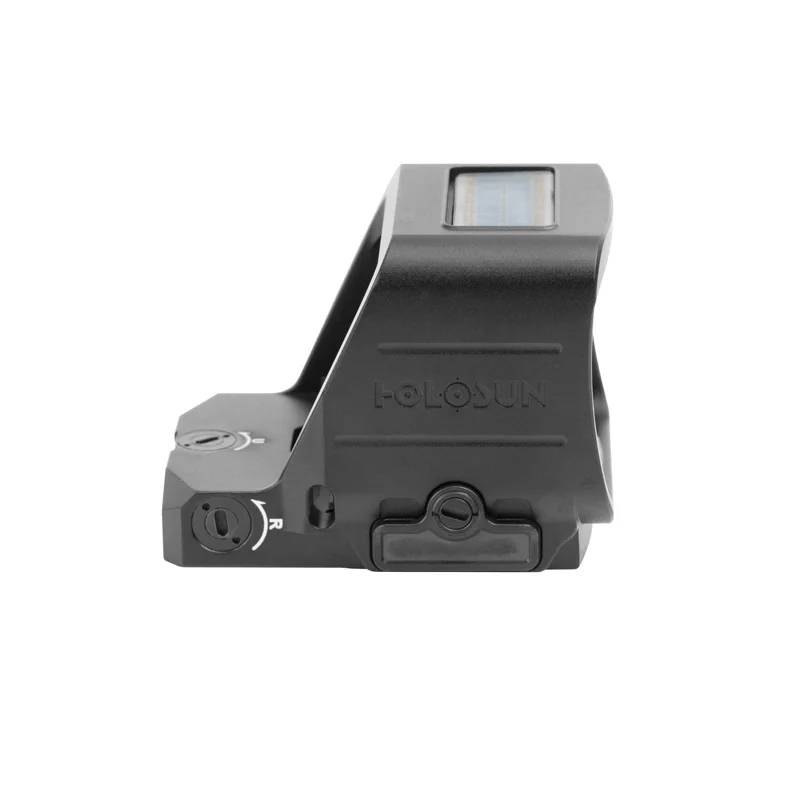

CR1632 battery compartment allows quick replacement without removing the optic from the slide. - 7075-T6 Aluminum Housing
Hard anodized aluminum construction delivers durability and strength for demanding competition use. - RMR Footprint Compatibility
Industry standard RMR footprint allows direct mounting to a wide range of optics ready pistol slides.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
No
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 8/20/32 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR1632
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Anodized
Housing Color
Black
Adjustment Per Click
1 MOA
W&E Travel Range
±30 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size
1.18" × 0.98"
Body Dimensions
1.8" × 1.4" × 1.38"
Body Weight
1.7 oz
Fitment
Direct Mount
RMR Footprint
In The Box
HS507-PRO-MAX-RD-PRS
Lens Cloth
Multi-Tool
Manual
Warranty Card
