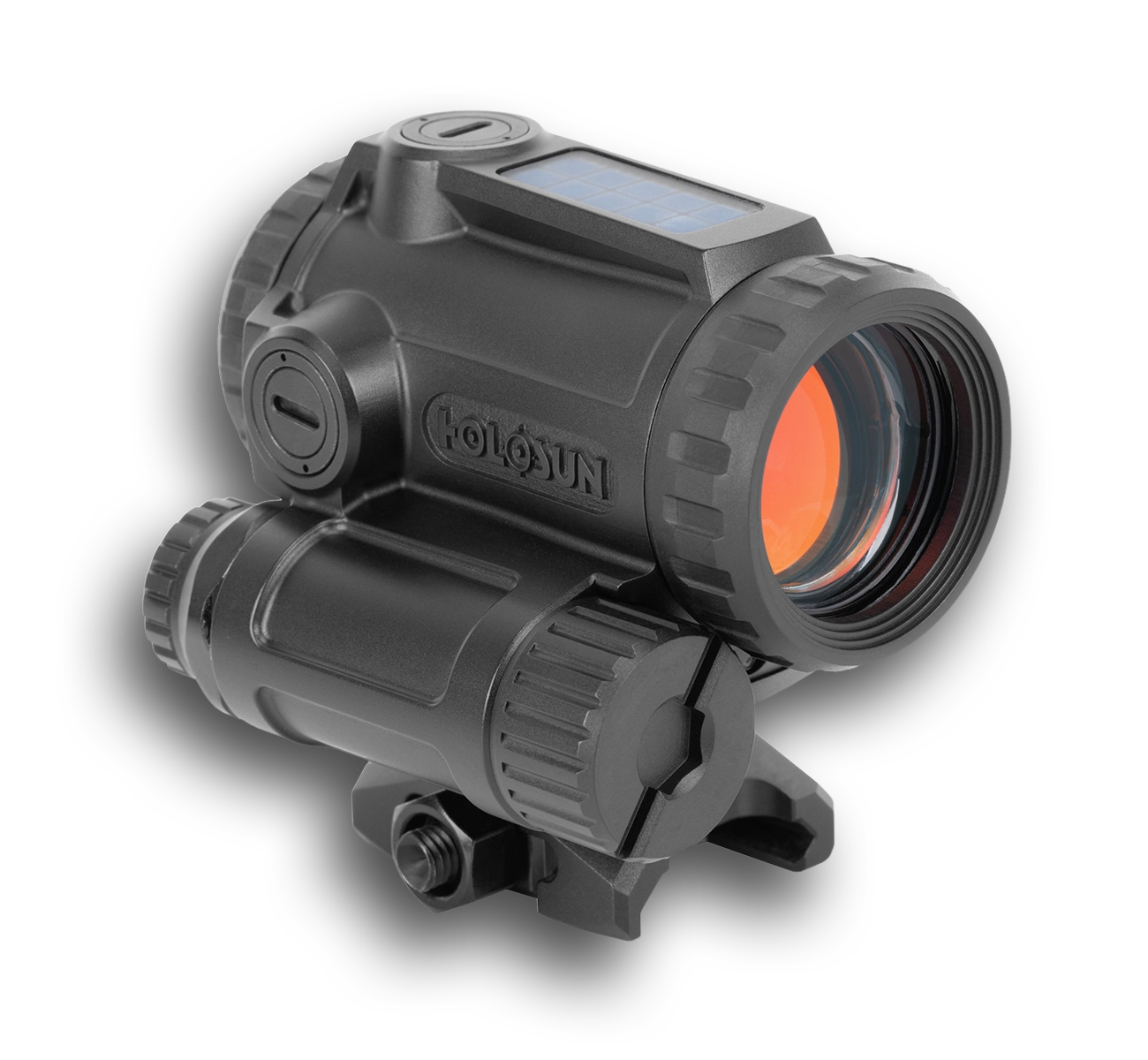

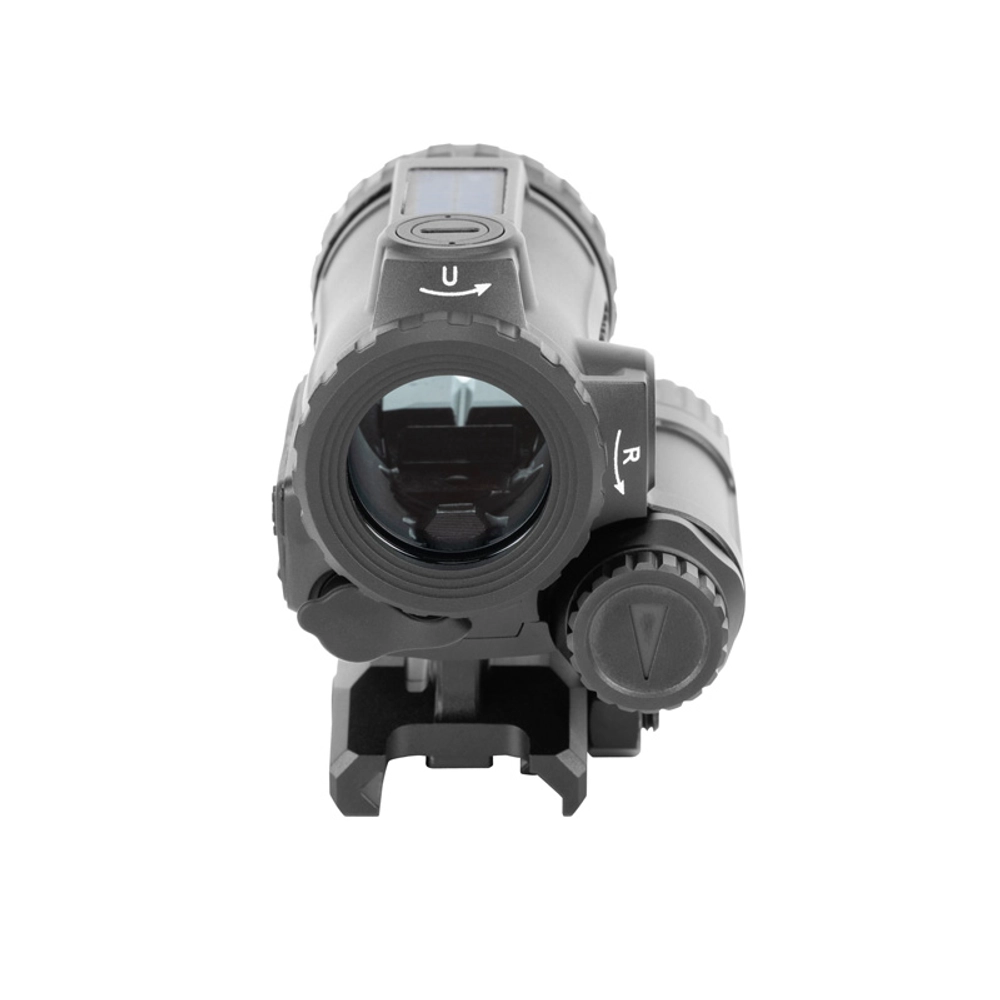

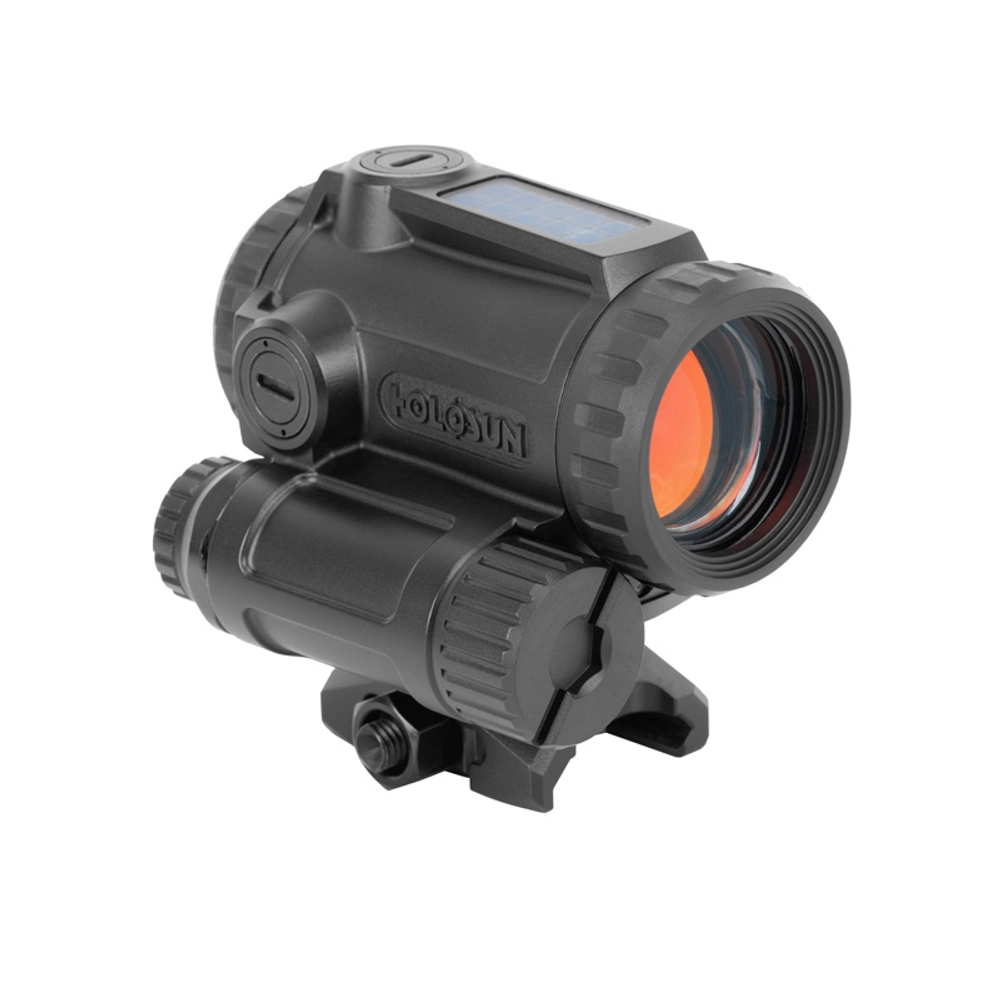

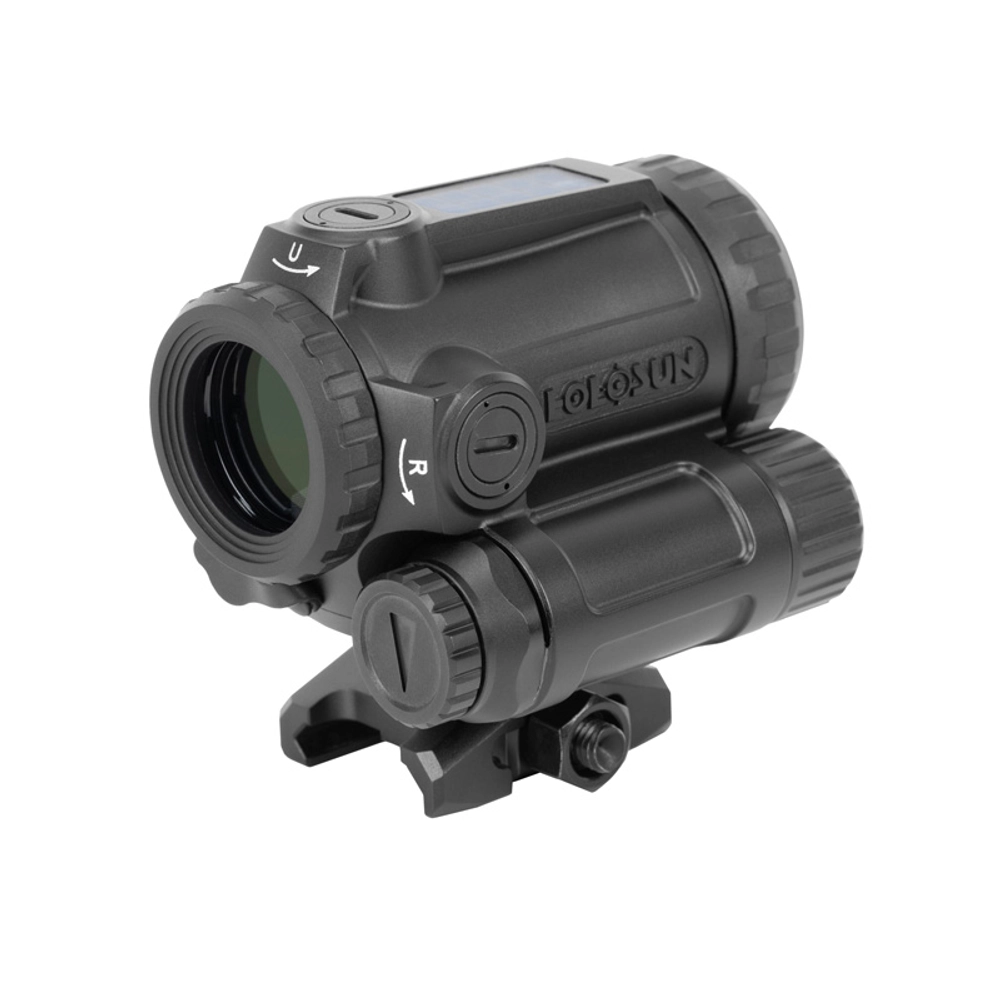

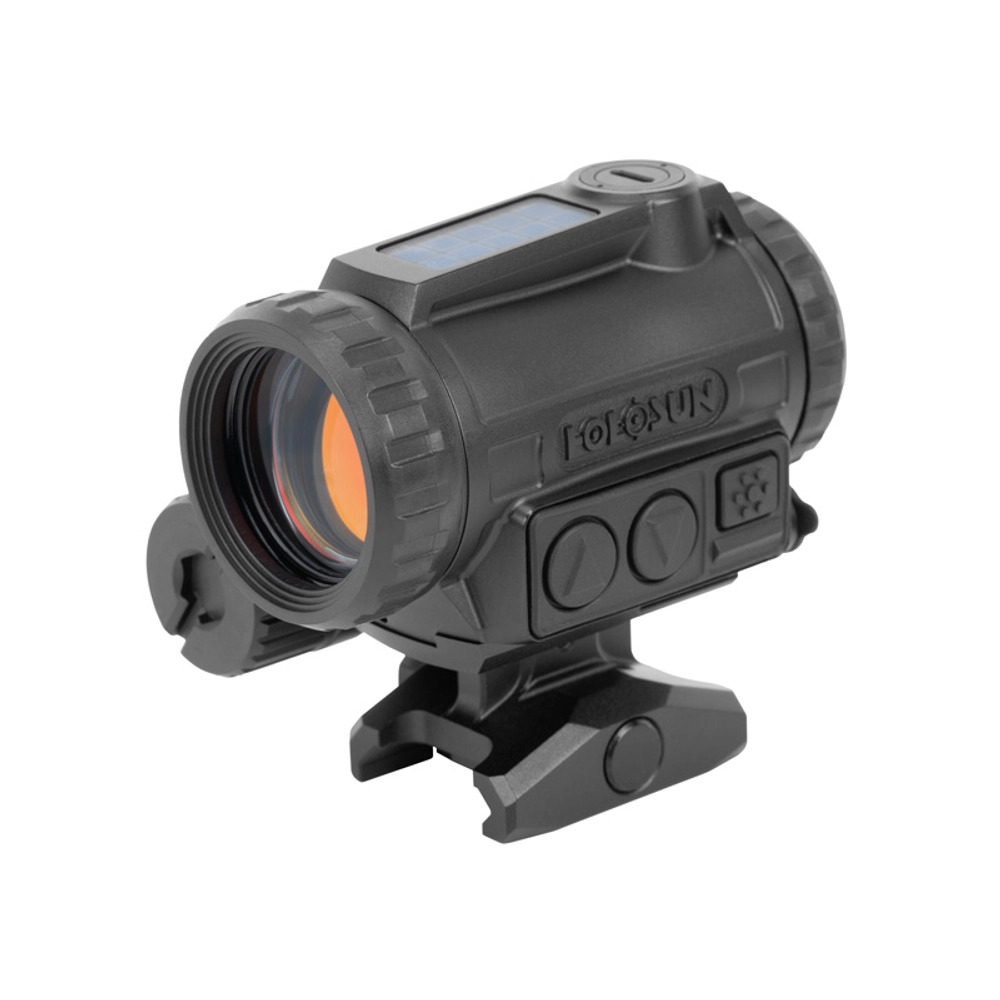

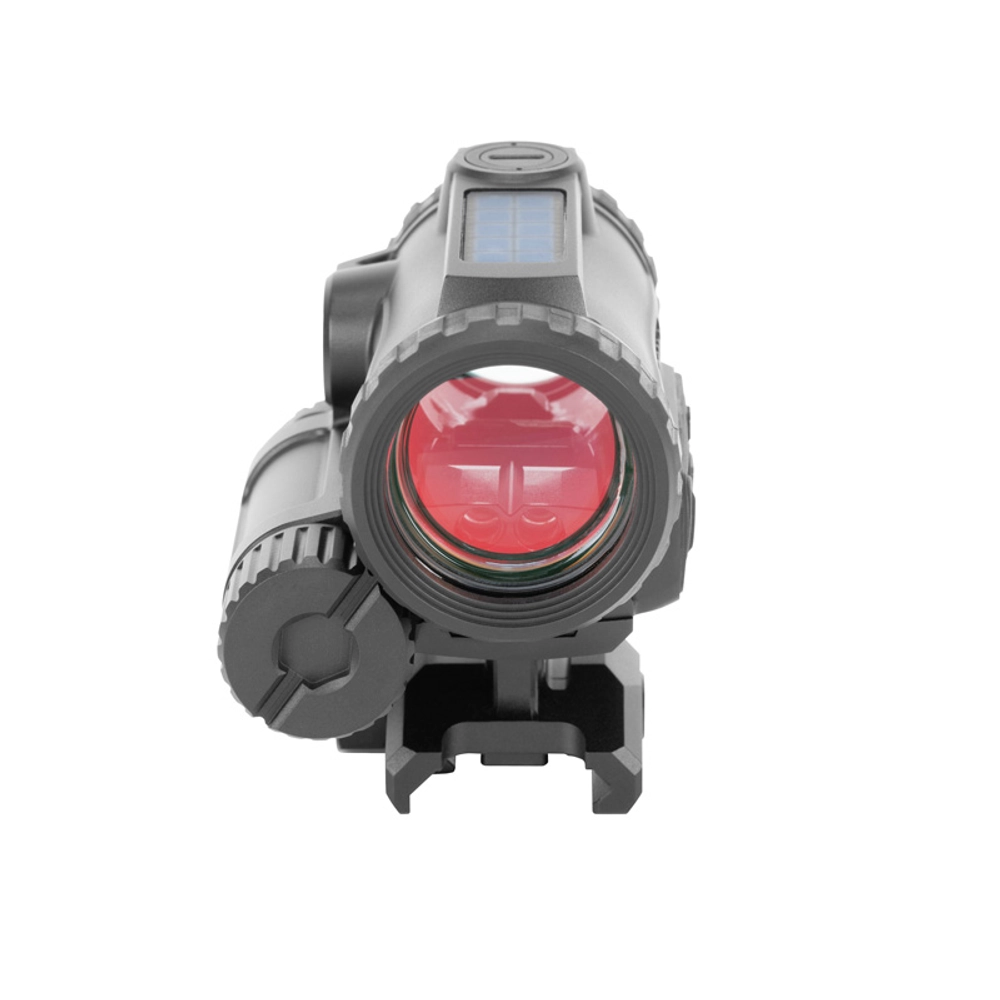

ARO-EVO-DUAL
$588.22
The ARO-EVO-DUAL integrates a precision red dot, visible green laser, and infrared laser into a single streamlined optic designed for modern rifle setups.
With a wide 26mm viewing window, Multi-Reticle System, and intuitive laser controls, it delivers fast target acquisition and full-spectrum capability from daylight shooting to night-vision use.
→ 3-in-1 Aiming System
Integrated red dot, visible green laser, and IR laser provide a complete aiming solution without stacked accessories.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for precision or rapid engagement.
→ Large 26mm Optical Window
Expanded viewing area improves situational awareness and speeds up target acquisition.
→ Solar Failsafe with Shake Awake
Solar backup and motion activation help keep the optic powered and ready when needed.
→ CR123A Powered Laser System
Reliable battery platform delivers extended runtime for both optic and laser functions.
→ Professional-Grade Construction & Remote Activation
Hard-anodized 6061-T6 aluminum housing with IPX8 waterproofing, includes Crane plug pressure pad with integrated cable management for clean, reliable activation.
Reticle Options
Features
- 3-in-1 Aiming System
Integrated red dot, visible green laser, and IR laser provide a complete aiming solution in one streamlined optic. - Red Multi-Reticle System
Selectable reticle options include a crisp 2 MOA red dot, 65 MOA circle, or combined circle-dot for speed and precision. - Tri-Channel Zeroing System
Coaxial alignment allows the red dot, visible laser, and IR laser to be zeroed together from a single adjustment path. - Dual-Button Crane Remote Switch
Included pressure pad allows fast activation of laser functions without breaking grip or shifting focus. - 26mm Viewing Window
Large objective lens provides a wider sight picture for faster target acquisition and improved situational awareness. - Automatic Brightness Adjustment
Forward light sensor and Solar Failsafe automatically regulate reticle brightness to match changing lighting conditions. - Shake Awake Technology
Motion activation powers the optic instantly while preserving battery life when the rifle is idle. - CR123A Power System
Reliable CR123A battery provides long runtime for the red dot and dependable power for integrated laser systems. - Rugged Aluminum Housing
Hard anodized 6061 aluminum construction provides durability with IPX8 waterproof protection and 1000G vibration resistance. - Integrated Cable Management
Internal cable routing keeps remote switch wiring secure, clean, and snag resistant for professional rifle setups.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Forward Facing Light Sensor
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Green Laser Pointer
Yes
IR Laser Pointer
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
No
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
Green Laser Output Power
<5mW
Green Laser Class
3R
IR Pointer Output Power
<0.7mW
IR Pointer Class
1
Green Laser Wavelength
520nm
IR Laser Wavelength
850nm
ELECTRONIC DATA
Battery
CR123A
Red Dot Battery Life
Setting 6 - 300,000 Hours
Green Laser Battery Life
12 Hours
IR Laser Battery Life
50 Hours
Brightness Setting
8 Daylight & 4 Night Vision
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Hard Anodized
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Window Size
1.02" Diameter
Body Dimensions
2.68" × 1.77" × 2.6"
Body Weight
8.15 oz
Central Mount Height
1.63"
Mount Weight
2.45 oz
Fitment
Direct Mount
Picatinny
In The Box
ARO-EVO-DAL
Lens Cloth
Multi-Tool
Wrench
Manual
Warranty Card
