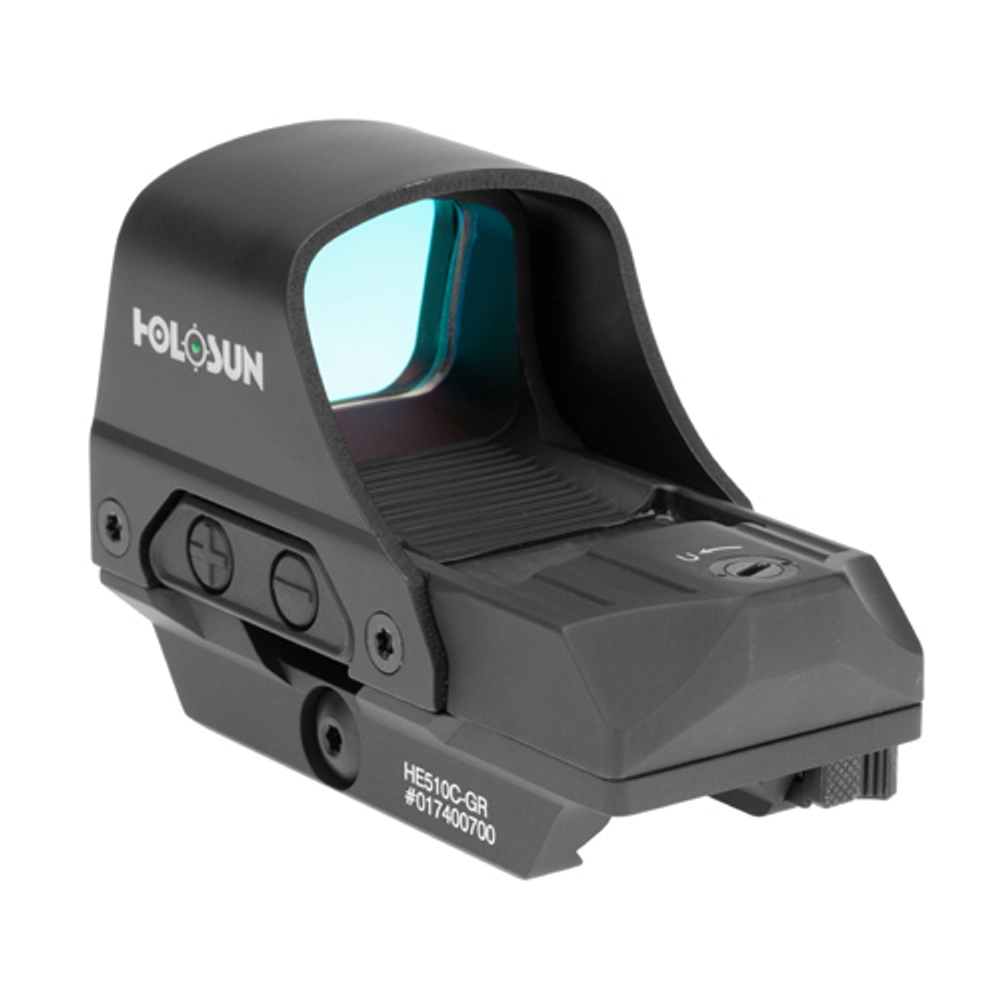

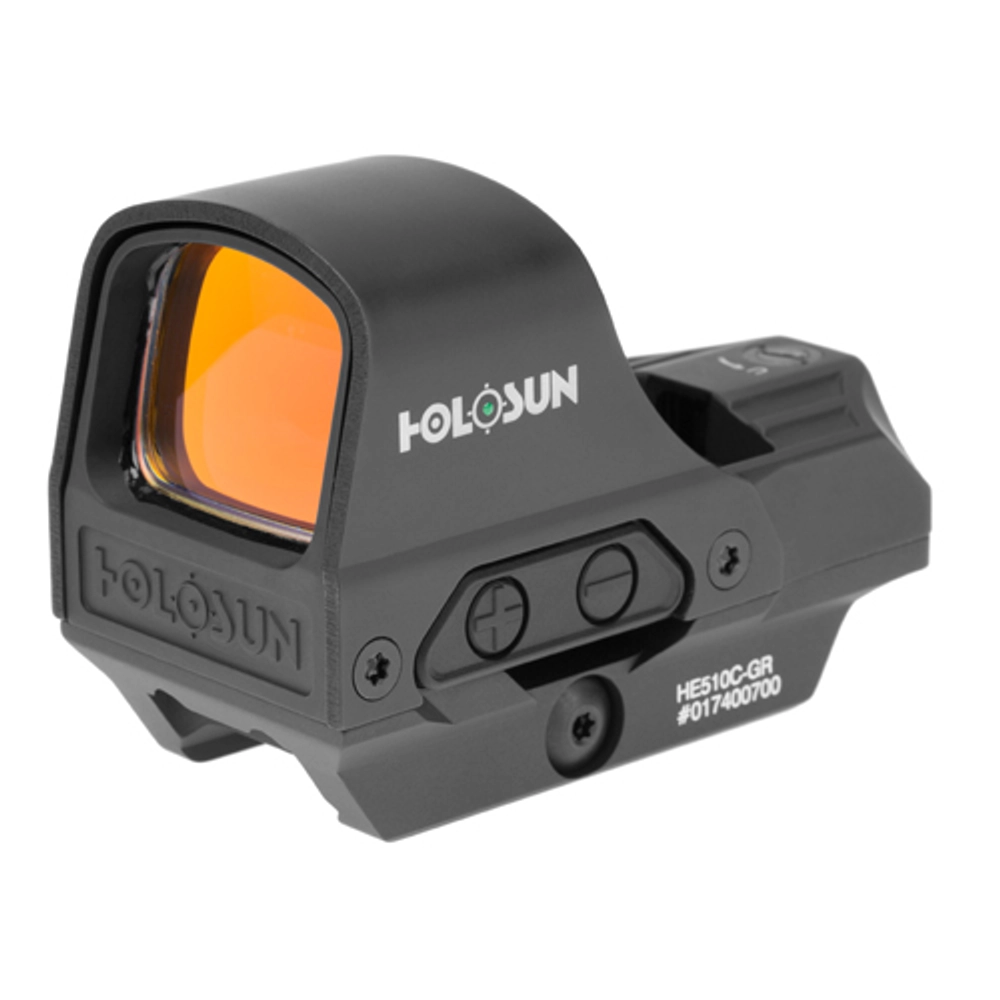

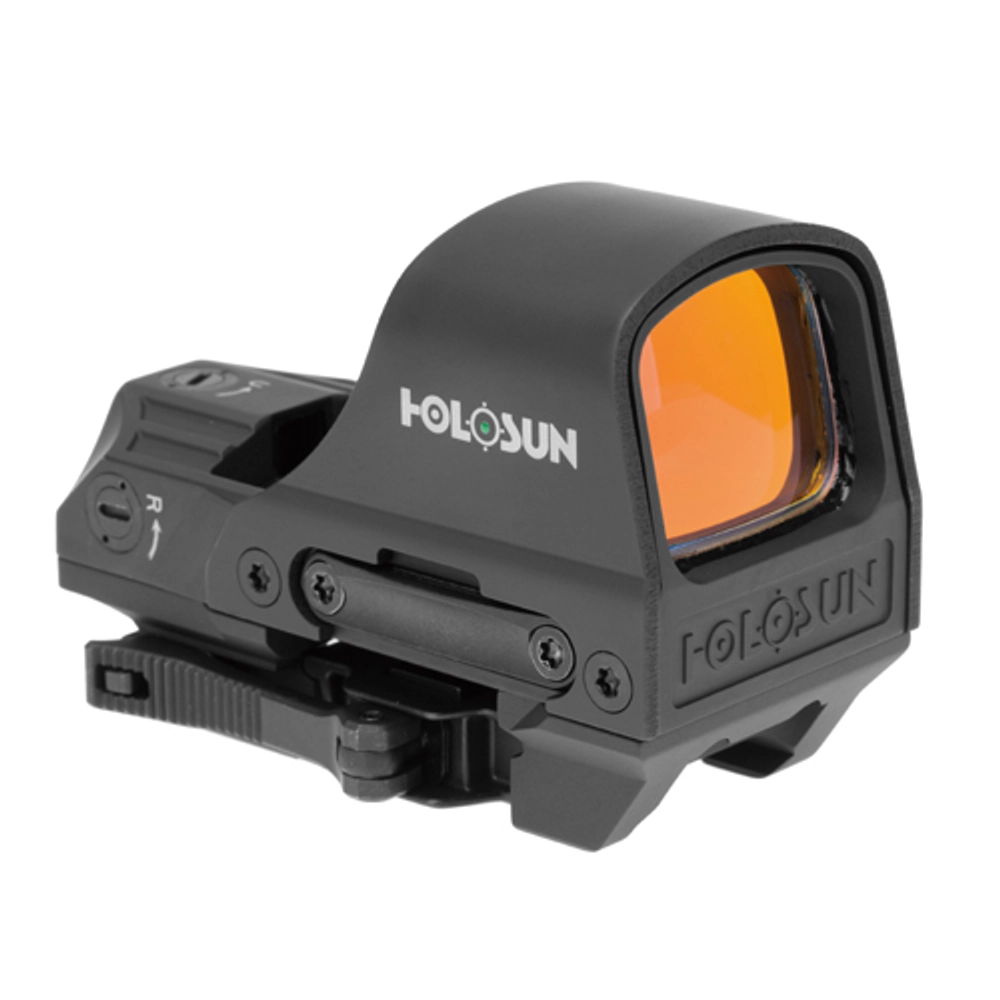

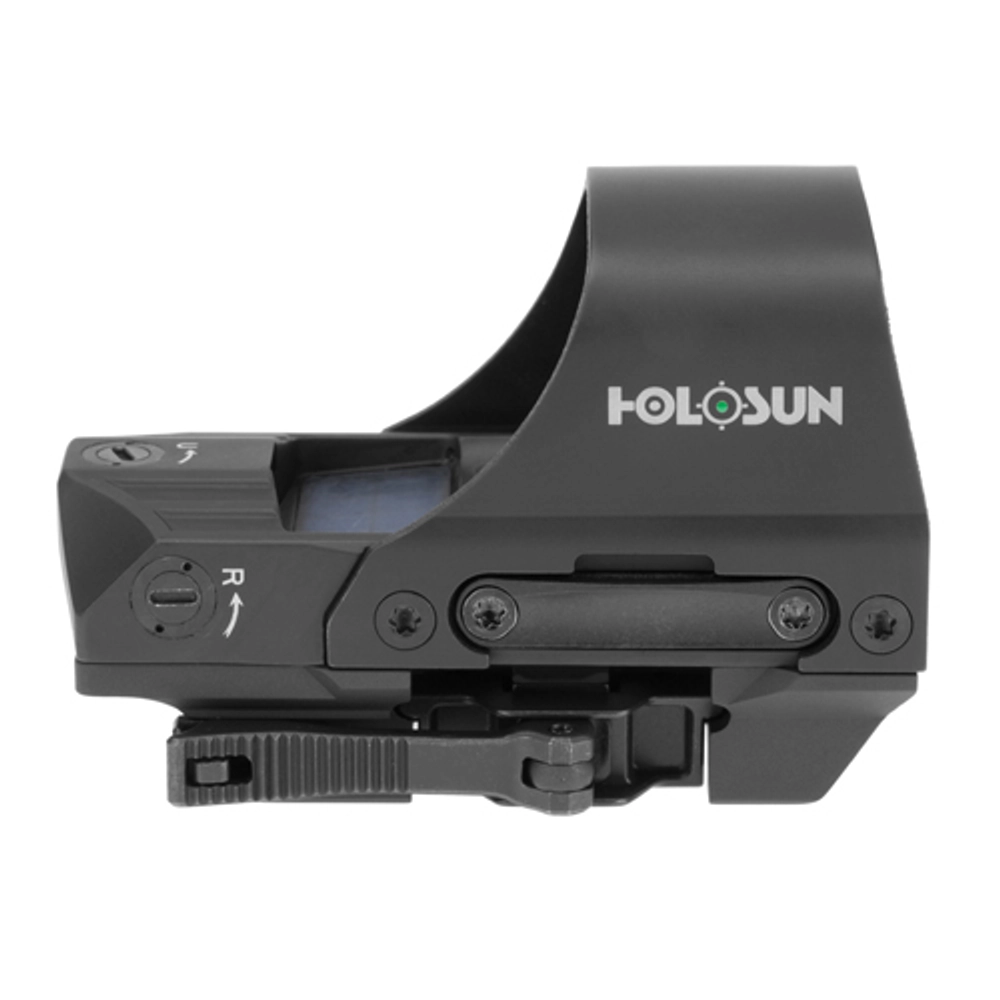

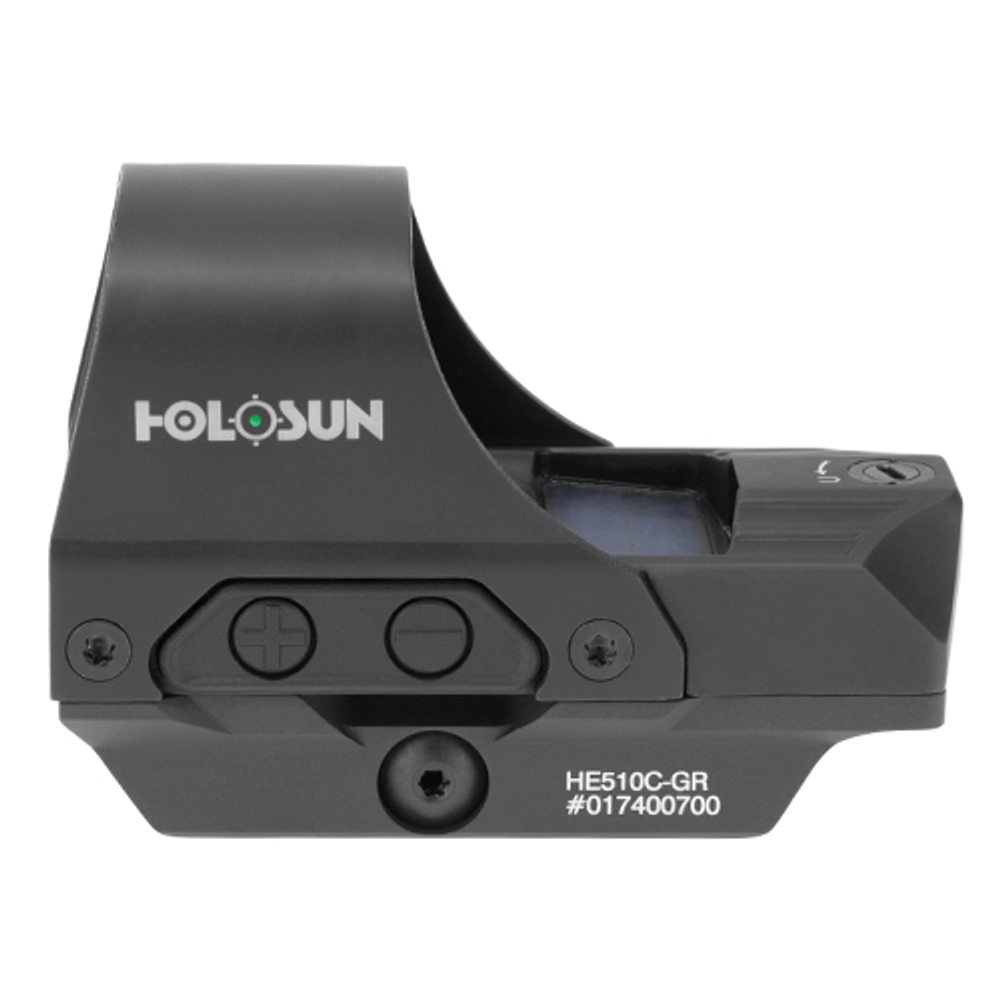

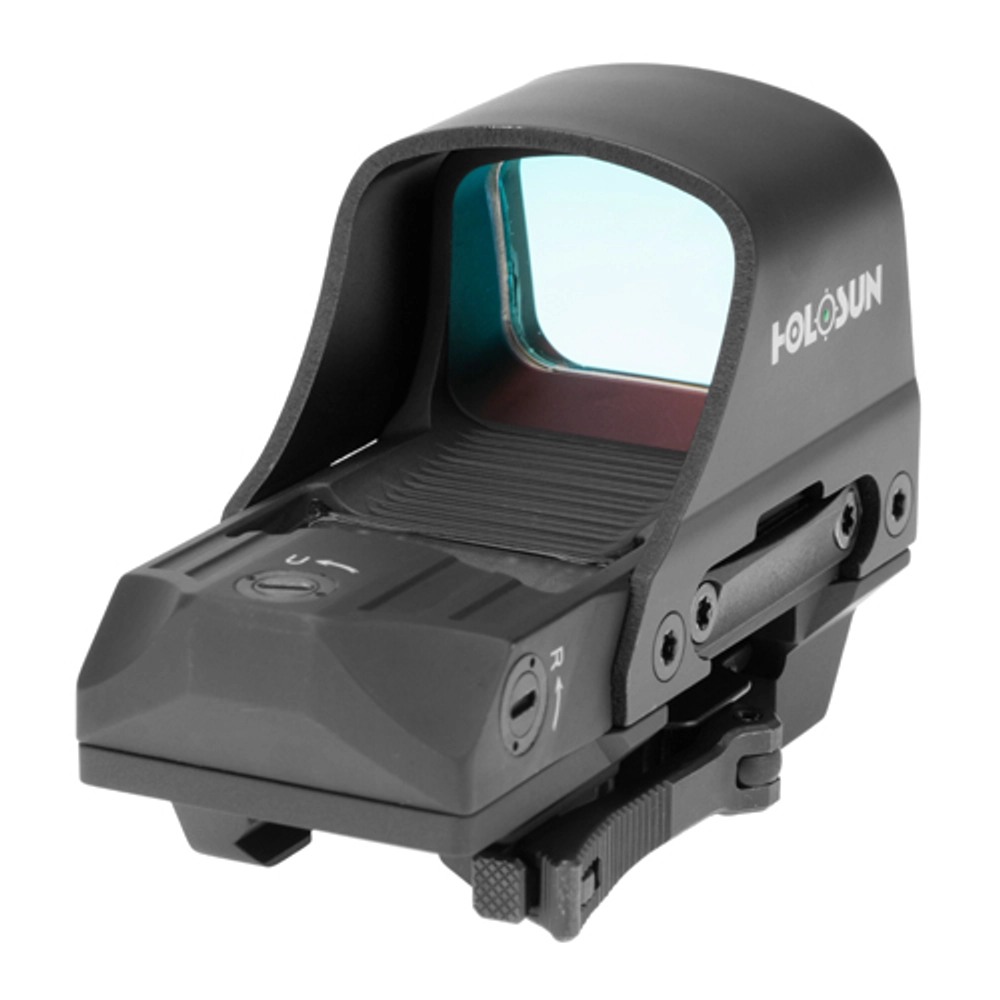

HE510C-GR
$399.99
The HE510C-GR is built for rifle and PCC shooters who want a wide sight picture, fast target acquisition, and durable performance.
Its large open window and green Multi-Reticle System support rapid transitions and adaptable aiming, while Solar Failsafe, Shake Awake, and a quick-detach mount keep the optic ready for hard use.
→ Green Multi-Reticle System (MRS)
Selectable Green 2 MOA dot, 65 MOA circle, or circle-dot combination for adaptable shooting performance.
→ Large Open Reflex Window
Wide viewing area improves situational awareness and speeds up target acquisition.
→ High-Visibility Green Super LED
540nm green reticle delivers a crisp aiming point with up to 50,000 hours of battery life.
→ Solar Failsafe with Shake Awake
Solar backup maintains operation while motion activation powers the optic instantly.
→ Quick Detach Picatinny Mount
Integrated QD mount allows fast installation and removal on Picatinny rail platforms.
→ Aluminum Housing with Titanium Hood
Rugged construction with IP67 waterproofing and 5000G vibration resistance.
Reticle Options
Features
- Green Multi Reticle System
Selectable green reticle with 2 MOA dot, 65 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enhanced Green Super LED
540nm green emitter provides strong contrast in bright environments with up to 50,000 hours of battery life. - Solar Failsafe Technology
Solar panel supplements battery power and allows the optic to operate using ambient light when battery power is low. - Shake Awake Technology
Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to conserve battery life. - Large Open Reflex Window
Expansive viewing window provides a wide field of view for faster target acquisition and improved situational awareness. - Quick Detach Mount System
Integrated QD mount allows fast installation and removal while maintaining secure attachment to Picatinny rails. - Absolute Co Witness Height
1.41 inch optic height aligns with standard AR style iron sights for proper co witness configuration. - Titanium Protective Hood
Reinforced titanium hood shields the optic body and glass from impacts while maintaining a lightweight structure. - CR2032 Side Loading Battery Tray
Convenient battery tray allows quick battery replacement without removing the optic from the firearm. - IP67 Weather Resistance
Sealed housing protects the optic from water and debris with IP67 waterproofing and 5000G vibration resistance.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
540nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
10 Daylight & 2 NV
Side Tray
Yes
MECHANICAL DATA
Housing Material
Aluminum & Titanium
Surface Finish
MAO
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size (in)
0.91" x 1.26"
Dimension (in) Body
3.3" x 1.68" x 1.78"
Body (oz) Weight
4.94 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HE510C-GR
Lens Cloth
Multi-Tool
Manual
Warranty Card
