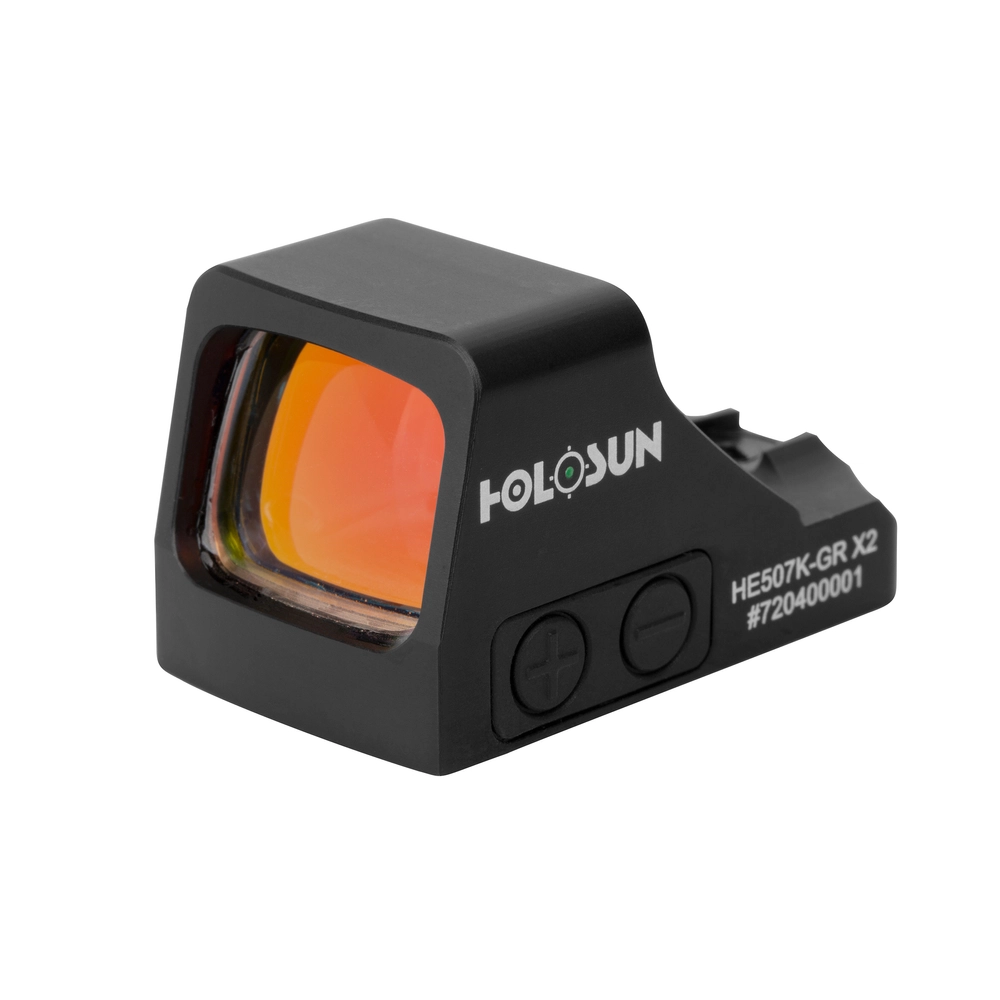

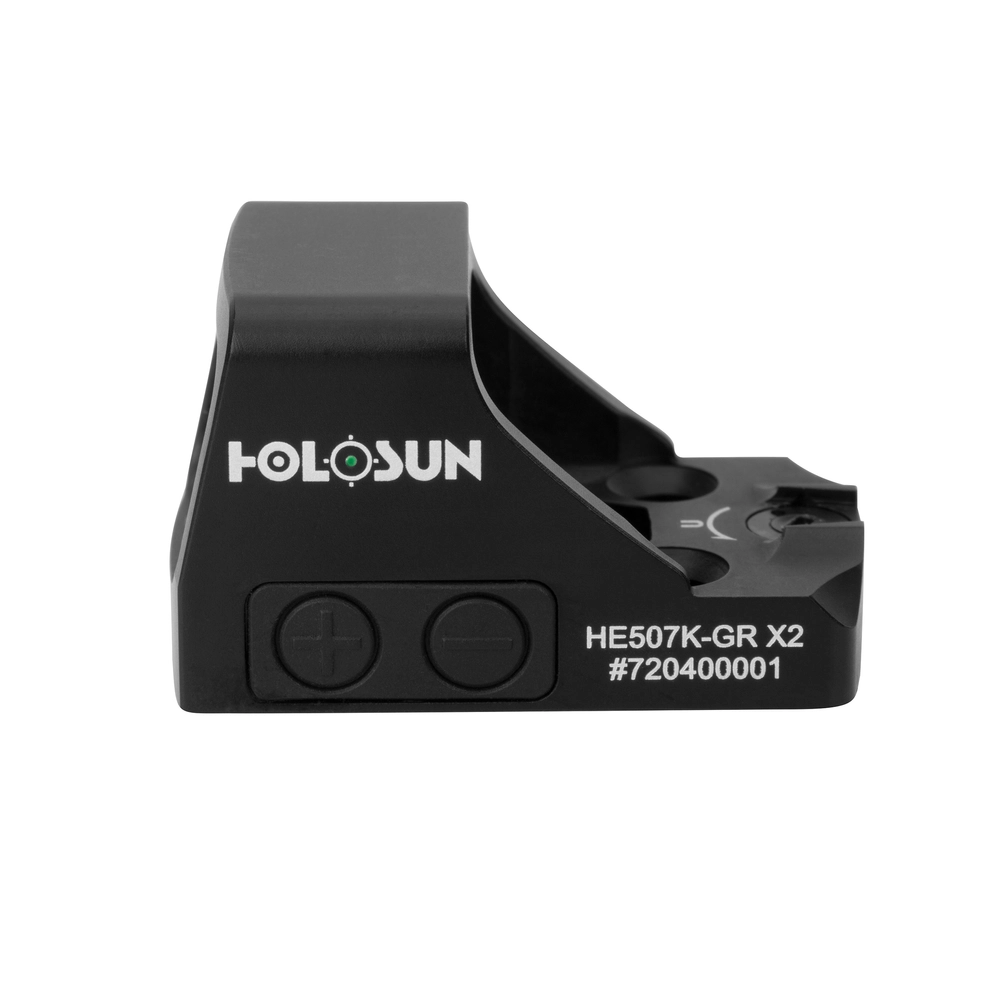

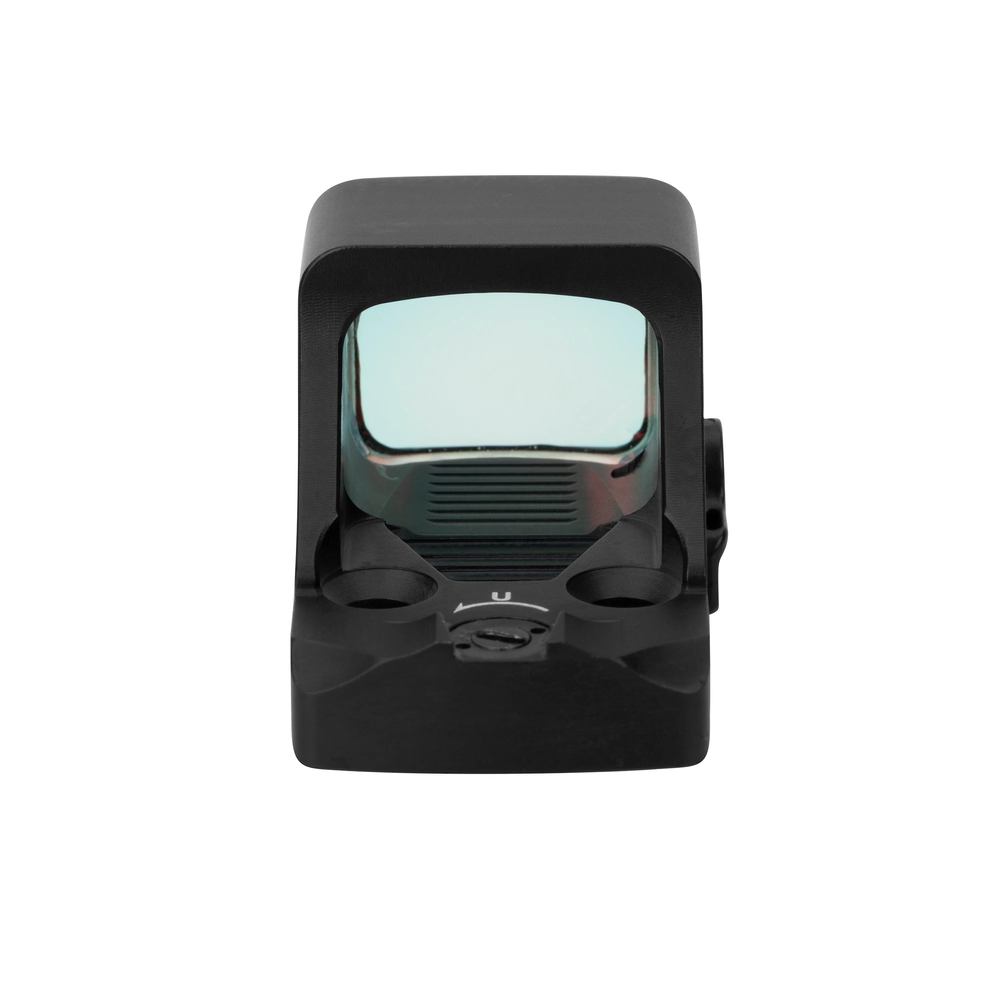

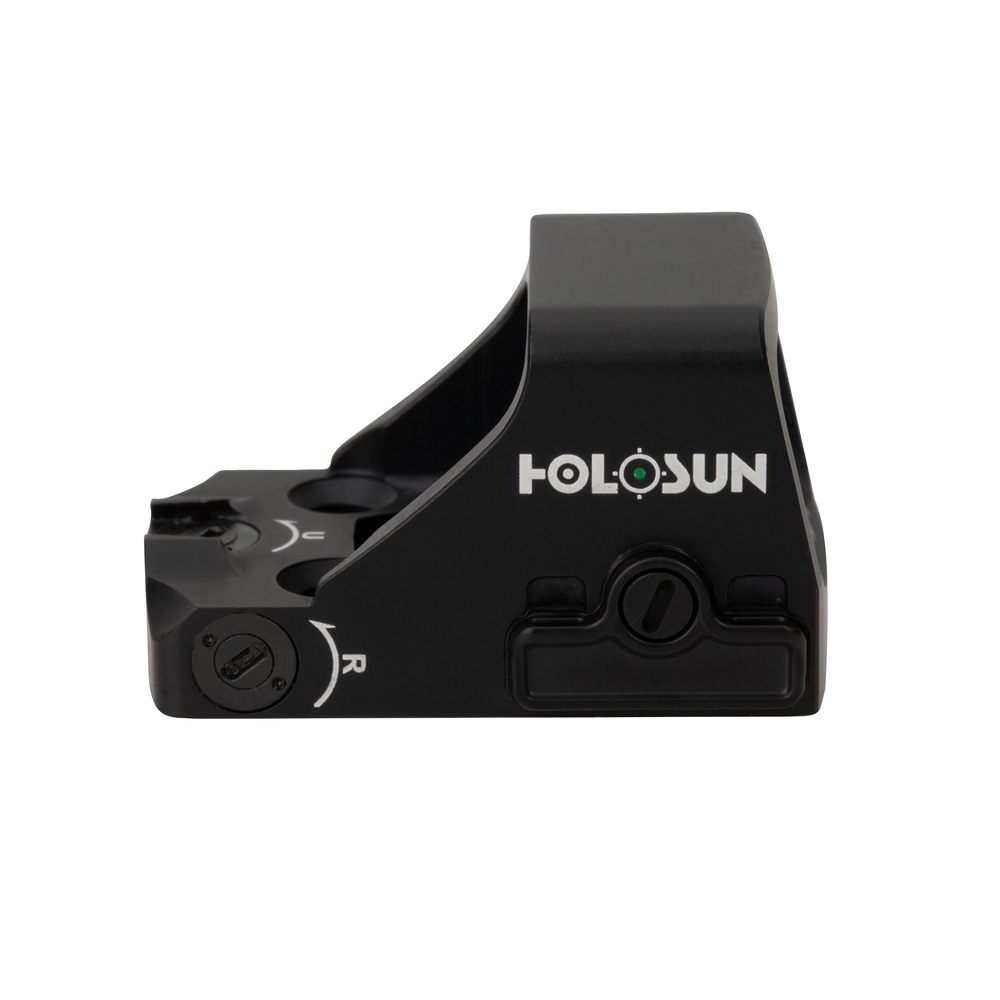

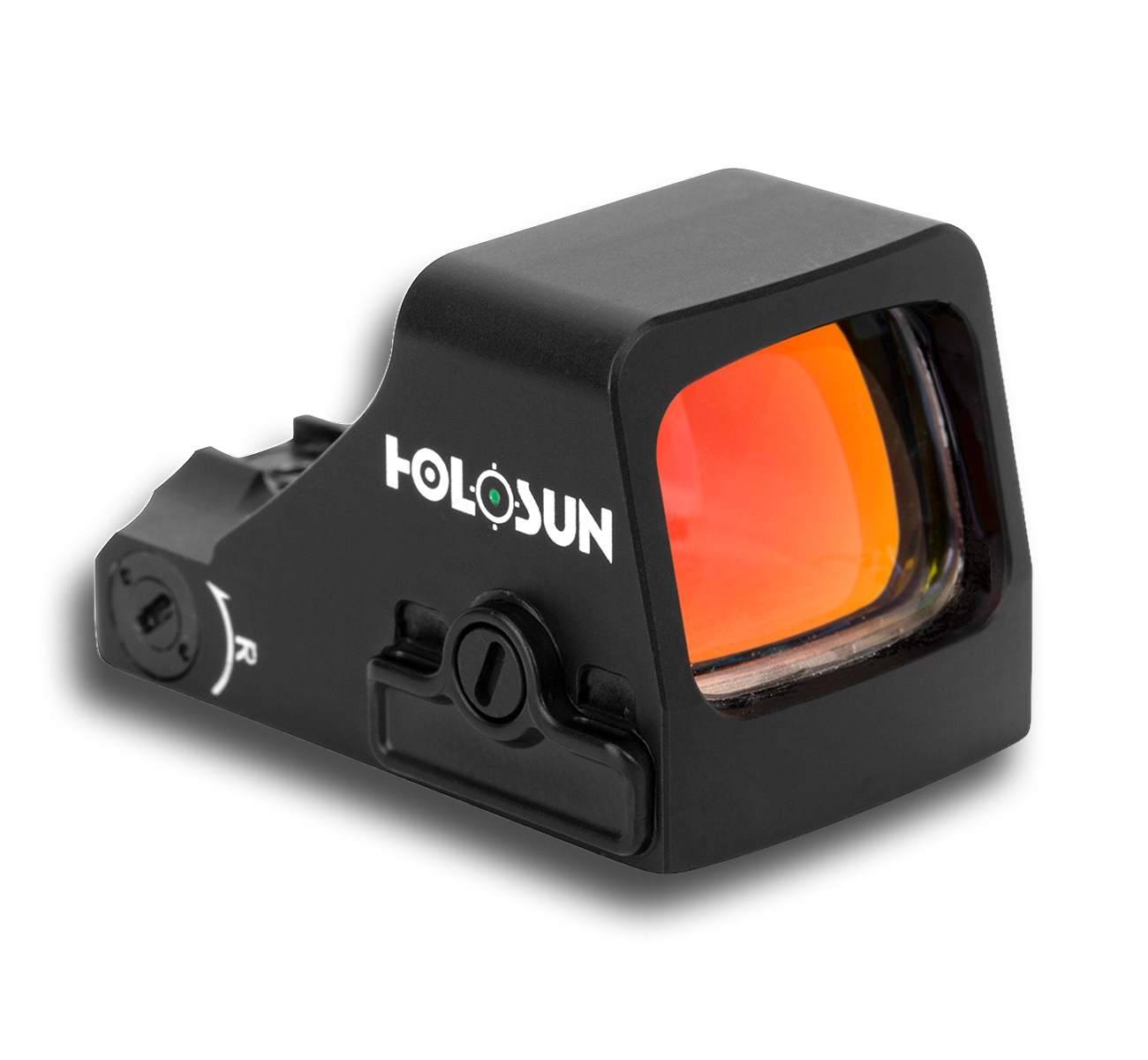

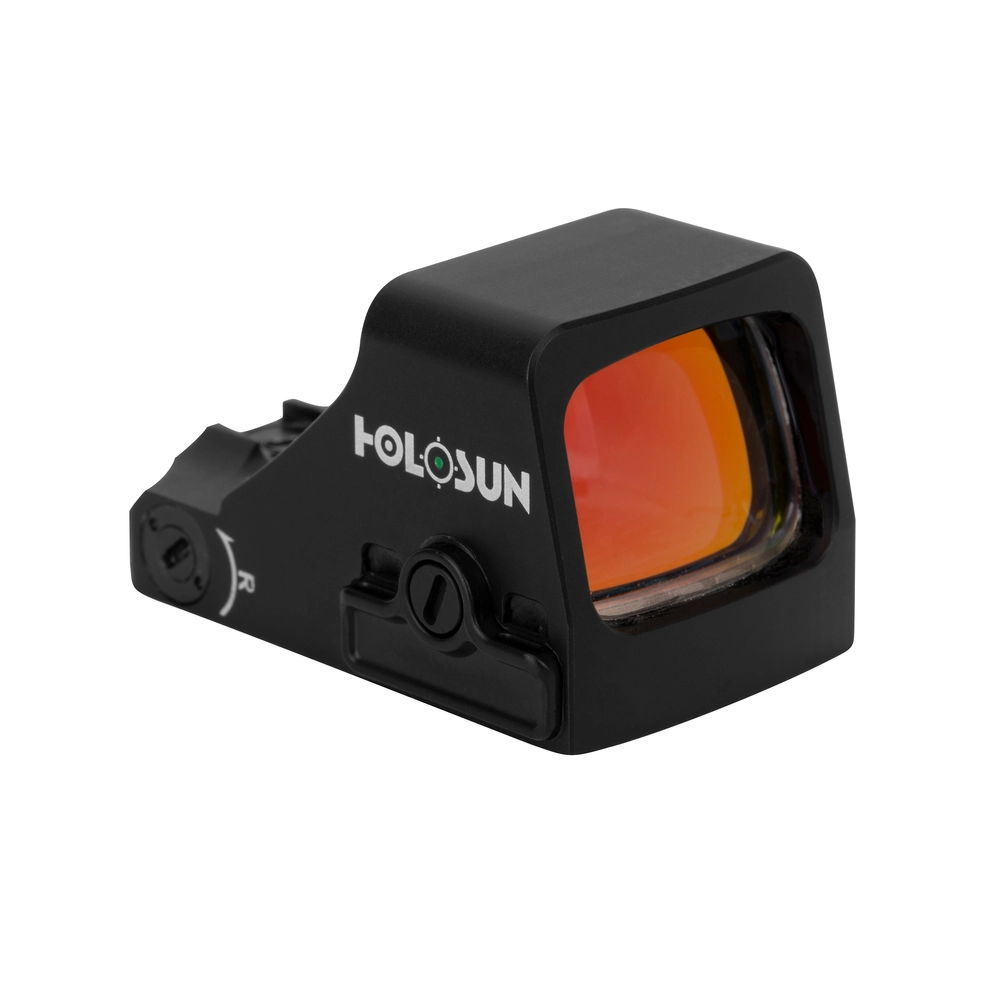

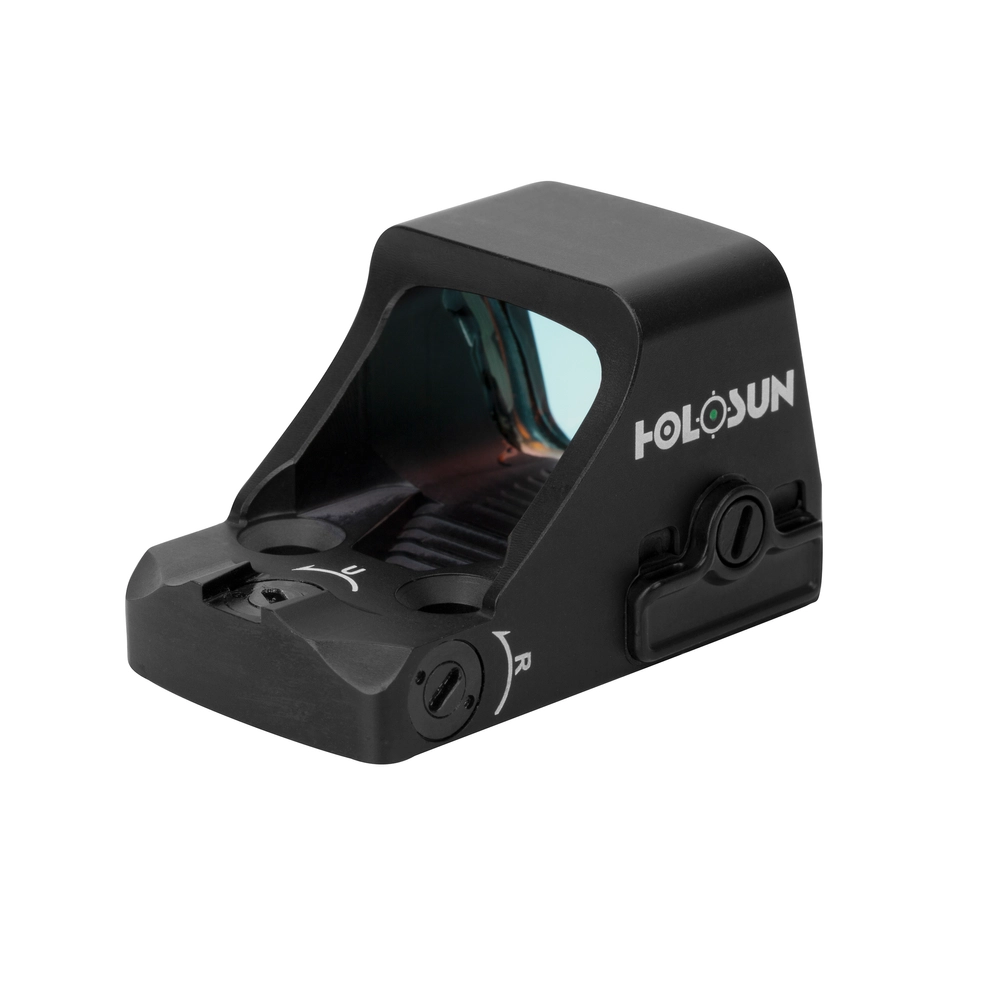

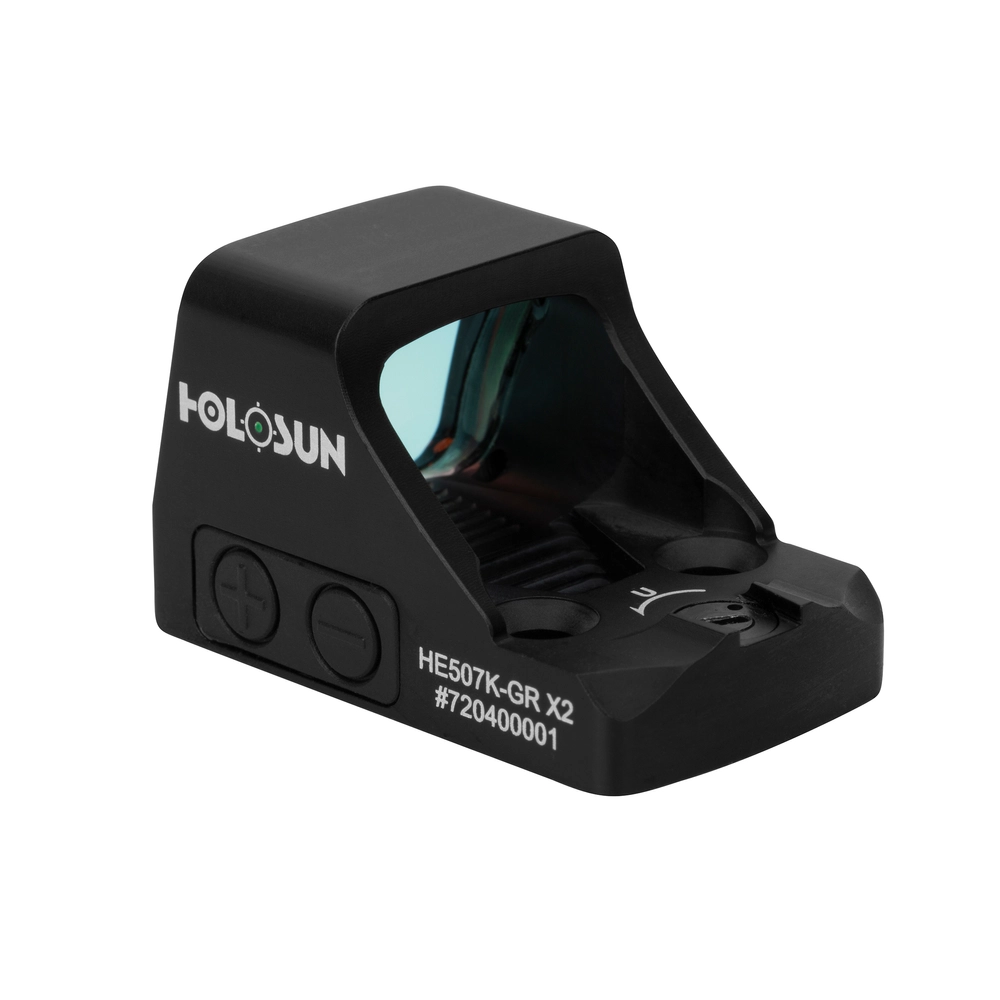

HE507K-X2-GR
$376.46

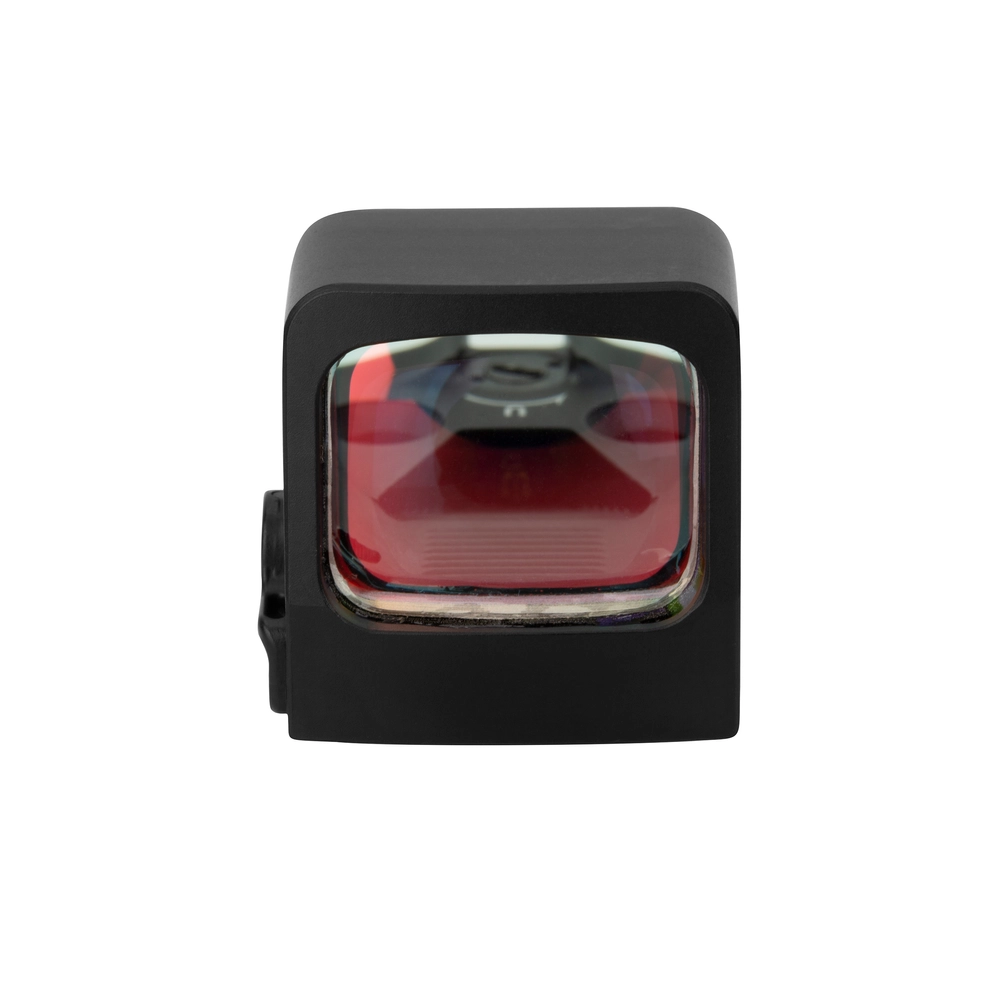

The HE507K-GR-X2 is a compact open reflex optic designed for subcompact and micro-compact pistols, featuring a high-visibility green Multi-Reticle System for fast, adaptable aiming.
Its slim K-footprint profile, Shake Awake, and side-loading battery tray support reliable concealed carry performance while keeping operation simple and efficient.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 32 MOA circle, or circle-dot combination for adaptable shooting performance.
→ High-Visibility Green Super LED
540nm green reticle delivers excellent contrast with up to 50,000 hours of battery life.
→ Shake Awake Technology
Motion activation powers the optic instantly while preserving battery life when idle.
→ Lock Mode
Prevents accidental brightness or setting changes during carry or use.
→ Side-Loading CR1632 Battery
Battery replacement without removing the optic from the firearm.
→ 7075-T6 Aluminum Housing
Hard-anodized aluminum construction with IP67 waterproofing and 5000G vibration resistance.
Reticle Options
Features
- Green Multi Reticle System
High visibility green reticle with selectable 2 MOA dot, 32 MOA circle, or combined circle dot for both precision aiming and rapid target acquisition. - Enhanced Green Super LED
540nm green emitter delivers strong contrast in bright environments while maintaining up to 50,000 hours of battery life. - Optimized for Micro Compact Pistols
Compact open reflex design engineered specifically for slim and micro compact handguns used for concealed carry and everyday defense. - Shake Awake Technology
Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to preserve battery life. - Lockout Mode
Prevents accidental brightness or reticle adjustments by locking the control buttons once preferred settings are selected. - Side Loading Battery Tray
CR1632 side mounted battery allows quick replacement without removing the optic from the slide. - Manual Brightness Control
Ten daylight and two night vision compatible brightness settings allow precise adjustment across different lighting conditions. - Holosun K Footprint Compatibility
Direct mounting compatibility for many micro compact optics ready pistols including the SIG P365 series and similar platforms. - 7075 Aluminum Housing
Hard anodized 7075 T6 aluminum construction provides durability and reliability while maintaining a lightweight carry profile. - IP67 Weather Resistance
Sealed housing protects the optic from water and debris with IP67 waterproofing and 5000G vibration resistance.
FUNCTION
Selectable Reticle
Yes
Solar Power
No
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
No
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
540nm
Reticle
2 MOA Dot & 32 MOA Circle
Magnification
1x
No Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR1632
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
10 Daylight & 2 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Anodized
Housing Color
Black
Adjustment Per Click
1 MOA
W&E Travel Range
±30 MOA
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size(in): 0.58" × 0.77"
Dimension(in)Body: 1.6" × 0.98" × 0.95"
Weight(oz)Body: 1 oz
Fitment
Direct Mount
K Footprint
Included Adapter Plate
No
In The Box
HE507K-GR-X2
Screws Included -
2x M4x12mm
2x M3x12mm
Lens Cloth
Multi-Tool
Manual
Warranty Card
