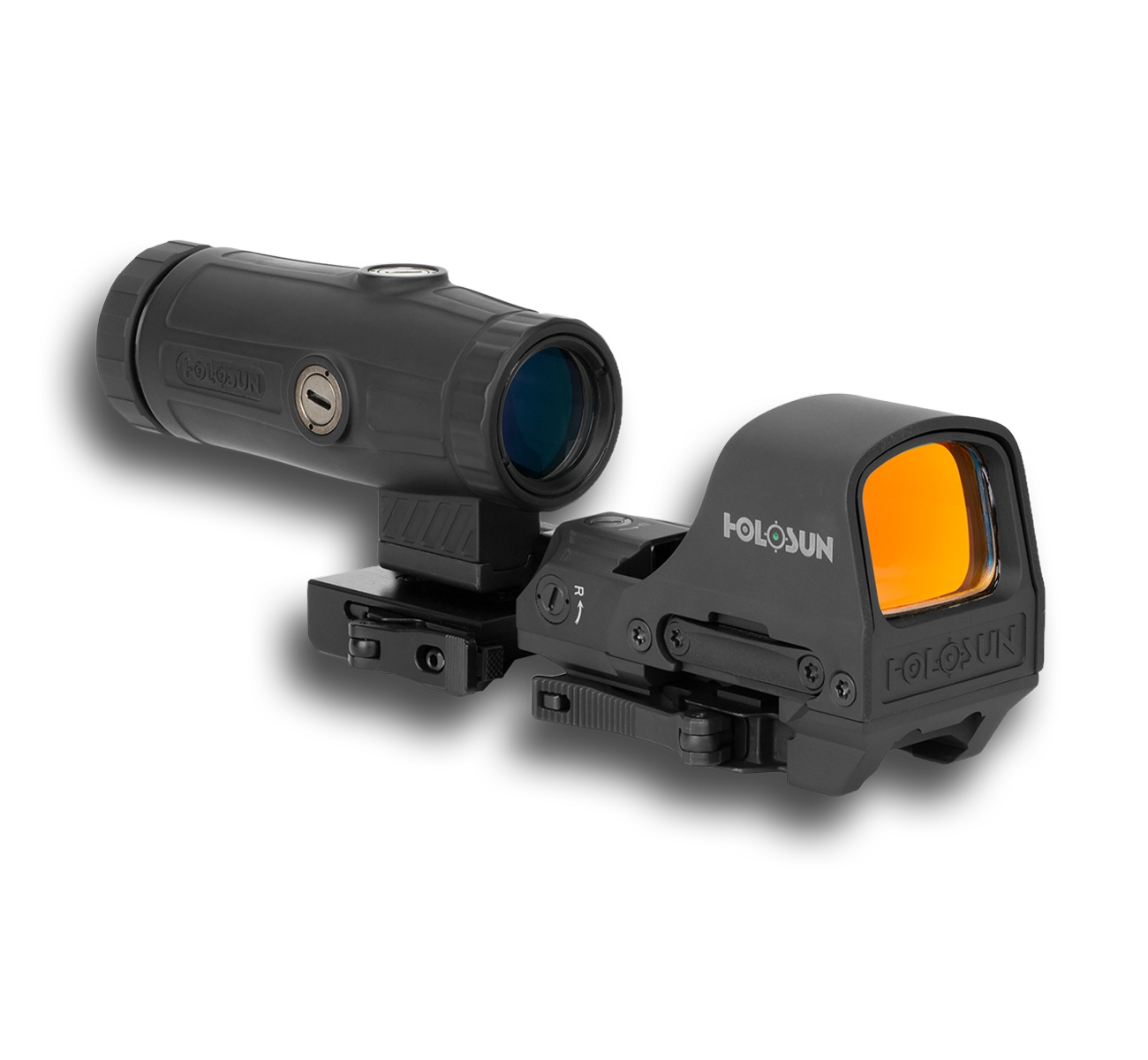

HE510C-GR+HM3X
$605.87

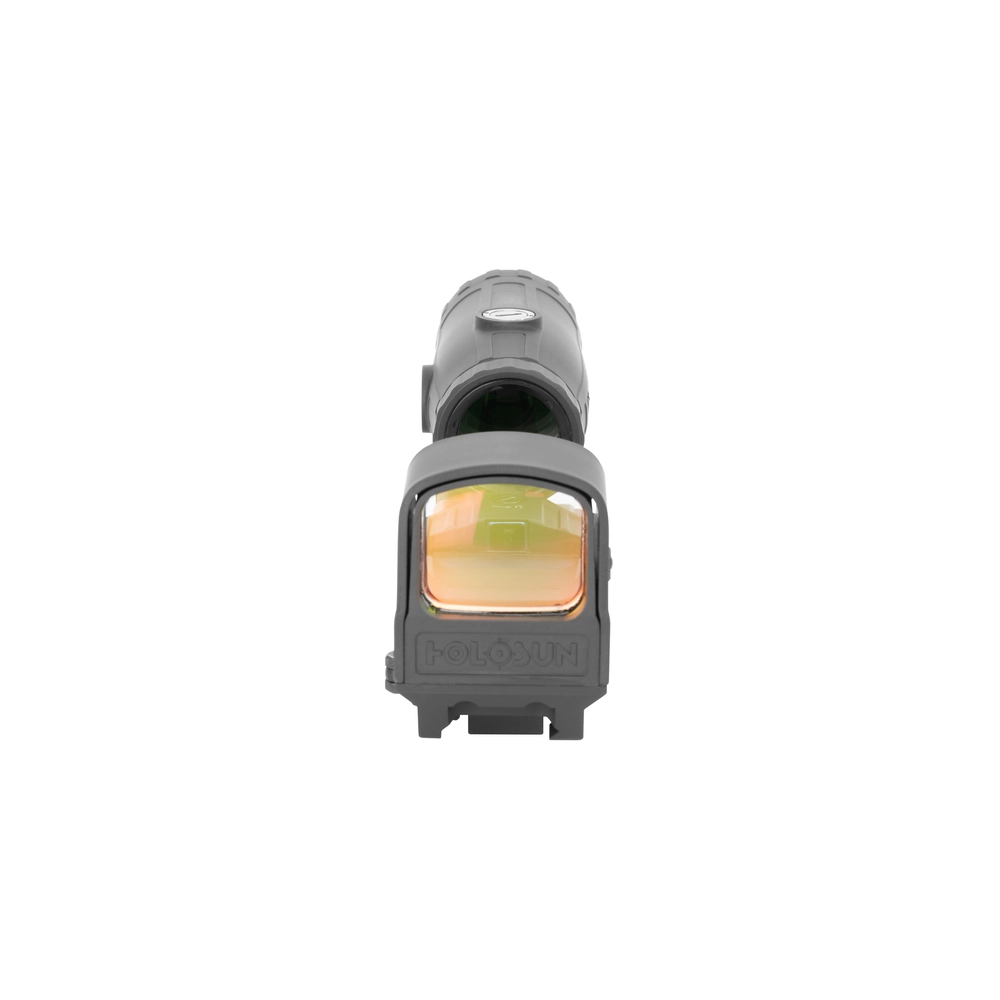

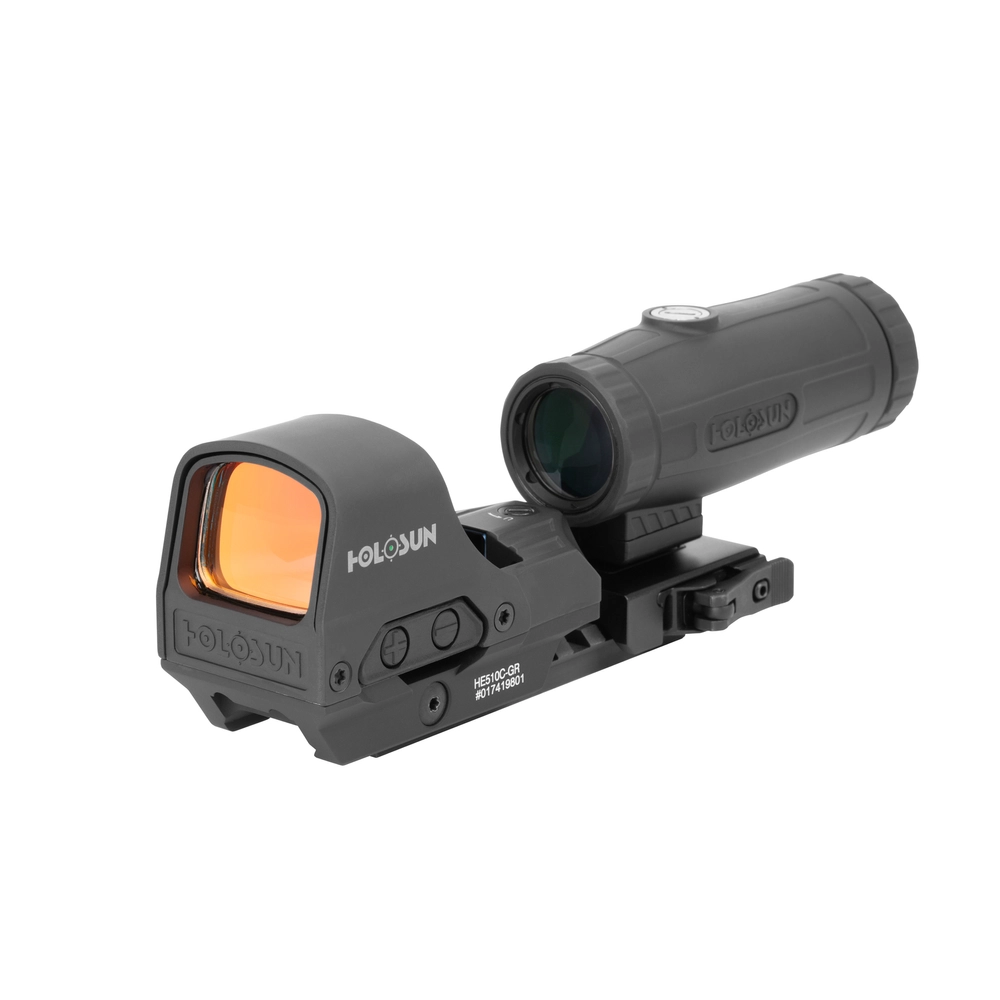

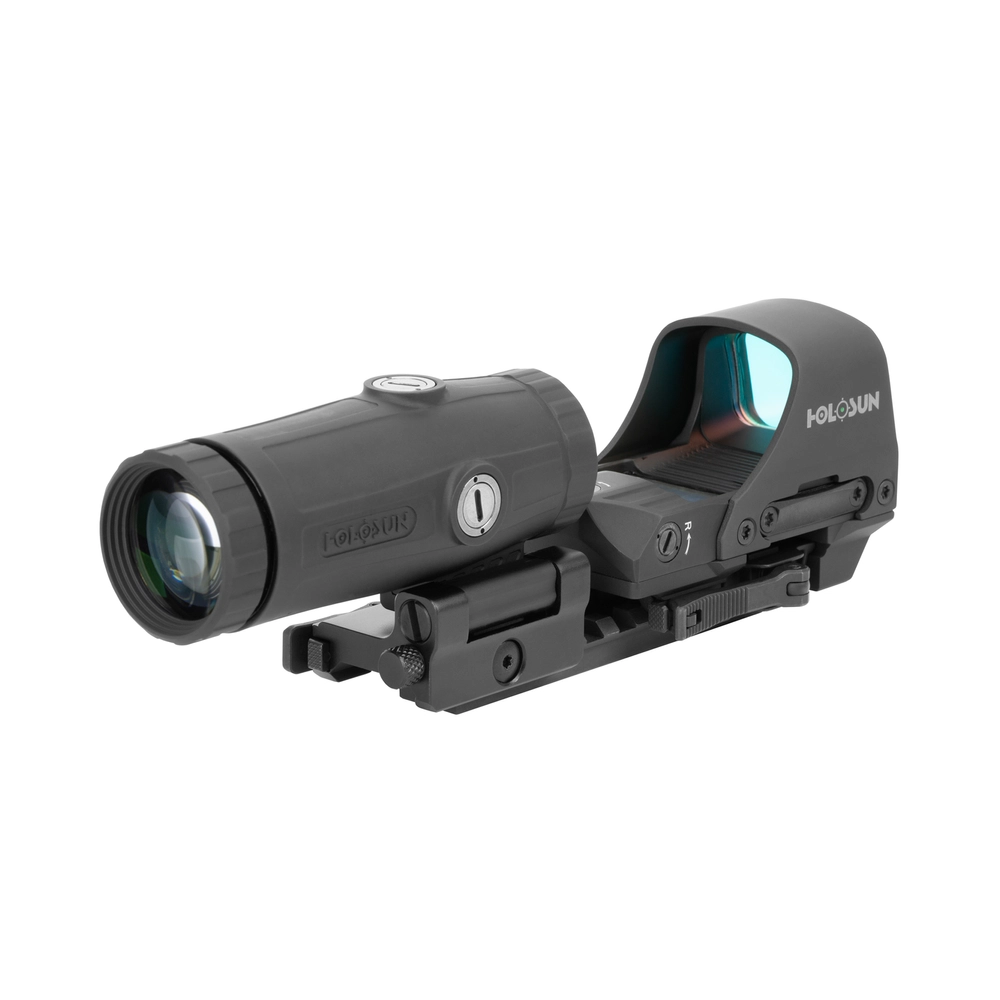

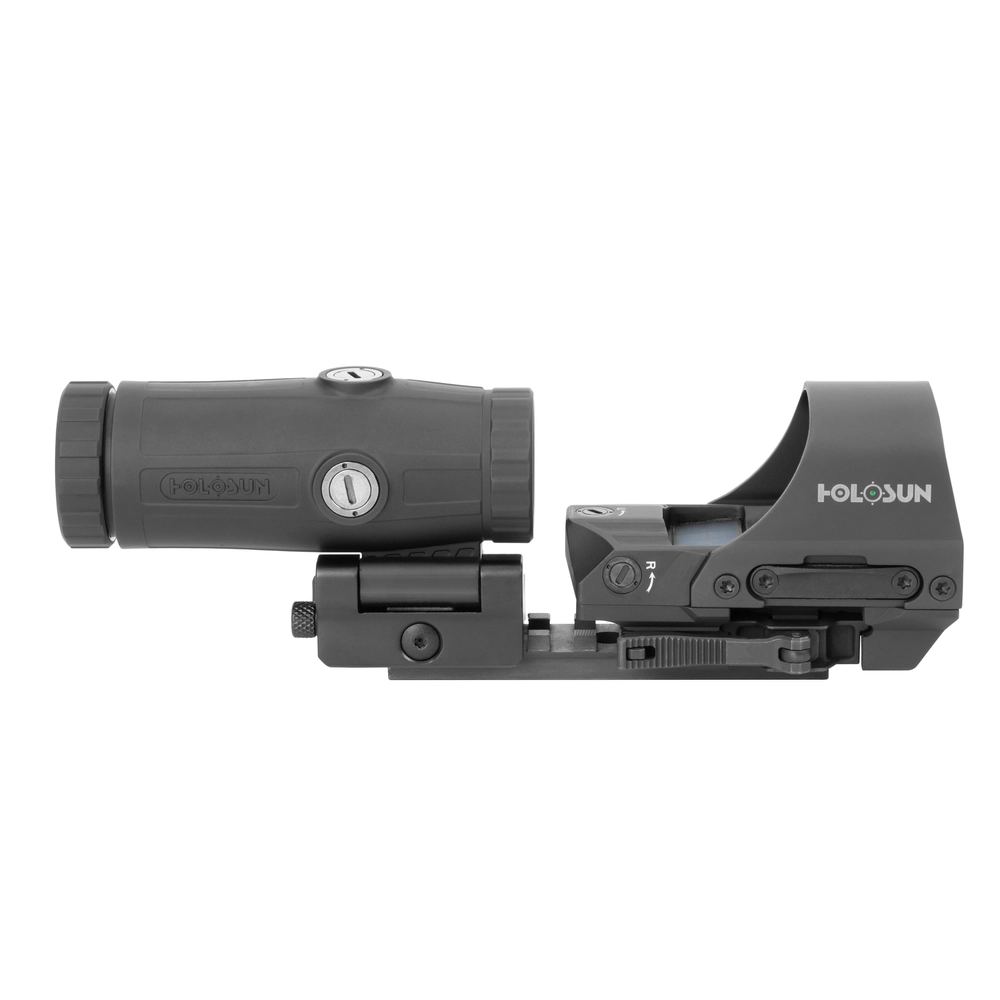

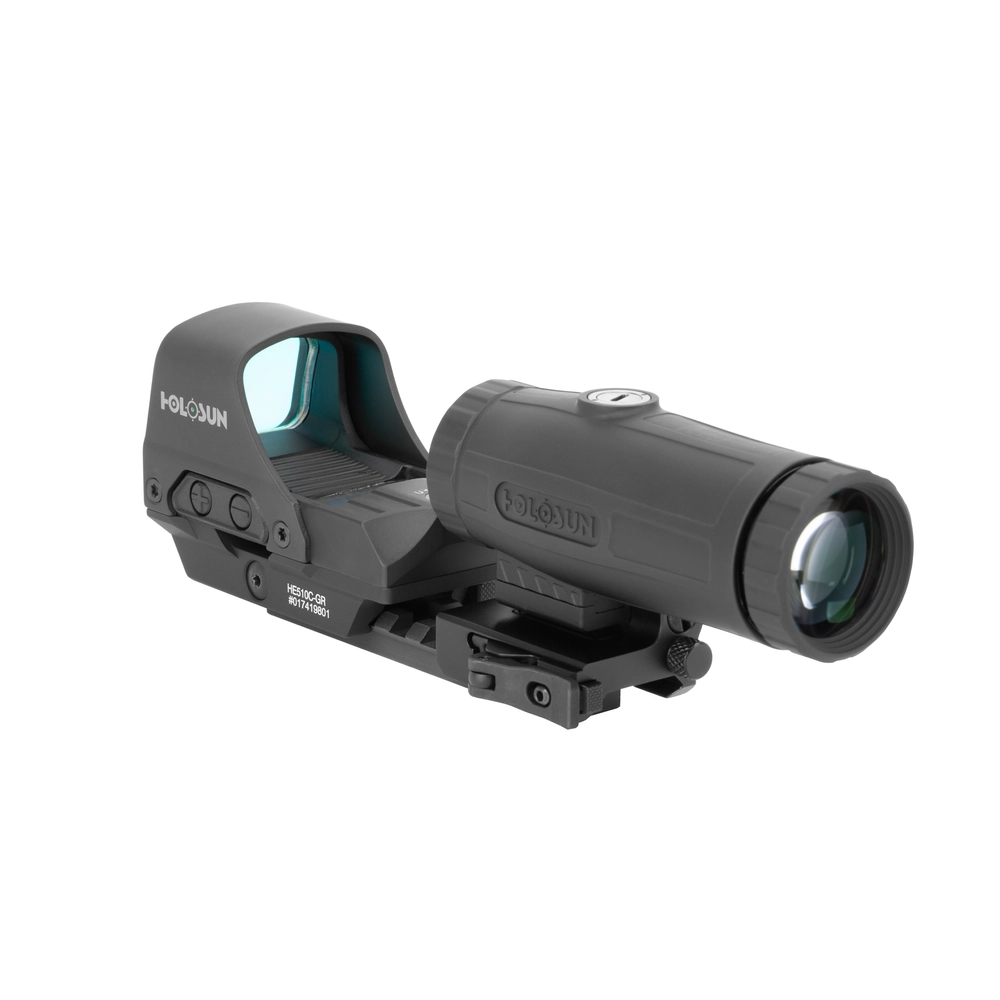

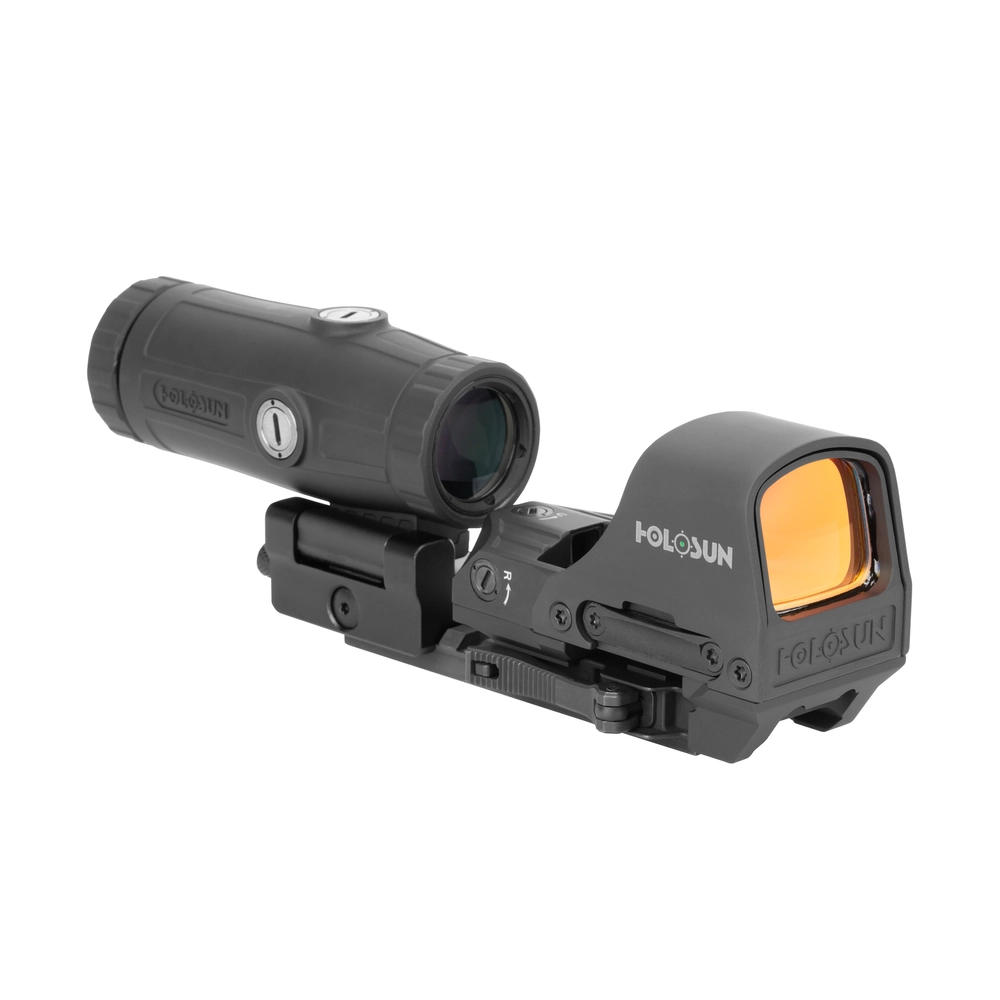

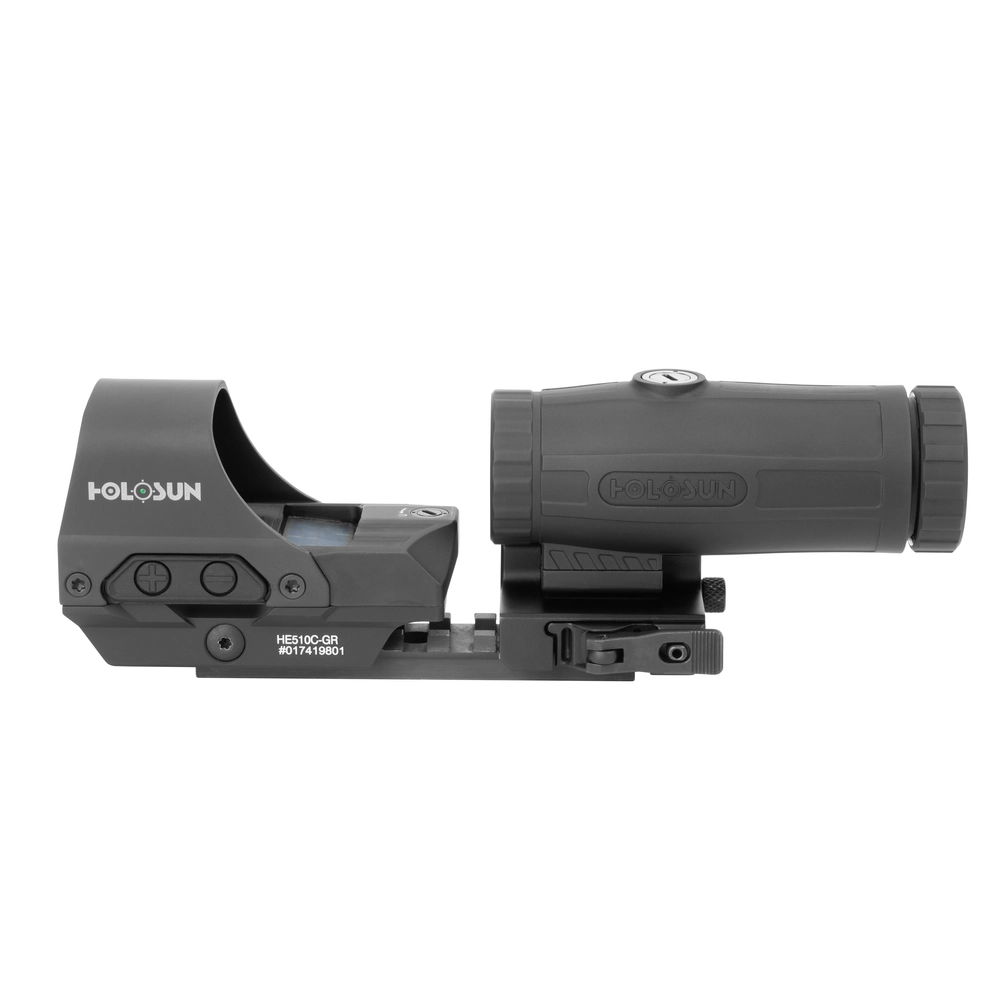

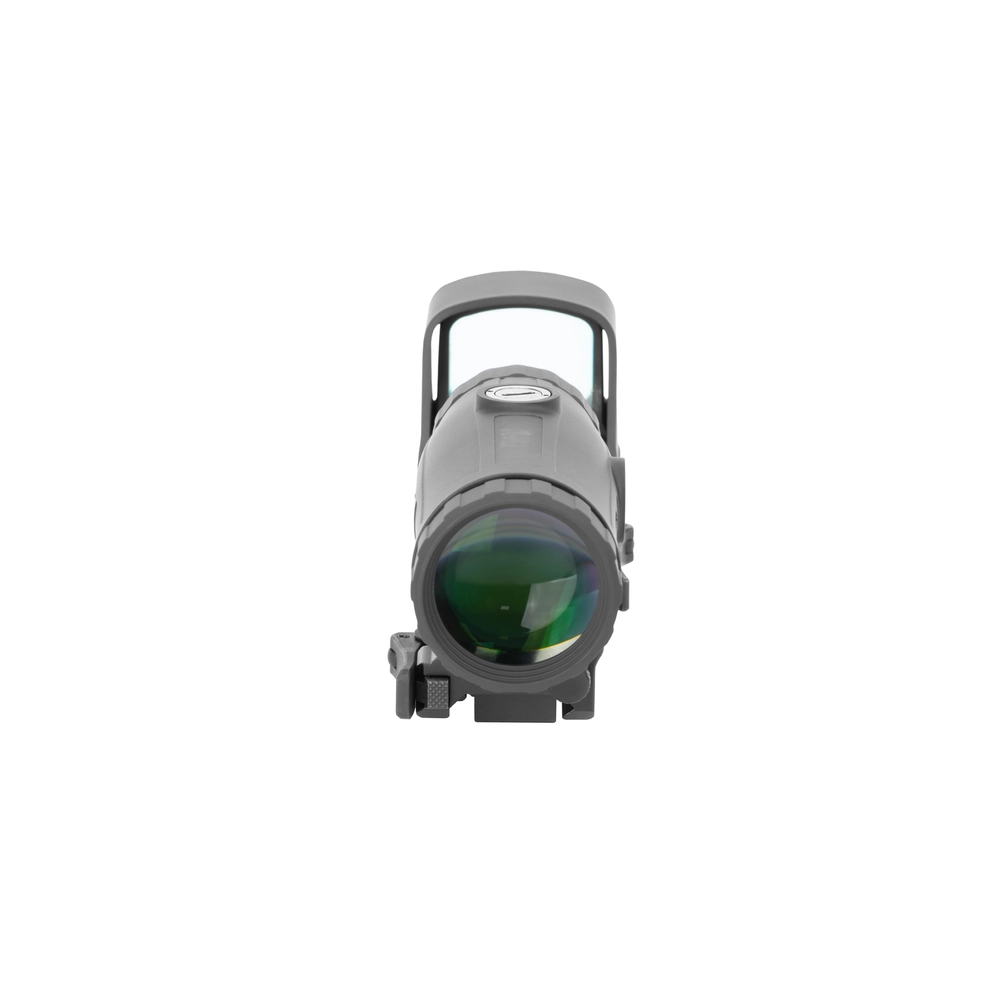

The HE510C-GR & HM3X Combo delivers a versatile rifle optic system built for both rapid close-range shooting and improved target identification at distance.
Pairing the wide-window HE510C-GR with the HM3X 3X flip-to-side magnifier allows quick transitions between unmagnified speed and magnified precision.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for adaptable rifle performance.
→ 3X Flip-to-Side Magnifier
HM3X magnifier enables quick transitions between 1× and 3× for improved target identification and precision.
→ High-Visibility Green Super LED
540nm green reticle delivers crisp aiming with up to 50,000 hours of battery life.
→ Solar Failsafe with Shake Awake
Solar backup maintains operation while motion activation powers the optic instantly.
→ Quick Detach Mounting System
QD mounts allow fast installation and removal on Picatinny rail platforms.
→ Aluminum Housing with Titanium Hood
Durable construction with IP67 waterproofing and 5000G vibration resistance.
Reticle Options
Features
- Green Multi-Reticle System
Selectable green reticle with 2 MOA dot, 65 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enhanced Green Super LED
540nm green emitter provides strong contrast in bright environments with up to 50,000 hours of battery life. - Solar Failsafe Technology
Integrated solar panel supplements battery power and allows the optic to operate using ambient light when available. - Shake Awake Technology
Motion activated illumination powers the optic on instantly when movement is detected and powers down during inactivity to conserve battery life. - Large Open Reflex Window
Expansive viewing window provides a wide field of view for faster target acquisition and improved situational awareness. - Titanium Hood Protection
Reinforced titanium hood shields the optic body and glass from impacts while maintaining a lightweight structure. - Quick Detach Picatinny Mount
Integrated QD mount allows rapid attachment and removal while maintaining secure retention on Picatinny rails. - HM3X 3X Magnifier System
Included HM3X magnifier extends effective range with clear 3X magnification for mid-range target engagement. - Flip-to-Side Magnifier Mount
Quick transition between unmagnified and magnified views using the magnifier’s flip-to-side mechanism. - Durable Dual-Optic Construction
Both the HE510C-GR optic and HM3X magnifier feature rugged aluminum construction with IP67 level environmental protection for reliable use in demanding conditions.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
540nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
10 Daylight & 2 NV
Side Tray
Yes
MECHANICAL DATA
Housing Material
Aluminum & Titanium
Surface Finish
MAO
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size (in)
0.91" x 1.26"
Dimension (in) Body
3.3" x 1.68" x 1.78"
Body (oz) Weight
4.94 oz
