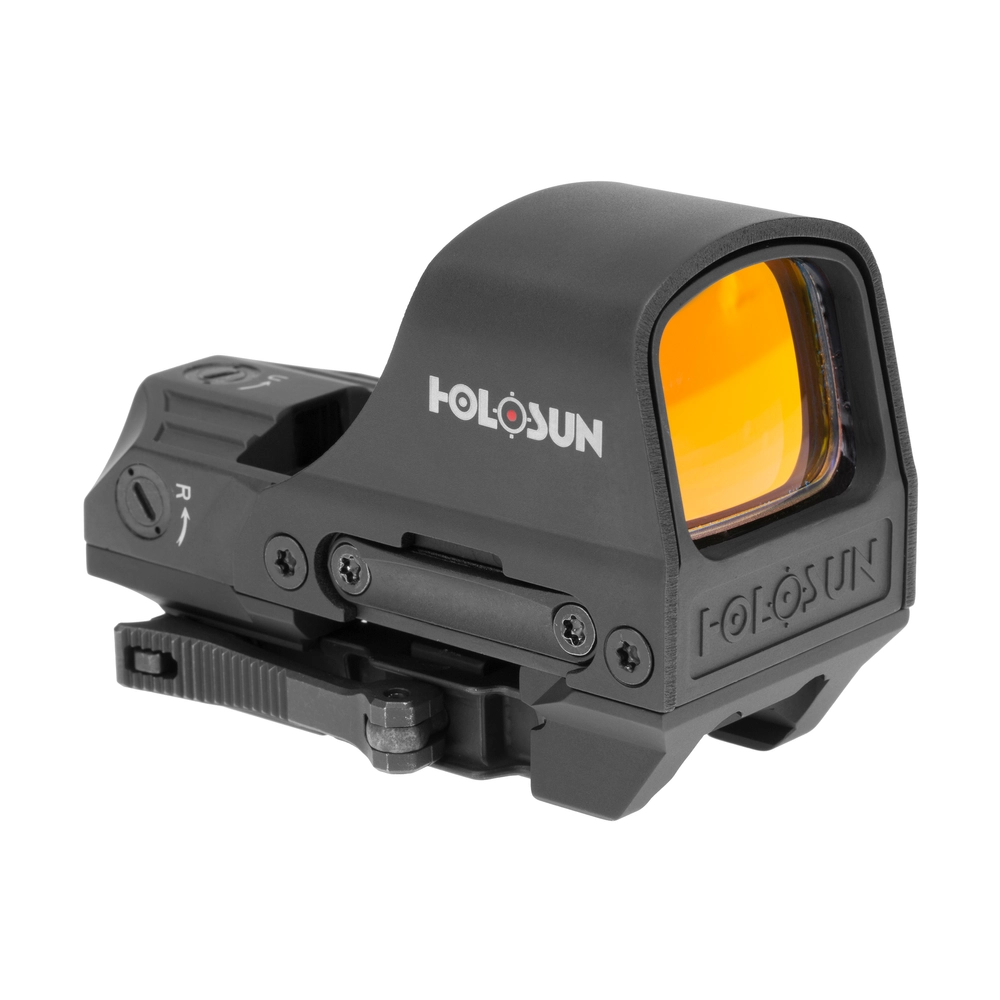

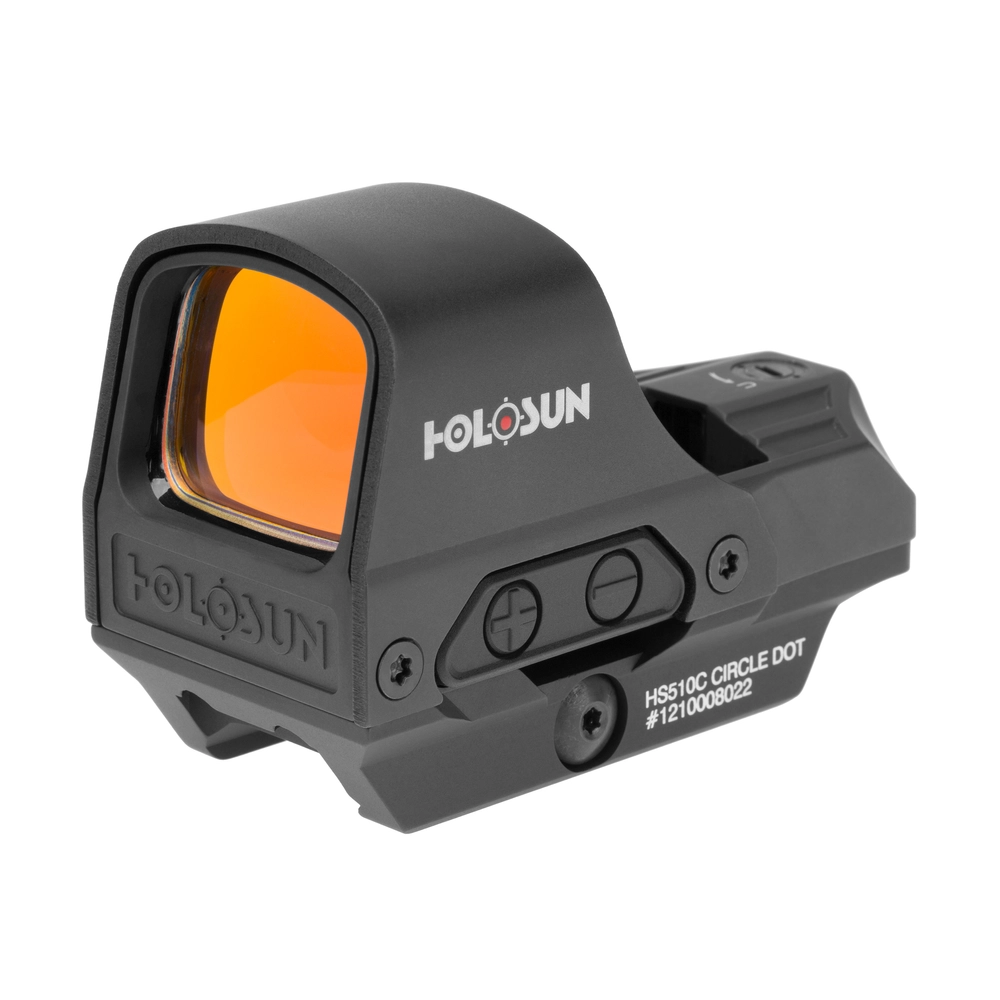

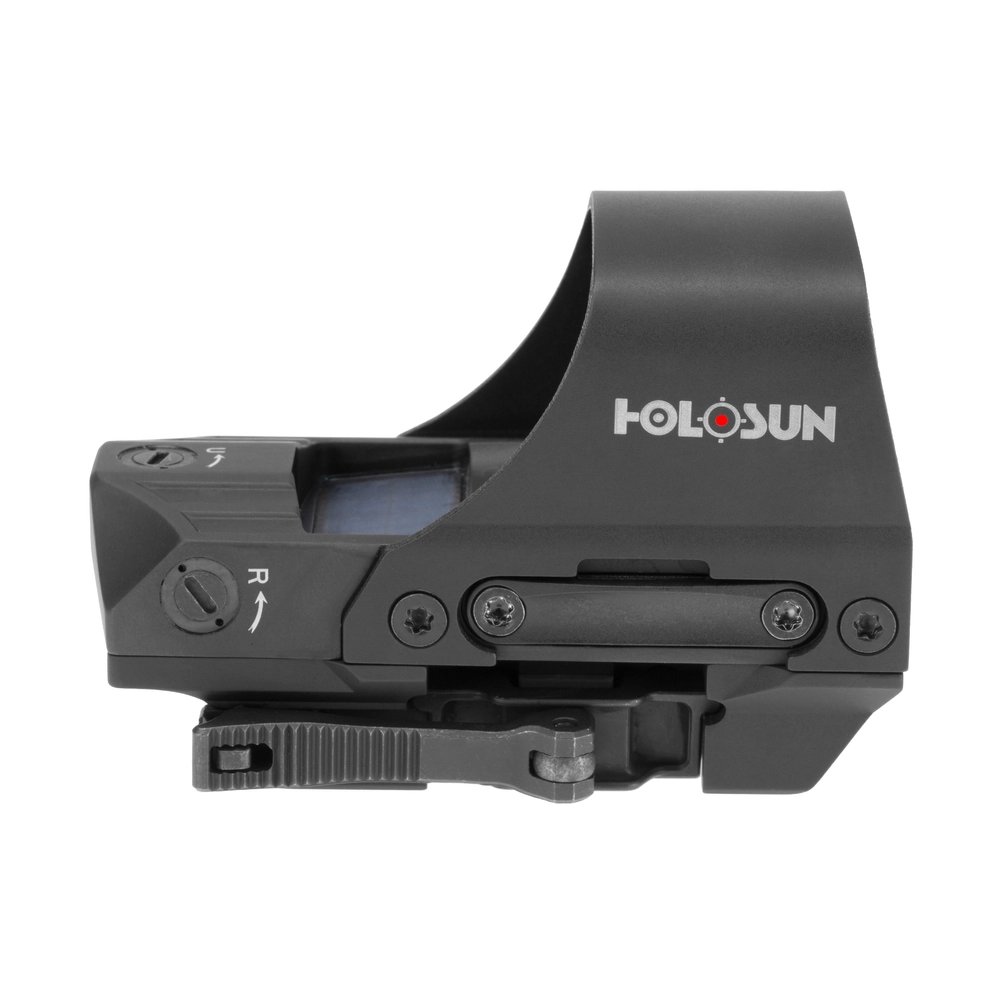

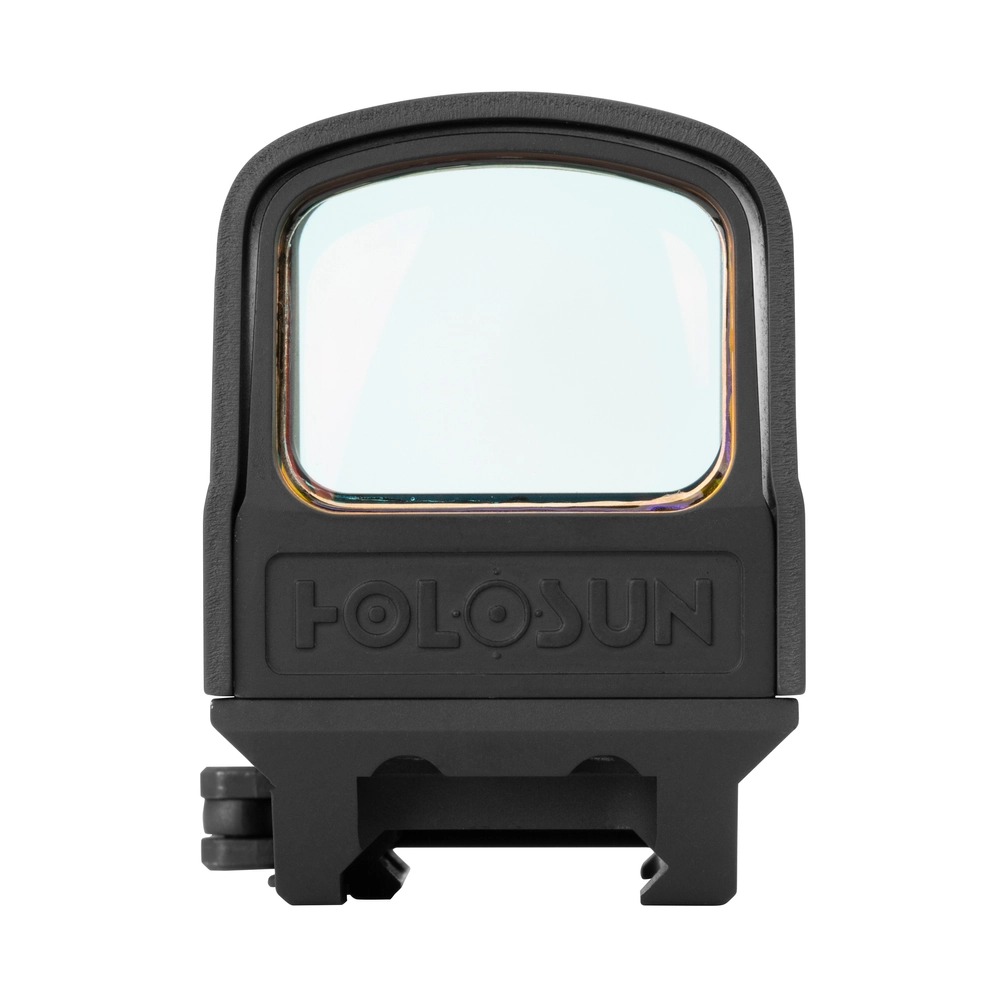

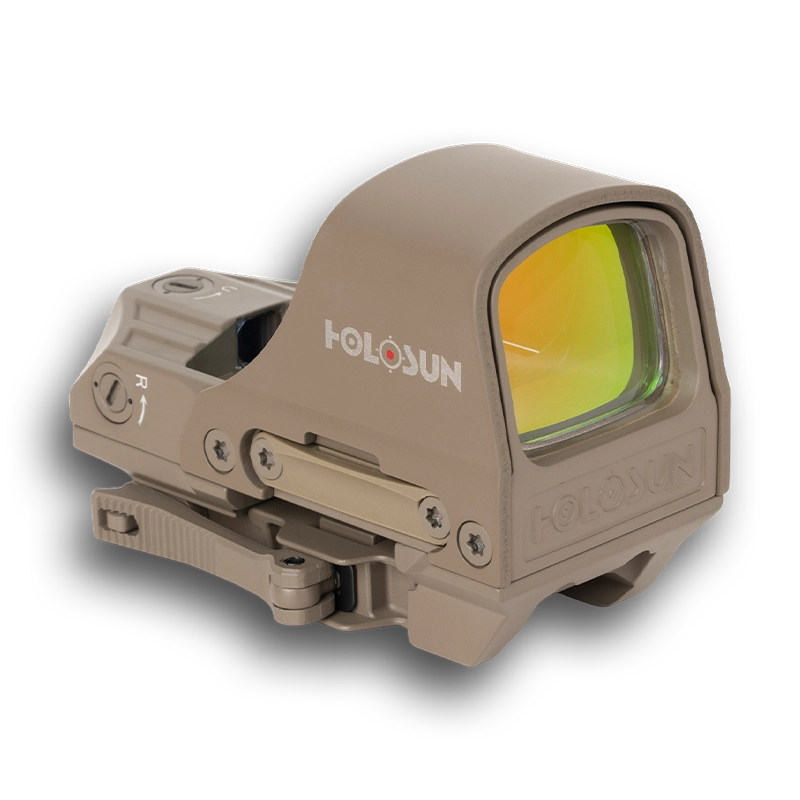

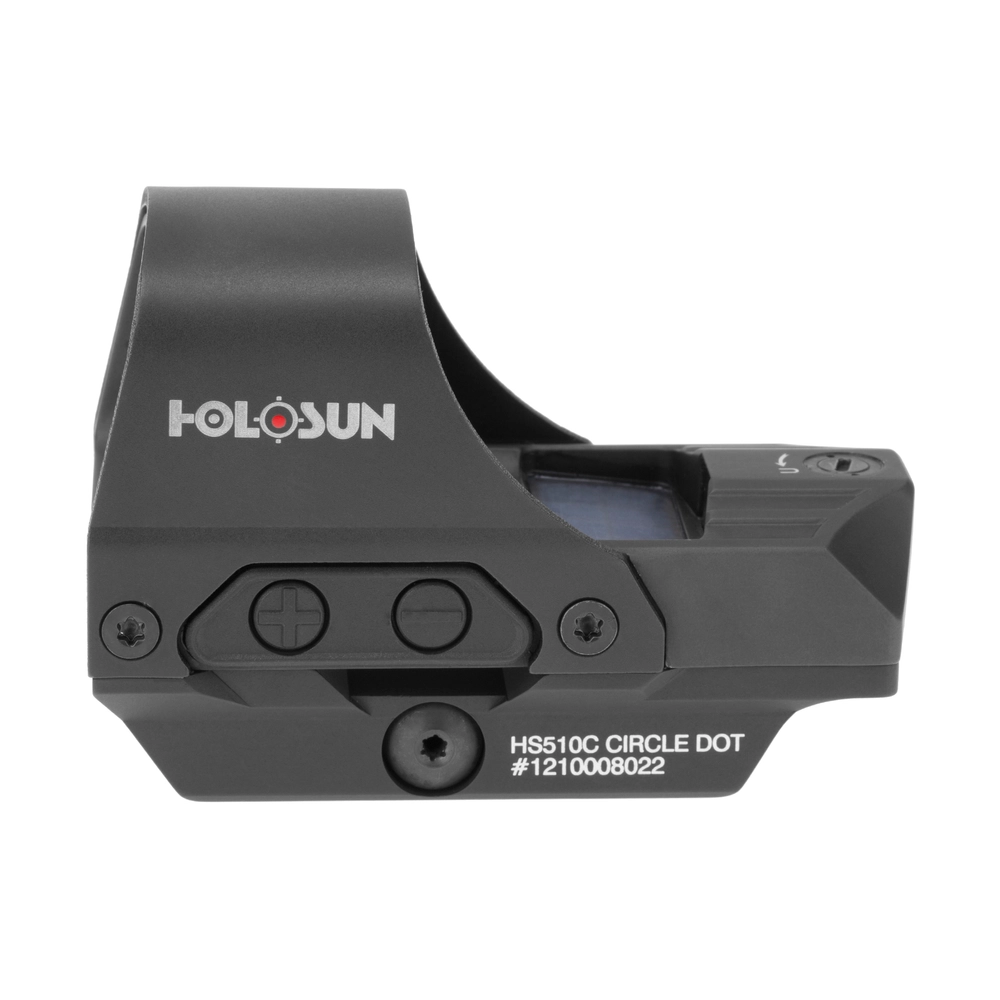

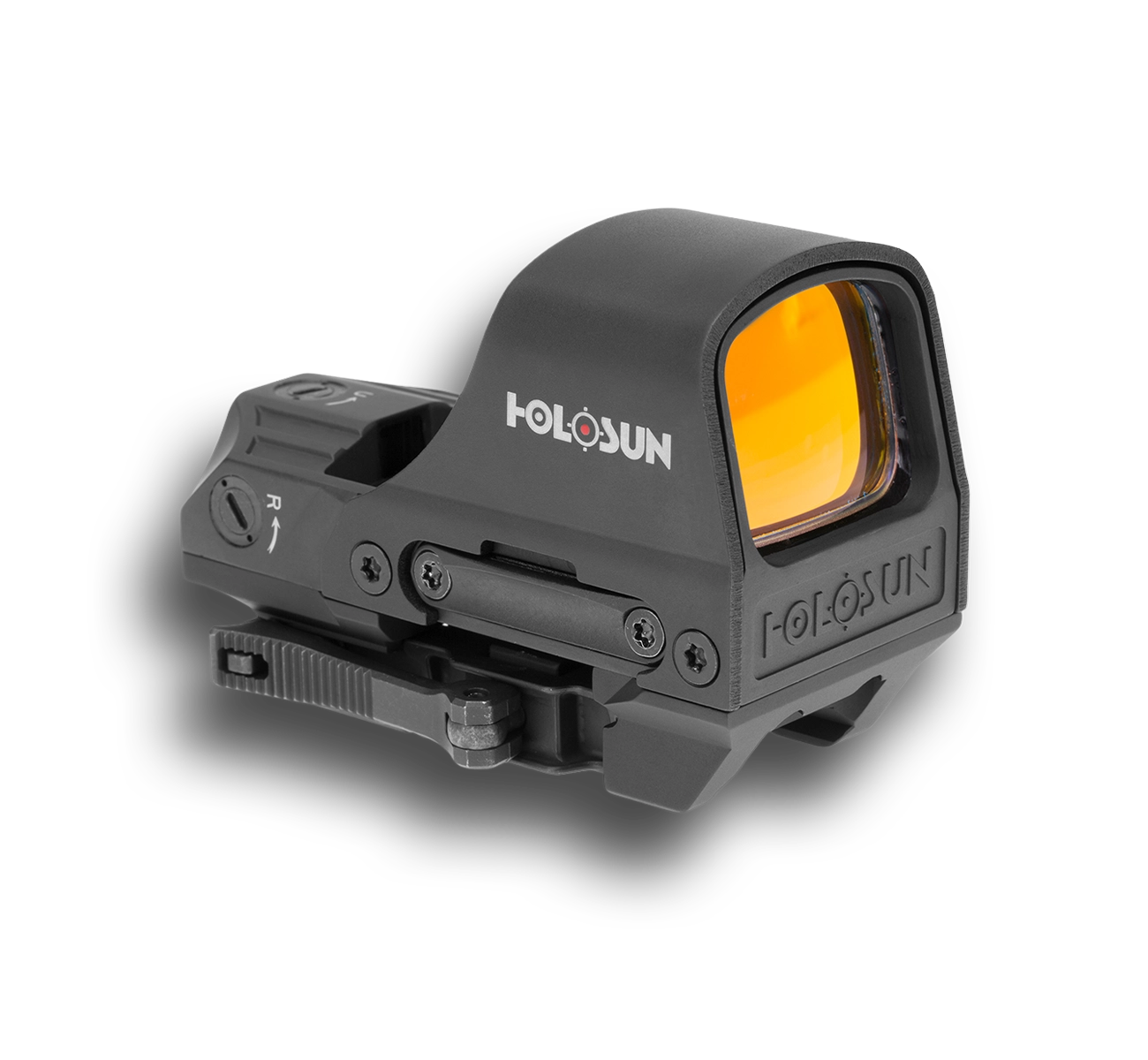

HS510C
$364.69
The HS510C is an open reflex optic built for carbines, PCCs, and shotguns, featuring a wide viewing window and Multi-Reticle System for fast, adaptable target acquisition.
Its aluminum housing with a titanium hood, combined with Solar Failsafe and Shake Awake, delivers lightweight durability and dependable performance in demanding shooting environments.
→ Red Multi-Reticle System (MRS)
Selectable Red 2 MOA dot, 65 MOA circle, or combined circle-dot reticle for adaptable targeting.
→ Solar Failsafe Technology
Solar panel supplements battery power and automatically adjusts brightness in changing light.
→ Shake Awake Technology
Motion activation powers the optic instantly while preserving battery life when idle.
→ Titanium Protective Hood
Reinforced hood design improves durability and protects the optic from impact.
→ Quick Detach Co-Witness Mount
Integrated QD mount with 1.41 inch dot height for fast installation and iron sight alignment.
→ Open Reflex Sight Window
Large viewing window supports faster sight acquisition and improved situational awareness.
Reticle Options
Features
- Red Multi-Reticle System (MRS)
Selectable reticle options include a 2 MOA red dot, 65 MOA circle, or combined circle dot for precision or rapid target acquisition. - Red Super LED Technology
650nm red emitter provides a crisp reticle with efficient power usage and up to 50,000 hours of battery life. - Solar Failsafe System
Integrated solar panel provides backup power and assists with automatic brightness management in changing lighting conditions. - Shake Awake Technology
Motion activation instantly powers the optic on and powers down during inactivity to preserve battery life. - Quick Detach Picatinny Mount
Integrated QD mount allows fast installation or removal while maintaining reliable zero on Picatinny rails. - Large Open Viewing Window
Expansive window design provides a wide field of view for faster target acquisition and improved situational awareness. - Titanium Protective Hood
Reinforced titanium hood protects the optic housing from impacts and harsh use in demanding environments. - Side Mounted Battery Tray
CR2032 battery compartment allows quick replacement without removing the optic from the mount. - 12 Brightness Settings
Ten daylight and two night vision compatible brightness levels provide optimal reticle visibility in varied lighting conditions. - IP67 Waterproof Construction
Sealed optic housing protects internal electronics from water, dust, and harsh environmental conditions.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
10 Daylight & 2 NV
Side Tray
Yes
MECHANICAL DATA
Housing Material
Aluminum & Titanium
Surface Finish
MAO
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IP67
Vibration
5000G
PHYSICAL DATA
Window Size (in)
0.91" x 1.26"
Dimension (in) Body
3.3" x 1.68" x 1.78"
Body (oz) Weight
4.94 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HS510C-RD
Lens Cloth
Multi-Tool
Manual
Warranty Card
