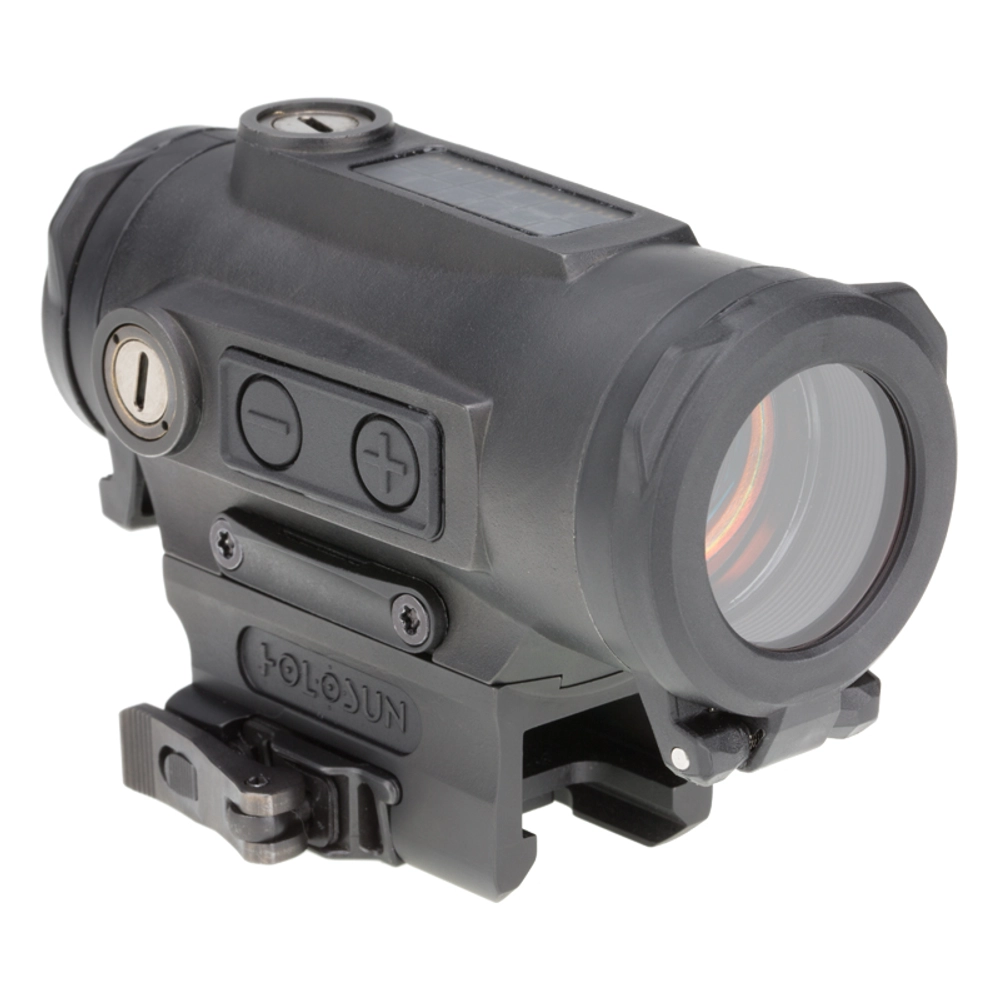

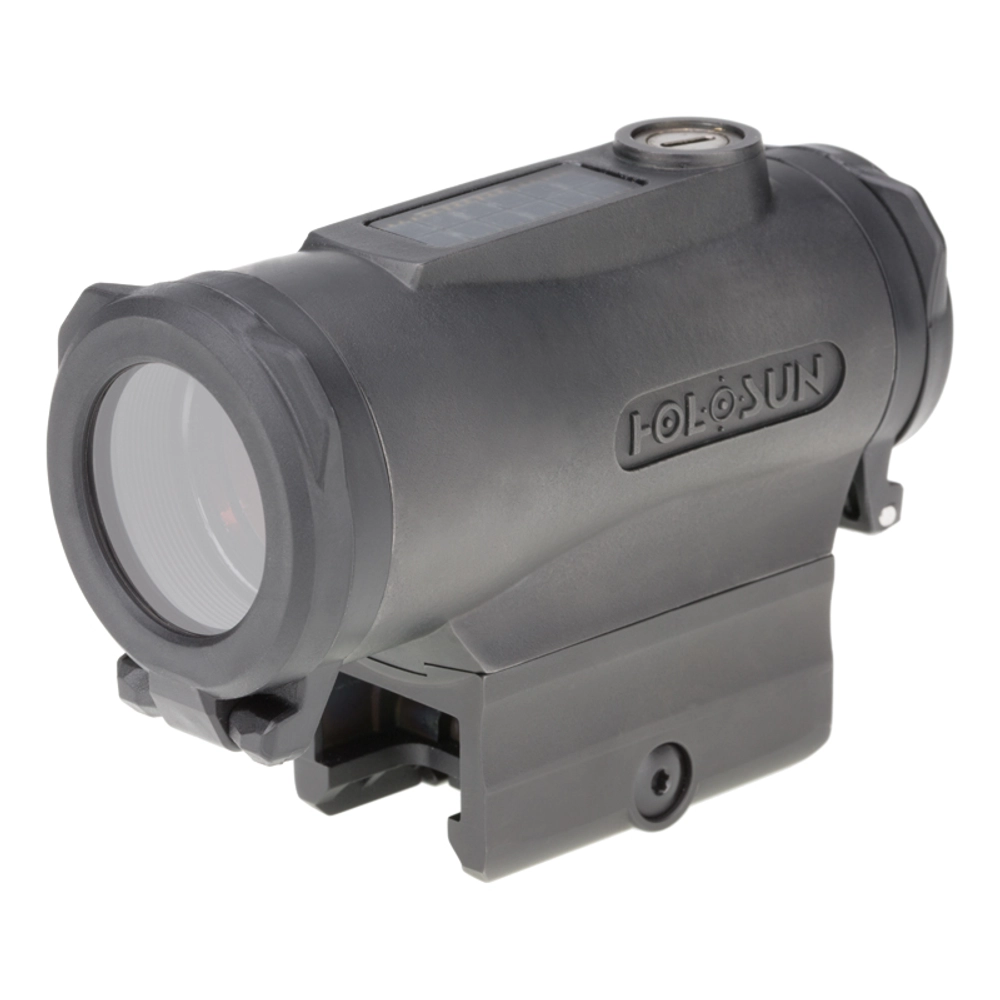

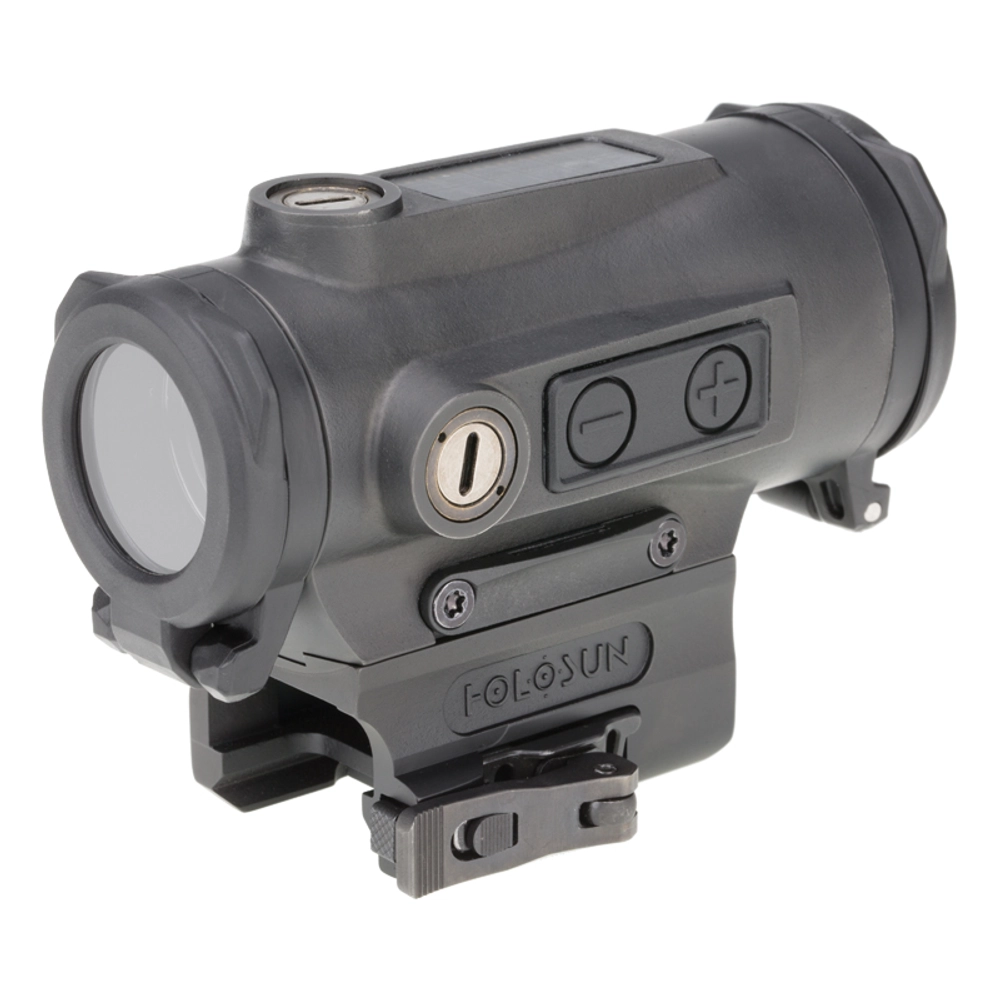

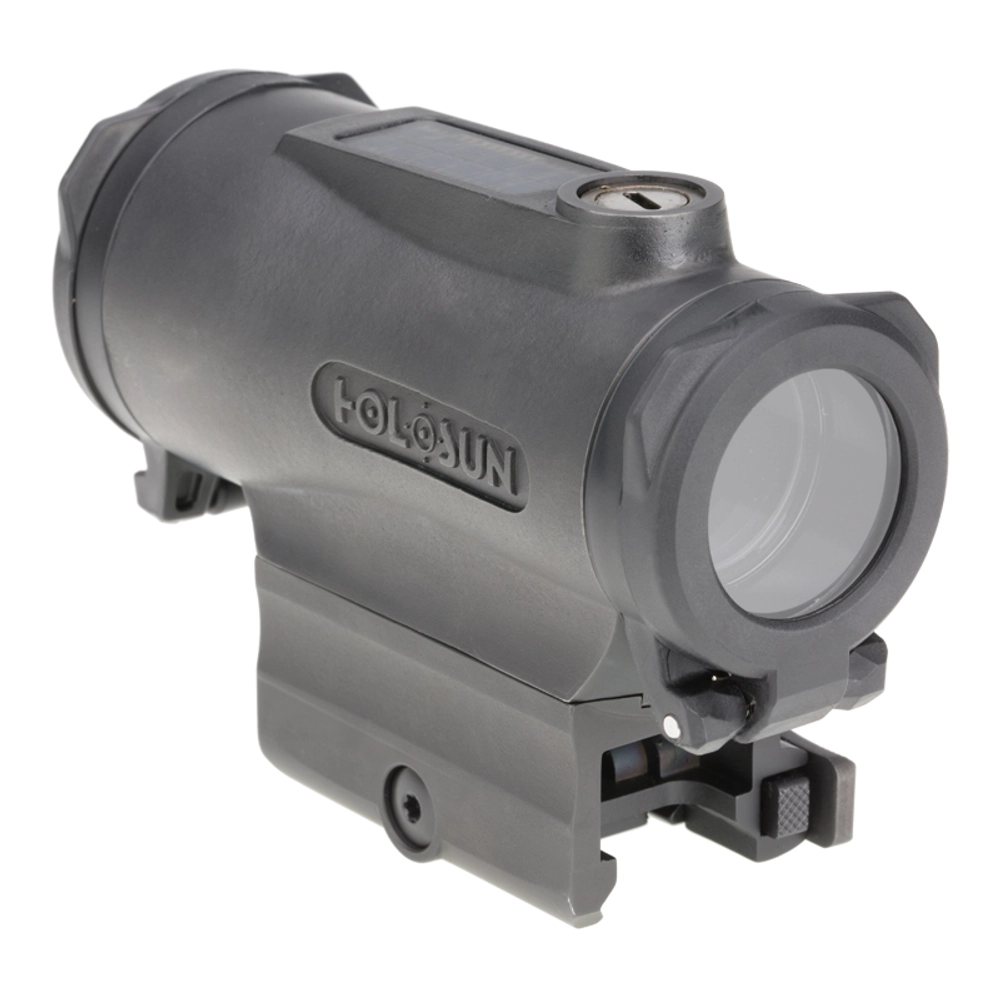

HE530C-RD
$588.22
The HE515GT-RD is a rugged micro reflex optic built for rifles and carbines that demand durability and precision in demanding environments.
Its Grade 5 titanium housing and red Multi-Reticle System provide adaptable aiming performance, while Shake Awake and a side-loading battery tray ensure reliable operation with long battery life.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for versatile rifle performance.
→ Red Super LED
650nm LED delivers a crisp aiming point with up to 50,000 hours of battery life.
→ Grade 5 Titanium Housing
Lightweight titanium construction engineered for maximum durability.
→ Solar Failsafe Technology
Solar panel assists with power management and maintains function in bright conditions.
→ Shake Awake Technology
Motion-activated system powers the optic on instantly while preserving battery life when idle.
→ Side-Loading Battery Tray
CR2032 battery replacement without removing the optic from the firearm.
→ Quick Detach Absolute Co-Witness Mount
QD mount with 1.41 inch dot height for fast installation and iron sight alignment.
→ Sealed Environmental Protection
IPX8-rated waterproof construction built for harsh field conditions.
Reticle Options
Features
- Red Multi-Reticle System
Selectable red reticle with 2 MOA dot, 65 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enhanced Red Super LED
650nm red emitter delivers strong visibility across lighting conditions with up to 50,000 hours of battery life. - Grade 5 Titanium Housing
Precision machined titanium construction provides exceptional durability while maintaining a strong yet lightweight optic body. - Shake Awake Technology
Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to conserve battery life. - Absolute Co-Witness QD Mount
Quick detach mount positions the optic at a 1.41 inch height for proper alignment with standard AR style iron sights. - Side Loading CR2032 Battery Tray
Convenient battery tray allows quick battery replacement without removing the optic from the firearm. - Rotating Protective Lens Caps
Clear rotating lens caps protect the optic glass from debris and environmental exposure while allowing immediate use. - IP68 Waterproof Protection
Fully sealed optic housing protects internal components from water, dust, and harsh environmental conditions. - Multi-Coated Optical System
Advanced lens coatings improve light transmission and reduce glare for a brighter and clearer sight picture. - 30mm Micro Tube Design
Large 30mm optic body provides a wide viewing area and enhanced situational awareness for rifle and carbine platforms.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
10 Daylight & 2 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
Titanium
Surface Finish
Titanium Finish
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Window Size (in)
1.18 Diameter
Dimension (in) Body
3.22" x 1.9" x 1.77"
Body (oz) Weight
6.56 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HE530C-RD
Lens Cloth
Multi-Tool
Manual
Warranty Card
