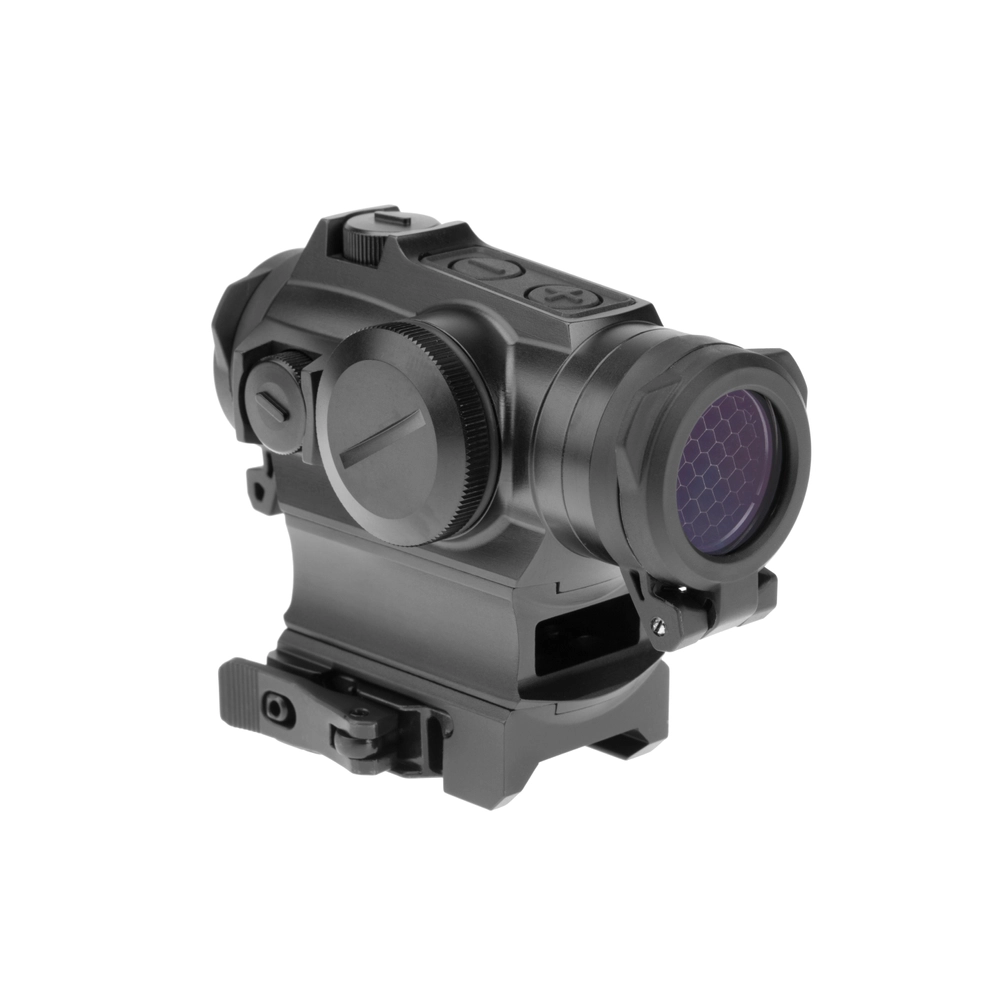

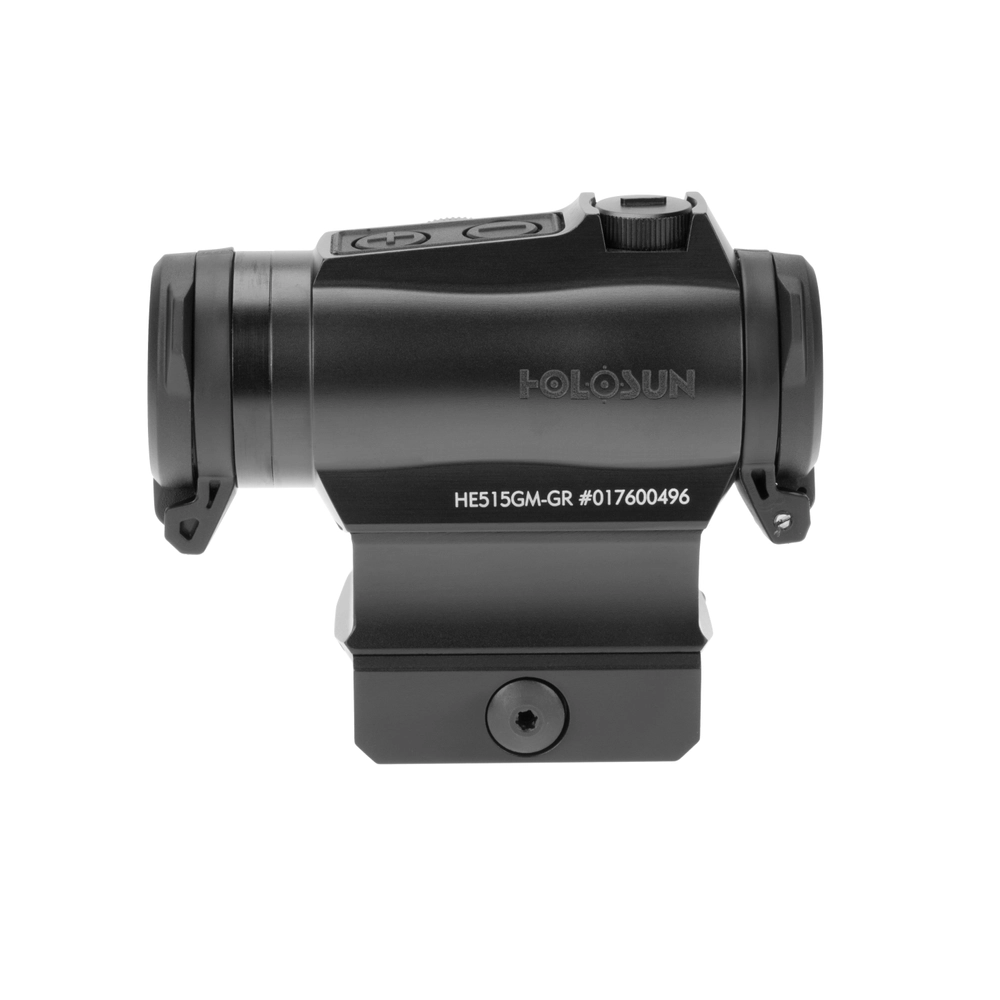

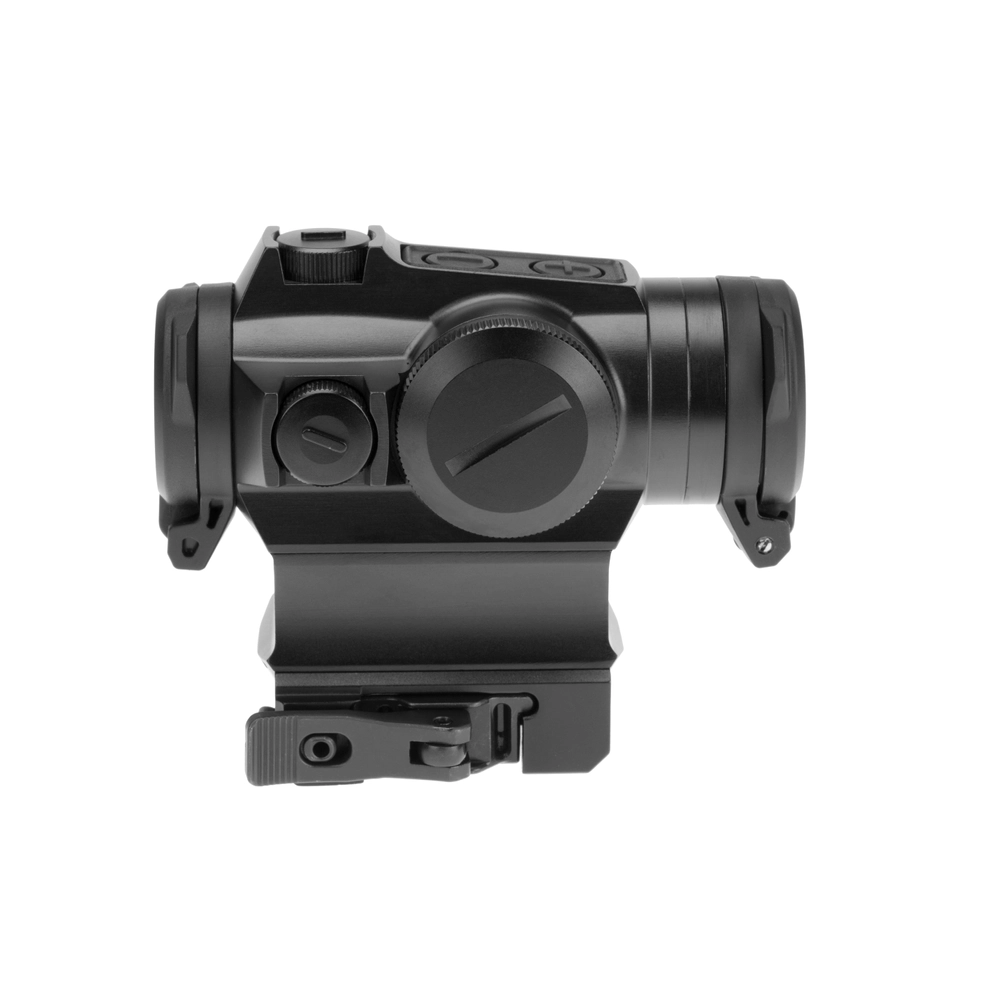

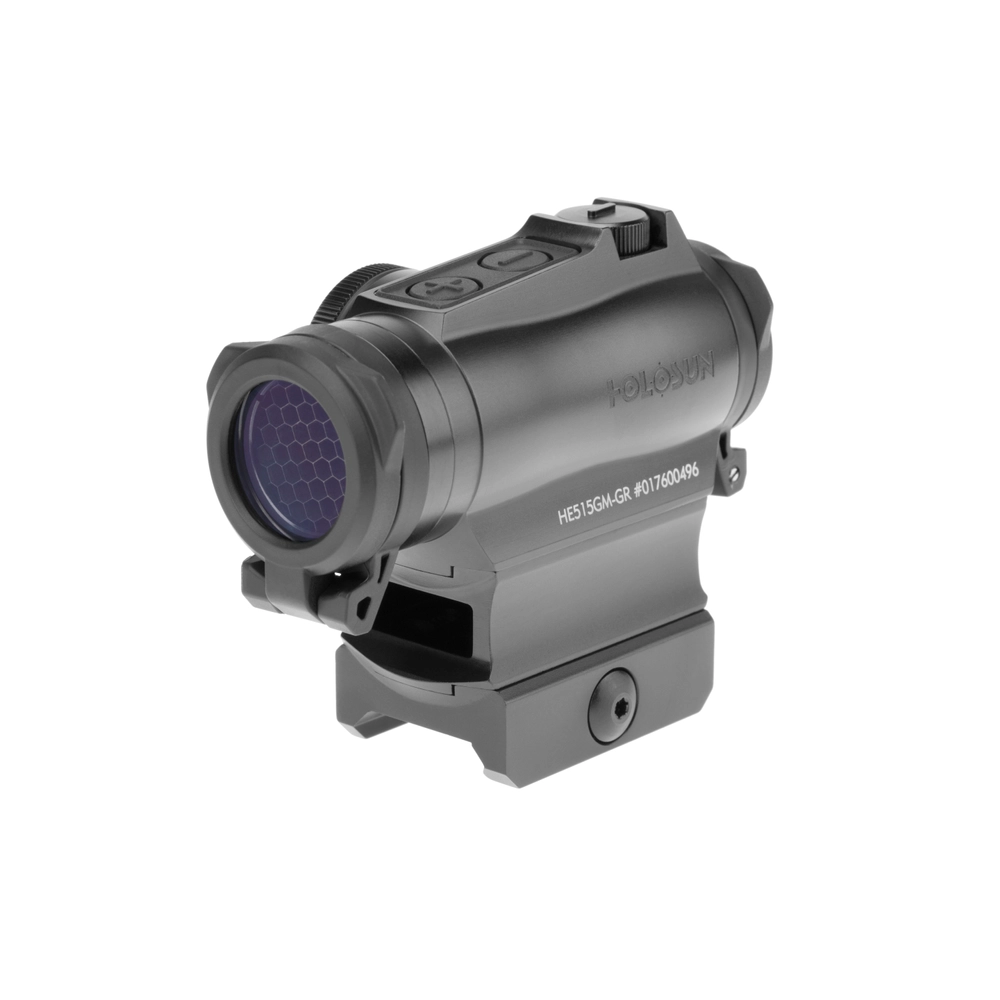

HE515GM-GR
$411.75
The HE515GM-GR is a compact micro reflex optic built for rifles and carbines where durability, clarity, and lightweight performance matter.
Its 7075-T6 aluminum housing and green Multi-Reticle System provide adaptable aiming, while Solar Failsafe and Shake Awake ensure reliable operation with long battery life.
→ Multi-Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for versatile rifle performance.
→ Green Super LED
540nm LED provides a high-contrast reticle with up to 50,000 hours of battery life.
→ Solar Failsafe Technology
Solar panel provides supplemental power and supports automatic brightness adjustment.
→ Shake Awake Technology
Motion-activated system powers the optic on instantly while preserving battery life when idle.
→ 7075-T6 Aluminum Housing
Hard-anodized aluminum construction built for strength and long-term durability.
→ Side-Loading Battery Tray
CR2032 battery replacement without removing the optic from the firearm.
→ Quick Detach Lower 1/3 Co-Witness Mount
QD mount with 1.63 inch dot height optimized for AR-platform rifles.
Reticle Options
Features
- Green Multi-Reticle System
Selectable green reticle with 2 MOA dot, 65 MOA circle, or combined circle dot for precision aiming or rapid target acquisition. - Enhanced Green Super LED
540nm green emitter delivers strong contrast and excellent visibility across lighting conditions with up to 50,000 hours of battery life. - 7075-T6 Aluminum Housing
High-strength aluminum construction with hard anodized finish provides exceptional durability while maintaining a lightweight micro optic footprint. - Solar Failsafe Technology
Integrated solar panel supplements battery power and allows the optic to operate using ambient light when available. - Shake Awake Technology
Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to conserve battery life. - Lower 1/3 Co-Witness QD Mount
Quick detach mount positions the optic at a 1.63 inch height for optimal lower 1/3 co-witness with AR platform iron sights. - Side Loading CR2032 Battery Tray
Tool-less battery tray allows quick battery replacement without removing the optic from the firearm. - Rotating Protective Lens Caps
Removable rotating lens caps help protect the glass from dust, debris, and environmental exposure. - IP68 Waterproof Protection
Fully sealed optic housing protects internal components from water, dust, and harsh environmental conditions. - Multi-Coated Optical System
Advanced lens coatings enhance light transmission and reduce glare for a clearer sight picture.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
540nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
Titanium
Surface Finish
Titanium Finish
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Window Size (in)
0.78 Diameter
Dimension (in) Body
2.75" x 1.43" x 1.63"
Body (oz) Weight
3.74 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HE515GM-GR
Lens Cloth
Multi-Tool
Manual
Warranty Card
