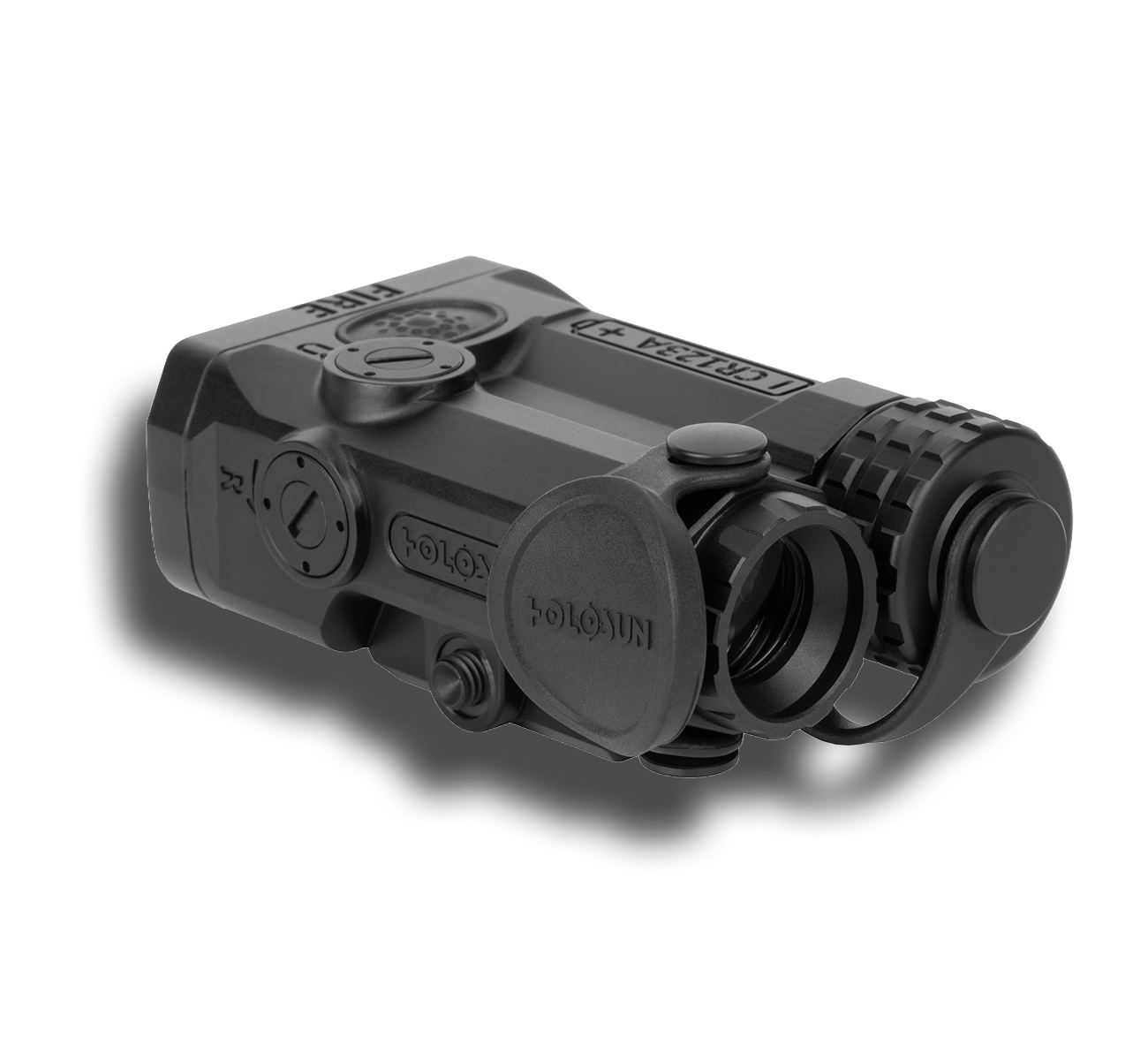

IRIS-RD2
$588.22
The IRIS-RD2 is a compact dual-laser aiming device that combines a visible 635nm red laser with an infrared laser for day and night capability.
Its co-aligned design, low-profile 7075-T6 aluminum housing, and remote activation support deliver simple zeroing and dependable performance across changing lighting conditions.
→ Dual-Laser System
Co-aligned visible red and IR lasers allow easy daylight zeroing for both aiming systems.
→ Visible Red Laser
635nm Class 3R laser (<5mW) delivers a crisp and highly visible aiming point.
→ Infrared Aiming Laser
Class 1 IR laser (800–880nm, <0.7mW) designed for night vision use.
→ Compact Lightweight Design
45% lighter and 21% lower profile than previous LS221 models.
→ Integrated Fire Button
Center-mounted control supports momentary and constant-on activation.

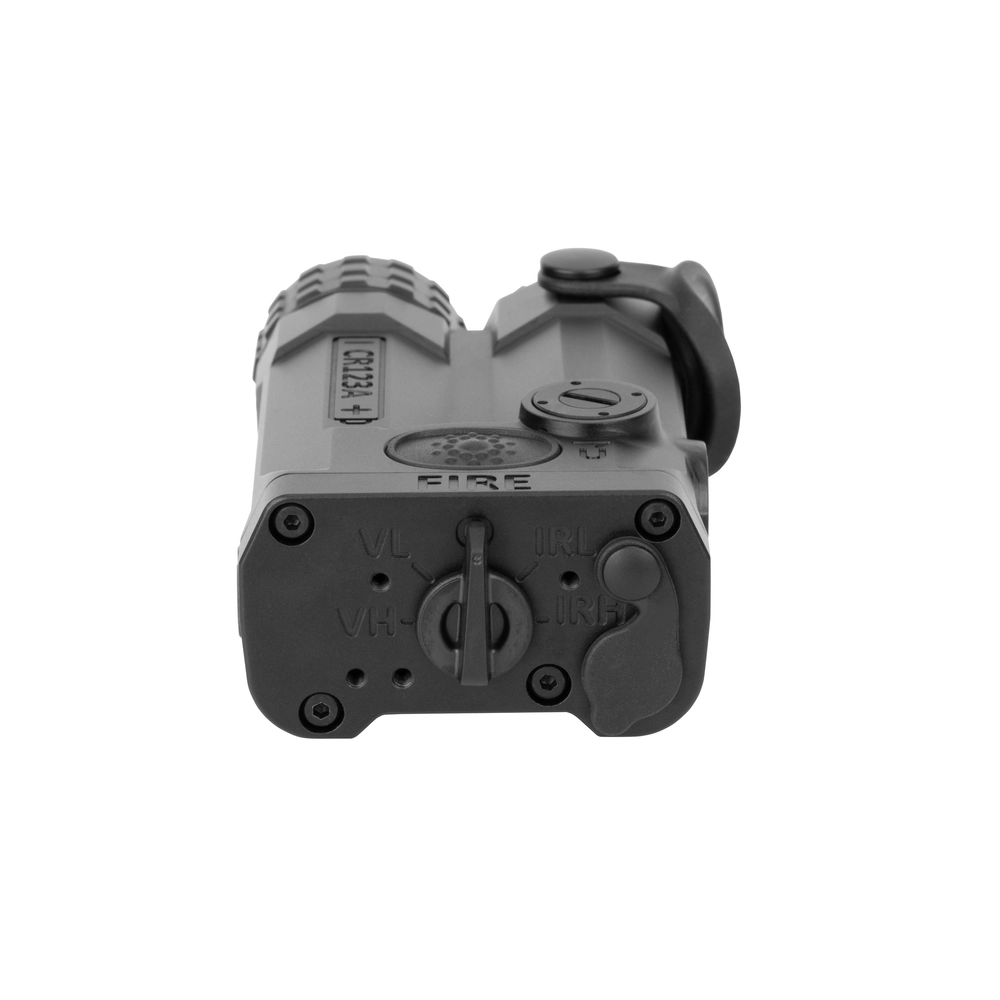

→ Rear Mode Selector
Accessible rear switch manages power and operating modes.
→ Remote Activation Included
Crane-style pressure pad enables flexible remote operation.
Reticle Options
Features
- Dual Laser Aiming System
Integrated visible red laser and IR aiming laser provide versatile targeting capability for both daytime and night vision applications. - High Visibility Red Laser
635nm Class 3R red laser delivers a crisp visible aiming point with <5mW output for daylight targeting and zeroing. - Infrared Aiming Laser
800–880nm Class 1 IR laser provides reliable night vision compatible aiming capability. - Co-Aligned Laser Zeroing
Visible and IR lasers are co-aligned, allowing both systems to be zeroed simultaneously using the visible laser during daylight. - 7075-T6 Aluminum Housing
Precision-machined aluminum construction with hard anodized finish provides strength, durability, and corrosion resistance. - Compact Low-Profile Design
Redesigned housing is 45% lighter and 21% lower profile than LS221 models for improved rifle ergonomics. - Ambidextrous Fire Button
Center-positioned activation button supports both momentary and constant ON operation for intuitive control. - Rear Mode Selector Switch
Ergonomic rear-mounted selector provides quick adjustments to laser modes and power settings. - Remote Switch Activation
Includes Crane plug compatible single-button pressure pad for flexible remote activation. - Mission-Ready Durability
IPX8 waterproof rating and 1000G vibration resistance ensure dependable performance in demanding operational environments. - CR123A Powered
Runs on a single CR123A battery with front cap access for quick and convenient battery replacement.
FUNCTIONS
Visible Laser Pointer
Yes
IR Laser
Yes
OPTICAL DATA
Red Laser Output (mW)
<5mW
Red Laser Wavelength
635nm
IR Laser Output (mW)
<.5mW
IR Laser Wavelength
800-880nm
ELECTRONIC DATA
Battery
1x CR123A
MECHANICAL DATA
Housing Material
7075 T6 Aluminum
Surface Finish
Anodized
Housing Color
Black
Storage Temperature
-40°C~70°C
Working Temperature
-30°C~51°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Dimensions
3.2" × 1.85" × 1.3"
Weight
5 oz
Fitment
Direct Mount
Picatinny
In The Box
IRIS-RD2
Crane Plug Pressure Pad
Lens Cloth
Multi-Tool
Wrench
Manual
Warranty Card
