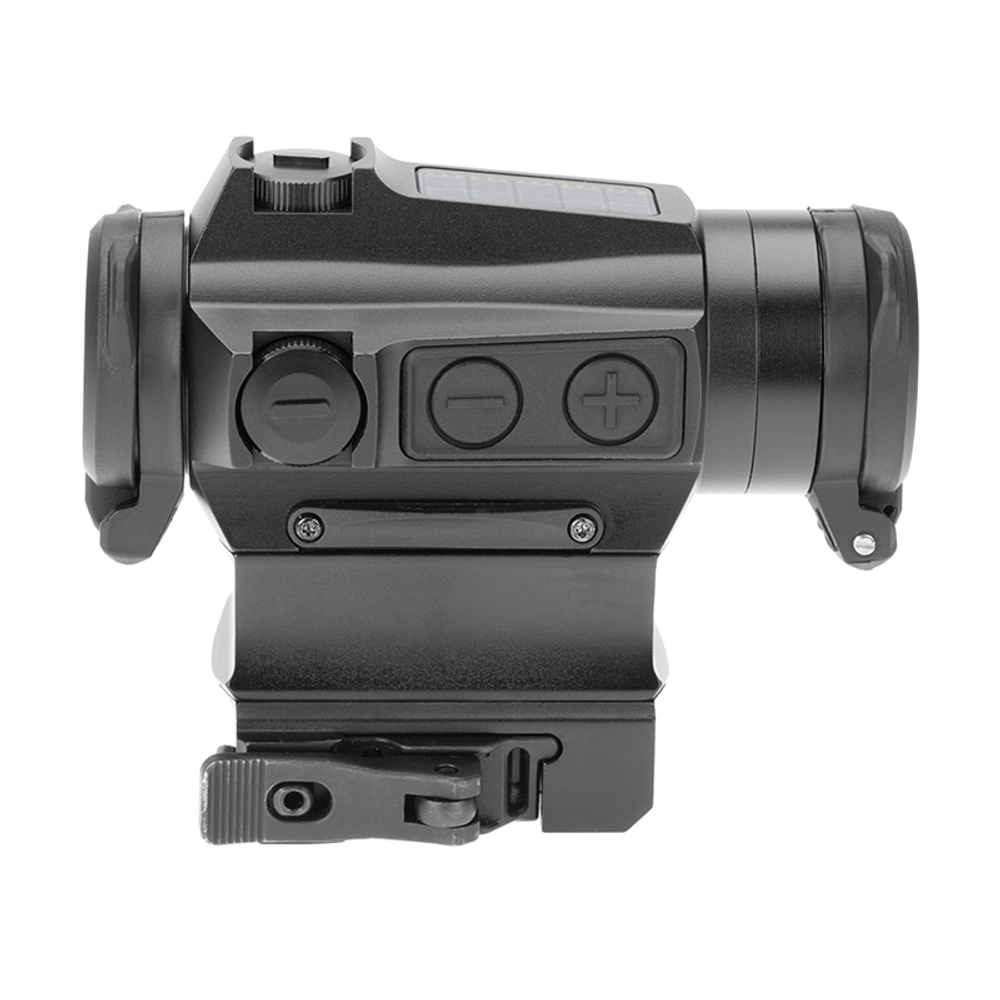

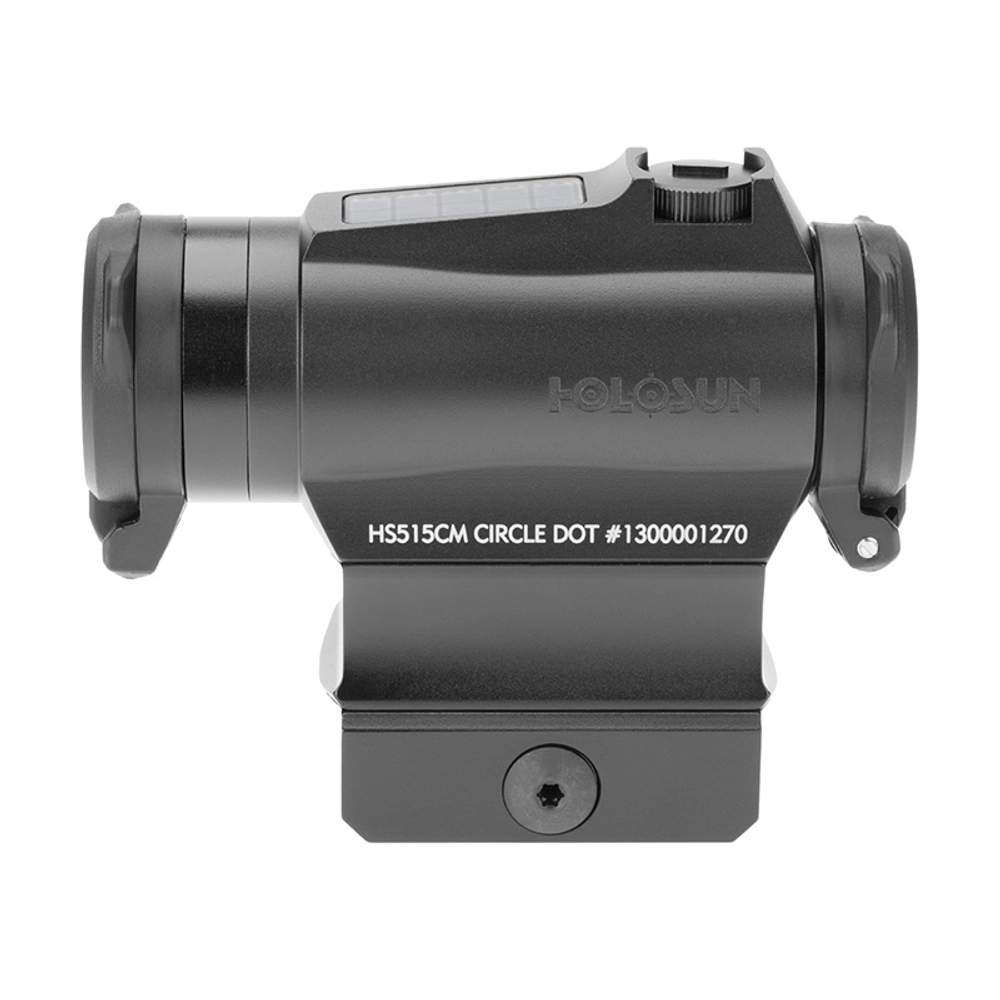

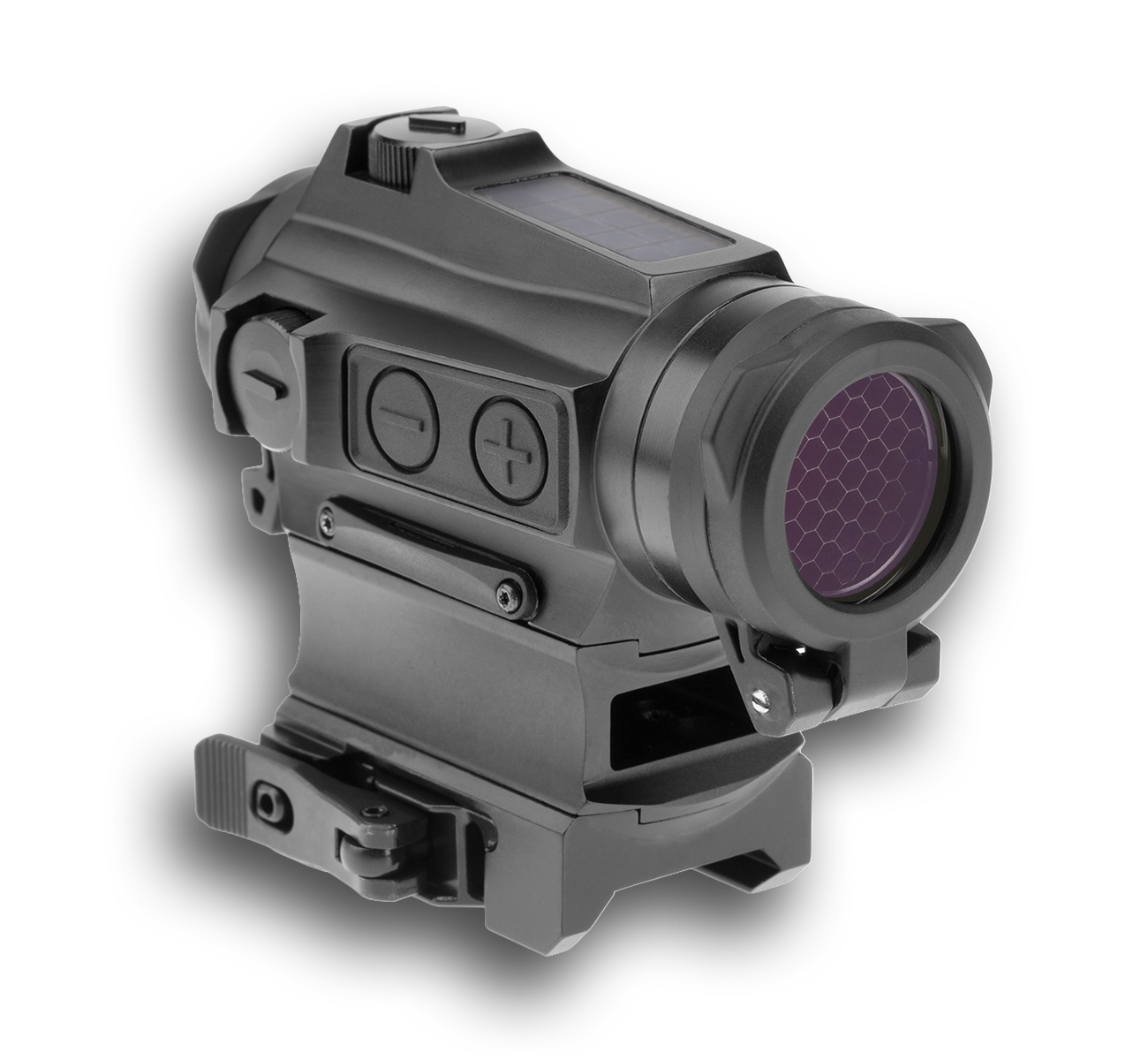

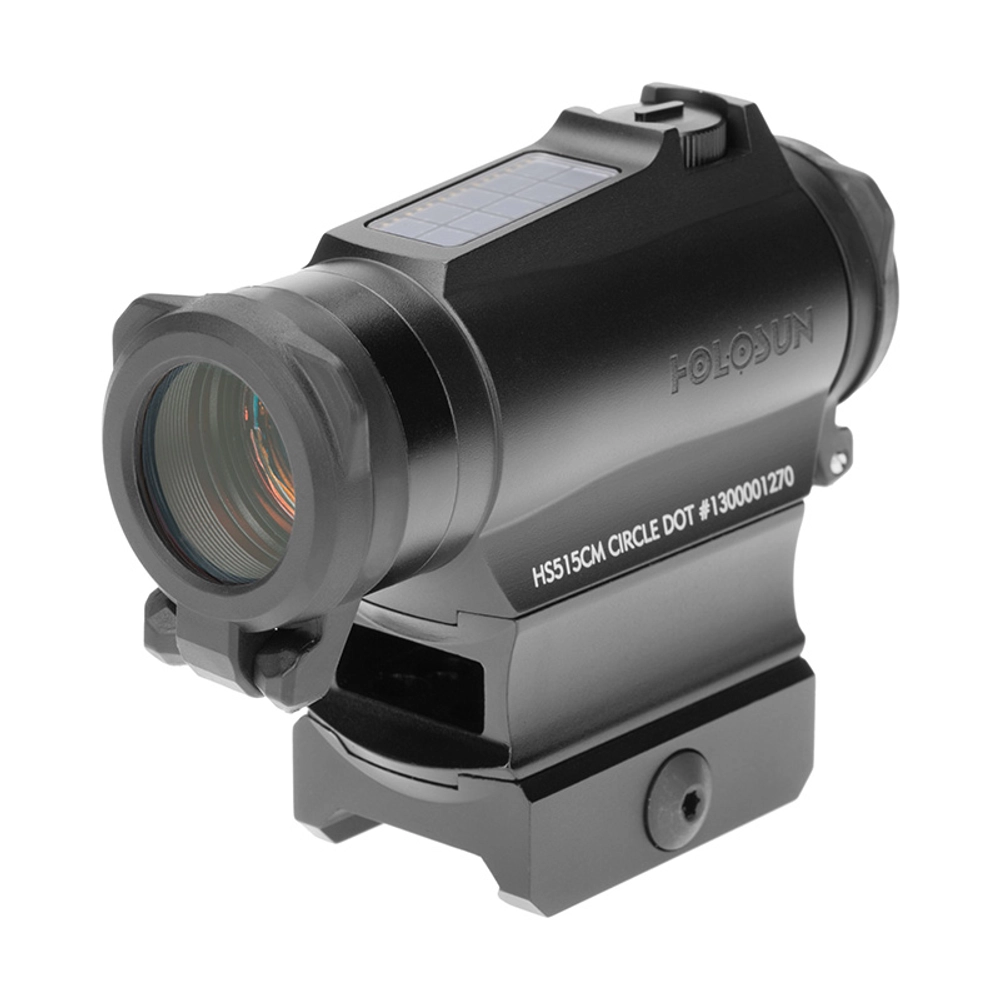

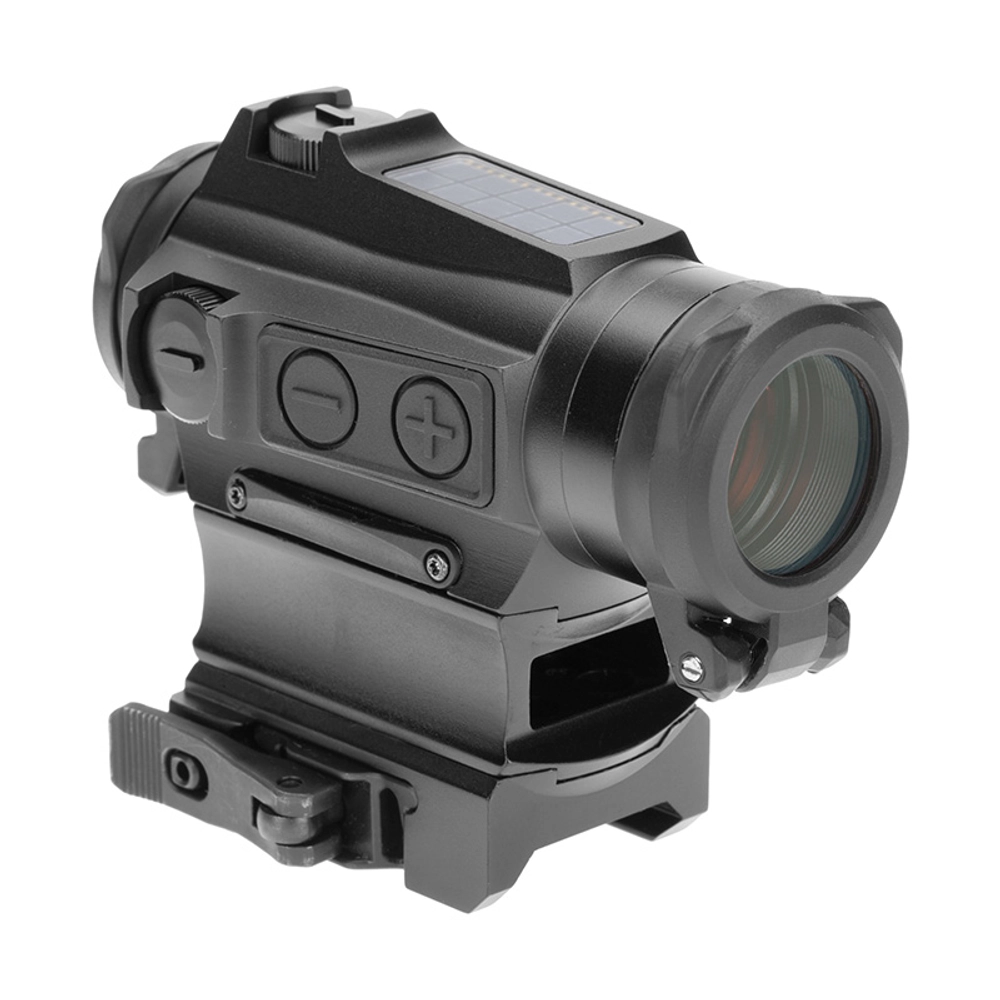

HS515CM
$411.75
The HS515CM is a compact micro reflex sight built for rifles and carbines that demand durability, precision, and a lightweight footprint.
Its rugged aluminum housing, Multi-Reticle System, and lower 1/3 QD mount, combined with Shake Awake and long battery life, deliver dependable performance across demanding shooting environments.
→ Multi-Reticle System (MRS)
Switch between a 2 MOA dot, 65 MOA circle, or circle-dot combination.
→ Shake Awake Technology
Motion activation powers the optic on instantly while preserving battery life.
→ Tool-Less Battery Access
Side battery tray allows quick CR2032 replacement without removing the optic.
→ Up to 50,000-Hour Battery Life
Efficient LED system provides extended runtime on a single battery.
→ IP68 Waterproof Protection
Sealed construction protects against water, dust, and harsh conditions.
→ Protective Lens Caps
Rotating and removable caps help shield the lenses during storage and transport.
Reticle Options
Features
- Red Multi-Reticle System (MRS)
Selectable reticle options include a 2 MOA red dot, 65 MOA circle, or combined circle dot for precision or rapid target acquisition. - Red Super LED Technology
650nm red emitter provides a crisp reticle with efficient power usage and up to 50,000 hours of battery life. - Micro Reflex Rifle Optic Design
Compact optic profile optimized for carbines, rifles, and PCC platforms without adding unnecessary weight. - Shake Awake Technology
Motion activation instantly powers the optic on and powers down during inactivity to preserve battery life. - Tool-Less Side Battery Tray
CR2032 battery compartment allows quick replacement without removing the optic from the mount. - Lower 1/3 Co-Witness QD Mount
Quick detach Picatinny mount with 1.63 inch optic height provides rapid installation and ideal sight alignment. - 7075 Aluminum Housing
Durable aluminum construction engineered to withstand demanding professional use. - Integrated Protective Lens Caps
Rotating lens caps help protect optic glass from debris and environmental exposure. - 12 Brightness Settings
Ten daylight and two night vision compatible brightness levels provide clear reticle visibility in varied lighting conditions. - IP68 Waterproof Construction
Fully sealed optic housing protects internal electronics from water, dust, and extreme environmental conditions.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
No
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
6061 T6 Aluminum
Surface Finish
MAO
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Window Size (in)
.78" Diameter
Dimension (in) Body
2.75" × 1.43" × 1.63"
Body (oz) Weight
9.17 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HS515CM-RD
Len Cloth
Multi-Tool
Manual
Warranty Card
