HS515GM
$376.46

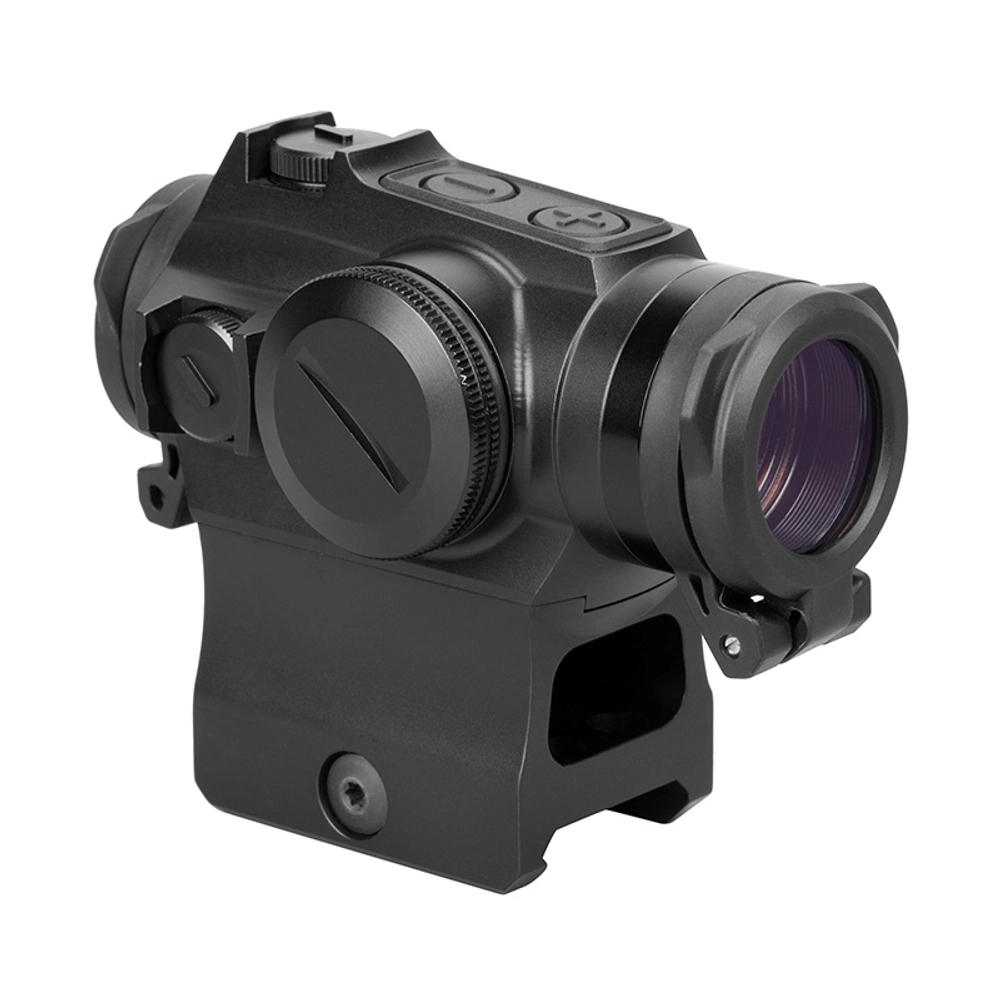

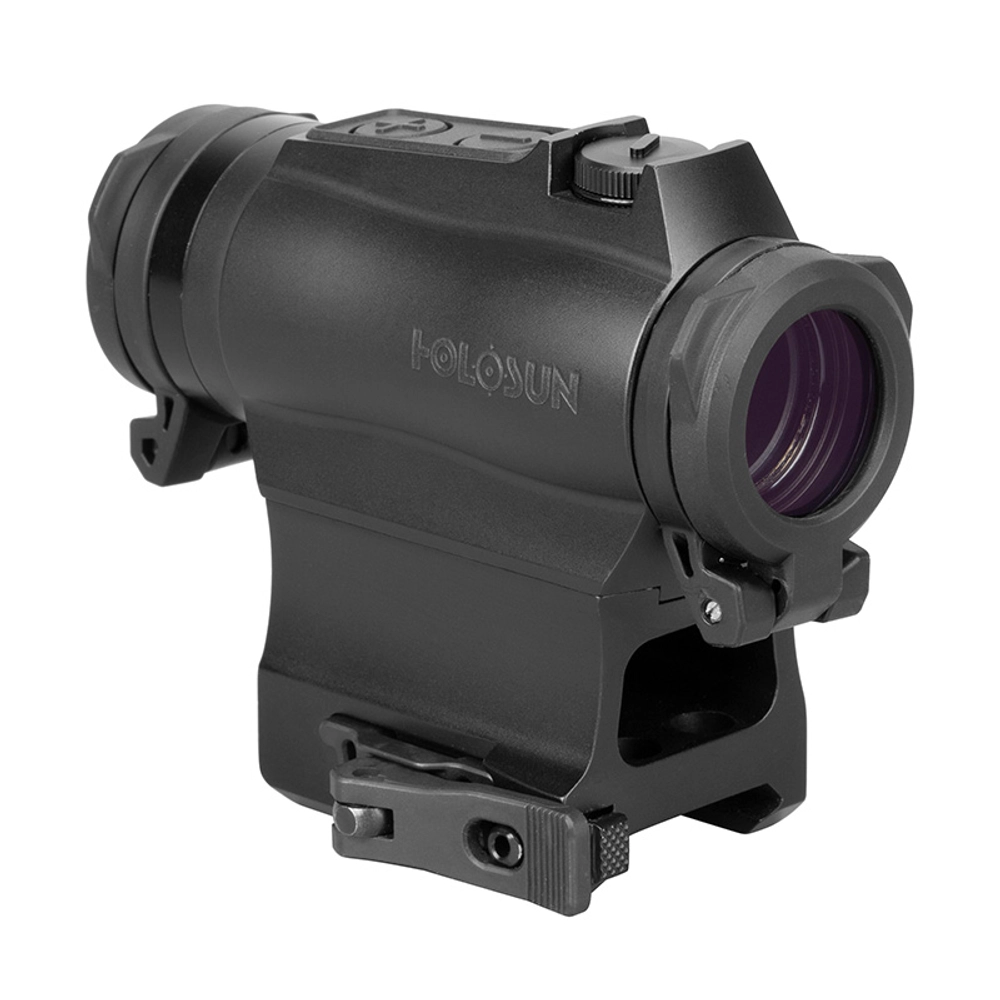

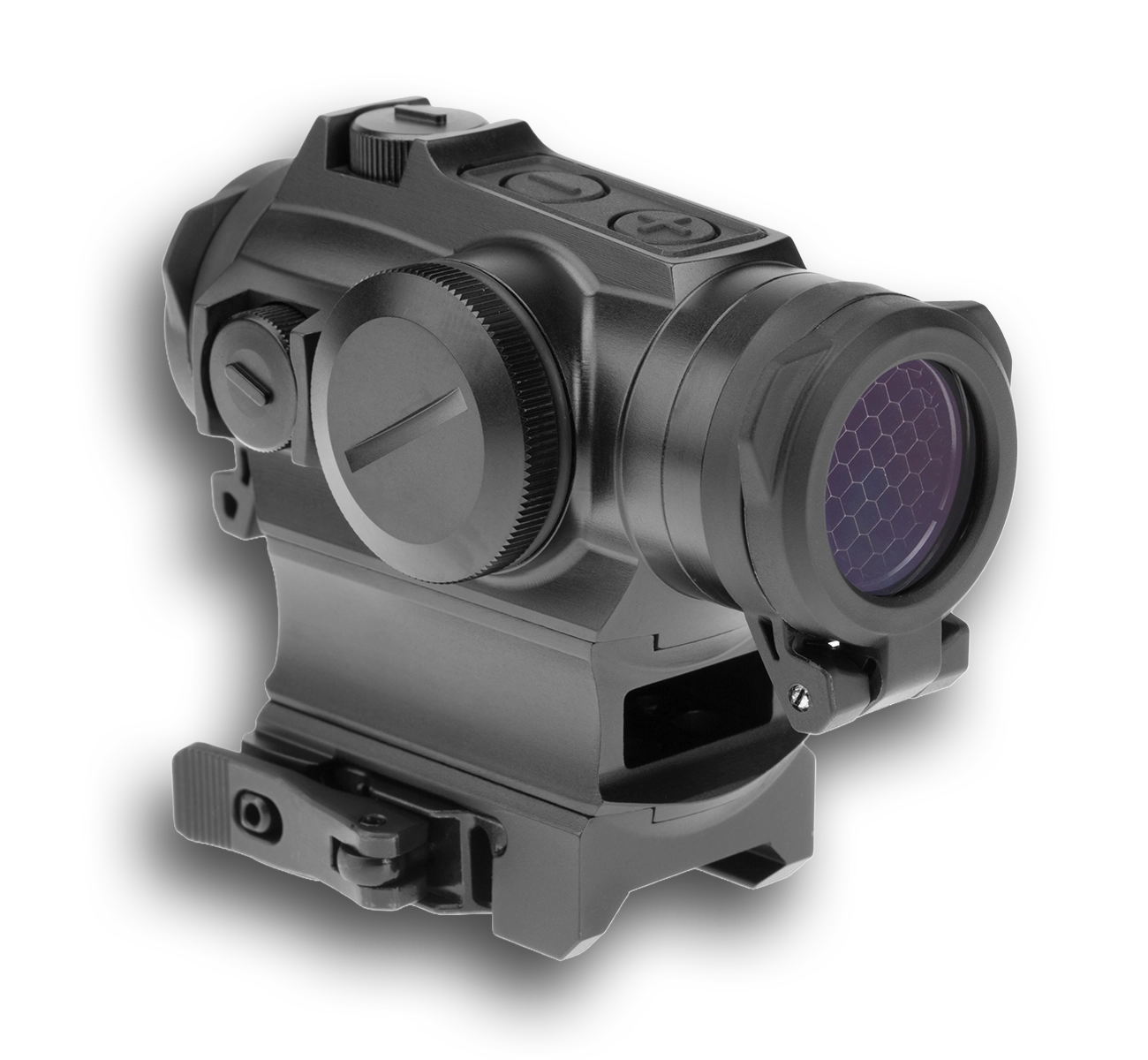

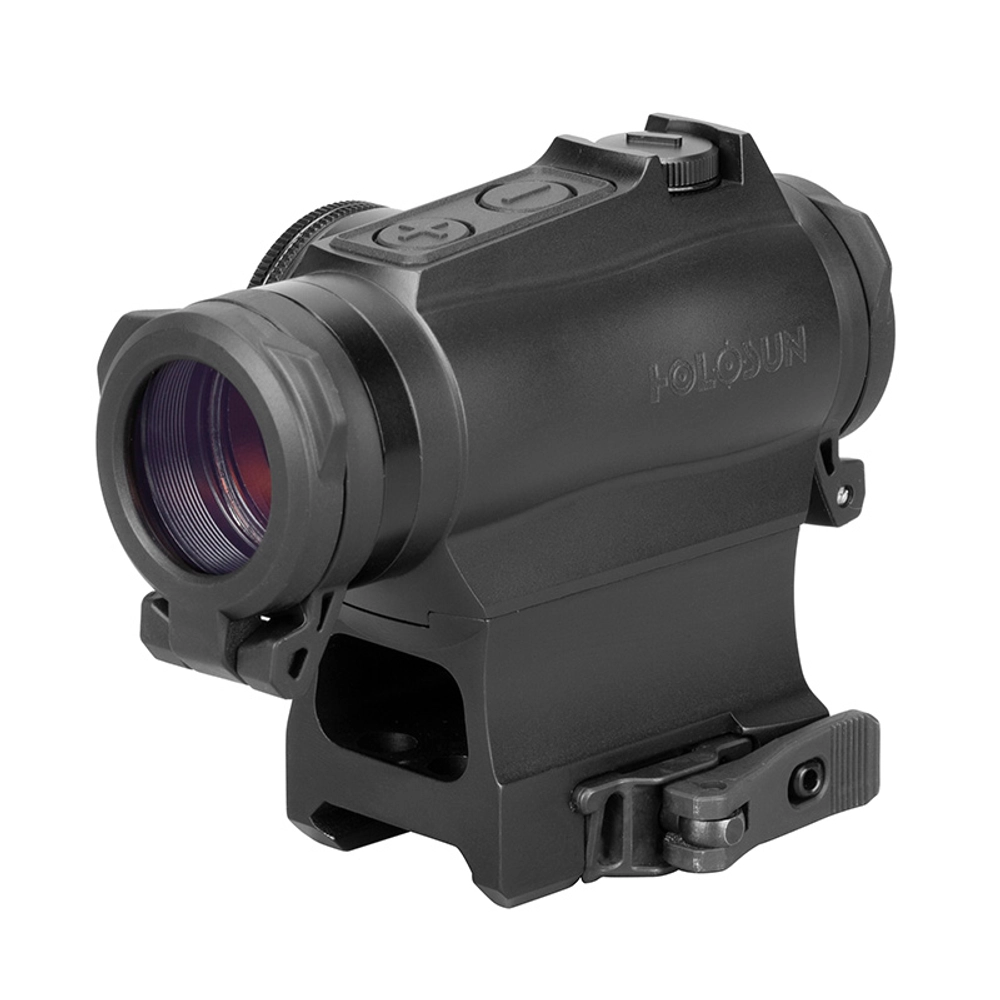

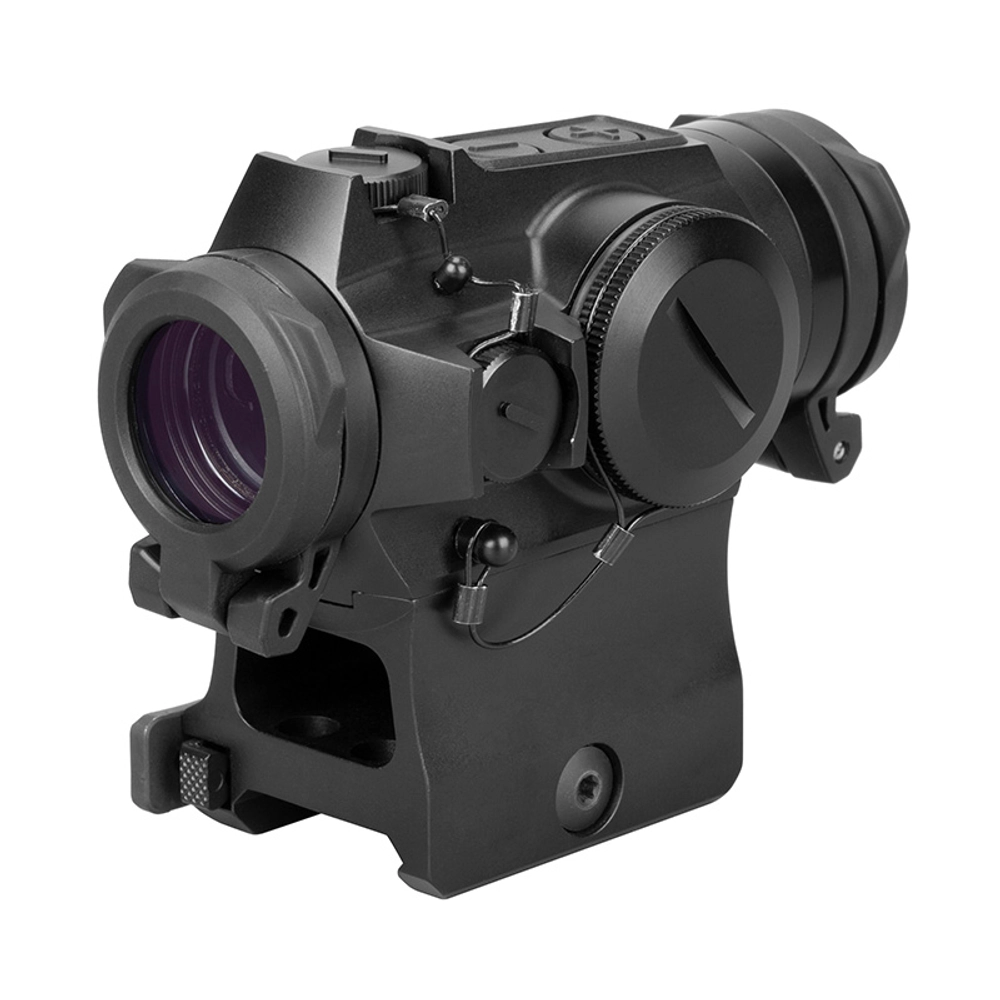

The HS515GM is a rugged micro reflex optic built for rifles and carbines that demand reliability, precision, and a compact footprint.
Its 7075-T6 aluminum housing and Multi-Reticle System, combined with Solar Failsafe, Shake Awake, and a side-loading CR2032 battery, deliver adaptable aiming and dependable performance in demanding environments.
→ Multi-Reticle System (MRS)
Switch between a 2 MOA dot, 65 MOA circle, or circle-dot combination.
→ Red Super LED
Efficient 650nm LED delivers a crisp reticle with up to 50,000 hours of battery life.
→ Solar Failsafe Technology
Uses ambient light for automatic brightness adjustment and backup power.
→ Shake Awake Technology
Motion activation powers the optic on instantly while preserving battery life.
→ 7075-T6 Aluminum Housing
High-strength aluminum construction built for demanding environments.
→ IP68 Environmental Protection
Fully sealed housing protects against water, dust, and harsh conditions.
→ QD Lower 1/3 Co-Witness Mount
Quick detach mount with 1.63 inch dot height for rapid installation and alignment.
Reticle Options
Features
- Red Multi-Reticle System (MRS)
Selectable reticle options include a 2 MOA red dot, 65 MOA circle, or combined circle dot for precision or rapid target acquisition. - Red Super LED Technology
650nm red emitter delivers a crisp reticle with efficient power usage and up to 50,000 hours of battery life. - Solar Failsafe System
Integrated solar panel provides backup power and automatic brightness adjustment in changing lighting conditions. - Shake Awake Technology
Motion activation instantly powers the optic on and powers down during inactivity to preserve battery life. - Tool-Less Side Battery Tray
CR2032 battery compartment allows quick replacement without removing the optic from the mount. - Lower 1/3 Co-Witness QD Mount
Quick detach Picatinny mount with 1.63 inch optic height provides rapid installation and optimal sight alignment. - 7075-T6 Aluminum Housing
Hard anodized aluminum construction provides exceptional durability while maintaining a lightweight micro optic profile. - Integrated Protective Lens Caps
Rotating lens caps protect the optic glass from dust, debris, and environmental exposure. - 12 Brightness Settings
Eight daylight and four night vision compatible brightness levels provide clear reticle visibility in varied lighting conditions. - IP68 Waterproof Construction
Fully sealed optic housing protects internal electronics from water, dust, and extreme environmental conditions.
FUNCTIONS
Selectable Reticle
Yes
Solar Power
Yes
Shake Awake Technology
Yes
Auto Off
Yes
Memory
Yes
Manual Brightness
Yes
Automatic Brightness
Yes
Lockout Mode
Yes
OPTICAL DATA
Light Source
LED
Wavelength
650nm
Reticle
2 MOA Dot & 65 MOA Circle
Magnification
1x
Parallax
No
Unlimited Eye Relief
Yes
Multi-Coatings
Yes
ELECTRONIC DATA
Battery
CR2032
Battery Life (Setting 6)
50,000 Hours
Brightness Setting
8 Daylight & 4 NV
Removable Battery
Yes
Battery Location
Side Tray
MECHANICAL DATA
Housing Material
Titanium
Surface Finish
Titanium Finish
Housing Color
Black
Adjustment Per Click
0.5 MOA
W&E Travel Range
±50 MOA
Storage Terperature
-40°C~70°C
Working Temperature
-30°C~60°C
Submersion
IPX8
Vibration
1000G
PHYSICAL DATA
Window Size (in)
0.78 Diameter
Dimension (in) Body
2.75" x 1.43" x 1.63"
Body (oz) Weight
3.74 oz
Fitment
Direct Mount
Picatinny Rail
In The Box
HS515GM
Lens Cloth
Multi-Tool
Manual
Warranty Card
