IRIS-RD1

MSRP $352.93

- Overview -

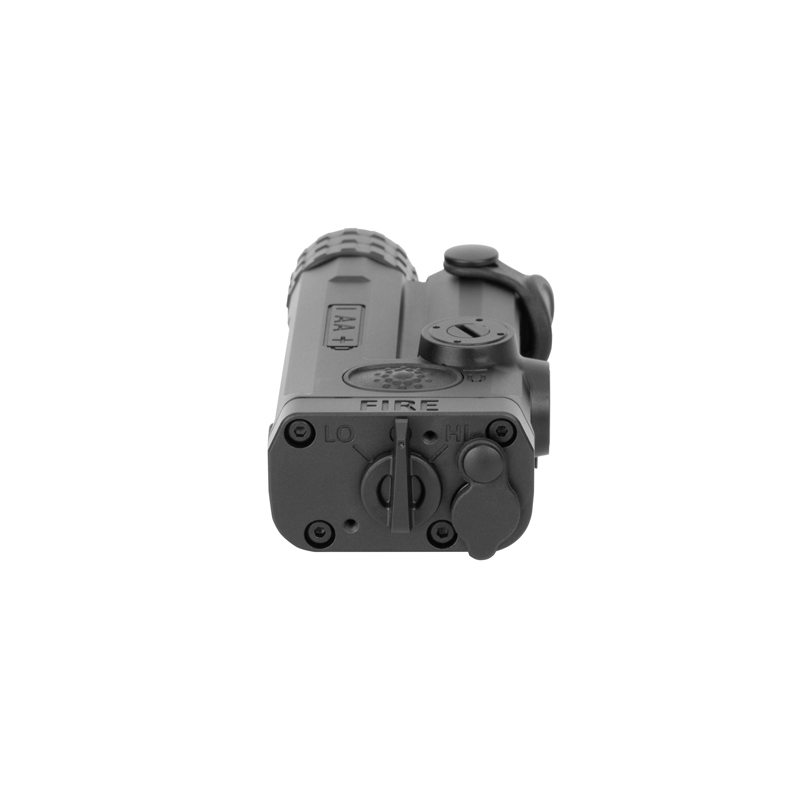

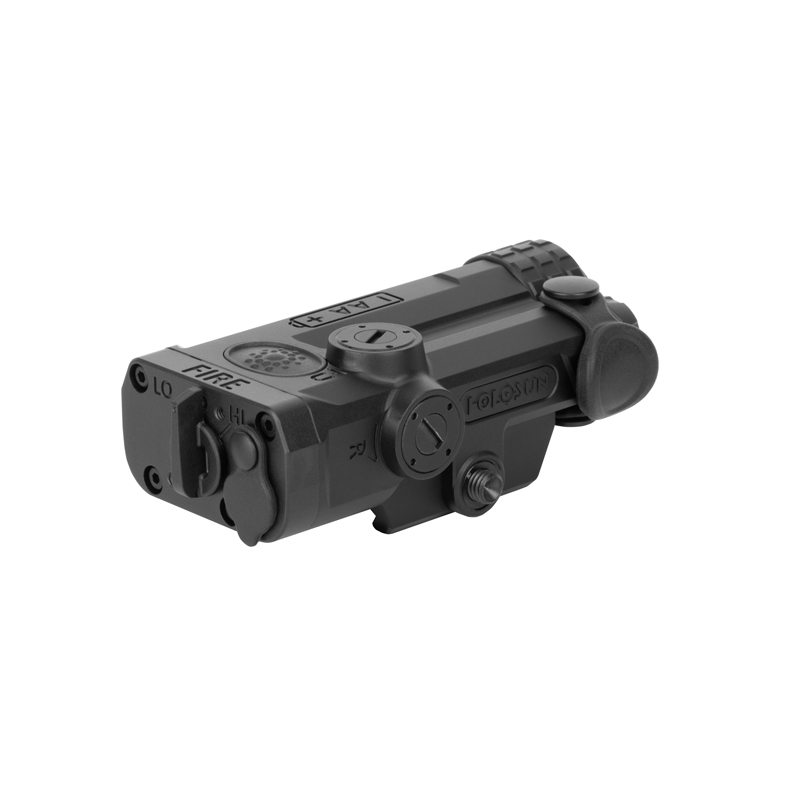

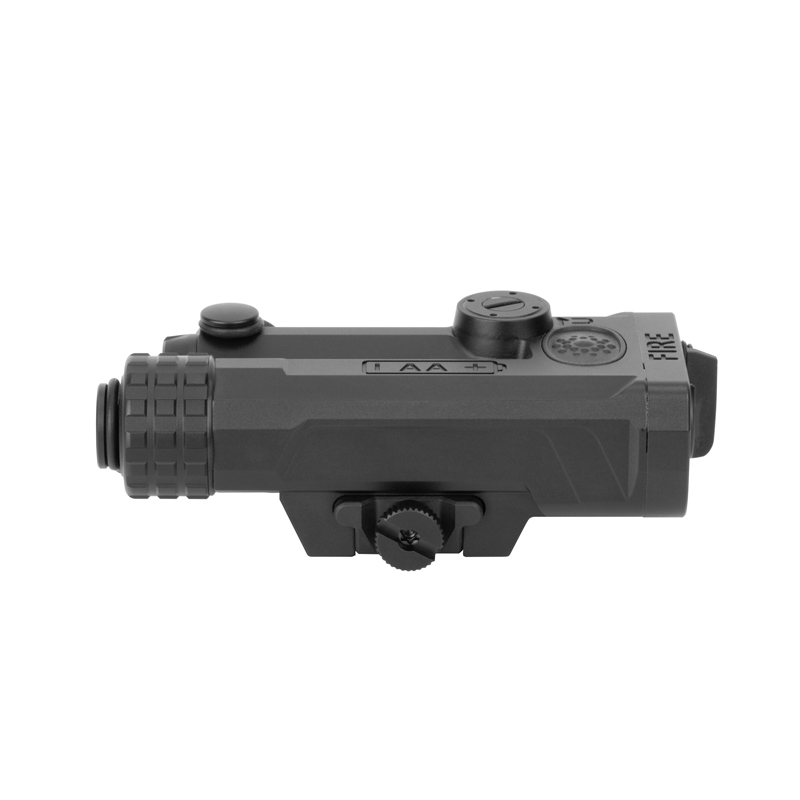

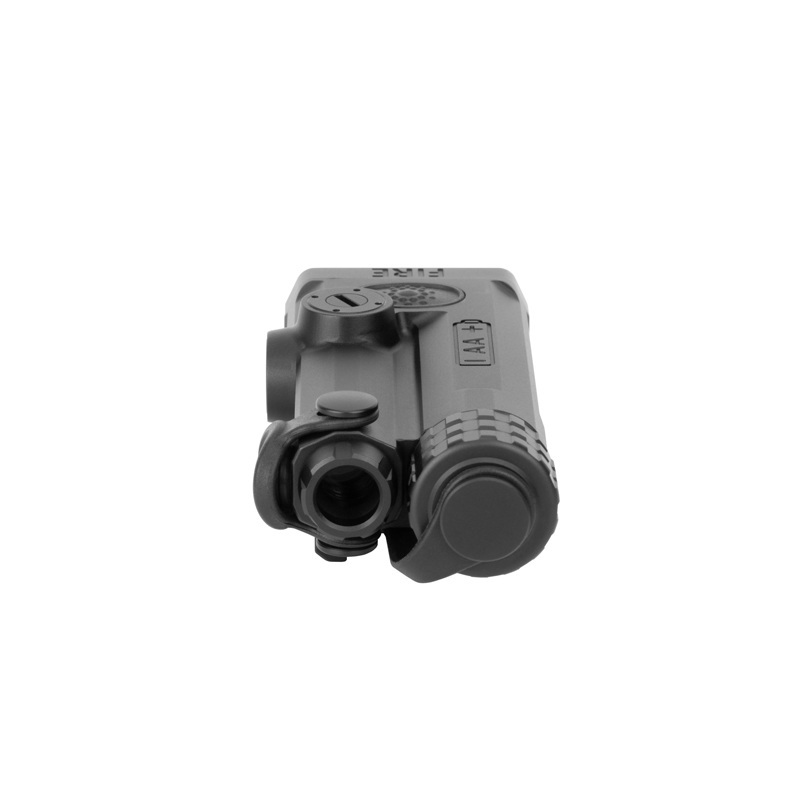

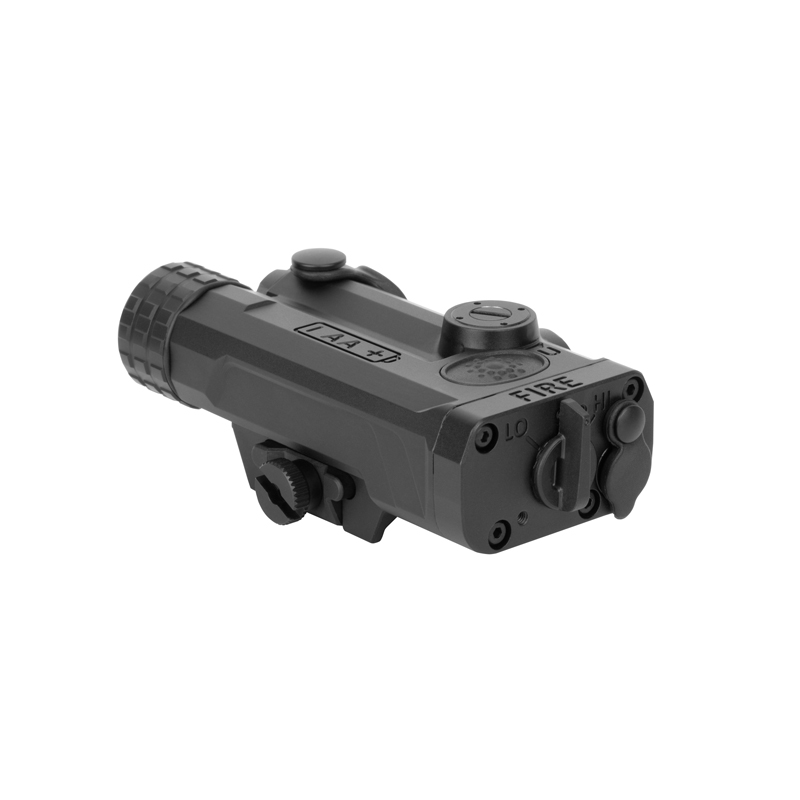

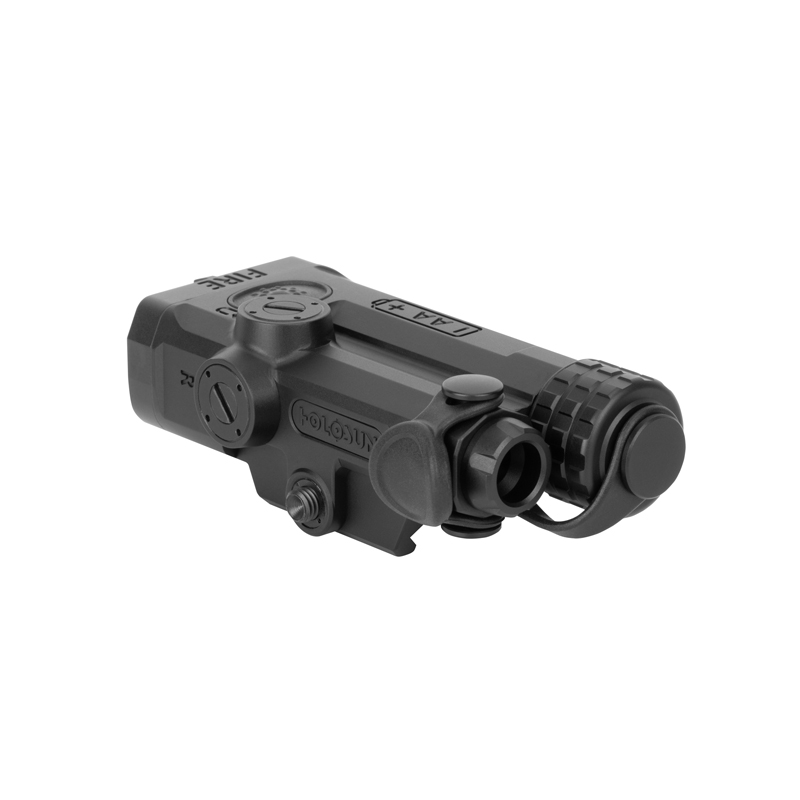

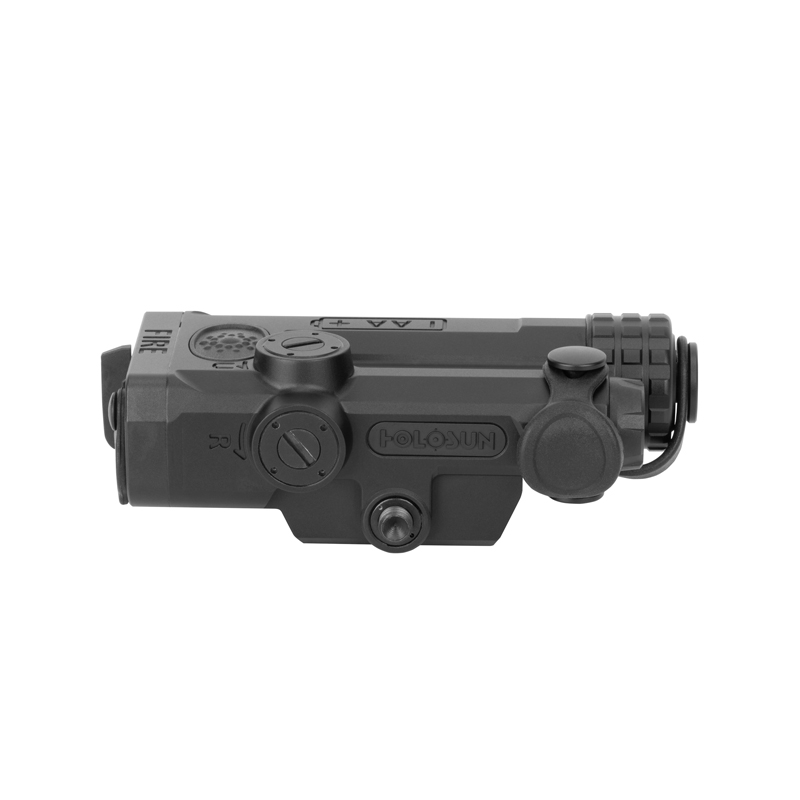

The Holosun IRIS-RD1 is a compact, single-function red laser aiming device designed for users who demand reliable performance in a lightweight, low-profile form. Built with a redesigned 7075-T6 aluminum housing, the IRIS-RD1 achieves a 33% weight reduction and 20% lower profile compared to the popular LS117 series—making it ideal for modern rifles and compact platforms.

The IRIS-RD1 features a red class 3R laser with a 635nm wavelength and 5mW output, providing a crisp and visible aiming laser. New enhancements include a top mounted on-board fire button with momentary and constant ON modes, a rear-facing power and mode selector, and a single button remote activation switch with a Crane-style plug for maximum flexibility.

Whether you’re outfitting a duty rifle or optimizing for lightweight performance, the IRIS-RD1 delivers simple, rugged functionality in a premium, minimalist package.



Items Dimensions (in inches)

In the Box

  • 1x IRIS-RD1
  • 1x Single Button Pressure Pad

- Specification -

ELECTRONIC SPECS

Power Source Battery
Battery Type AA
Battery Life (Hours) Up to modes
Thermal Modes N/A
Digital Modes N/A
Video Recording N/A
Screen Refresh Rate N/A
Digital Screen N/A
Brightness Setting High & Low

PHYSICAL SPECS

Window Size N/A
Dimension (in) 3.4×1.6×1.2
Weight (oz) 4.6

MECHANICAL SPECS

Housing Material 7075 T6 Aluminum
Surface Finish Hard Anodize
Adjustment per Click 0.5 MOA
W&E Travel Range ±50 MOA

ENVIRONMENT SPECS

Storage Temperature -40℃~70℃
Working Temperature -20℃~51℃
Submersion IPX8
Vibration 1000G

ILLUMINATOR SPECS

White LED Candela N/A
Laser & Illuminator Type Single Laser
White LED Output N/A
IR Illuminator Class N/A
IR Illuminator Output N/A
IR Pointer Class N/A
IR Pointer Output N/A
Visible Laser Class 3R
Visible Laser Output <5mW
