SCRS-RD-MRS
Solar Charging - Enclosed Rifle Sight

SCRS-RD-MRS

$317.64

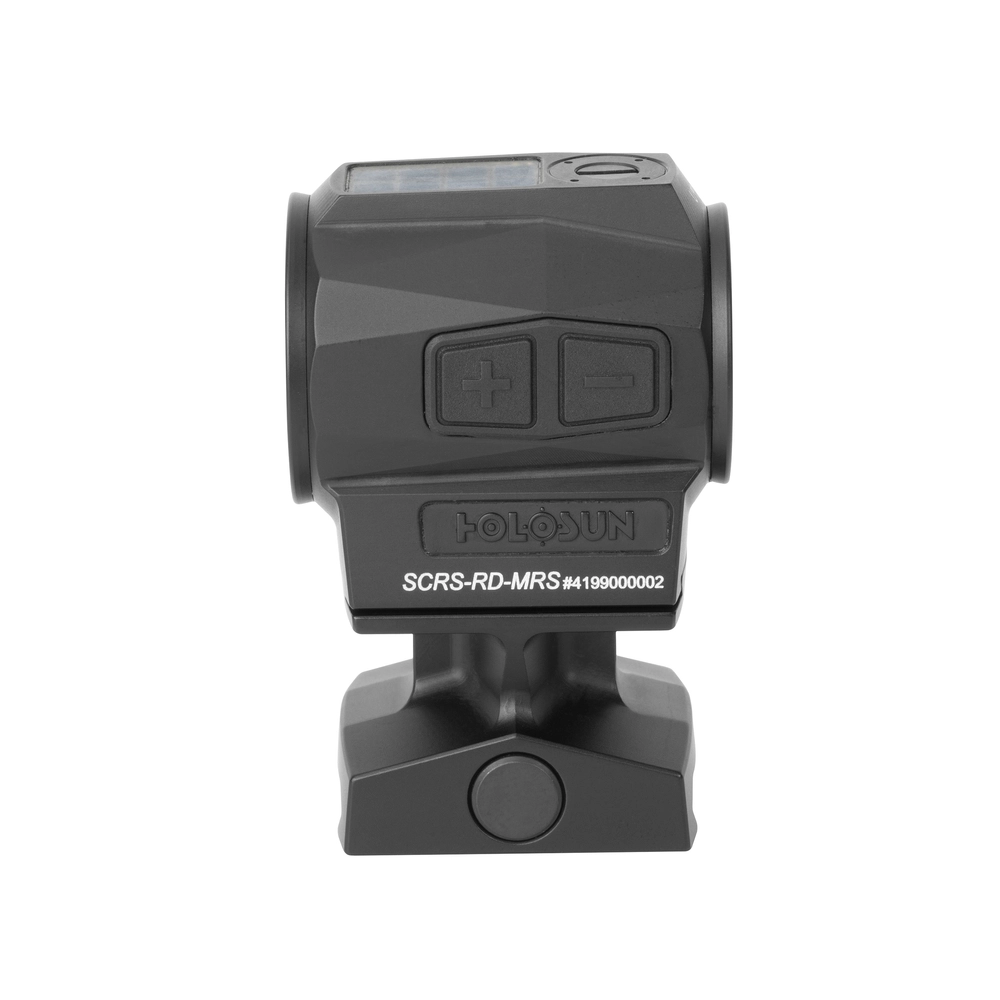

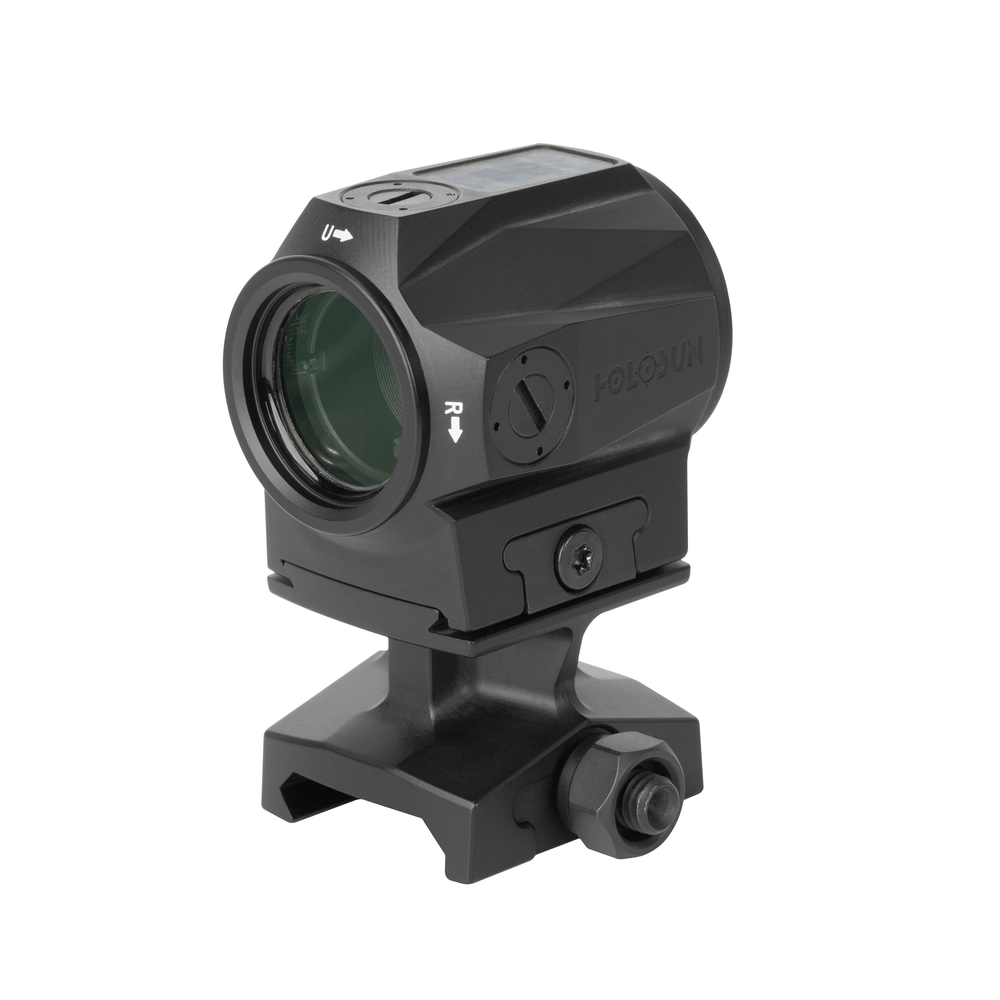

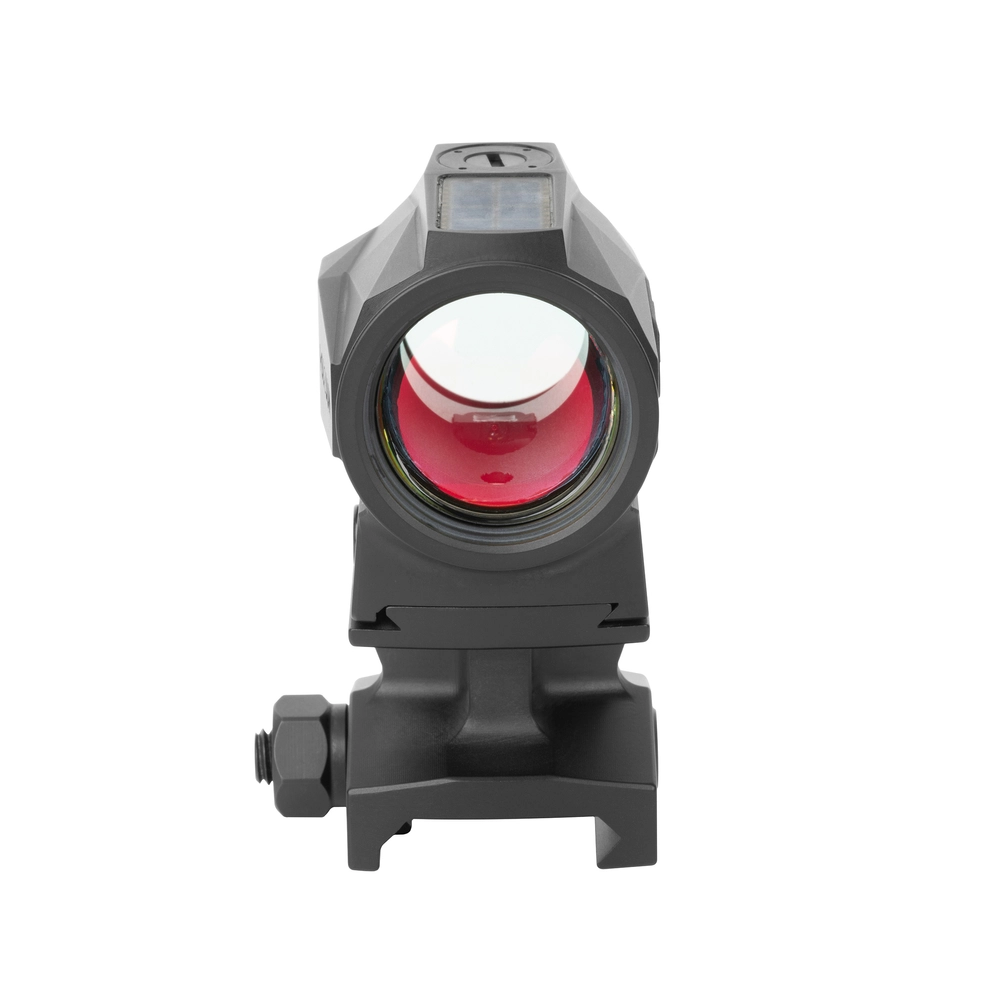

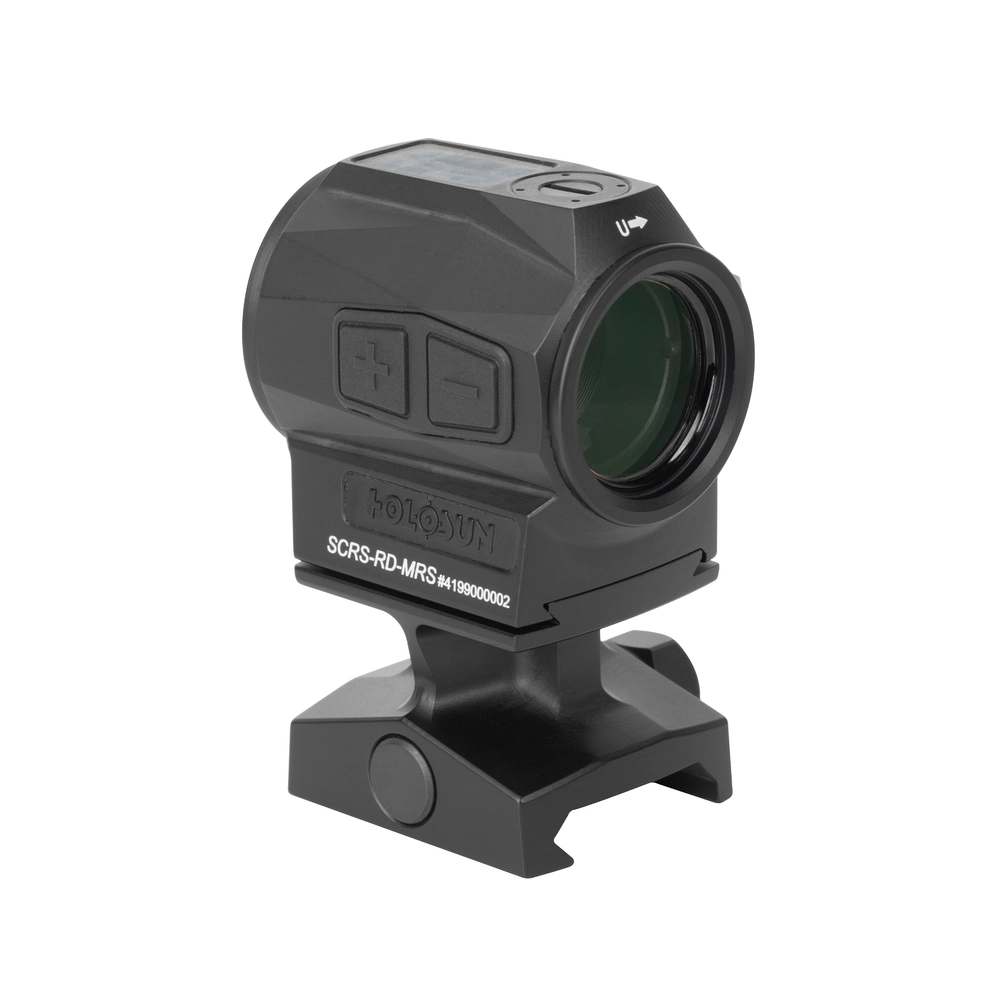

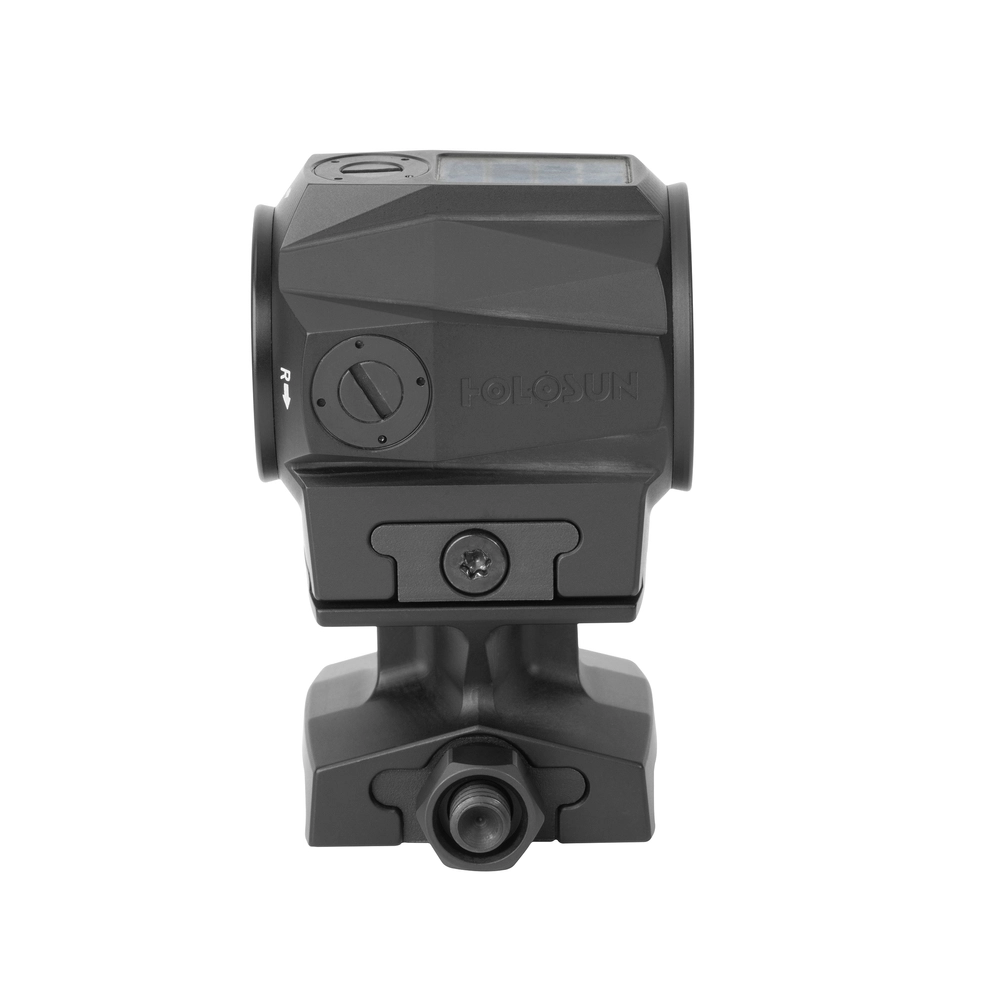

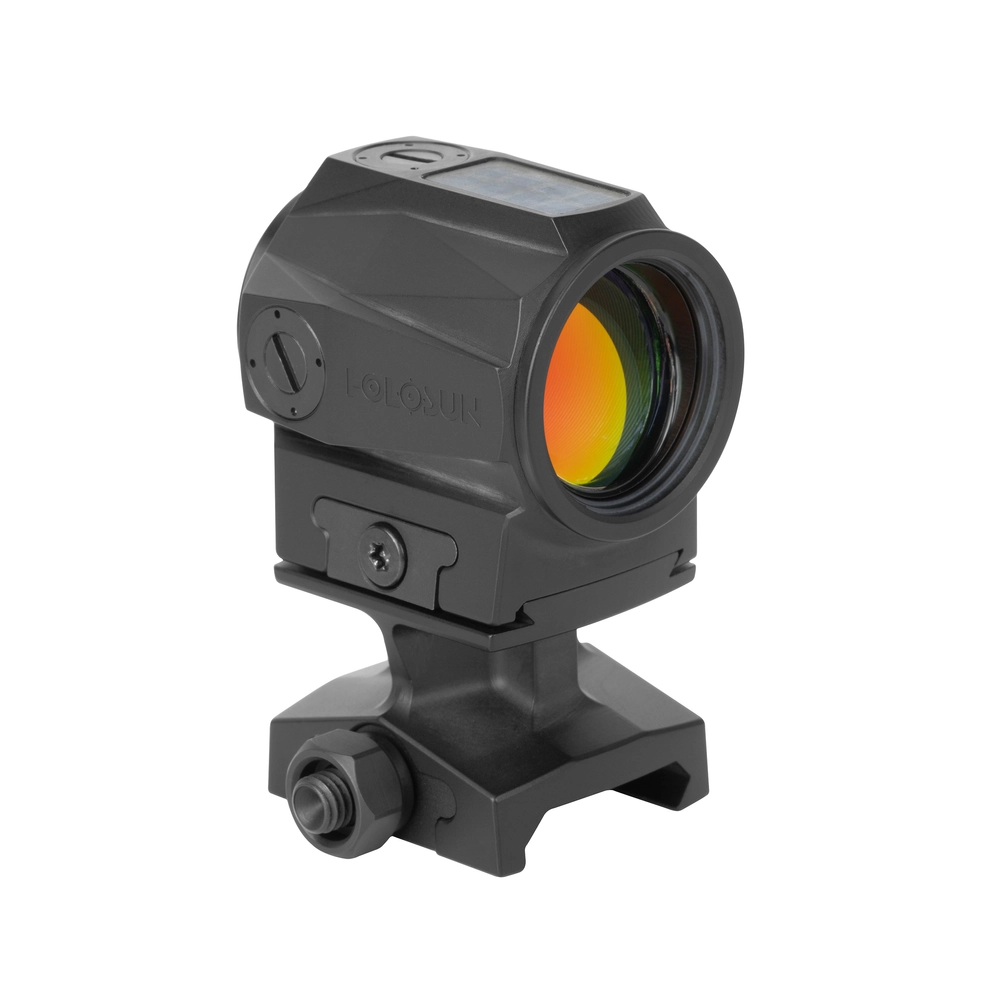

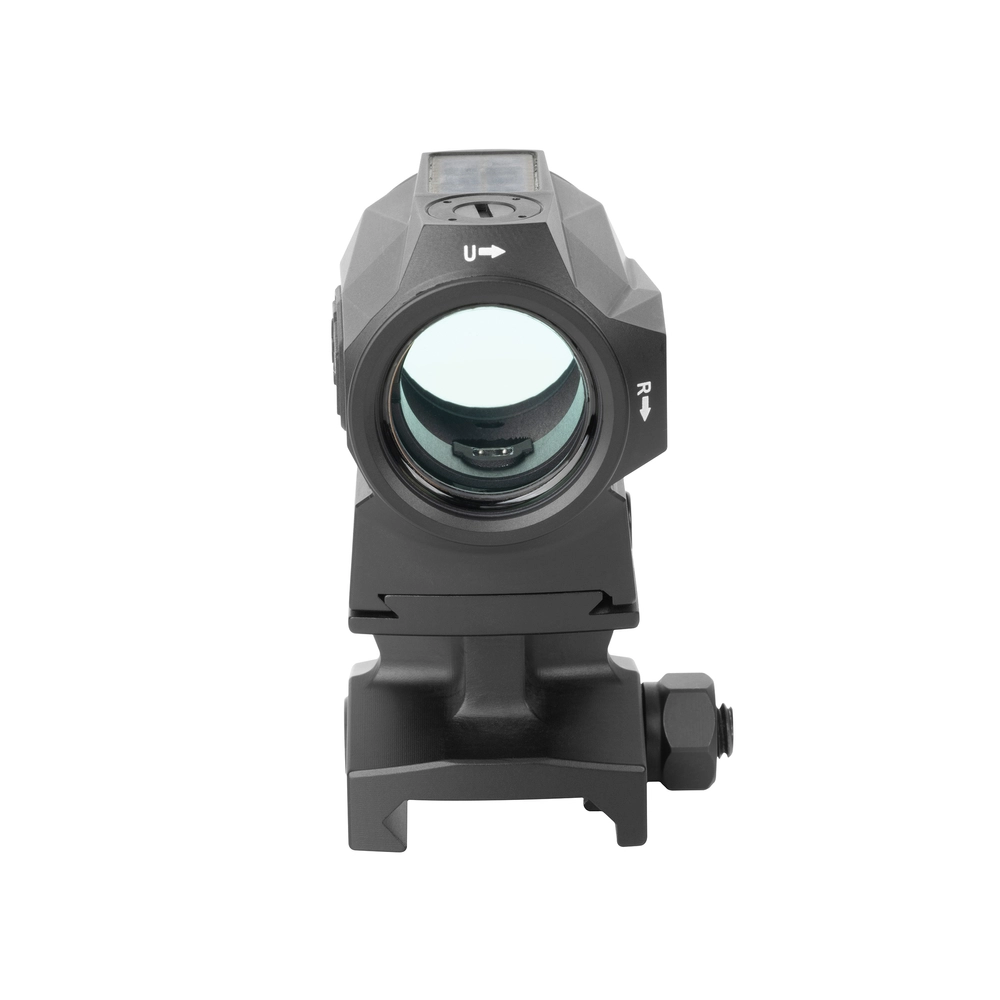

The SCRS-RD-MRS is a compact 20mm solar-powered rifle optic built around Holosun’s Solar Charging Sight (SCS) technology for automatic brightness control and extended runtime.

Its Red Multi-Reticle System, internal rechargeable battery, and 7075-T6 aluminum housing with 509T footprint compatibility provide a durable, low-maintenance optic for modern rifle platforms.

Solar Charging Sight Technology
Integrated solar panel and internal rechargeable battery provide continuous operation with up to 20,000 hours of runtime.

Multi-Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle-dot combination for versatile aiming solutions.

Automatic & Manual Brightness Control
Auto Mode adjusts brightness automatically while 8 daylight and 4 night vision settings allow manual control.

509T Footprint Compatibility
Compatible with offset red dot mounts and piggyback scope mounting solutions.

Lower 1/3 Co-Witness Mount
Includes a 1.63 inch riser mount for optimal rifle sight alignment.

Rugged 7075 Aluminum Housing
Hard-anodized construction with IP67 waterproof rating and 1000G vibration resistance.

series

SCRS-RD-MRS - MAIN 1
SCRS-RD-MRS - MAIN 1
Multi-Reticle System

Reticle Options

Find A DEALER
SCRS Series

SCRS-RD-MRS

Features

  • Red Multi-Reticle System
    Features a red 2 MOA dot and 65 MOA circle reticle, allowing shooters to select a dot, circle, or circle-dot configuration for precision or rapid target acquisition.
  • Solar Charging Sight Technology
    Integrated solar panel with internal rechargeable battery enables continuous operation without the need for battery replacement.
  • Automatic Brightness Adjustment
    Built in Auto Mode uses ambient light sensors to automatically adjust reticle brightness based on surrounding lighting conditions.
  • Manual Brightness Control
    Manual mode allows shooters to fine tune brightness across 12 intensity settings for optimal reticle visibility.
  • 20,000 Hour Runtime
    Internal rechargeable power system delivers up to 20,000 hours of runtime on brightness setting 6.
  • 509T Footprint Compatibility
    Designed with a 509T footprint, enabling compatibility with offset red dot mounts and piggyback scope mounting systems.
  • Lower 1/3 Co-Witness Mount
    Includes a 1.63 inch riser mount providing a comfortable lower 1/3 co-witness with standard AR height iron sights.
  • Shake Awake Technology
    Motion sensing illumination automatically activates the optic when movement is detected to preserve power.
  • 7075 T6 Aluminum Housing
    Precision machined 7075 aluminum construction provides exceptional durability and structural strength.
  • IP67 Waterproof Rating
    Sealed optic design protects against water intrusion and harsh environmental conditions.
  • 1000G Shock Resistance
    Engineered to withstand recoil and demanding environments while maintaining reliable performance.

FUNCTIONS

Selectable Reticle

Yes

Solar Power

Yes

Shake Awake Technology

Yes

Auto Off

No

Memory

Yes

Manual Brightness

Yes

Automatic Brightness

Yes

Lockout Mode

Yes

OPTICAL DATA

Light Source

LED

Wavelength

540nm

Reticle

2 MOA Dot & 32 MOA Circle

Magnification

1x

Parallax

No

Unlimited Eye Relief

Yes

Multi-Coatings

Yes

ELECTRONIC DATA

Battery

Internal Rechargable

Battery Life (Setting 6)

20,000 Hours

Brightness Setting

8 Daylight & 4 NV

Removable Battery

No

MECHANICAL DATA

Housing Material

7075 T6 Aluminum

Surface Finish

Anodized

Housing Color

Black

Adjustment Per Click

1 MOA

W&E Travel Range

±50 MOA

Storage Terperature

-40°C~70°C

Working Temperature

-30°C~60°C

Submersion

IPX8

Vibration

1000G

PHYSICAL DATA

Window Size (in)

0.91" x 1.26"

Dimension (in) Body

3.35" x 1.63" x 1.7"

Body (oz) Weight

9.17 oz

Fitment

Optic Footprint

509T

Direct Mount

Picatinny Rail

In The Box

SCRS-RD-MRS

Len Cloth

Multi-Tool

Manual

Warranty Card

Discover The Holosun Difference

Latest Products

ARO-CORE-RD2 + HM3X
ARO-CORE-RD2 + HM3X
Red Dot - Enclosed Rifle Sight - 3x Magnifier
ARO-EVO-GD-2
ARO-EVO-GD-2
Enclosed Rifle Sight

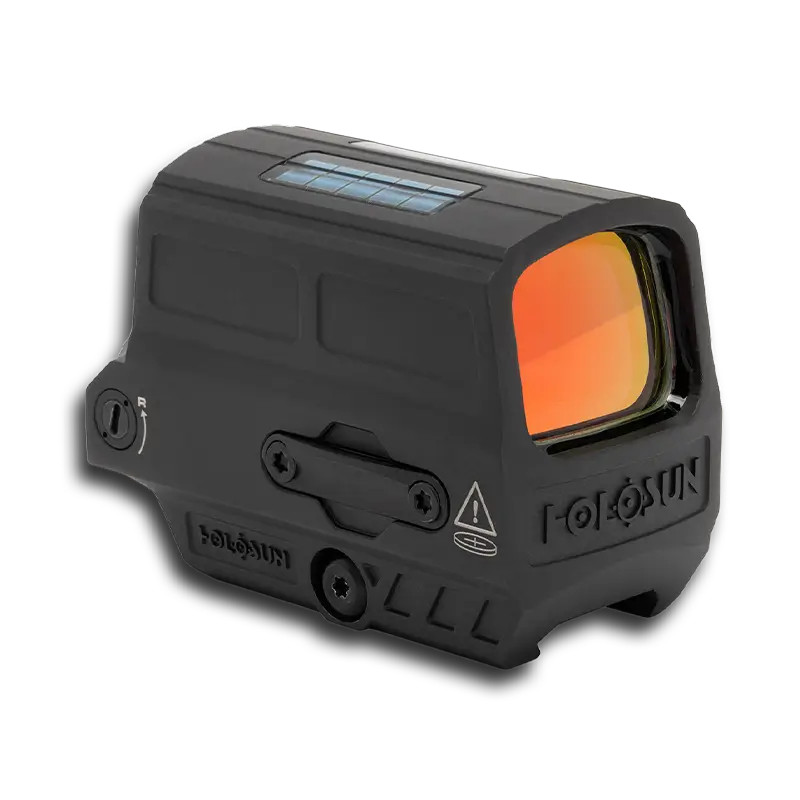

HE515GT-GR
